PVC/WPC windows and doors making machine line with inverter speed control and Omron intelligent temperature controller..
WPC Profile Production Line
PVC WPC Windows and Doors Making Machine Line
PVC/WPC windows and doors making machine line with inverter speed control and Omron intelligent temperature controller. Low power consumption (25kw/hour), reliable electrical components from Siemens, ABB, Schneider, and DELIXI. Suitable for large-scale production of PVC skirting boards, door profiles, corner beads, and moldings with customizable surface treatments.
SJSZ51/105-65/132 Extruder model
2200-3500kg / 24h Capacity
Overview
Application range
Outdoor garden decking and railing, Interior wall and ceiling decoration, Furniture and cabinet panels
Range and output
SJSZ51/105-65/132 extruder model with 2200-3500kg / 24h output reference.
Core configuration
Conical twin screw extruder, Profile extrusion mould, Calibration mould, Vacuum calibration table
Machine video
Watch machine video
Applications
Process flow
01
Raw material mixing 02
Feeding 03
Conical twin screw extruder 04
Profile mould 05
Vacuum calibration table 06
Haul-off unit 07
Cutting machine 08
Stacker 09
Printing / lamination Line composition
01 Conical twin screw extruder

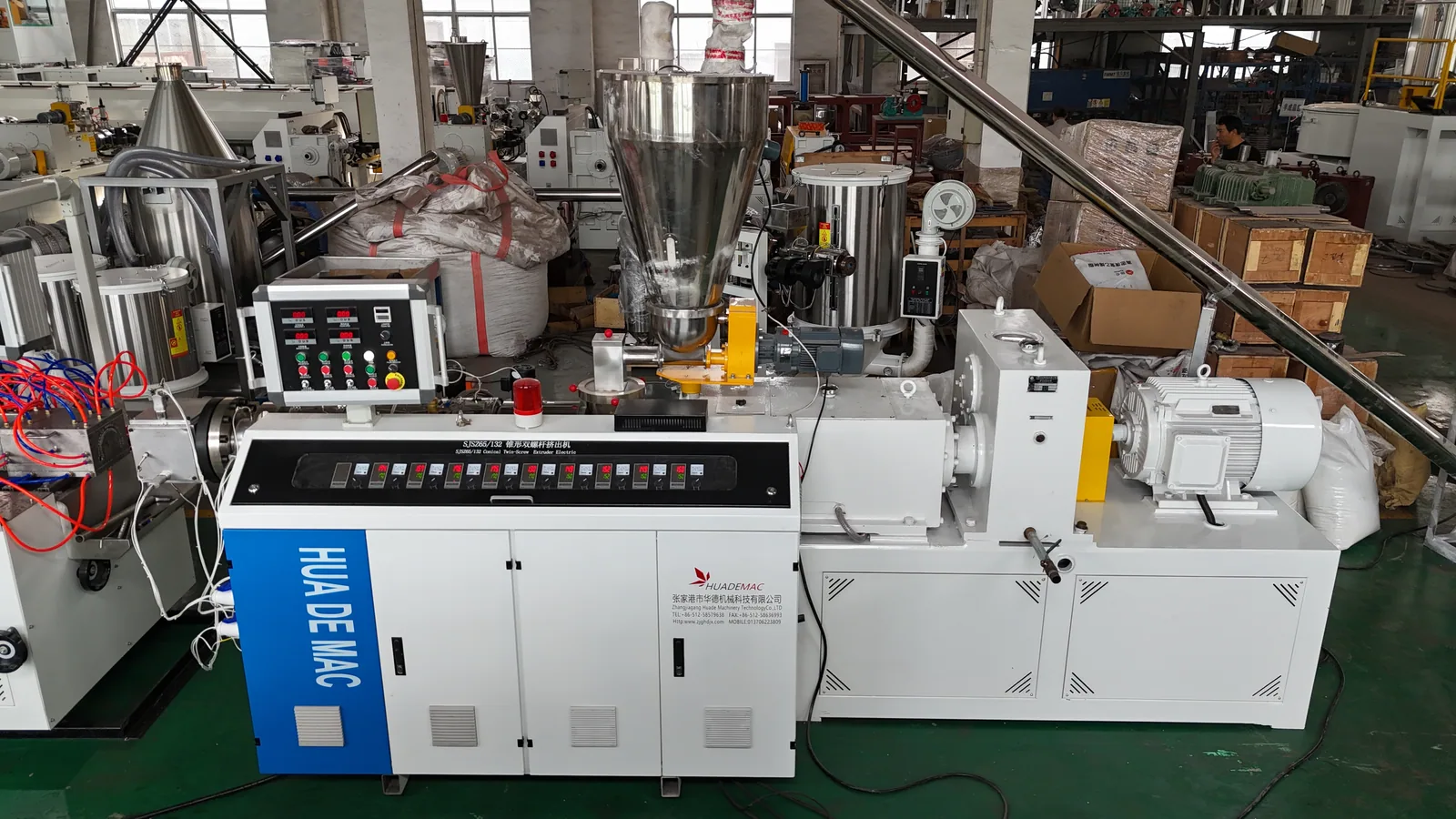

Core extrusion unit with inverter speed control and intelligent temperature control.
02 Profile extrusion mould

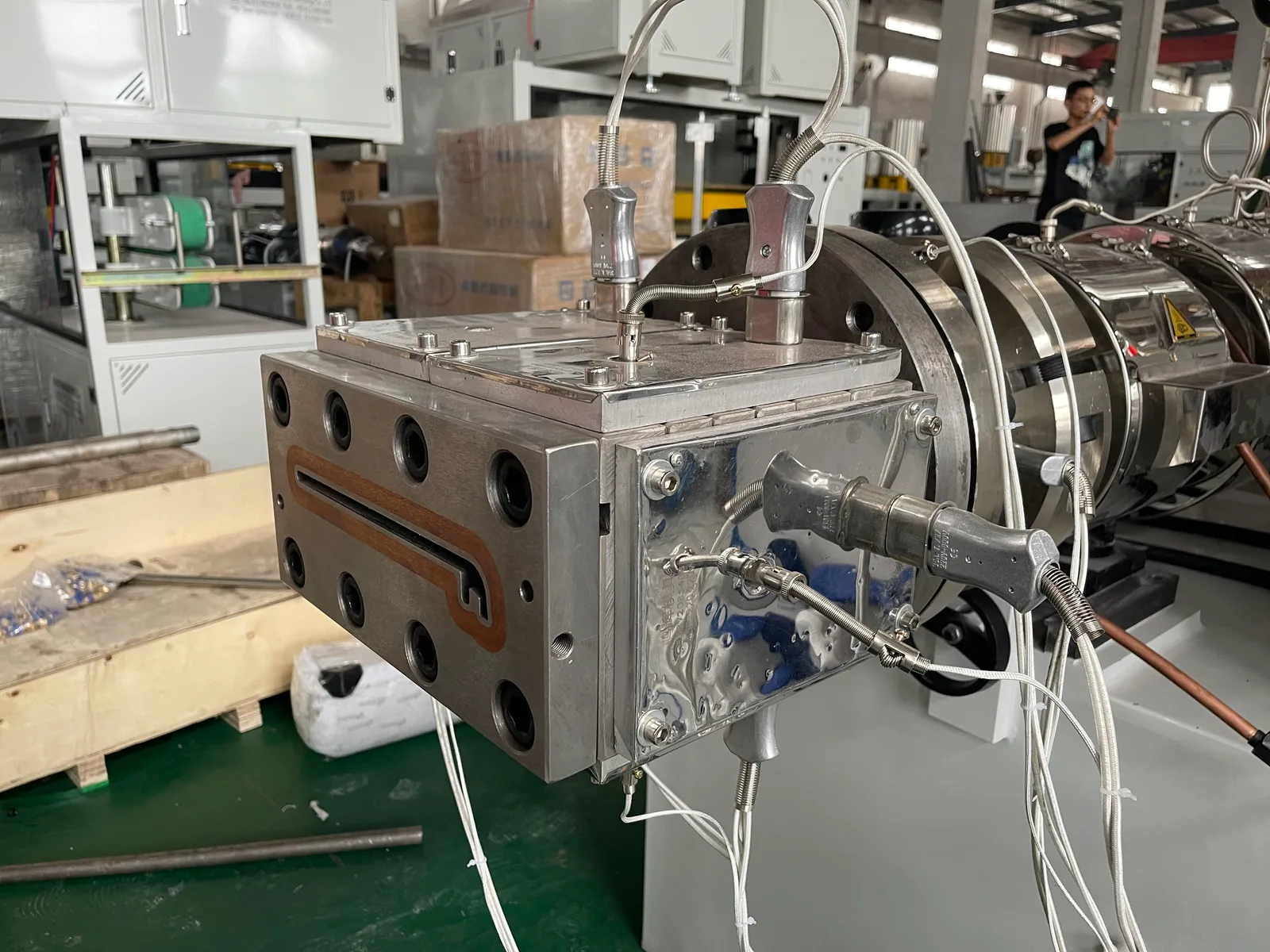

Forms the required profile section for skirting board, door profile, corner bead and mouldings.
03 Calibration mould
Stabilizes the profile shape after extrusion before vacuum calibration.
04 Vacuum calibration table

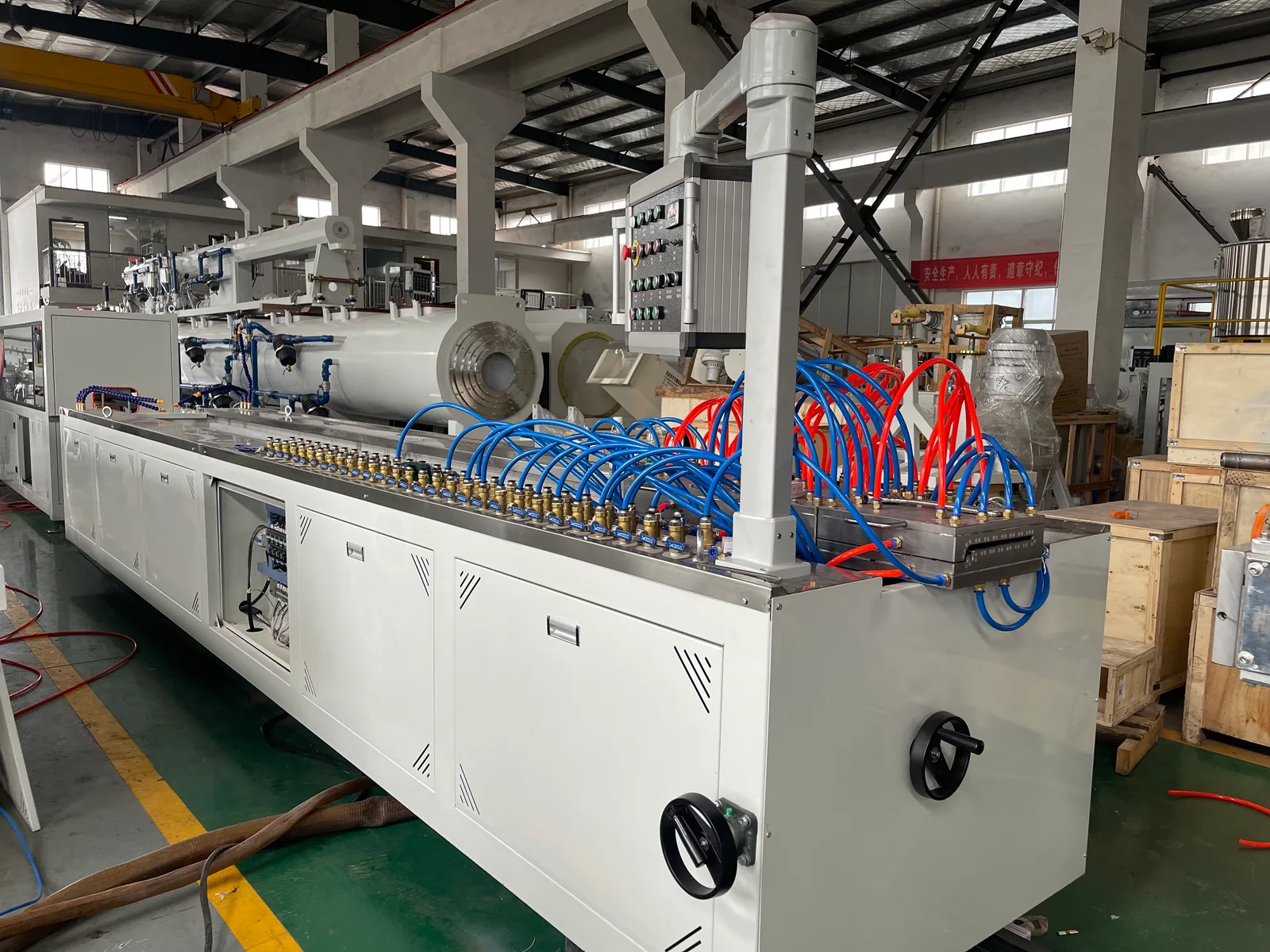

Cools and sizes the profile for stable downstream traction and cutting.
05 Haul-off machine

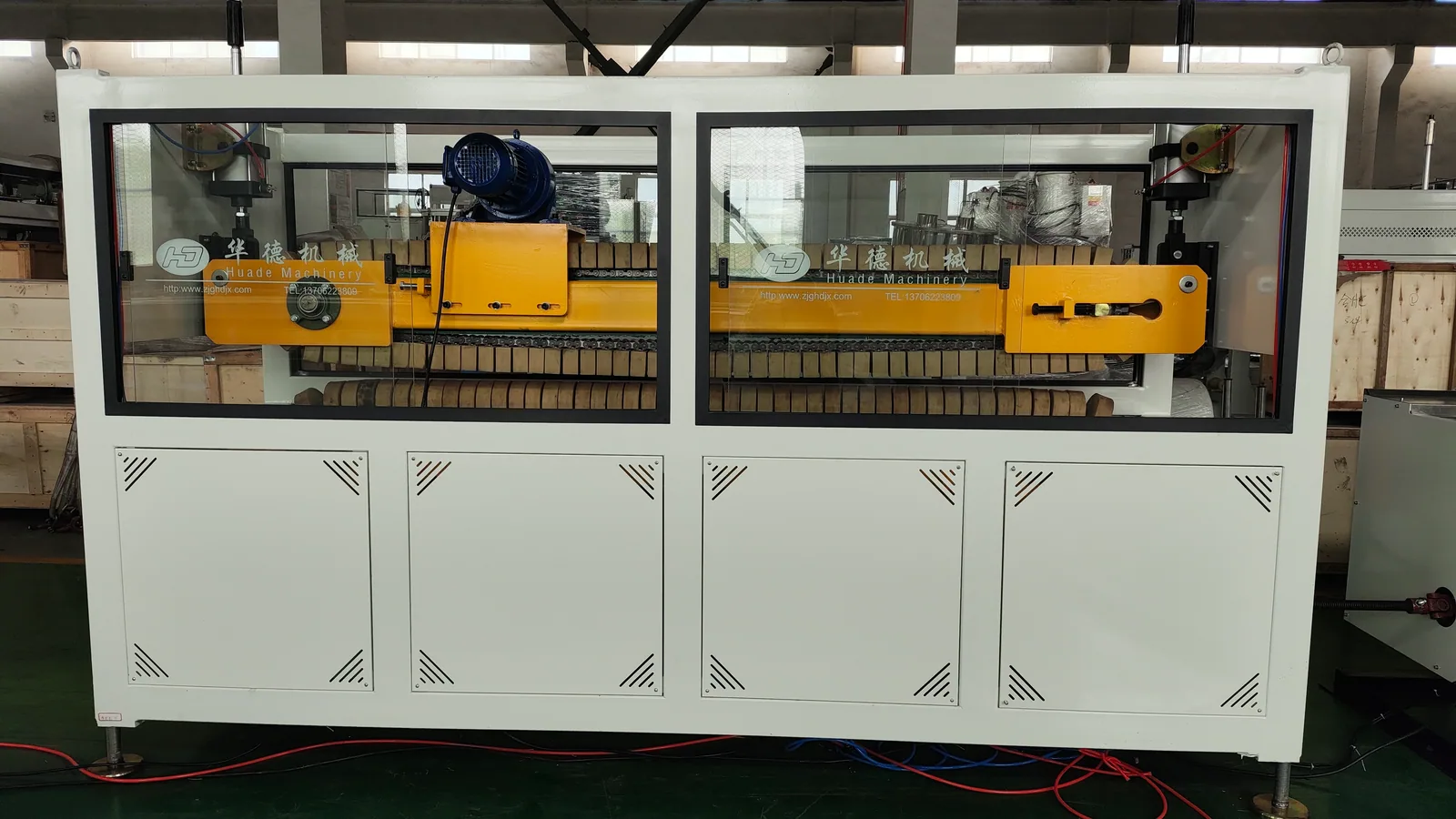

Pulls profiles at synchronized speed to maintain shape and surface quality.
06 Cutting machine

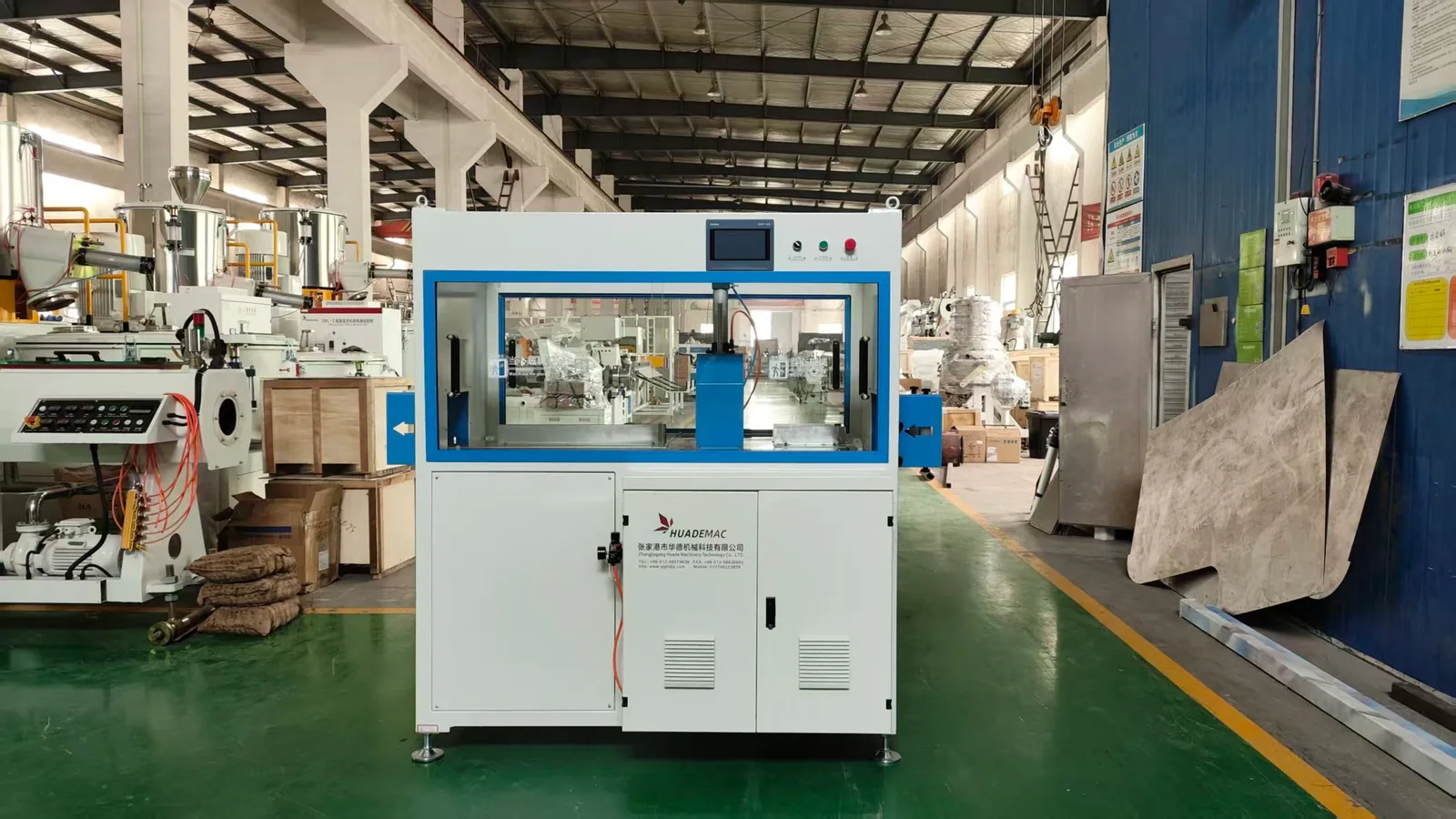

Cuts continuous PVC/WPC profiles to fixed lengths after haul-off.
07 Profile stacker
Collects cut profiles for inspection, packing and surface treatment.
01 Conical twin screw extruder
Core extrusion unit with inverter speed control and intelligent temperature control.
02 Profile extrusion mould
Forms the required profile section for skirting board, door profile, corner bead and mouldings.

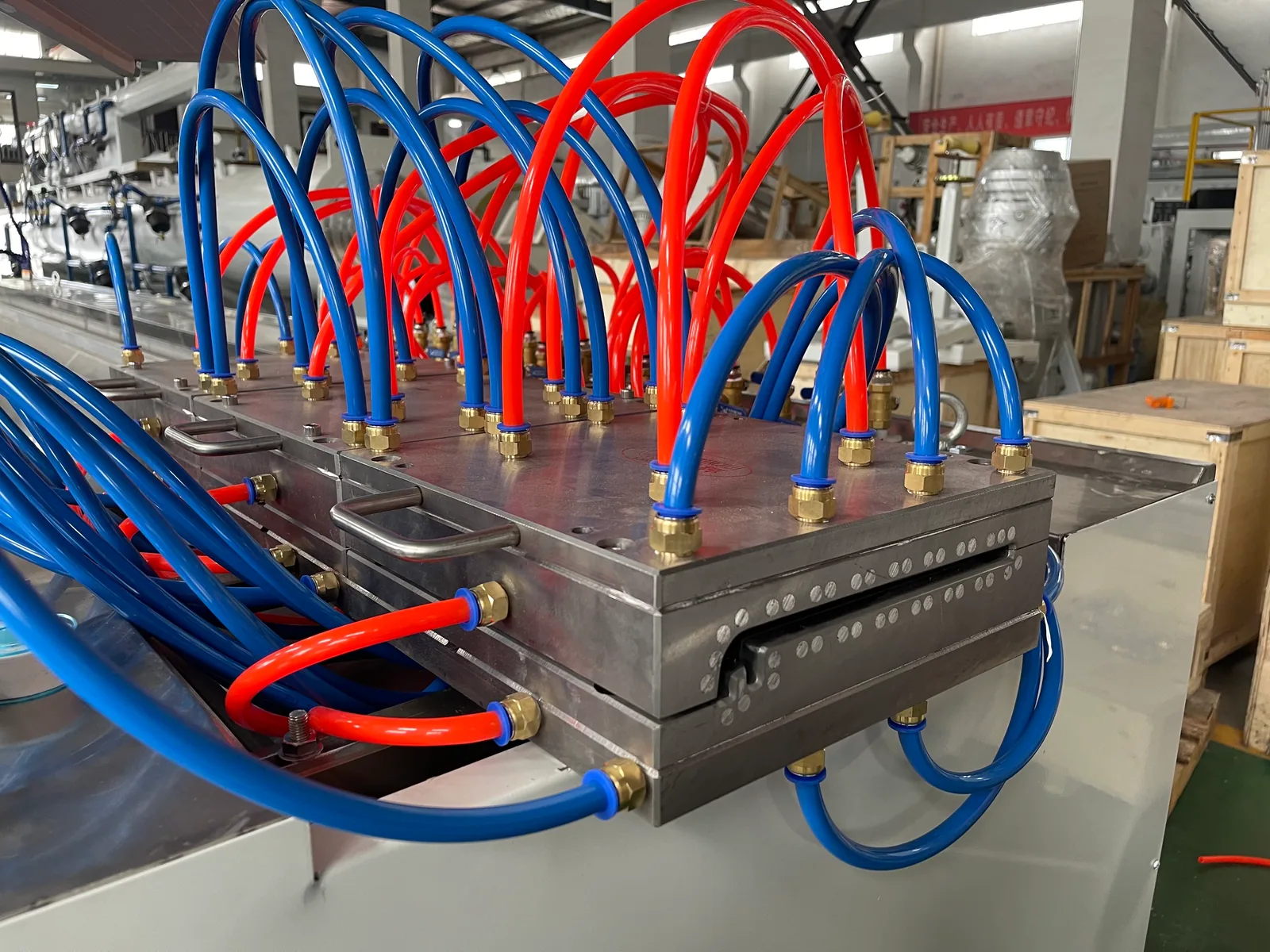

03 Calibration mould
Stabilizes the profile shape after extrusion before vacuum calibration.
04 Vacuum calibration table
Cools and sizes the profile for stable downstream traction and cutting.
05 Haul-off machine
Pulls profiles at synchronized speed to maintain shape and surface quality.
06 Cutting machine
Cuts continuous PVC/WPC profiles to fixed lengths after haul-off.

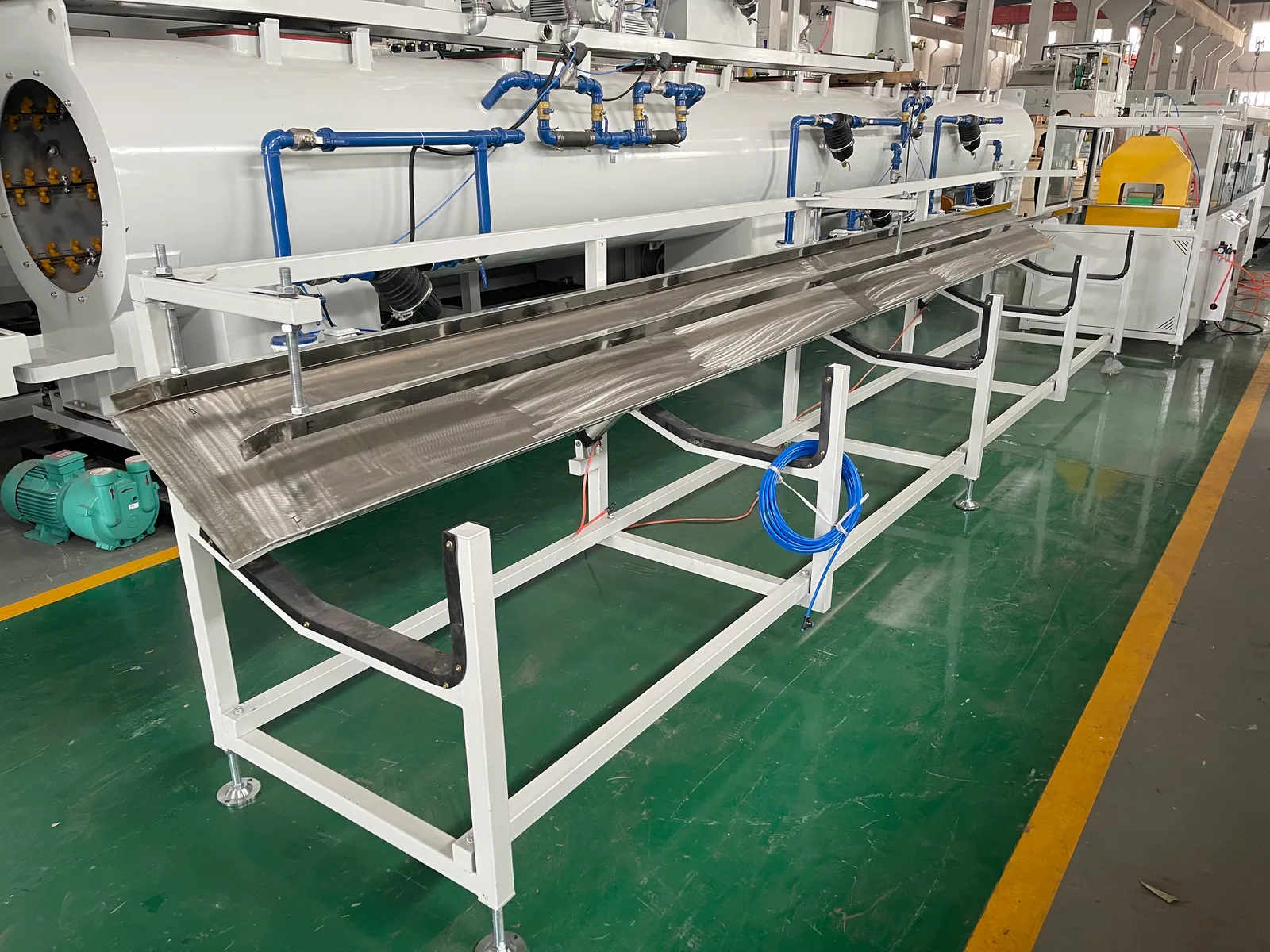

07 Profile stacker
Collects cut profiles for inspection, packing and surface treatment.
Configuration highlights
Inverter speed control saves power and makes line speed adjustment easier.
Application reference: Outdoor garden decking and railing.
Omron intelligent temperature controller supports automatic and accurate extruder temperature adjustment.
Application reference: Interior wall and ceiling decoration.
Minimum total production line consumption is referenced at 25kW per hour in the Word source.
Application reference: Furniture and cabinet panels.
Electrical parts can include Siemens or ABB frequency controller, Omron or RKC temperature controller, Schneider or Siemens AC contactor, Schneider overload relay and DELIXI or Schneider switches.
Matched according to material, output and project configuration.
Printing and lamination can create marble or wood-grain profile surfaces for interior matching.
Matched according to material, output and project configuration.
Reference extruder models include SJSZ51/105, SJSZ55/110 and SJSZ65/132.
Matched according to material, output and project configuration.
Technical parameters
Product type PVC WPC Windows and Doors Making Machine Line
Extruder models SJSZ51/105 / SJSZ55/110 / SJSZ65/132
Capacity per 24h 2200-3500kg
Motor power 15-37kW
Power consumption 25kW/h minimum reference
Surface treatment Printing / lamination
| Model | 51/105 | 55/110 | 65/132 |
|---|---|---|---|
| Extruder | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 |
| Capacity per 24h | 2200kg | 3000-3500kg | 3000-3500kg |
| Motor power | 15kw | 22kw | 37kw |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
Which extruder models are listed in the Word specification?
The Word table lists SJSZ51/105, SJSZ55/110 and SJSZ65/132, with motor power of 15kW, 22kW and 37kW respectively.
What capacity does this PVC WPC production line reference?
The Word table gives 2200kg per 24 hours for SJSZ51/105, and 3000-3500kg per 24 hours for SJSZ55/110 and SJSZ65/132.
What electrical parts are referenced?
The Word source references Siemens or ABB main motor frequency controller, Omron or RKC temperature controller, Schneider or Siemens AC contactor, Schneider thermal overload relay, and DELIXI or Schneider switches.
