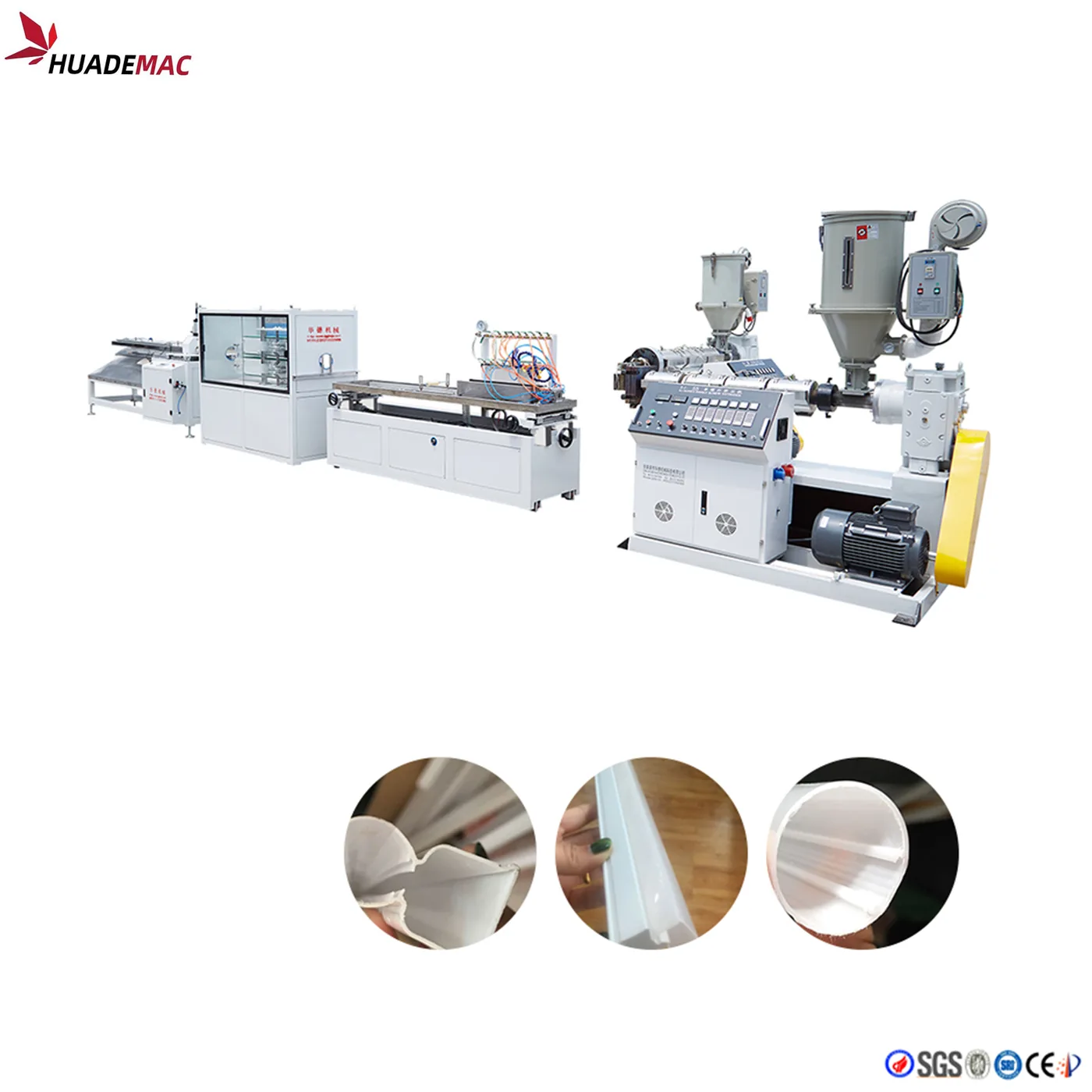

High-efficiency PC/PMMA LED light tube production line featuring energy-saving single screw extruder, vacuum cooling.
PC LED PIPE PRODUCTION LINE
1 production line for PC and PMMA lamp tube extrusion.
PC and PMMA tube extrusion is selected for lighting covers, transparent tubes and diffused profiles where optical quality matters as much as output. Material drying, clean feeding, stable melt temperature, polished tooling and controlled cooling help prevent bubbles, haze, burn marks and dimensional variation.
PC and PMMA tube extrusion is selected for lighting covers, transparent tubes and diffused profiles where optical quality matters as much as output.
Overview
Application range
PC lamp tube, PMMA LED tube, LED lampshade, Outdoor advertising lighting
Range and output
T5 / T8 / T10 / T12 tube mould range with 50-60 kg/h output reference.
Core configuration
Vacuum Loading Machine, Drying Hopper, J-50/28 Single Screw Extruder, SJ-45/28 Co-Extruder
Machine video
Watch machine video
Applications
PC lamp tubePMMA LED tubeLED lampshadeOutdoor advertising lightingCommercial and home lighting
Process flow
01
Vacuum loading 02
Drying hopper 03
Single screw extrusion 04
Co-extrusion 05
LED tube moulding 06
Vacuum cooling 07
Haul-off 08
Dust-free cutting 09
Stacking Line composition

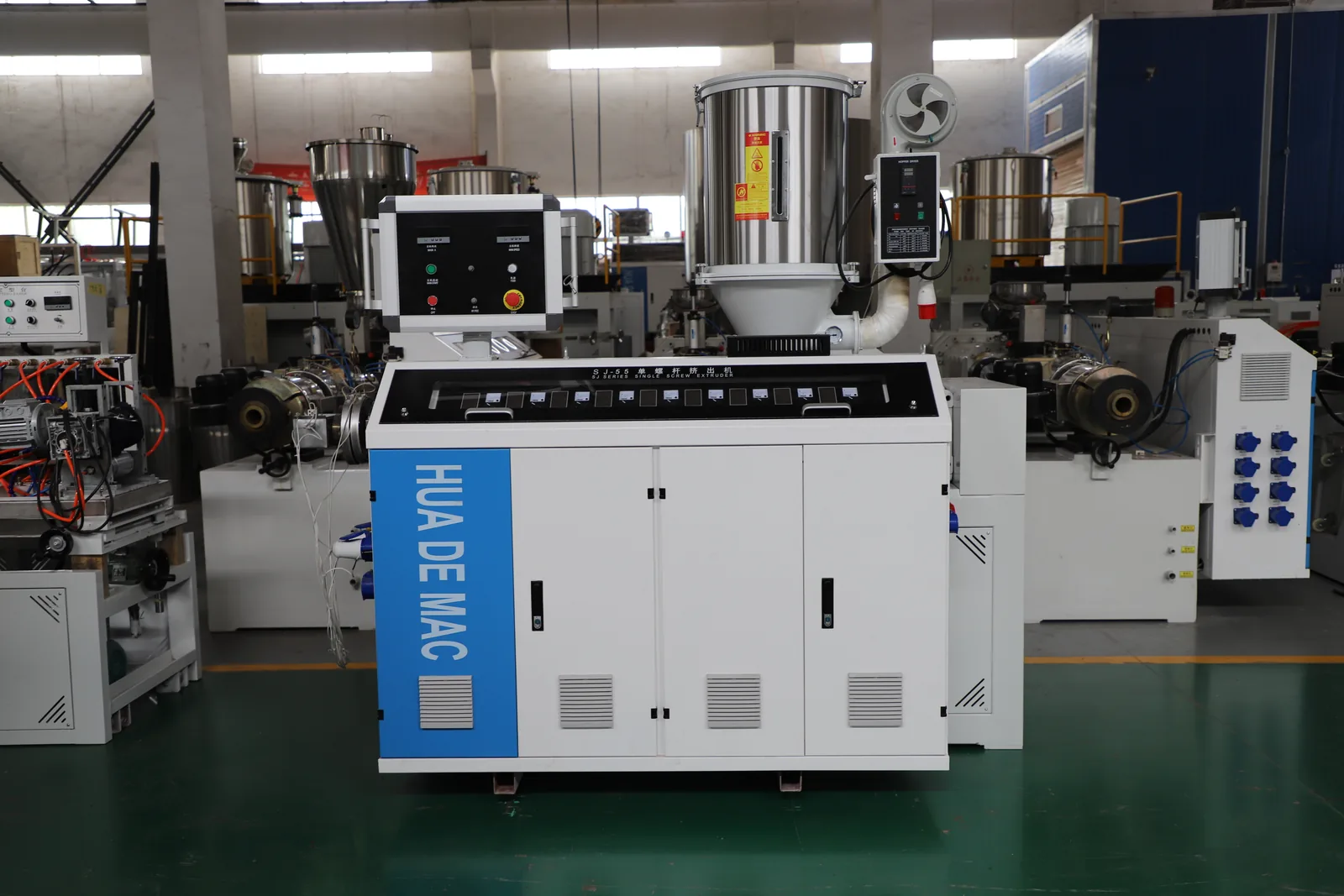

01 Single Screw Extruder
Main extrusion unit with 15kW driving motor and 50-60 kg/h reference capacity.

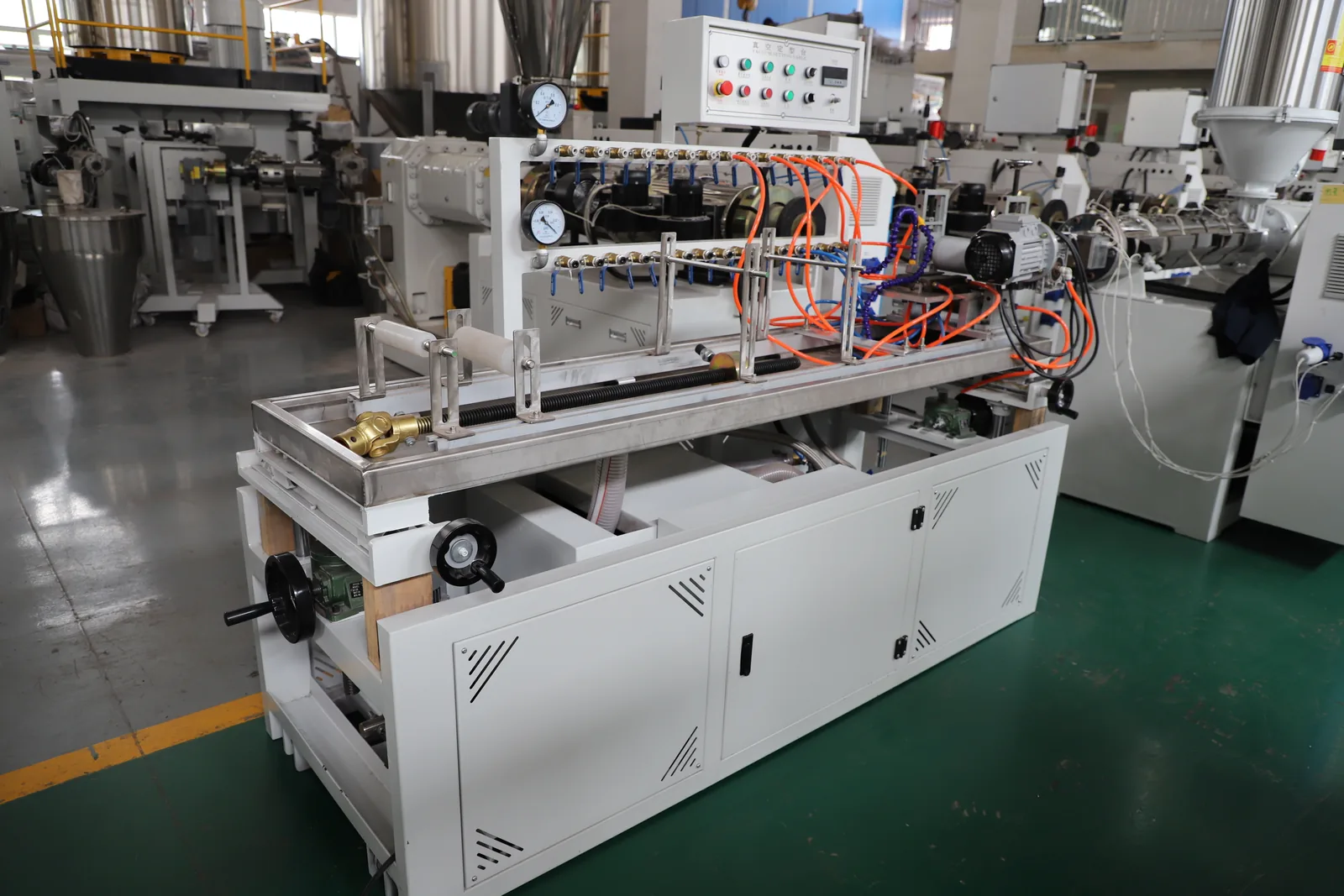

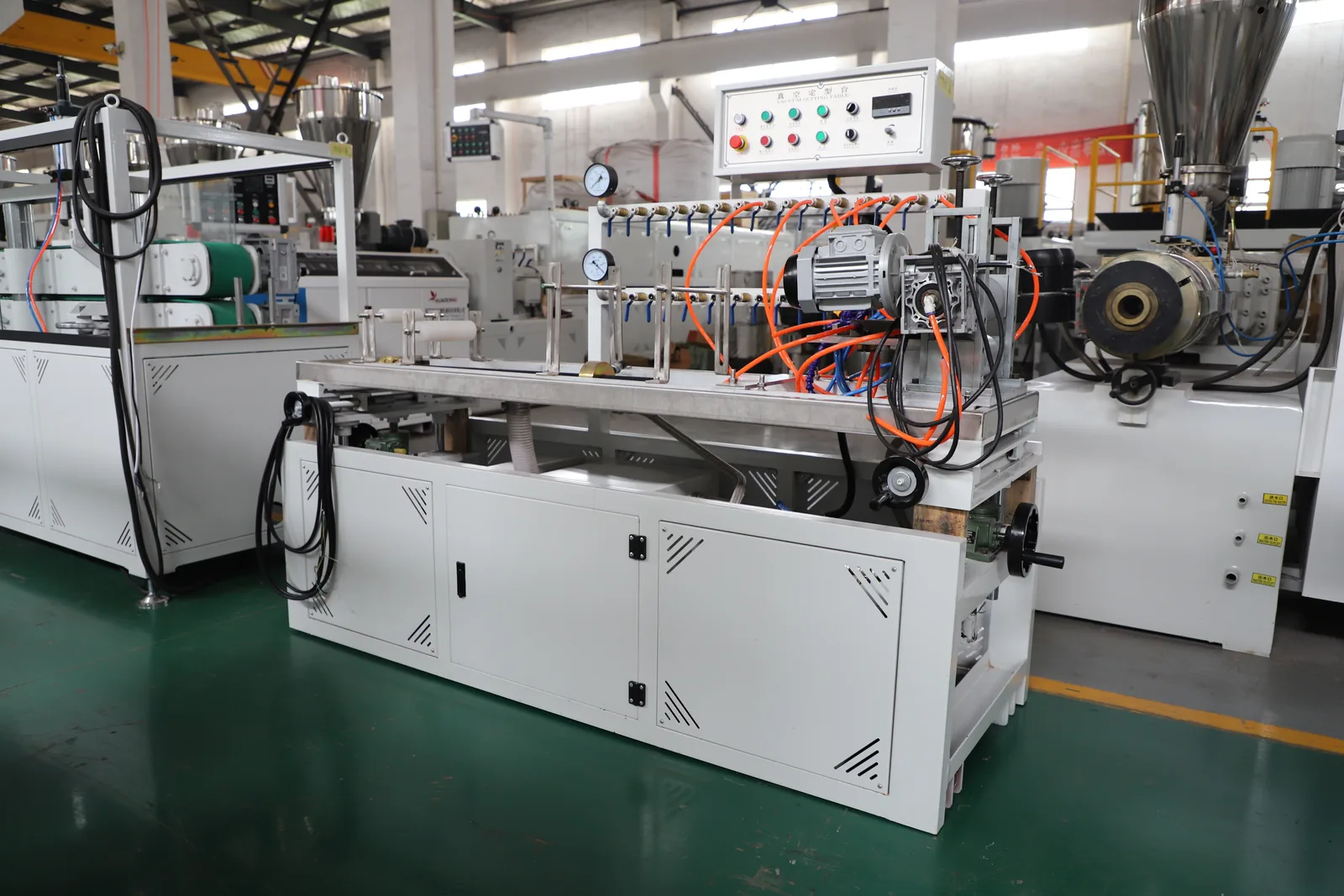

02 Vacuum Forming and Cooling Tank
2000mm stainless steel tank with 2.2kW vacuum pump and 0.37kW water pump.
03 Haul Off Machine
Two 0.75kW haul-off motors with inverter control for stable tube traction.

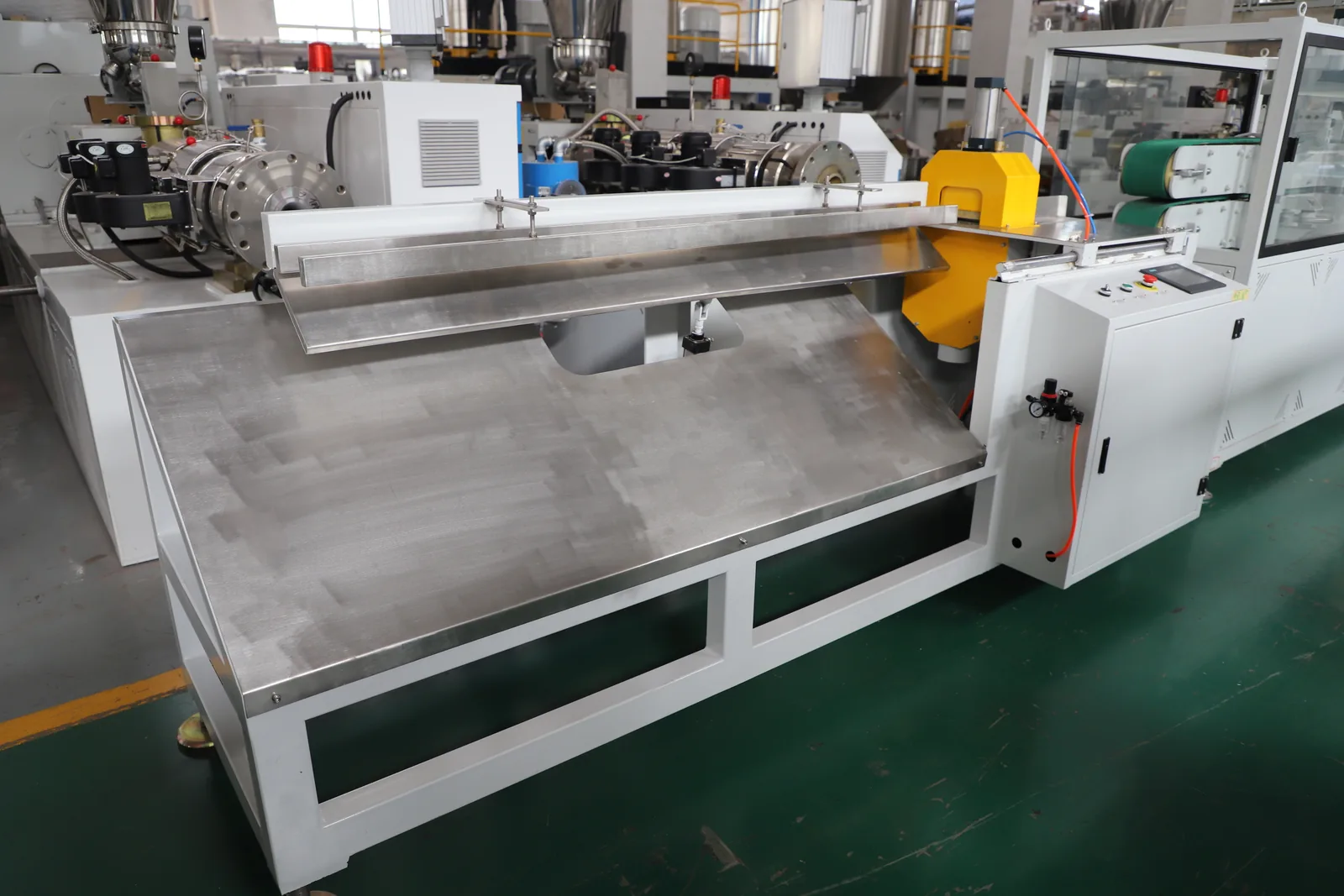

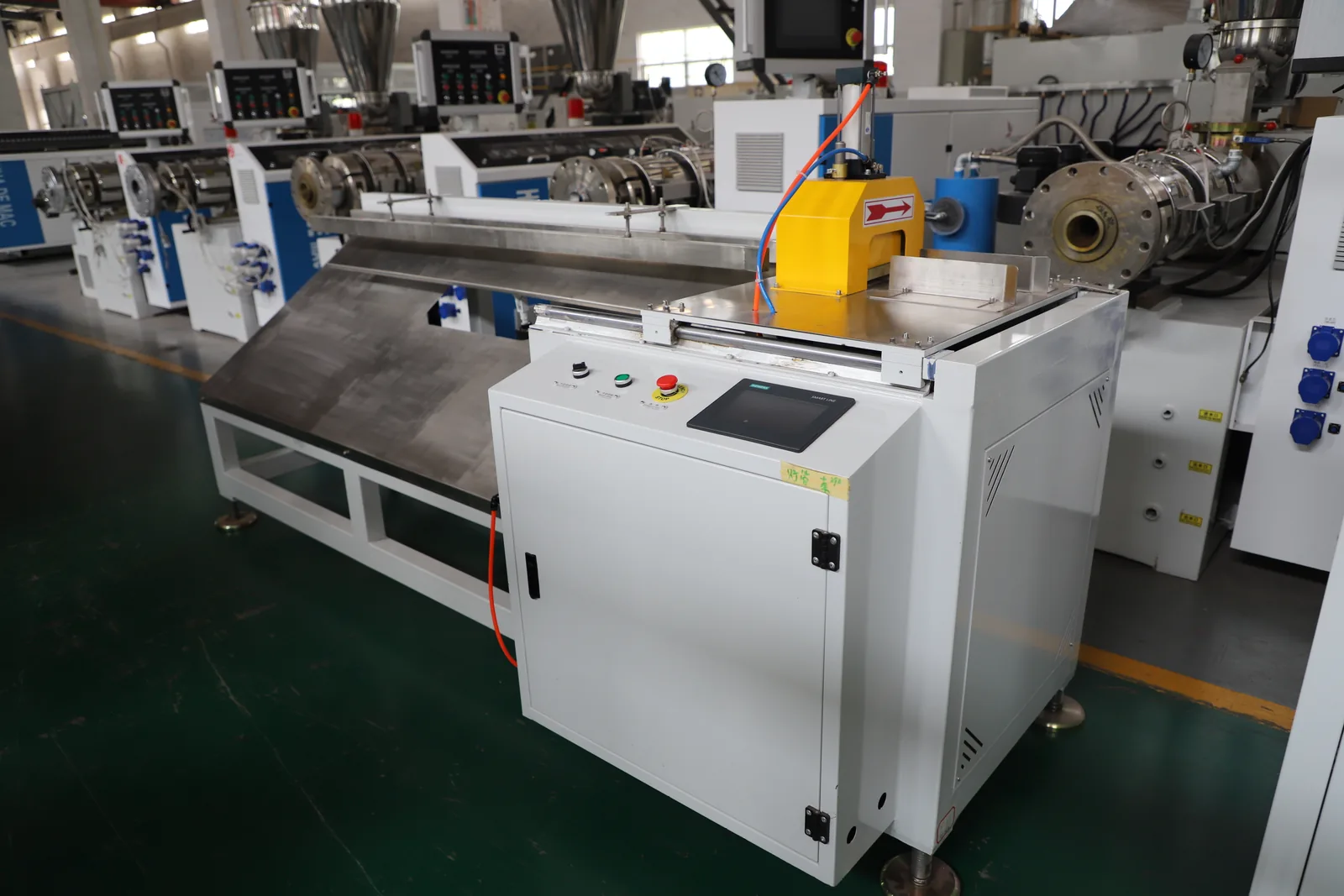

04 Cutter and Stacker Unit
0.75kW dust-free cutting machine paired with 2m automatic pipe stacker.
01 Single Screw Extruder
Main extrusion unit with 15kW driving motor and 50-60 kg/h reference capacity.
02 Vacuum Forming and Cooling Tank
2000mm stainless steel tank with 2.2kW vacuum pump and 0.37kW water pump.

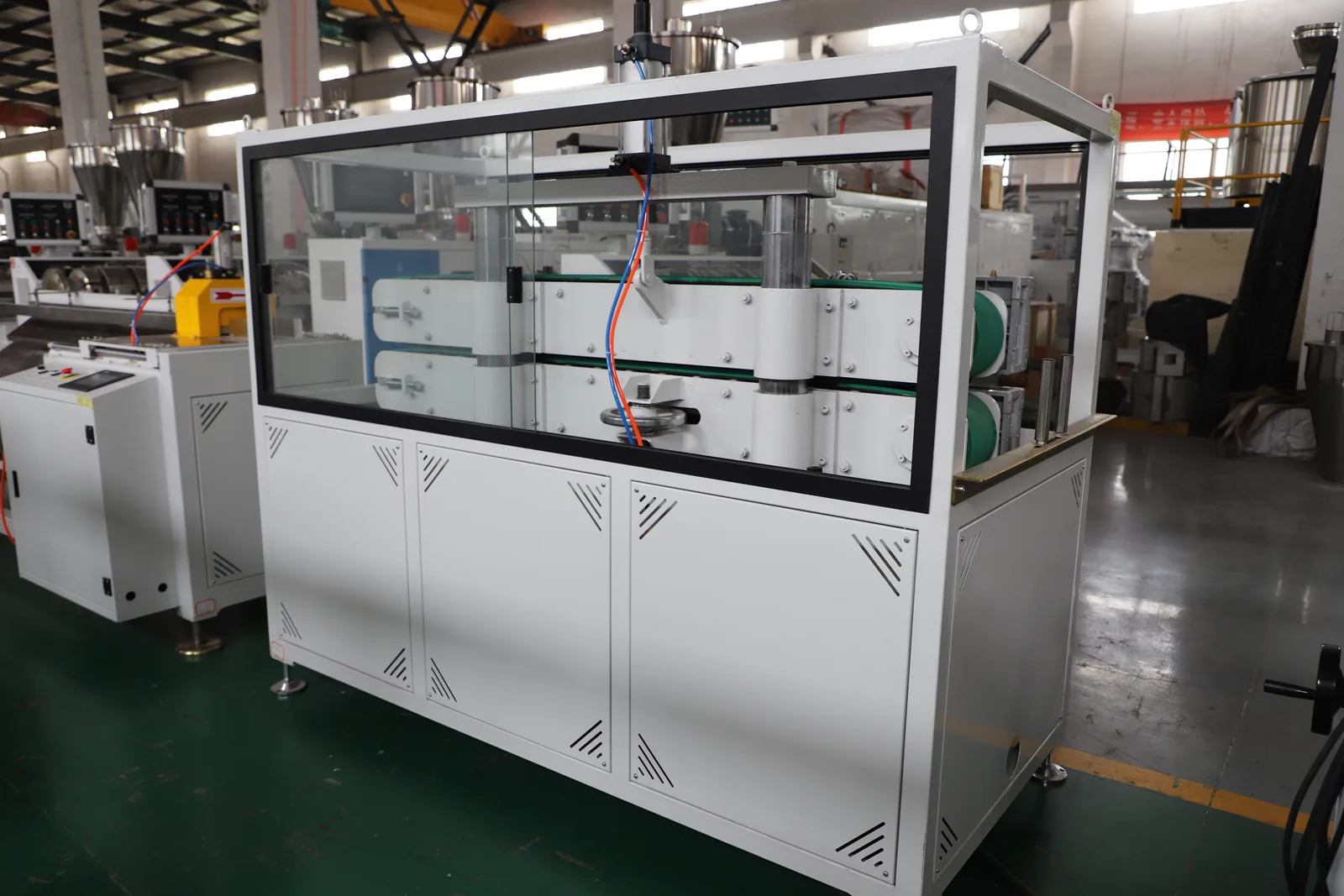

03 Haul Off Machine
Two 0.75kW haul-off motors with inverter control for stable tube traction.
04 Cutter and Stacker Unit
0.75kW dust-free cutting machine paired with 2m automatic pipe stacker.
Configuration highlights
J-50/28 single screw extruder with 15kW driving motor
Application reference: PC lamp tube.
SJ-45/28 co-extruder with 11kW driving motor
Application reference: PMMA LED tube.
LED tube moulds for T5, T8, T10 and T12 sizes
Application reference: LED lampshade.
2m stainless steel vacuum forming and cooling tank
Application reference: Outdoor advertising lighting.
Inverter-controlled haul-off with two 0.75kW motors
Application reference: Commercial and home lighting.
Dust-free cutting and 2m automatic pipe stacker
Matched according to material, output and project configuration.
Technical parameters
Product type PC PMMA LED Light Tube Production Line
Application PC / PMMA LED lampshade
Tube mould sizes T5 / T8 / T10 / T12
Reference output 50-60 kg/h
Main extruder J-50/28, 15kW driving motor
Co-extruder SJ-45/28, 11kW driving motor
| No. | Major part | Detail information |
|---|---|---|
| 1 | Vacuum Loading Machine | Driving motor: 1.15kW |
| 2 | Drying Hopper | Electric heating power: 6kW; blower: 0.25kW |
| 3 | J-50/28 Single Screw Extruder | Driving motor: 15kW; capacity: 50-60 kg/h |
| 4 | SJ-45/28 Co-Extruder | Driving motor: 11kW |
| 5 | LED Tube Moulds | Tube sizes: T5, T8, T10, T12 |
| 6 | Vacuum Forming and Cooling Tank | Tank length: 2000mm; vacuum pump: 2.2kW, 1 pc; water pump: 0.37kW, 1 pc; stainless steel tank |
| 7 | Haul Off Machine | Haul-off motor: 0.75kW, 2 pcs; inverter control |
| 8 | Cutting Machine | Cutting motor: 0.75kW; dust-free cutting |
| 9 | Pipe Stacker | Stacker length: 2m; automatic control |
Product gallery
Customer references
Belize

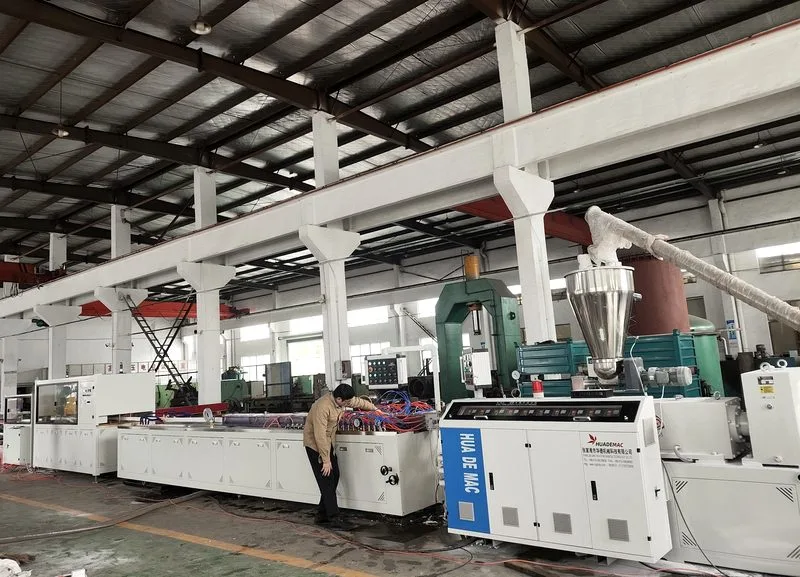

PVC window profile line

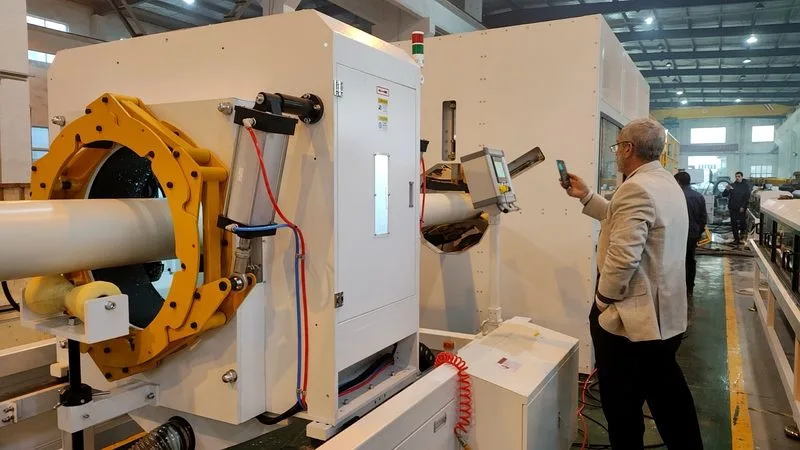

Egypt
Ø630mm PVC pipe line
Ethiopia

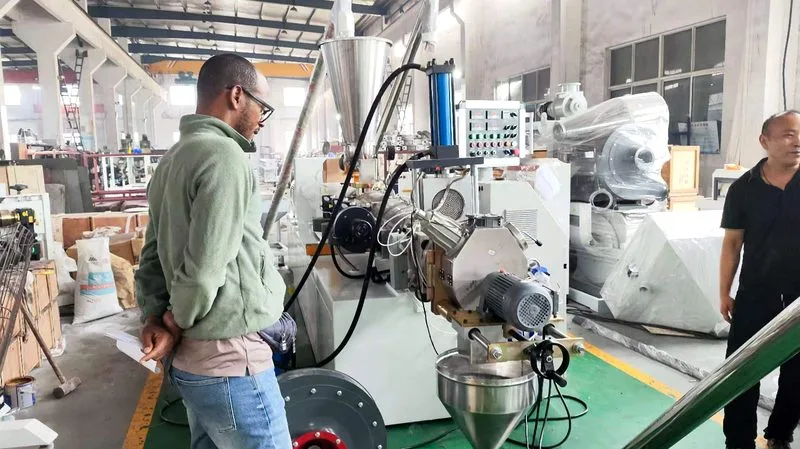

PVC pelletizing line

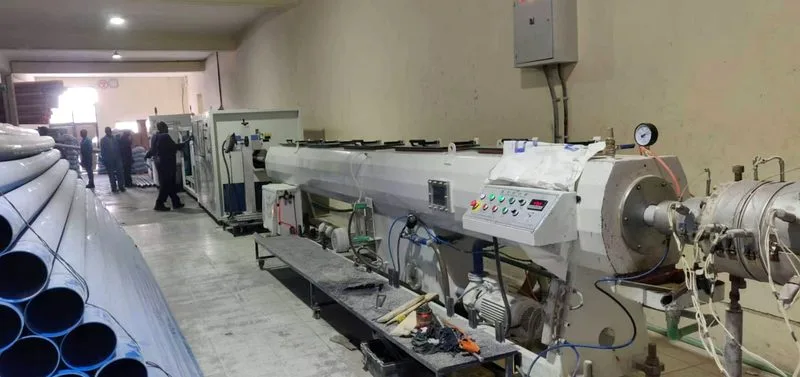

Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Request the PC / PMMA LED tube line specification with J-50/28 main extruder, SJ-45/28 co-extruder, T5-T12 mould options and 50-60 kg/h reference output.
Request Spec Sheet Project configuration
Send target tube size, PC or PMMA material, diffuser requirement, voltage and workshop layout. HUADE can match mould, cooling, haul-off, cutter and stacker details before quotation.
Get Configuration FAQ
What applications is this LED tube line used for?
It is used for PC and PMMA LED lampshades and light tubes for outdoor advertising, hotels, supermarkets, shops, KTV, automotive lighting and home lighting.
What is included in the production line?
The reference line includes vacuum loading, drying hopper, J-50/28 single screw extruder, SJ-45/28 co-extruder, LED tube moulds, vacuum forming and cooling tank, haul-off, dust-free cutting and pipe stacker.
What output and tube sizes can be configured?
The Word specification gives 50-60 kg/h reference capacity and T5, T8, T10 and T12 mould sizes. Final output depends on material, wall thickness, tube profile and cooling configuration.
Selection guide How to specify a pc led pipe production line
Send the tube drawing, resin grade, transparency or diffusion target, wall thickness and cutting length. The project may require a dryer, dehumidifying system, co-extruder for diffused layers, dust-controlled cutting and surface protection. Samples are useful for confirming the required finish before tooling is finalized.
A complete proposal should identify what is included and excluded: main machine model, screw and barrel specification, drive and control components, tooling, downstream equipment, auxiliary systems, test conditions, documentation, packing and service. Ask the supplier to connect every quoted capacity to a stated material and product size. Final acceptance points should be written into the technical agreement before manufacturing starts.
For a useful configuration review, send the full product schedule instead of only the largest size. Include drawings or standards, material source, expected operating hours, local voltage, destination and workshop dimensions. This allows the engineering team to check changeovers, cooling capacity, utility demand and future expansion as one production system.
