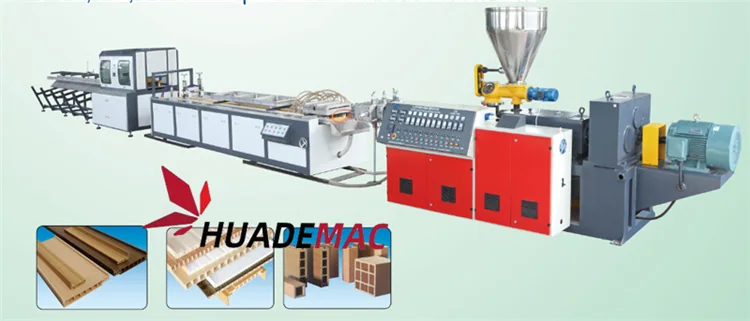

PE WPC extrusion production line for skirting, door profile, corner bead, folding door profile and decorative moulding.
Overview
Application range
Outdoor garden decking and railing, Interior wall and ceiling decoration, Furniture and cabinet panels
Range and output
51/105-65/132 extruder model with 2200-3500 kg/24h output reference.
Core configuration
Conical twin screw extruder, Profile mould, Vacuum calibration table, Haul-off unit
Machine video
Watch machine video
Applications
Process flow
01
Raw material mixing 02
Feeding 03
Conical twin screw extruder 04
Profile mould 05
Vacuum calibration table 06
Haul-off unit 07
Cross cutting machine 08
Stacker 09
Printing / lamination Line composition

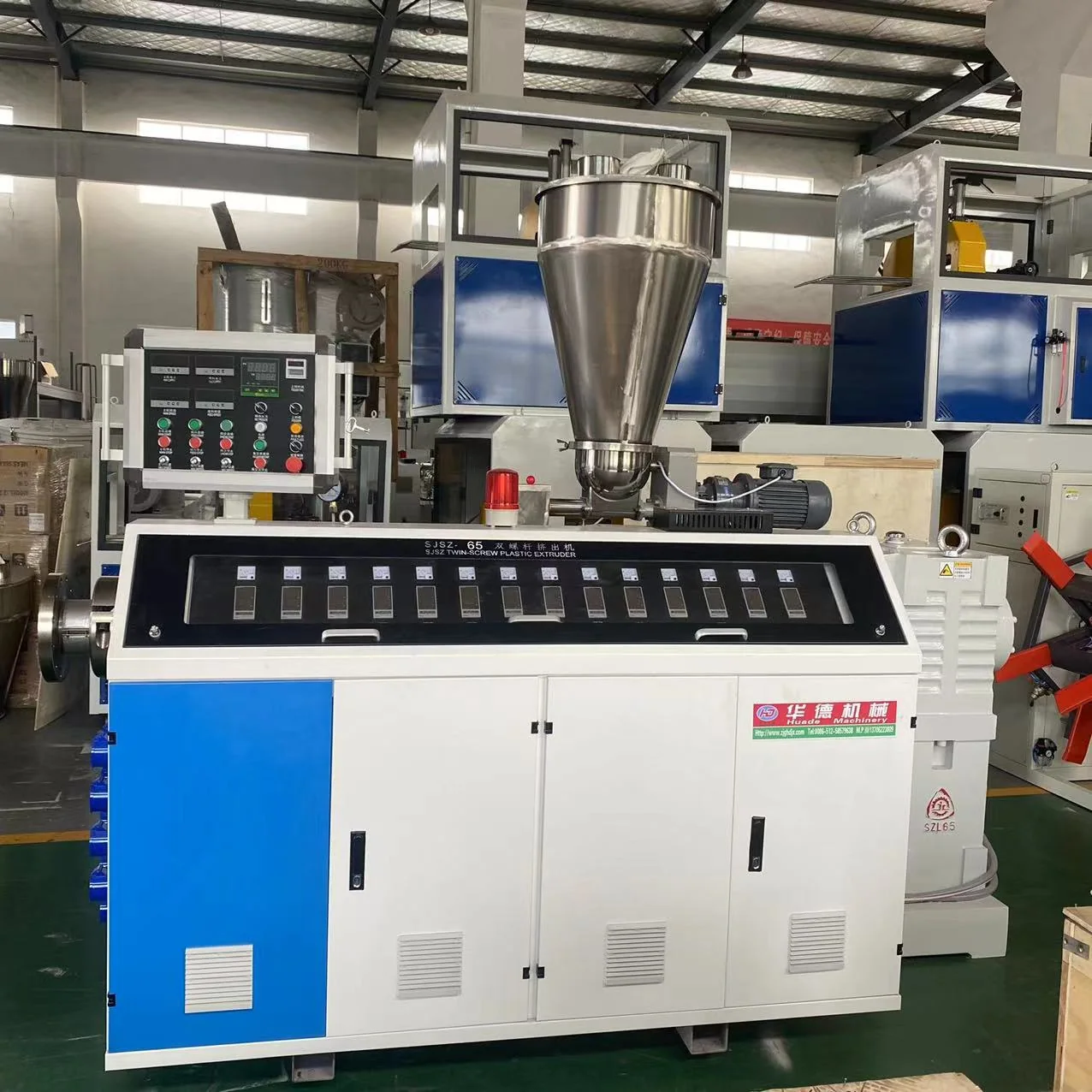

01 Conical twin screw extruder
Plasticizes PE/WPC formulation with inverter speed control and intelligent temperature control.

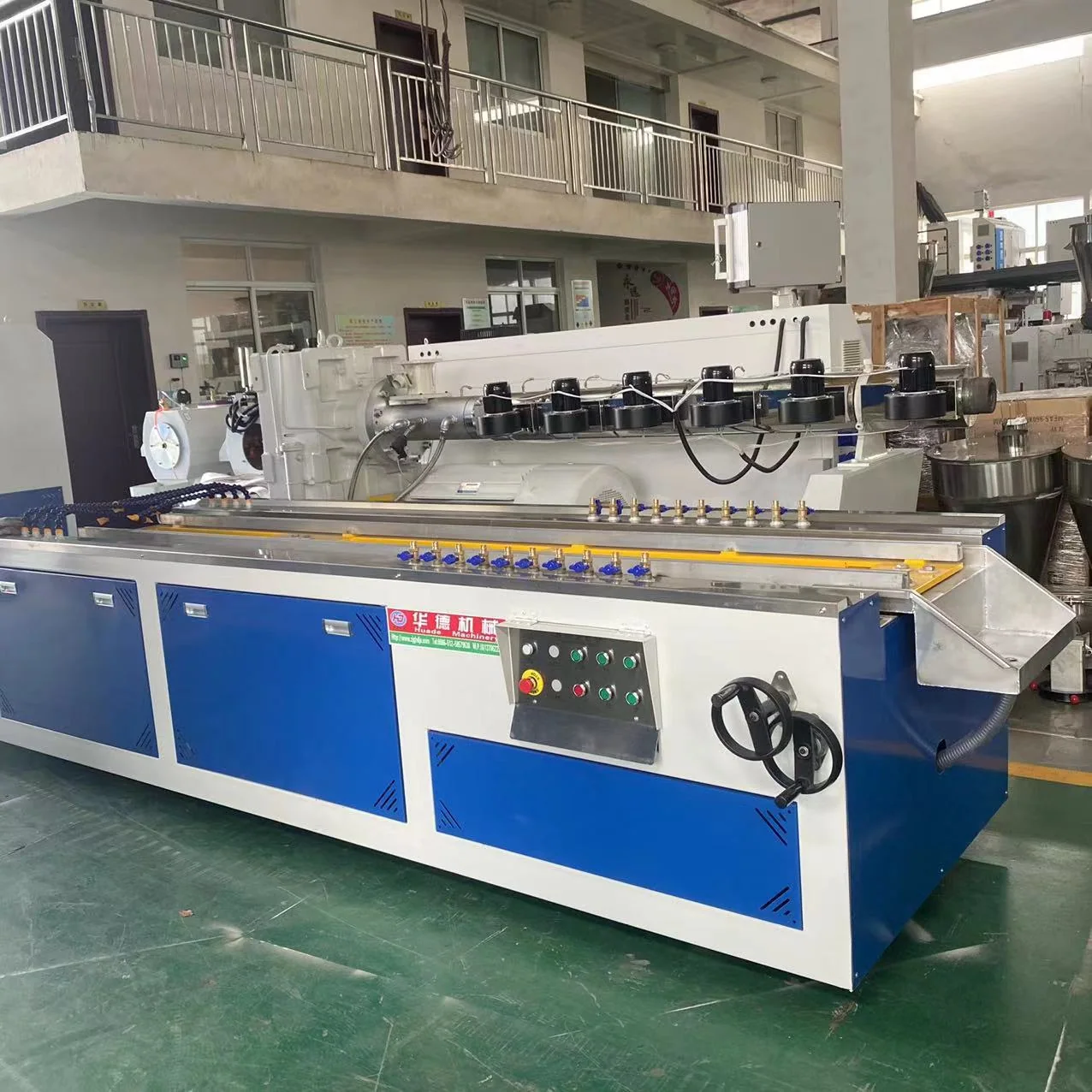

02 Vacuum calibration table
Cools and sizes the extruded WPC profile after it leaves the mould.

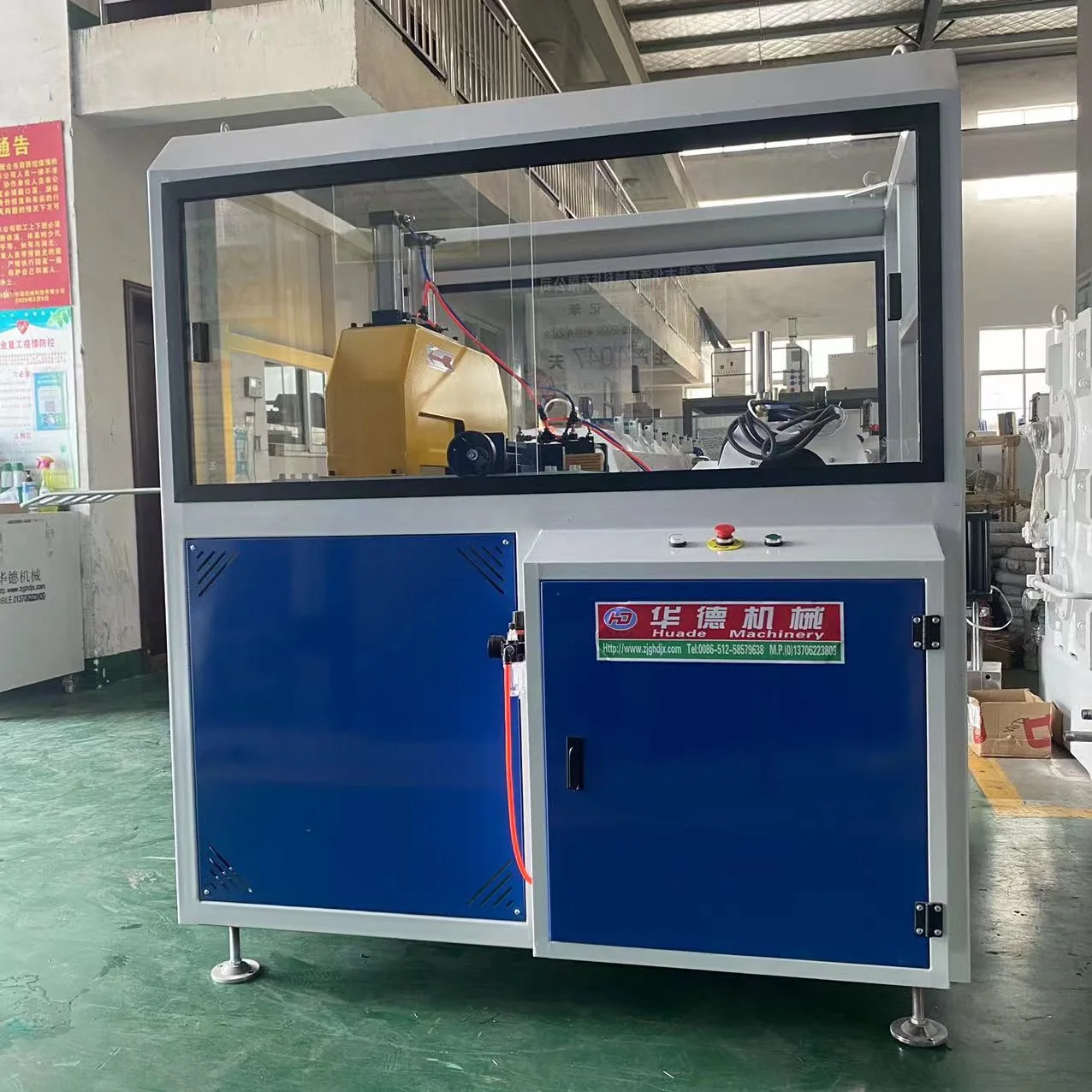

03 Cross cutting machine
Cuts skirting, door profile and decorative moulding to required length.

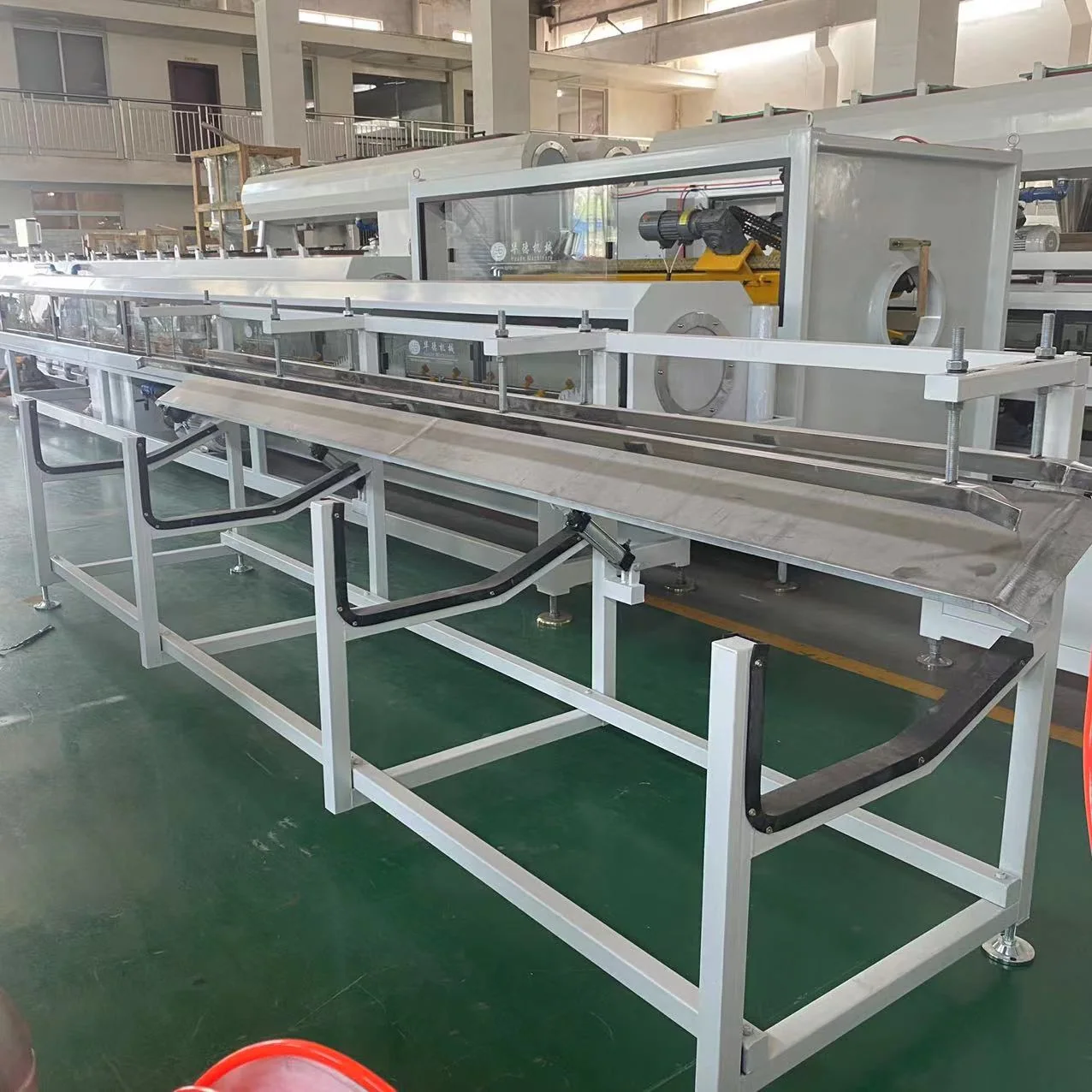

04 Profile stacker
Collects cut profiles for inspection, packing and downstream surface treatment.
05 Finished profiles
Profile surfaces can be printed or laminated for marble and wood-grain designs.
01 Conical twin screw extruder
Plasticizes PE/WPC formulation with inverter speed control and intelligent temperature control.
02 Vacuum calibration table
Cools and sizes the extruded WPC profile after it leaves the mould.
03 Cross cutting machine
Cuts skirting, door profile and decorative moulding to required length.
04 Profile stacker
Collects cut profiles for inspection, packing and downstream surface treatment.
05 Finished profiles
Profile surfaces can be printed or laminated for marble and wood-grain designs.
Configuration highlights
Inverter speed control saves power and makes line speed easier to adjust.
Application reference: Outdoor garden decking and railing.
Omron or RKC intelligent temperature control supports stable extrusion temperature.
Application reference: Interior wall and ceiling decoration.
Reference electrical parts include Siemens or ABB, Schneider, DELIXI, Omron and RKC options.
Application reference: Furniture and cabinet panels.
Minimum total production line consumption is referenced at 25kW/hour in the Word source.
Matched according to material, output and project configuration.
Printing and lamination can create marble, wood-grain or floor-matching surface designs.
Matched according to material, output and project configuration.
Reference configurations cover SJSZ51/105, SJSZ55/110 and SJSZ65/132 extruders.
Matched according to material, output and project configuration.
Technical parameters
Product type PE WPC Extrusion Production Line
Application PE WPC skirting / door profile / decorative moulding
Extruder models SJSZ51/105, SJSZ55/110, SJSZ65/132
Capacity 2200-3500 kg/24h
Motor power 15-37kW
Electrical parts Siemens / ABB / Omron / RKC / Schneider / DELIXI
| Model | 51/105 | 55/110 | 65/132 |
|---|---|---|---|
| Extruder | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 |
| Capacity per 24h | 2200kg | 3000-3500kg | 3000-3500kg |
| Motor power | 15kw | 22kw | 37kw |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
Which extruder models are listed in the Word specification?
The Word table lists SJSZ51/105, SJSZ55/110 and SJSZ65/132, with 15kW, 22kW and 37kW motor power respectively.
What capacity does the PE WPC line reference?
The Word source lists 2200kg per 24 hours for 51/105, and 3000-3500kg per 24 hours for 55/110 and 65/132 configurations.
Which electrical brands are referenced?
Referenced electrical parts include Siemens or ABB frequency controller, Omron or RKC temperature controller, Schneider or Siemens AC contactor, Schneider overload relay, and DELIXI or Schneider switches.
