Complete PVC water supply pipe extrusion line for agricultural water supply, building water supply and drainage, and.
PVC Pipe Production Line
PVC Water Supply Pipe Production Line
Complete PVC water supply pipe extrusion line for agricultural water supply, building water supply and drainage, and wire laying applications. The line includes feeder, conical twin-screw extruder, PVC pipe mould, vacuum calibration tank, haul-off, cutter, stacker and optional belling machine.
16-630mm Diameter range
50-550kg/hr by model Max Output
Overview
Application range
Agricultural water supply, Agricultural water discharge, Building water supply, Building drainage
Range and output
16-630mm diameter range with 50-550kg/hr by model output reference.
Core configuration
Vacuum feeder, Double-screw extruder, PVC pipe mould, Vacuum calibration tank
Machine video
Watch machine video
Applications
Process flow
01
PVC material feeding 02
Double-screw extrusion 03
PVC pipe mould forming 04
Vacuum calibration and cooling 05
Haul-off traction 06
Fixed length cutting 07
Stacking or pipe belling Line composition
01 Vacuum feeder
Transfers PVC material into the extruder for continuous pipe production.

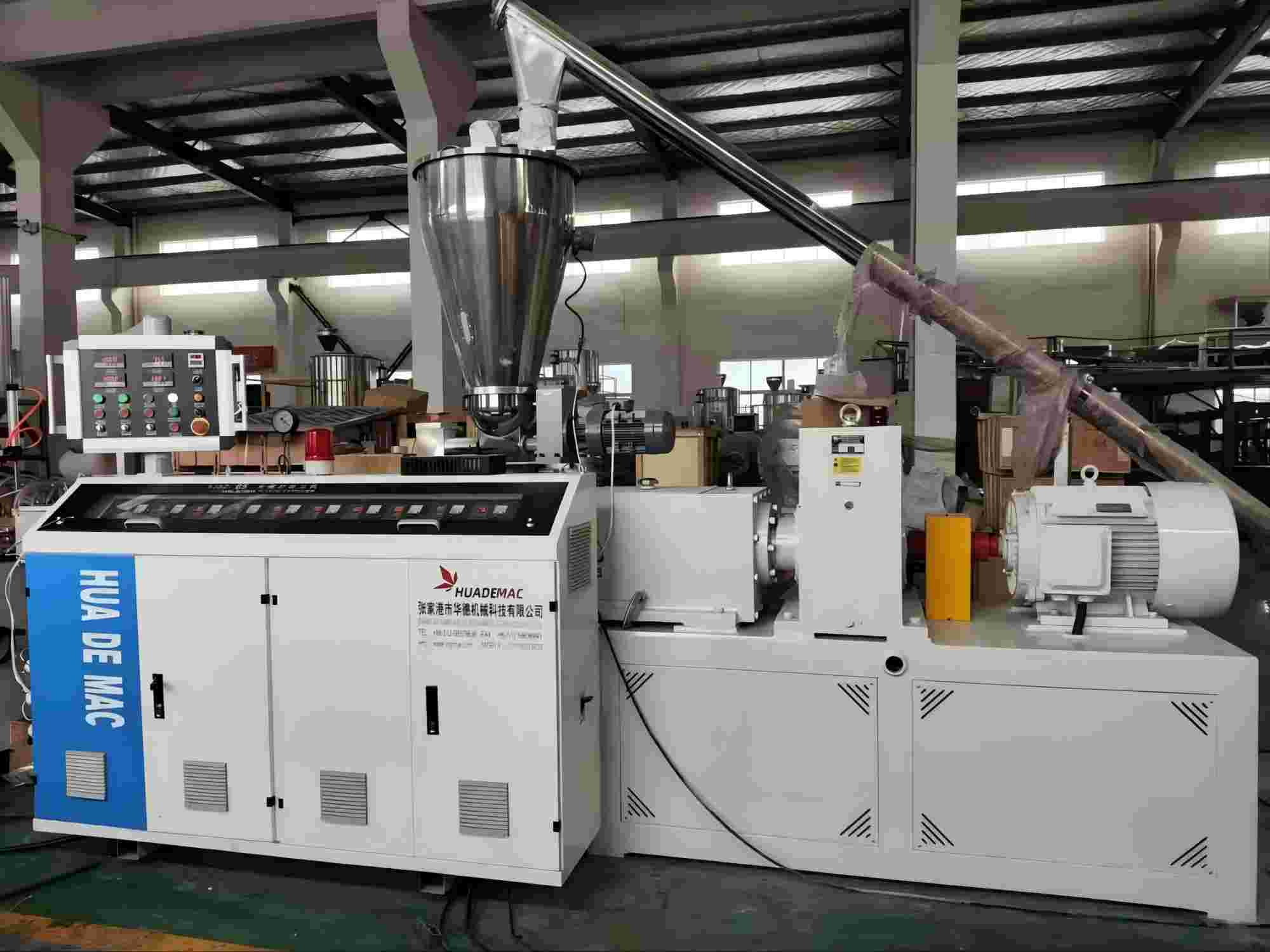

02 Double-screw extruder
Plasticizes PVC material and provides stable melt output for pipe forming.

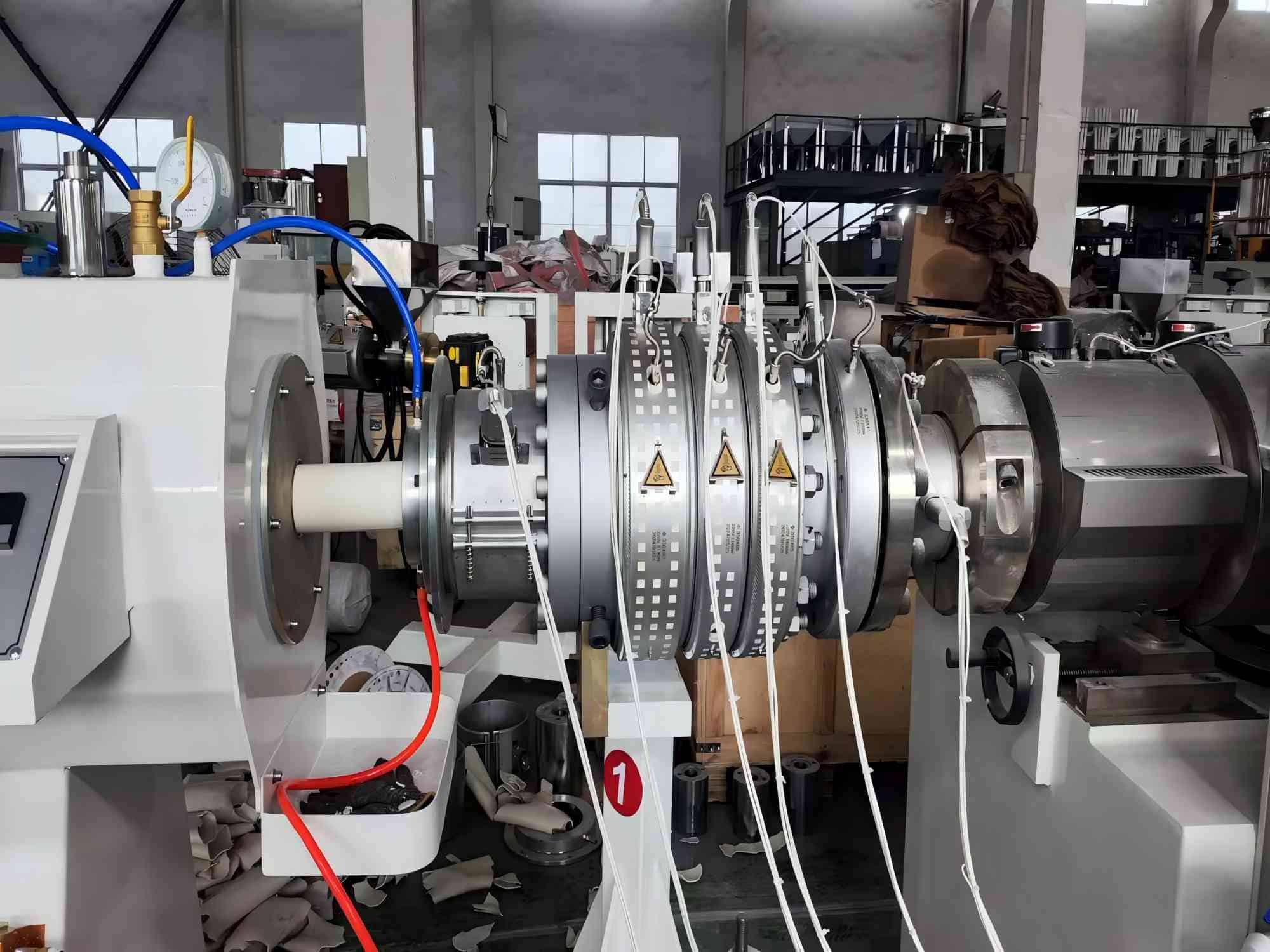

03 PVC pipe mould
Forms the pipe diameter and wall structure before calibration.

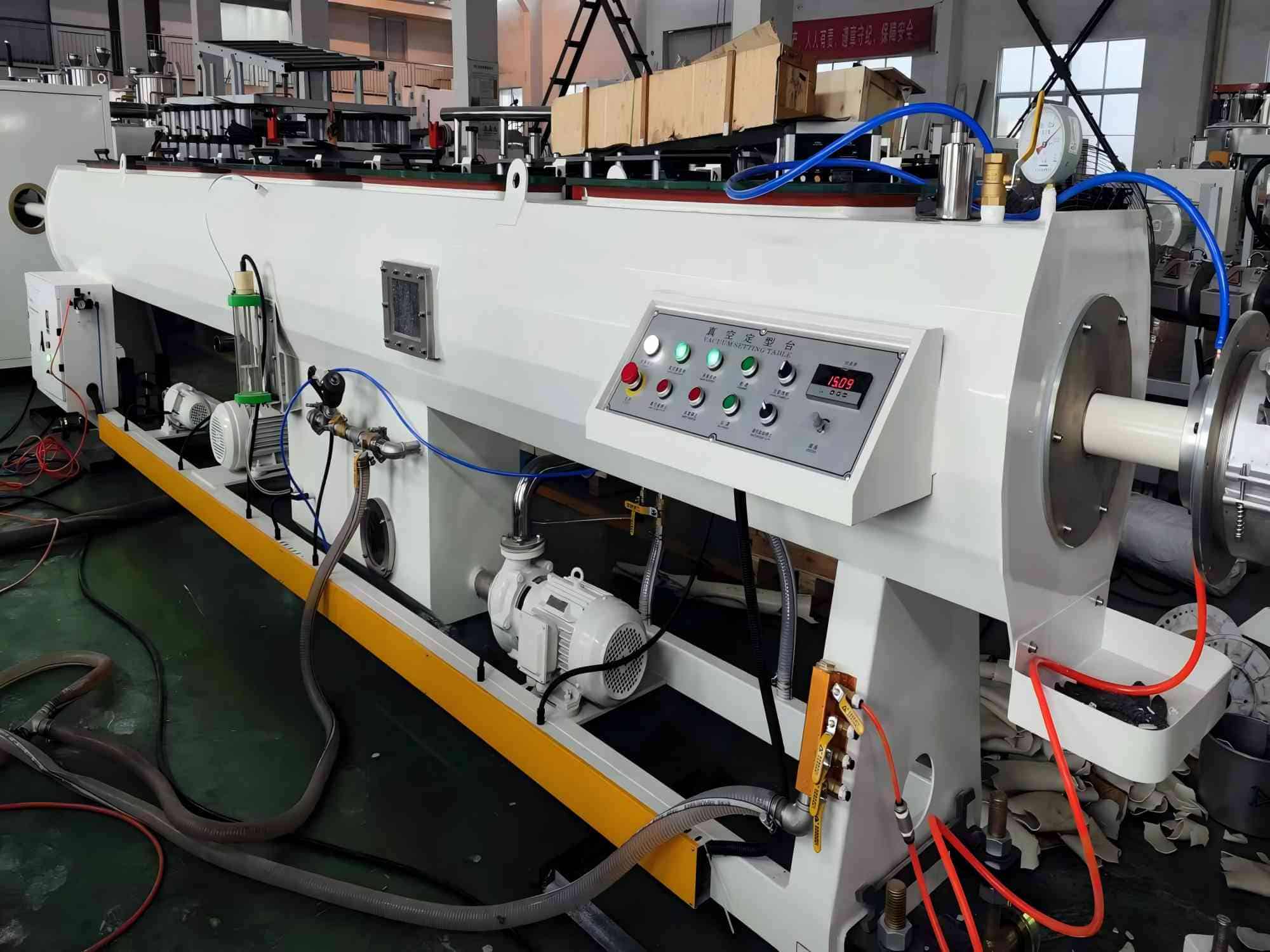

04 Vacuum calibration tank
Sizes and cools the extruded pipe for stable dimensions.

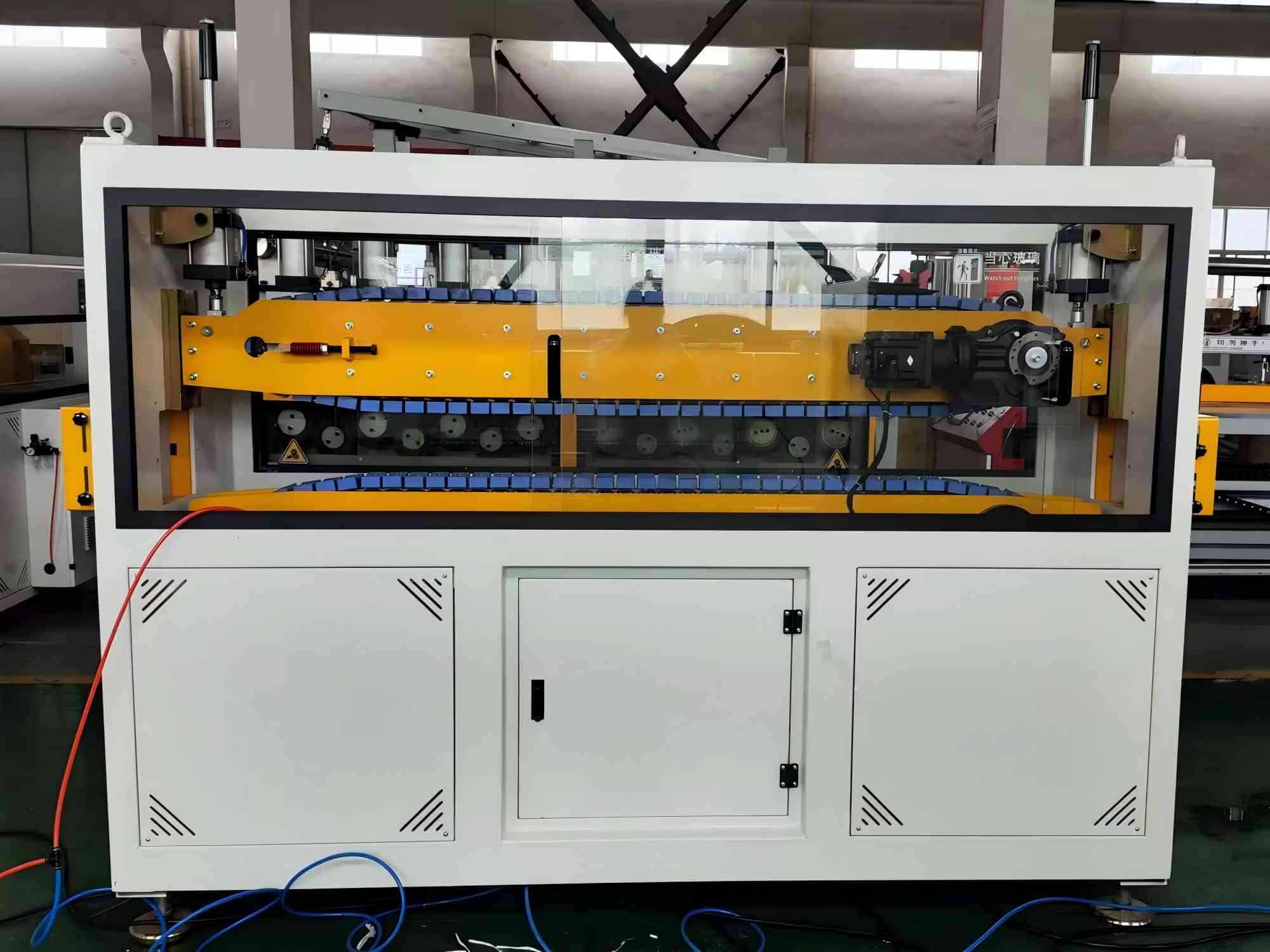

05 Haul-off machine
Pulls the pipe through the downstream line at synchronized speed.

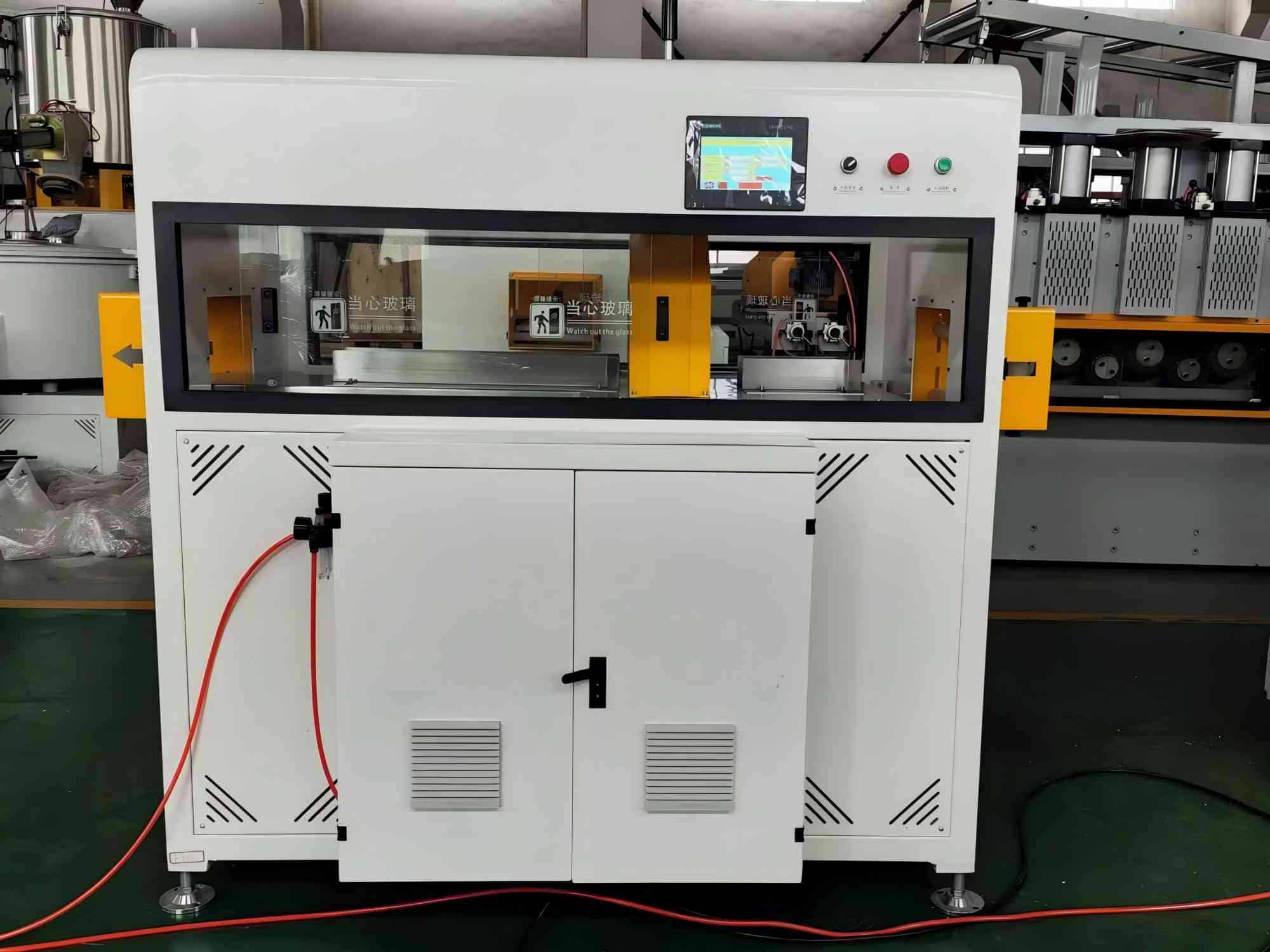

06 Cutting machine
Cuts the pipe to required length after haul-off.
07 Belling machine
Optional downstream unit for forming pipe sockets after cutting.
01 Vacuum feeder
Transfers PVC material into the extruder for continuous pipe production.
02 Double-screw extruder
Plasticizes PVC material and provides stable melt output for pipe forming.
03 PVC pipe mould
Forms the pipe diameter and wall structure before calibration.
04 Vacuum calibration tank
Sizes and cools the extruded pipe for stable dimensions.
05 Haul-off machine
Pulls the pipe through the downstream line at synchronized speed.
06 Cutting machine
Cuts the pipe to required length after haul-off.
07 Belling machine
Optional downstream unit for forming pipe sockets after cutting.
Configuration highlights
Complete line from material feeding to extrusion, calibration, haul-off, cutting and stacking.
Application reference: Agricultural water supply.
Conical or parallel double-screw extruder configuration supports PVC pipe extrusion.
Application reference: Agricultural water discharge.
Vacuum forming tank controls pipe sizing and cooling after moulding.
Application reference: Building water supply.
Haul-off and cutting sections are matched to pipe diameter and output requirement.
Application reference: Building drainage.
Optional belling machine supports socket forming for finished PVC pipe.
Application reference: Wire laying system.
Optional wall thickness control instrument or ink-jet printer can be added for high-grade pipe production.
Application reference: PVC water pipe.
Technical parameters
Product type PVC water supply pipe production line
Application Agricultural water supply and discharge / building water supply and drainage / wire laying
Pipe diameter range 16-630mm
Capacity range 50-550kg/hr
Main extruder type Conical or parallel double-screw extruder
Optional equipment Belling machine / wall thickness control / computer ink-jet printer
| Model | Pipe Diameter (mm) | Extruder Model | Capacity (kg/hr) |
|---|---|---|---|
| PVC-50×2 | Ф16-50×2 | SJSZ51/105 | 50-120 |
| PVC-63 | Ф16-63 | SJSZ51/105 | 50-120 |
| PVC-110 | Ф50-110 | SJSZ51/105 | 50-120 |
| PVC-160 | Ф75-160 | SJSZ65/132 | 100-250 |
| PVC-200 | Ф50-200 | SJSZ65/132 | 100-250 |
| PVC-250 | Ф125-250 | SJSZ80/156 | 200-350 |
| PVC-315 | Ф160-315 | SJSZ80/156 | 200-350 |
| PVC-450 | Ф250-450 | SJSZ92/188 | 300-550 |
| PVC-630 | Ф315-630 | SJSZ92/188 | 300-550 |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pvc pipe production line used for?
PVC Water Supply Pipe Production Line is commonly used for agricultural water supply, agricultural water discharge, building water supply, building.
What is included in the production line?
The line includes vacuum feeder, double-screw extruder, pvc pipe mould, vacuum calibration tank, haul-off machine, cutting machine.
What range and output can be configured?
Reference configuration covers 16-630mm with 50-550kg/hr by model output. Final layout is matched to pipe material, diameter and factory requirements.
