PVC water pipe making machine for water supply, drainage, liquid transport, sewage and building pipe production. The.
PVC Pipe Production Line
PVC Water Pipe Making Machine
PVC water pipe making machine for water supply, drainage, liquid transport, sewage and building pipe production. The line uses a conical twin screw extruder with mould and calibrator, vacuum spray cooling, haul-off, cutting, stacking and optional belling equipment.
16-630 mm Diameter range
80-800 kg/h Max Output
Overview
Application range
Water supply pipe, Drainage pipe, Sewage pipe, Building pipe
Range and output
16-630 mm diameter range with 80-800 kg/h output reference.
Core configuration
Mixer, Forced feeding, Conical twin screw extruder, Mould and calibrator
Machine video
Watch machine video
Applications
Process flow

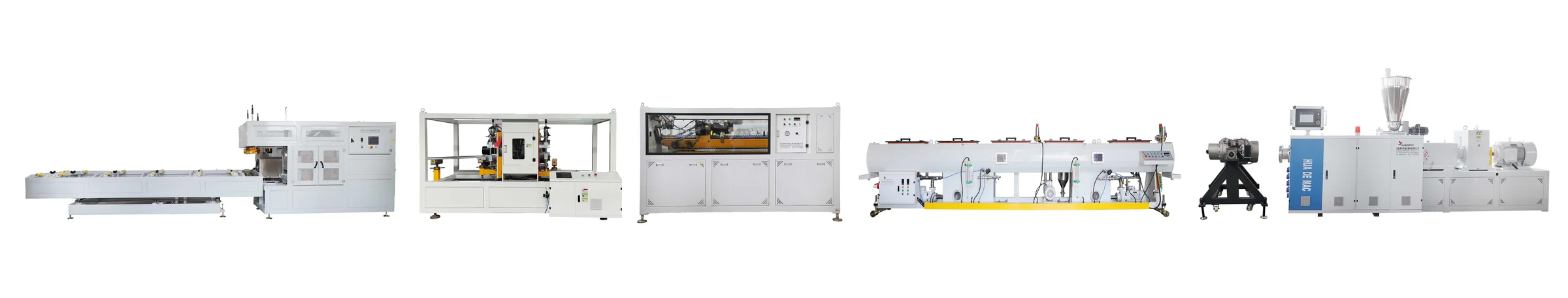

Line composition

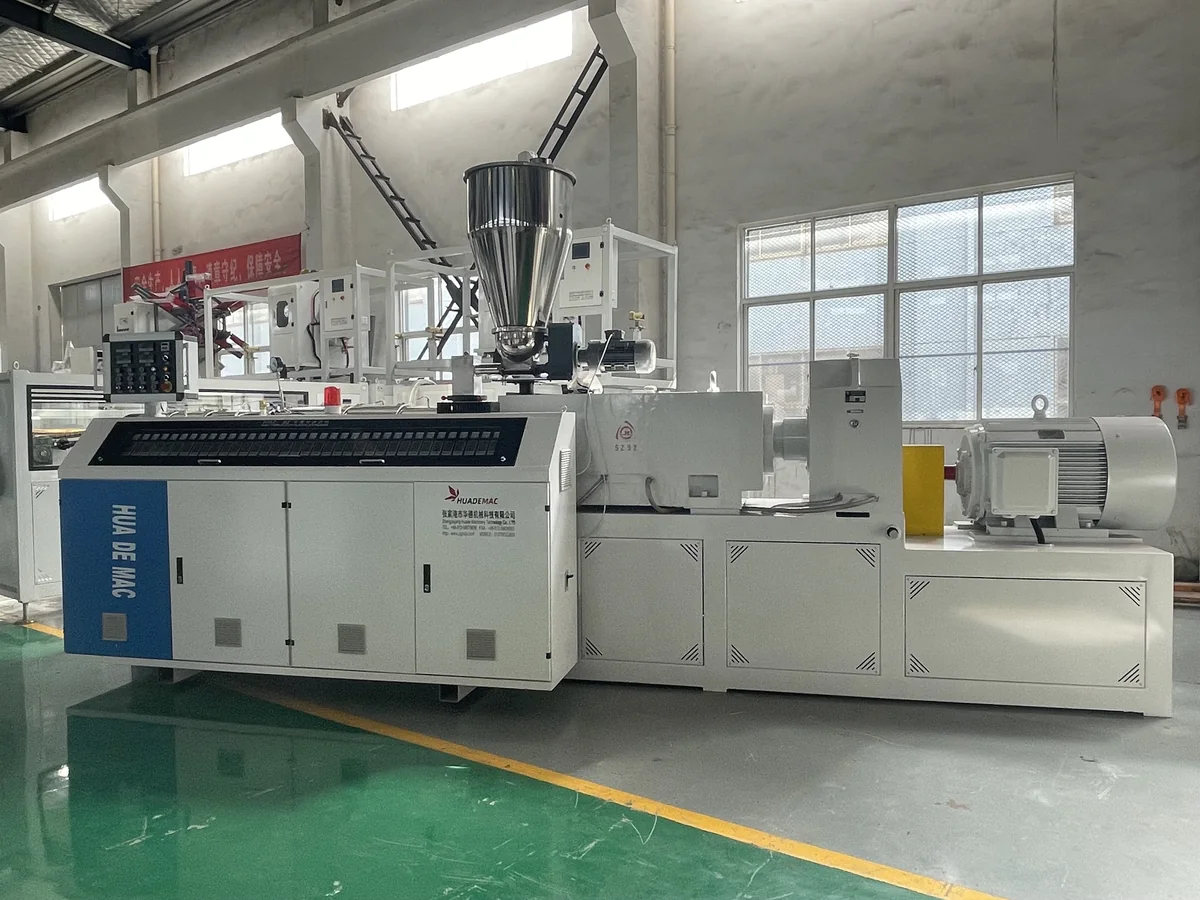

01 Conical twin screw extruder
Plasticizes PVC compound and provides stable melt output before the pipe mould.

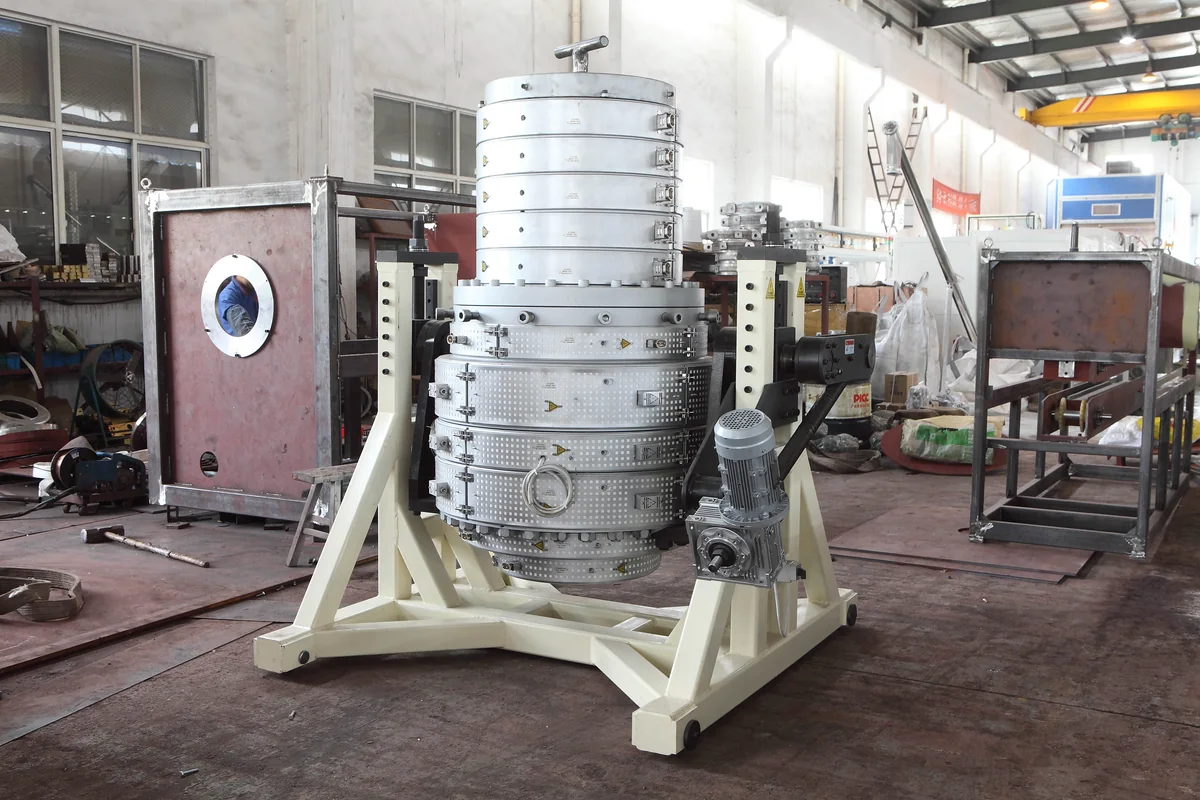

02 Extrusion mould and calibrator
Forms the pipe diameter and wall structure before vacuum sizing.

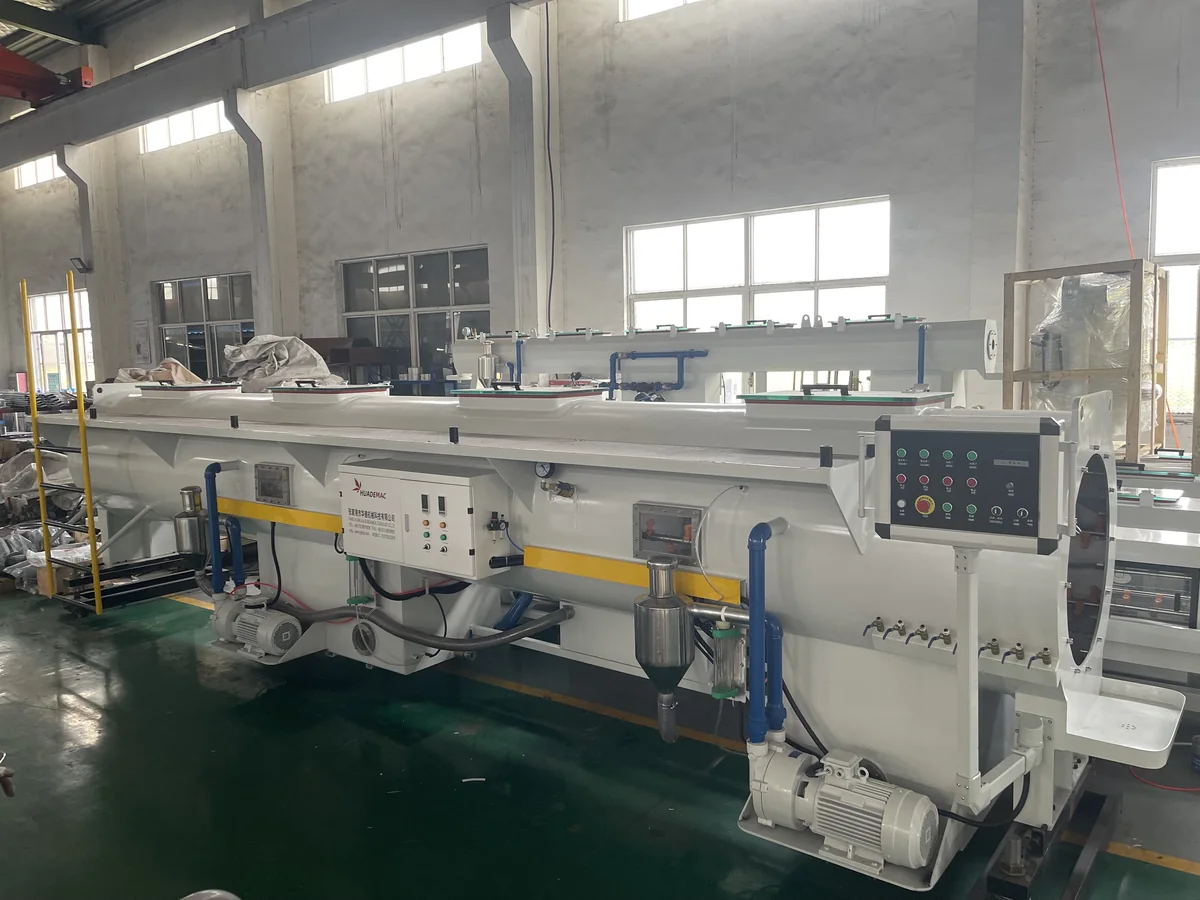

03 Vacuum calibration tank
Uses vacuum and spray cooling to stabilize pipe dimension and surface quality.

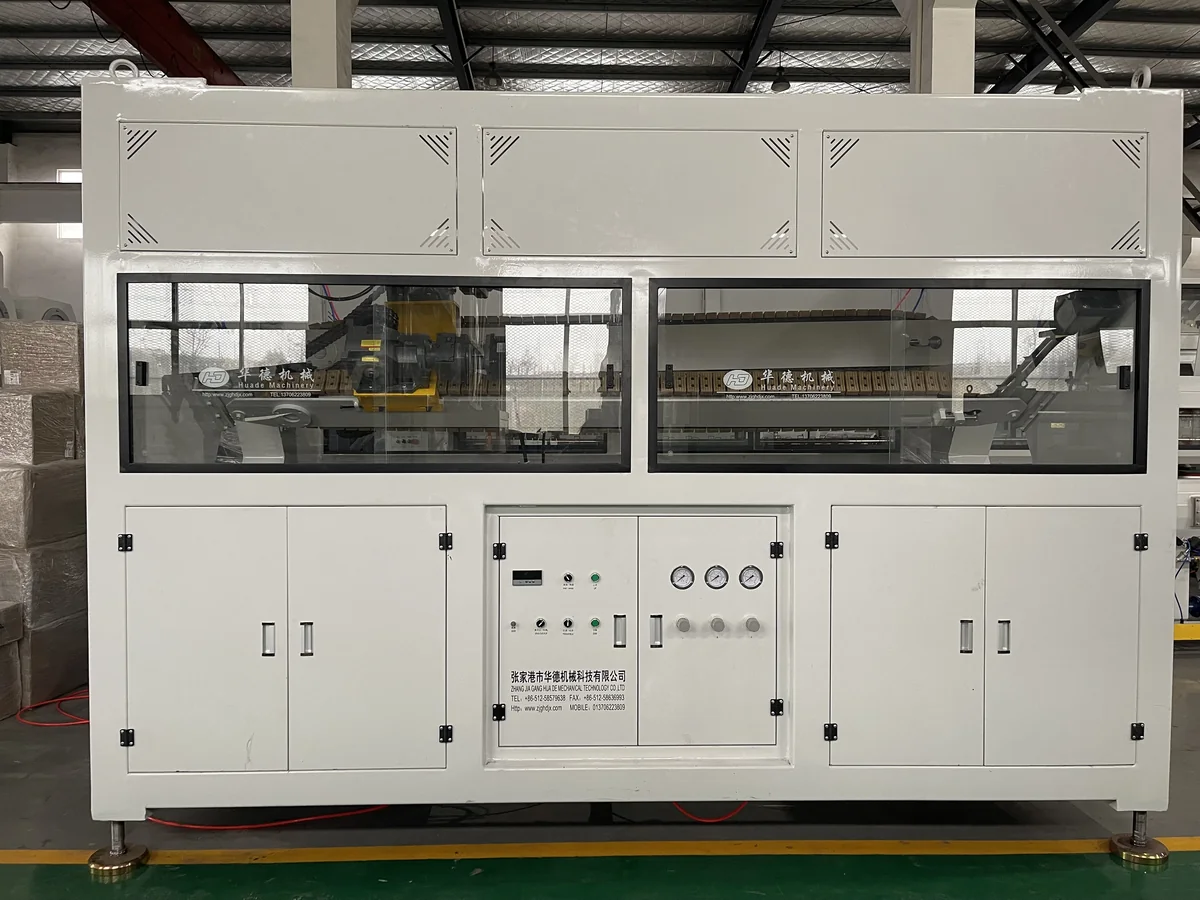

04 Haul-off machine
Pulls the pipe at synchronized speed to keep wall thickness consistent.

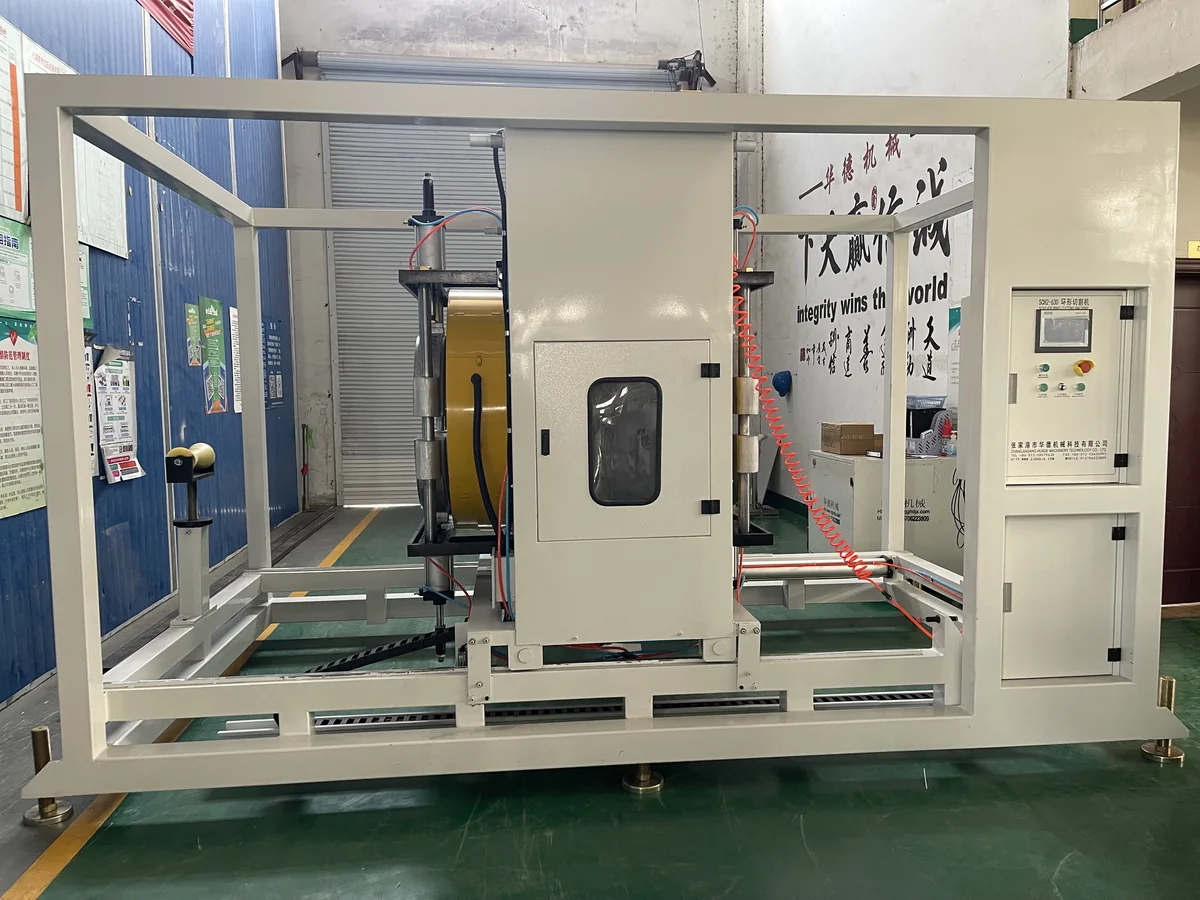

05 Cutting machine
Cuts pipe to the required length during continuous production.

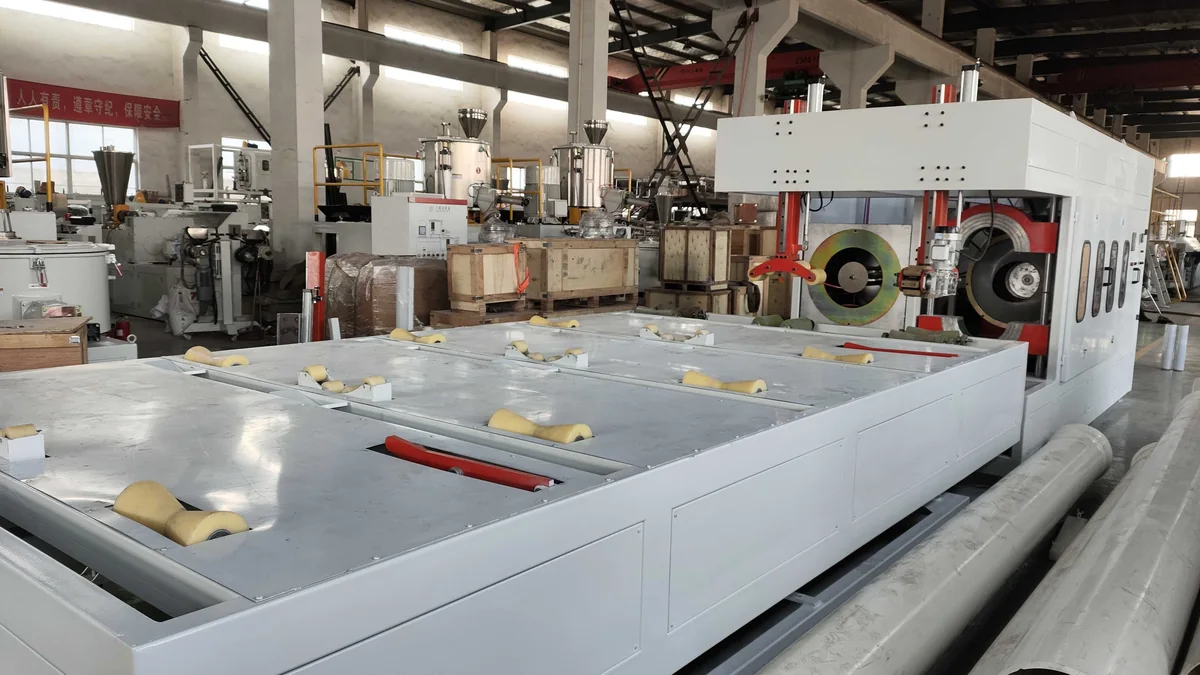

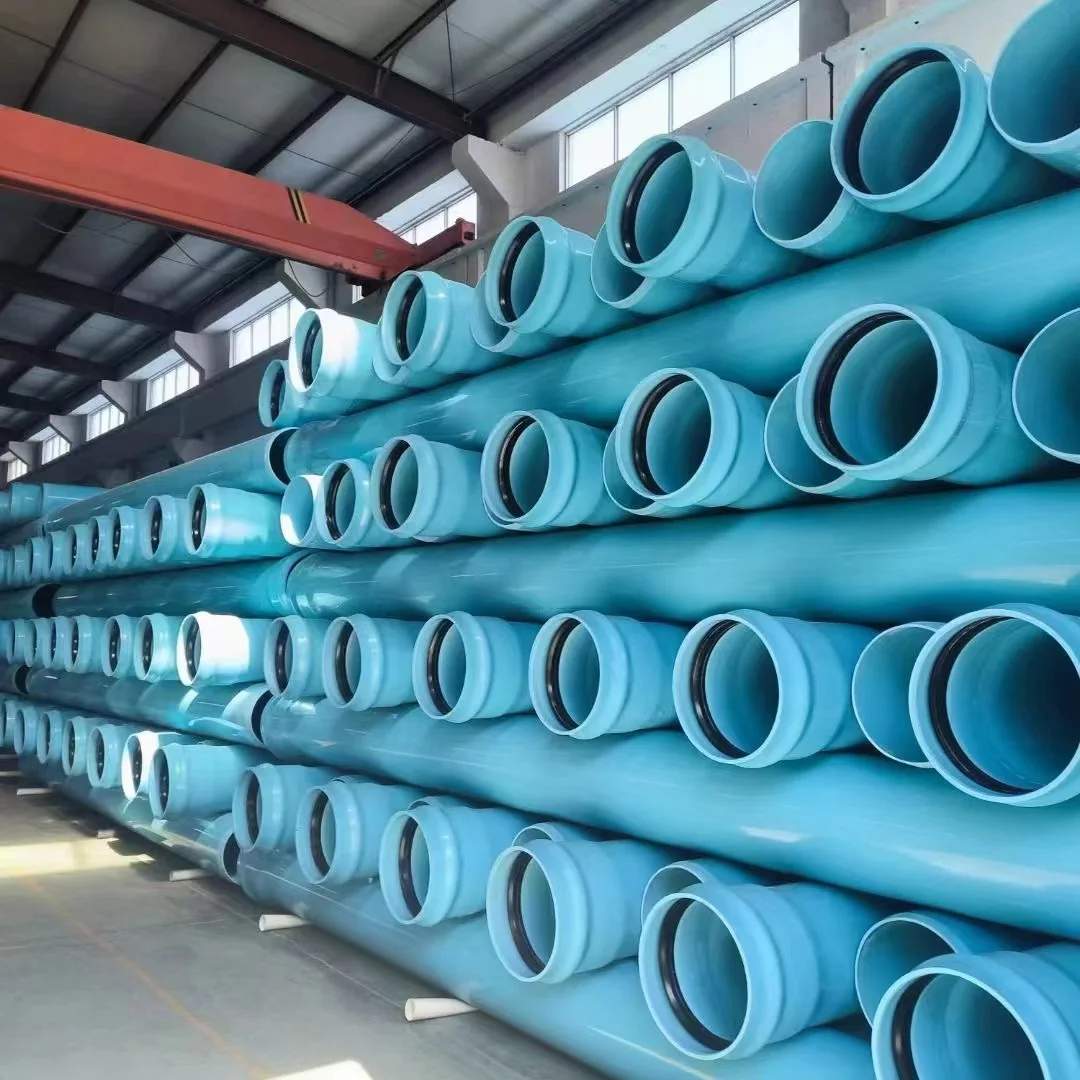

06 Belling machine

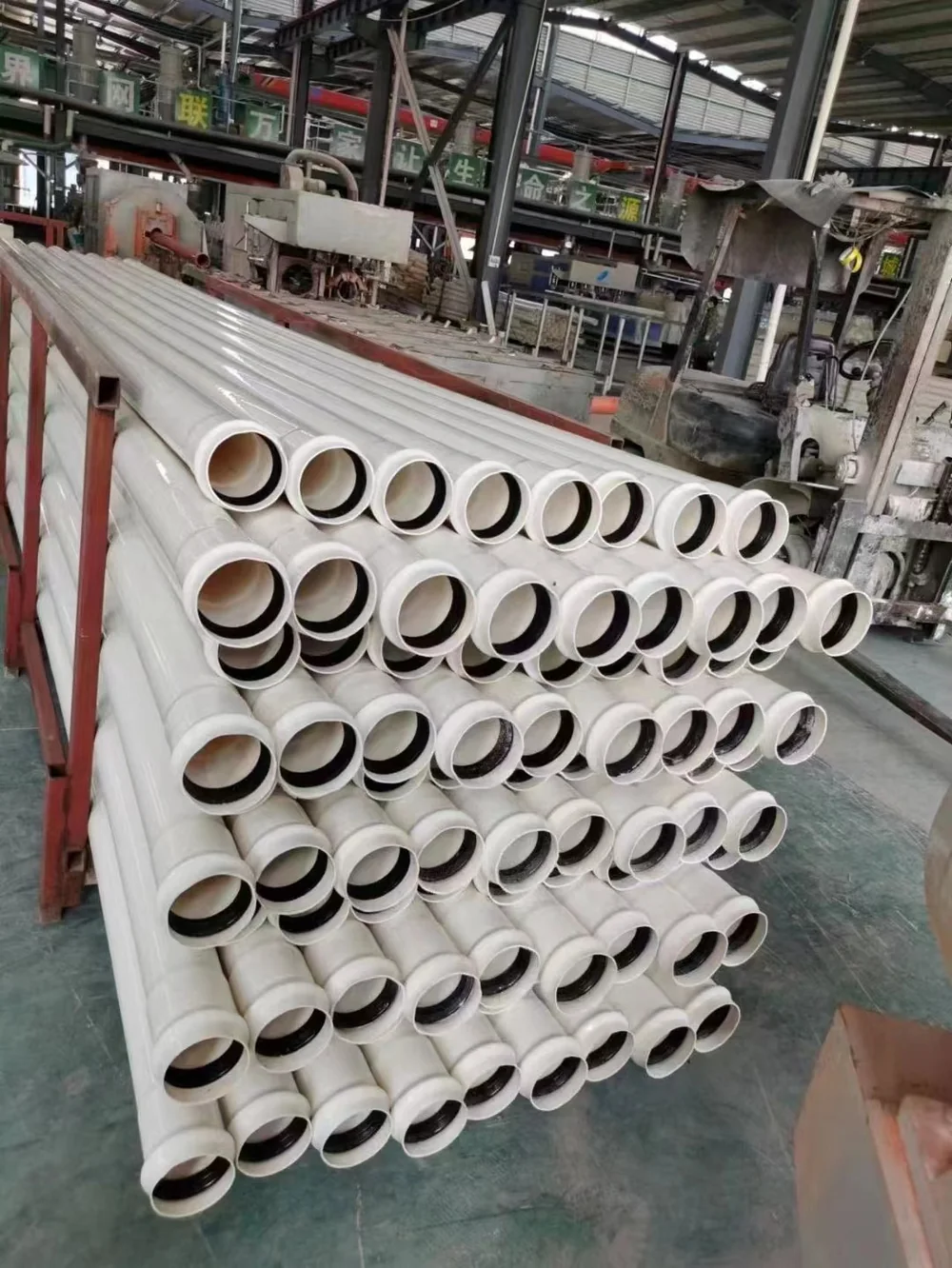

Optional downstream unit for forming socket ends on PVC water pipe.
Configuration highlights
Conical twin screw extrusion matched to PVC powder processing.

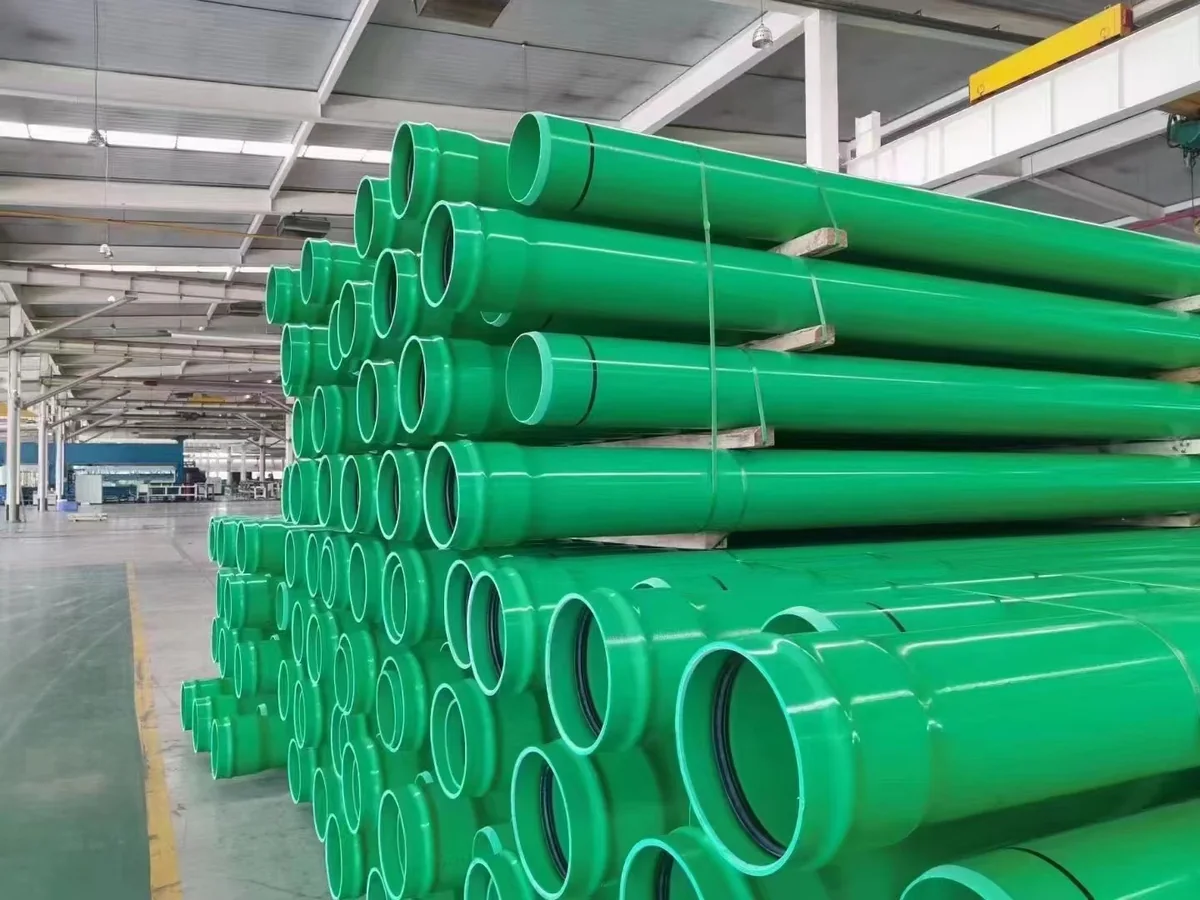

Application reference: Water supply pipe.
Mould and calibrator support stable pipe diameter and wall thickness.
Application reference: Drainage pipe.
Vacuum spray cooling keeps pipe size, roundness and surface finish consistent.
Application reference: Sewage pipe.
Haul-off, cutter and stacker are synchronized for continuous production.
Application reference: Building pipe.
Optional belling machine, printer and wall thickness control can be configured.
Application reference: Liquid gas and oil transport.
Technical parameters
Product type PVC Water Pipe Making Machine
Application Water supply / drainage / sewage / building pipe
Pipe range 16-630 mm
Capacity 80-800 kg/h
| Model | Screw Diameter (mm) | Pipe Range (mm) | Capacity (kg/h) | Main Motor Power (kW) | Total Power (kW) | Line Length (m) |
|---|---|---|---|---|---|---|
| PVC63 | 51/105 | 16-63 | 80-120 | 18.5 | 50 | 22 |
| PVC160 | 65/132 | 75-160 | 200-250 | 37 | 100 | 22 |
| PVC250 | 65/132 | 110-250 | 200-250 | 37 | 120 | 30 |
| PVC315 | 80/156 | 160-315 | 300-400 | 55 | 200 | 30 |
| PVC450 | 80/156 | 200-450 | 300-400 | 55 | 220 | 36 |
| PVC630 | 92/188 | 315-630 | 400-800 | 90 | 350 | 42 |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pvc pipe production line used for?
PVC Water Pipe Making Machine is commonly used for water supply pipe, drainage pipe, sewage pipe, building pipe, liquid gas and oil transport.
What is included in the production line?
The line includes mixer, forced feeding, conical twin screw extruder, mould and calibrator, vacuum spray cooling tank, printer.
What range and output can be configured?
Reference configuration covers 16-630 mm with 80-800 kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
