Multi-layer PVC pipe extrusion line for water supply, drainage, agricultural, construction and cable laying.
PVC Pipe Production Line
Multi-Layer PVC Water Supply Drainage Pipe Extrusion Line
Multi-layer PVC pipe extrusion line for water supply, drainage, agricultural, construction and cable laying applications. The line uses two main extruders for the outer and inner layers plus the middle layer, with optional structures such as inner-wall spiral pipe, hollow-wall pipe and core-foam pipe.
Various PVC pipe diameters by project Diameter range
Configured by pipe diameter and wall thickness Max Output
Overview
Application range
Agricultural water supply, Construction drainage, Cable laying, PVC water supply pipe
Range and output
Various PVC pipe diameters by project diameter range with Configured by pipe diameter and wall thickness output.
Core configuration
Vacuum feeder, Conical twin-screw extruder, Multi-layer pipe mould, Vacuum calibration tank
Machine video
Watch machine video
Applications
Process flow
01
PVC material feeding 02
Outer and inner layer extrusion 03
Middle layer extrusion 04
Multi-layer pipe mould forming 05
Vacuum calibration and cooling 06
Haul-off traction 07
Saw blade or planetary cutting 08
Finished pipe collection Line composition

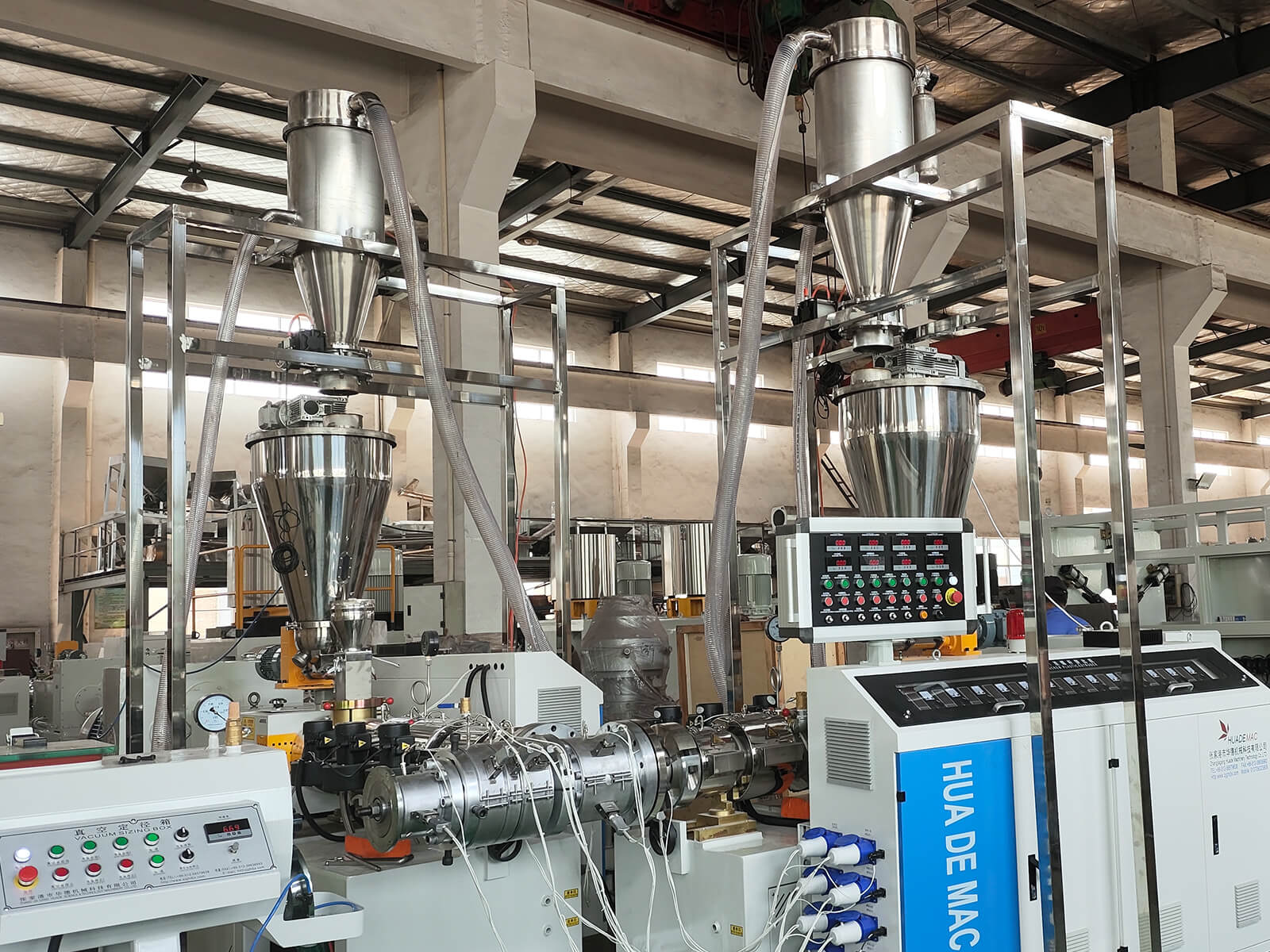

01 Vacuum feeder
Transfers PVC material into the extrusion section for continuous pipe production.
02 Conical twin-screw extruder
Plasticizes PVC material and supports stable output for the outer, inner and middle layers.

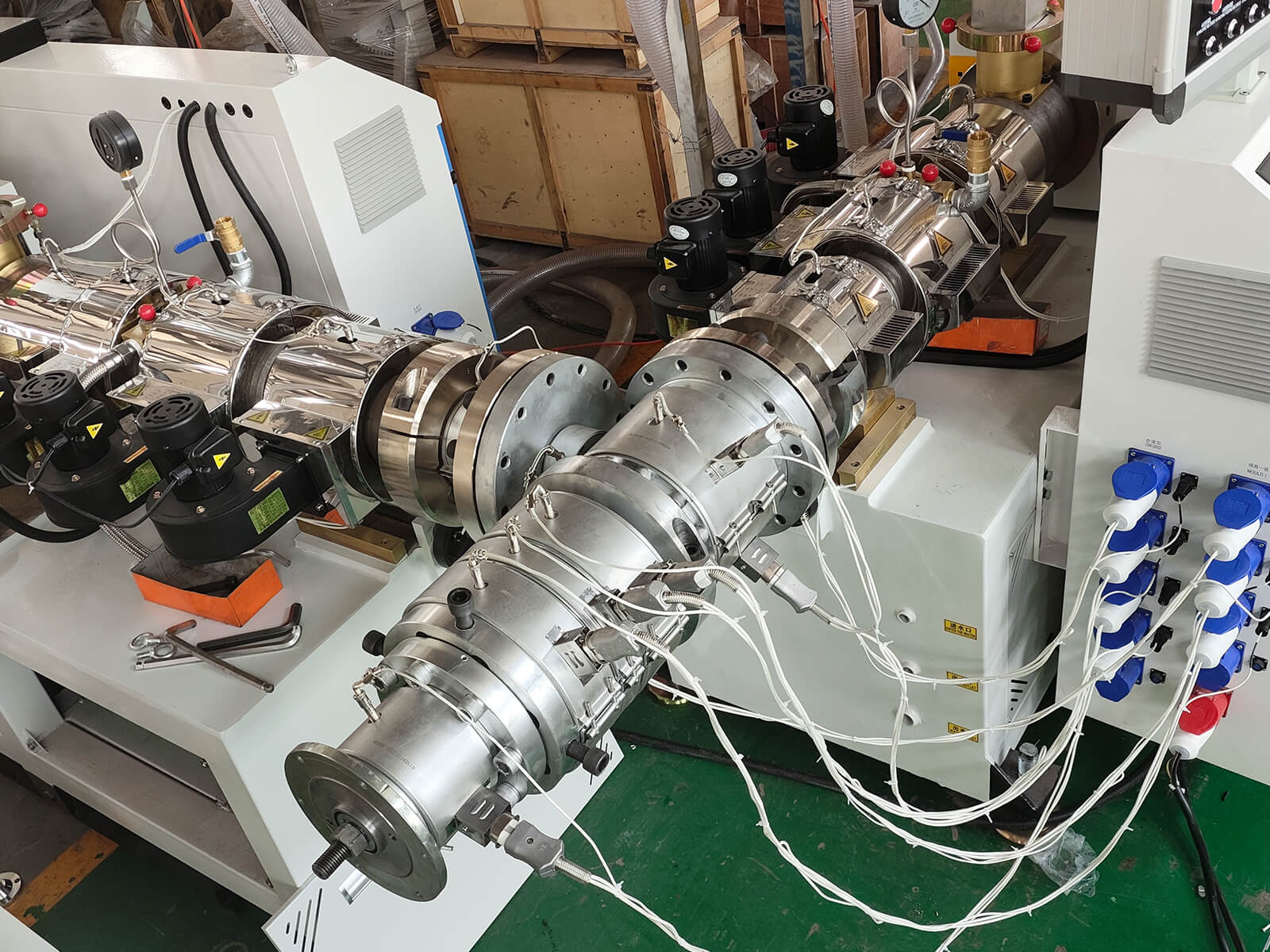

03 Multi-layer pipe mould
Combines the material streams and forms the multi-layer pipe structure.

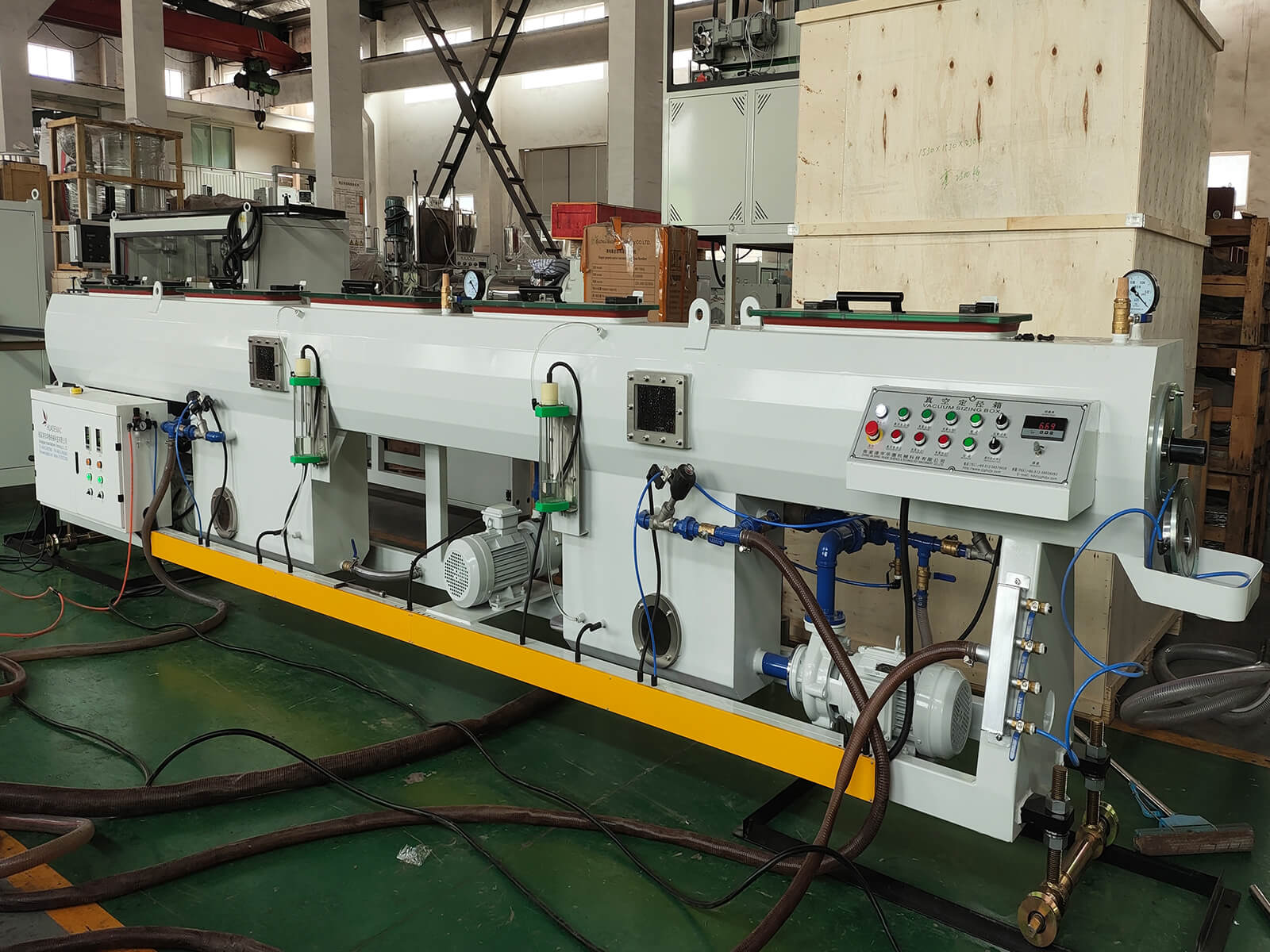

04 Vacuum calibration tank
Sizes and cools the pipe after it leaves the mould for stable dimensions.

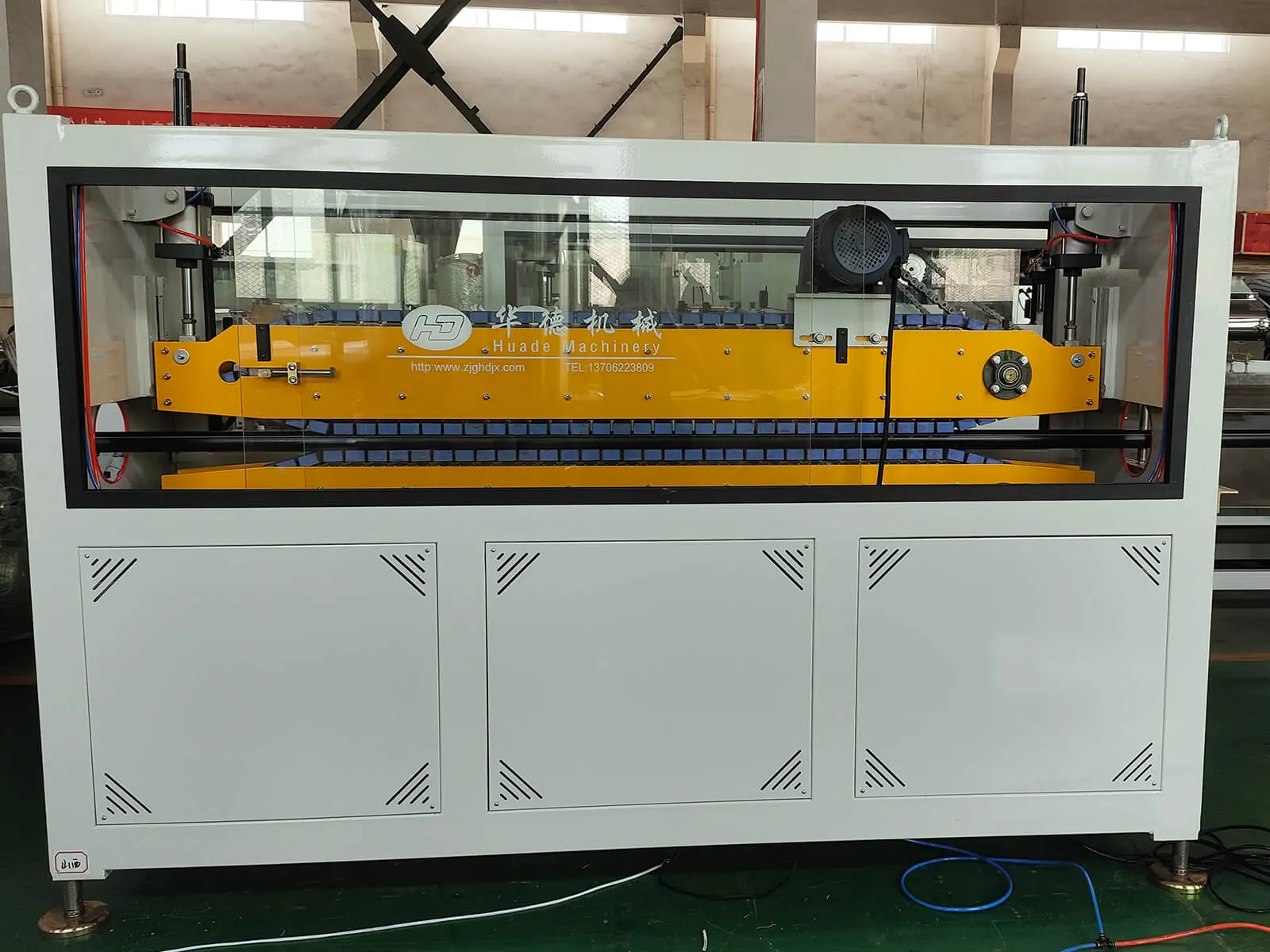

05 Haul-off machine
Pulls the pipe through the downstream line at synchronized speed.

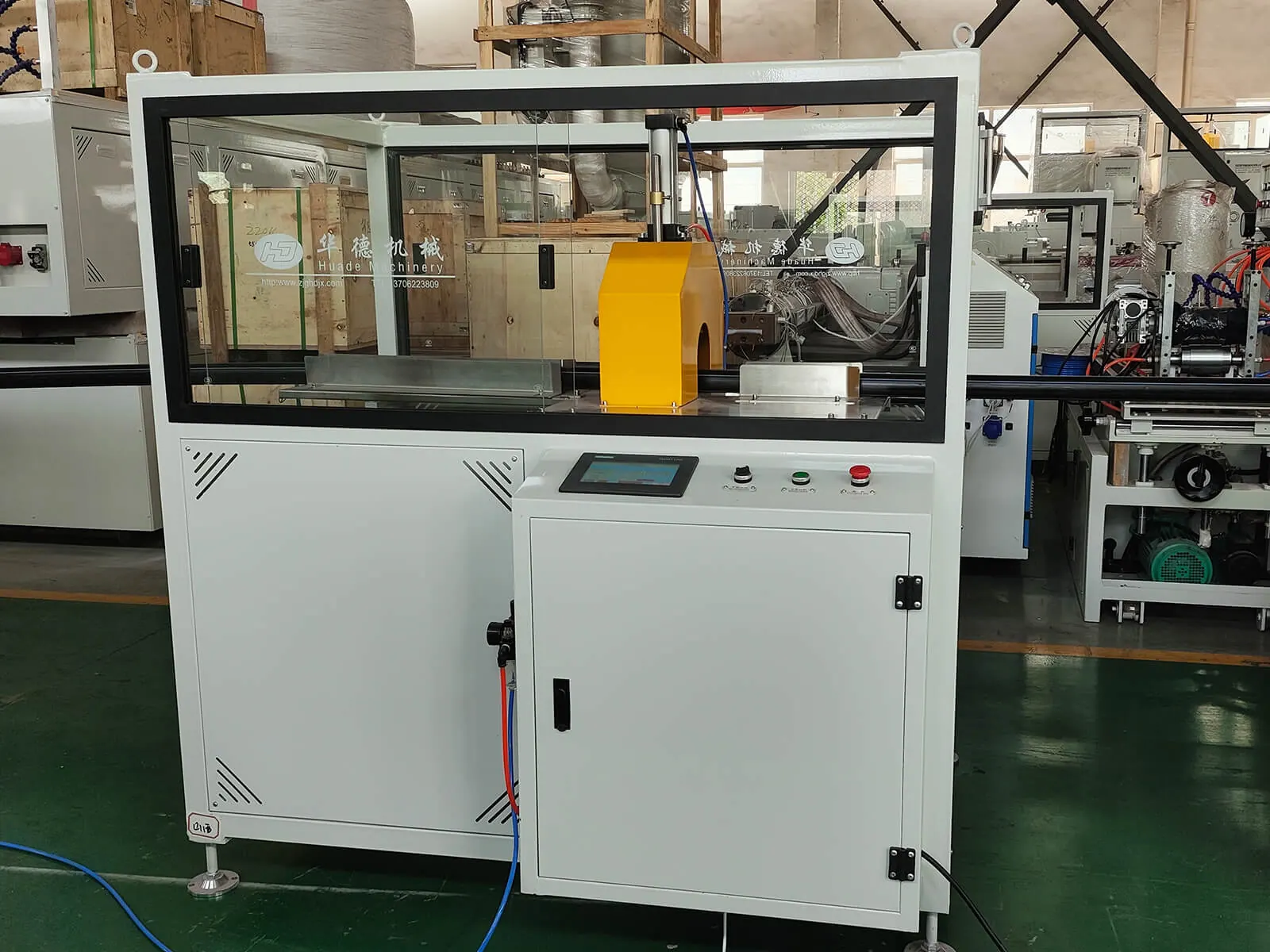

06 Cutting machine
Cuts the finished pipe to required length using the configured cutting method.
01 Vacuum feeder
Transfers PVC material into the extrusion section for continuous pipe production.
02 Conical twin-screw extruder
Plasticizes PVC material and supports stable output for the outer, inner and middle layers.
03 Multi-layer pipe mould
Combines the material streams and forms the multi-layer pipe structure.
04 Vacuum calibration tank
Sizes and cools the pipe after it leaves the mould for stable dimensions.
05 Haul-off machine
Pulls the pipe through the downstream line at synchronized speed.
06 Cutting machine
Cuts the finished pipe to required length using the configured cutting method.
Configuration highlights
Two main extruders are used: one for the outer and inner layers, and one for the middle layer.
Application reference: Agricultural water supply.
Designed for PVC pipes with different tube diameters and wall thicknesses.
Application reference: Construction drainage.
Suitable for agricultural, constructional and cable laying applications.
Application reference: Cable laying.
Conical twin-screw extruder configuration supports PVC powder plasticizing and stable extrusion.
Application reference: PVC water supply pipe.
Vacuum calibration and downstream traction sections support pipe sizing and stable production.
Application reference: PVC drainage pipe.
Saw blade cutting or planetary cutting can be configured according to project requirements.
Application reference: Inner-wall spiral pipe option.
Optional tooling can support inner-wall spiral pipe, inner-wall hollow pipe and core-foam pipe.
Application reference: Inner-wall hollow pipe option.
Technical parameters
Product type Multi-layer PVC water supply and drainage pipe extrusion line

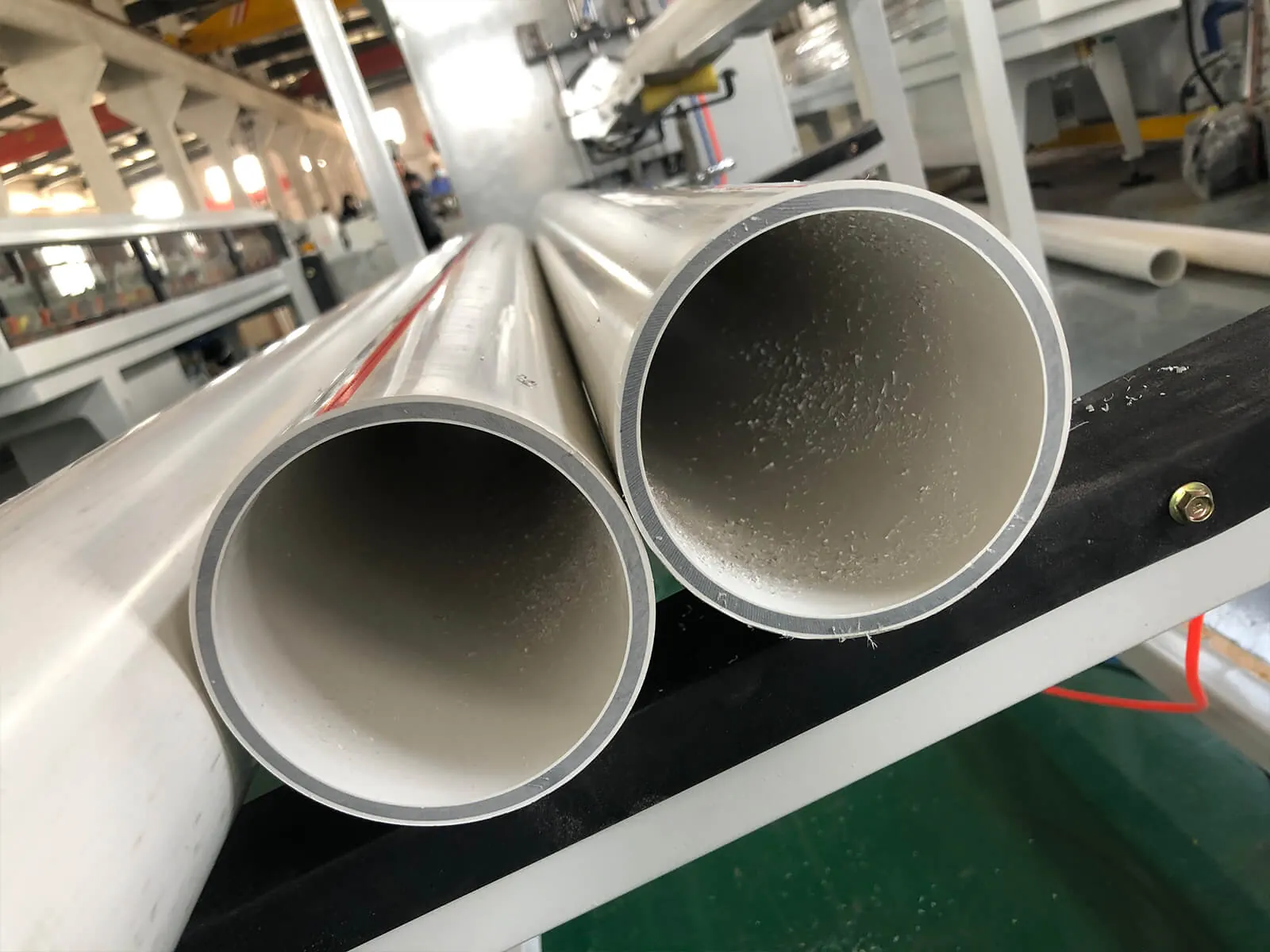

Layer structure Outer layer / middle layer / inner layer
Main extruders Two main extruders
Material PVC
Applications Agricultural, constructional and cable laying fields
Cutting options Saw blade cutting / planetary cutting
Optional pipe structures Inner-wall spiral pipe / inner-wall hollow pipe / core-foam pipe
| Item | Word document reference | Configuration note |
|---|---|---|
| Main extrusion system | Two main extruders | One extruder for outer and inner layers; one extruder for the middle layer |
| Pipe range | Various tube diameter and wall thickness | Final range is configured according to customer pipe specification |
| Main applications | Agricultural, constructional and cable laying | For PVC water supply, drainage and cable protection pipe applications |
| Main machine | Conical twin-screw extruder | Used for PVC plasticizing and stable extrusion |
| Calibration mode | Vacuum mode | Supports PVC pipe sizing and cooling after extrusion |
| Cutting type | Saw blade cutting or planetary cutting | Selected according to pipe diameter, wall thickness and cutting quality requirements |
| Optional pipe structure | Inner wall spiral, inner wall hollow and core foam pipe | Configured according to customer requirements |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pvc pipe production line used for?
Multi-Layer PVC Water Supply Drainage Pipe Extrusion Line is commonly used for agricultural water supply, construction drainage, cable laying, pvc.
What is included in the production line?
The line includes vacuum feeder, conical twin-screw extruder, multi-layer pipe mould, vacuum calibration tank, haul-off machine, cutting machine.
What range and output can be configured?
Reference configuration covers Various PVC pipe diameters by project with Configured by pipe diameter and wall thickness output. Final layout is matched to pipe.
