4 Cavity PVC Conduit Pipe Production Line

High-output 4 cavity PVC conduit pipe production line for simultaneous extrusion of four 16-32mm pipes. The SJSZ65 conical twin screw extruder reaches 5.5-6.5 tons per day, with 16mm conduit speed over 8-10m/min.

Get Quote WhatsApp
16-32mm Diameter range
5.5-6.5 tons/day Max Output
200+ Customers 40+ Countries CE & ISO Certified
4 Cavity PVC Conduit Pipe Production Line

Overview

Matched line setup

High-output 4 cavity PVC conduit pipe production line for simultaneous extrusion of four 16-32mm pipes. The SJSZ65.

Application range

PVC electrical conduit, Water supply pipe, Cable protection tube, Building conduit production

Range and output

16-32mm diameter range with 5.5-6.5 tons/day output reference.

Core configuration

SJSZ65 conical twin screw extruder, 4 cavity PVC conduit mould, 4 cavity cooling calibration tank, 4 station haul-off

Machine video

Watch machine video

Applications

Orange PVC conduit pipes installed along a concrete ceiling for electrical wiring protection
Conduit pipe Lightweight flame-retardant conduit with strong insulation and long service life.
White PVC household water supply pipes installed below a concrete ceiling
Household water supply pipe Corrosion-resistant cold-water piping that is light, hygienic and easy to install.
White CPVC power cable conduit pipes laid in an underground trench
CPVC power conduit Heat-resistant, insulated conduit for safer high-voltage cable protection.
Large blue municipal PVC sewage drainage pipes installed in an outdoor trench
Municipal sewage drainage pipe Buried drainage pipe with corrosion resistance, smooth flow and pressure resistance.
White PVC building drainage pipe installed along an exterior wall trench
Building drainage Cost-effective drainage pipe with smooth discharge, sewage resistance and good sound insulation.
White PVC farmland irrigation pipes and valves installed in an agricultural trench
Farmland irrigation Lightweight irrigation piping that resists water and soil acidity and installs flexibly.

Process flow

01
PVC powder + additive
02
Mixing
03
Screw feeding
04
Twin screw extruder
05
Mould and calibrator
06
Vacuum forming machine
07
Haul off machine
08
Cutting machine
09
Stacker

Line composition

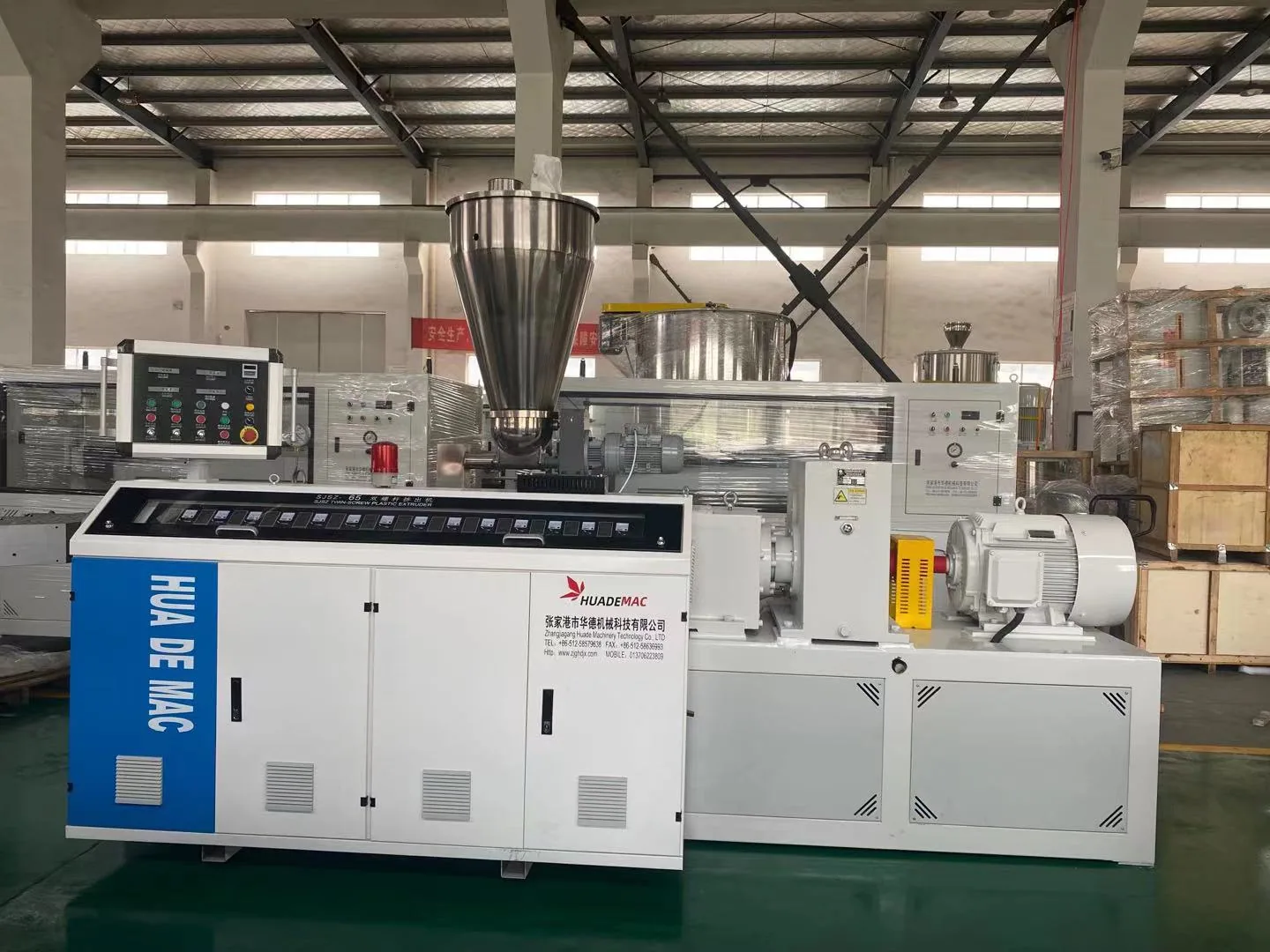

SJSZ65 conical twin screw extruder for 4 cavity PVC conduit pipe production 01

SJSZ65 conical twin screw extruder

Plasticizes PVC powder blend and supports 5.5-6.5 tons/day reference output.

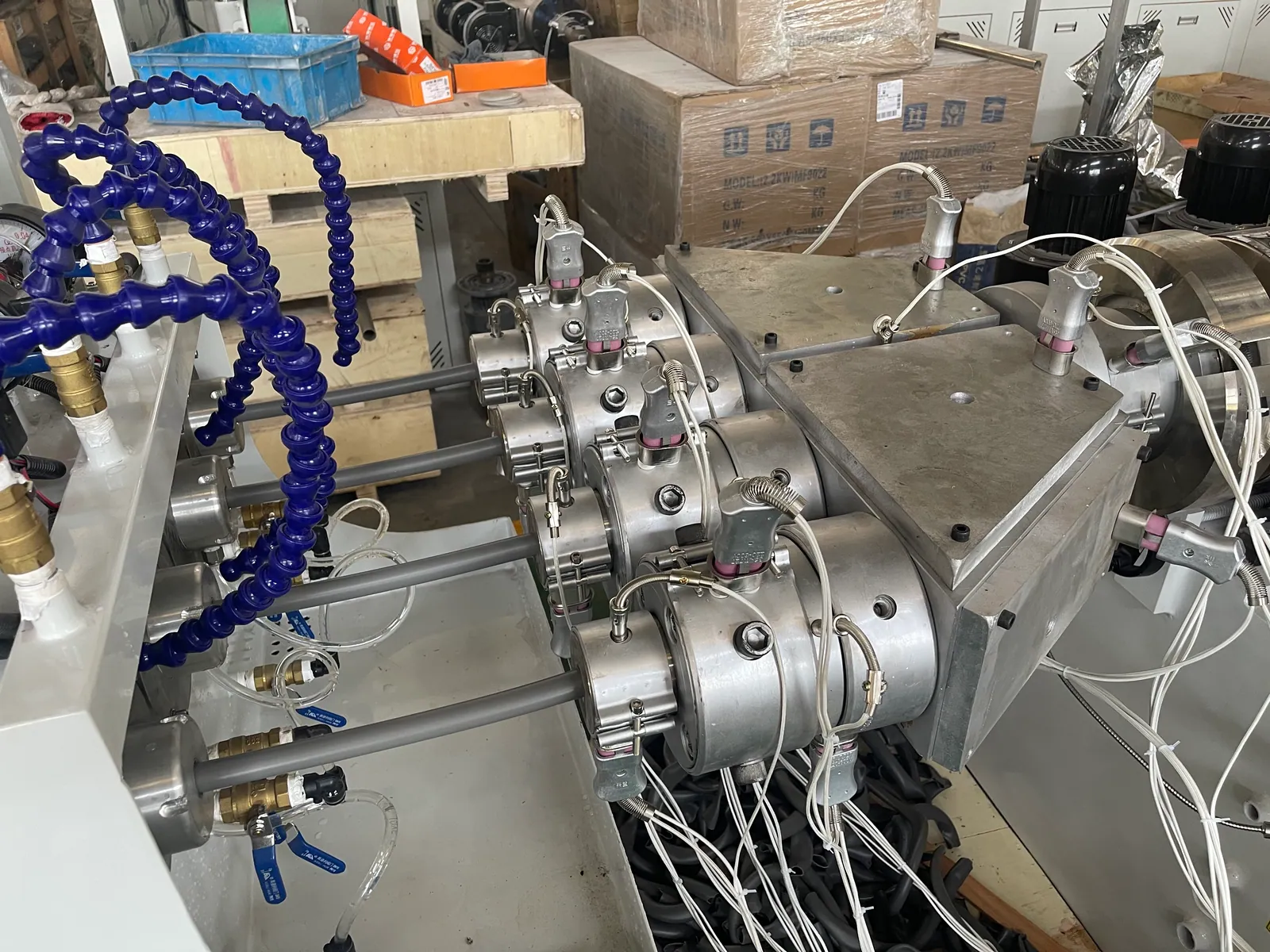

Four cavity PVC conduit extrusion mould for 16-32mm pipe outlets 02

4 cavity PVC conduit mould

Splits the melt into four conduit outlets for simultaneous pipe extrusion.

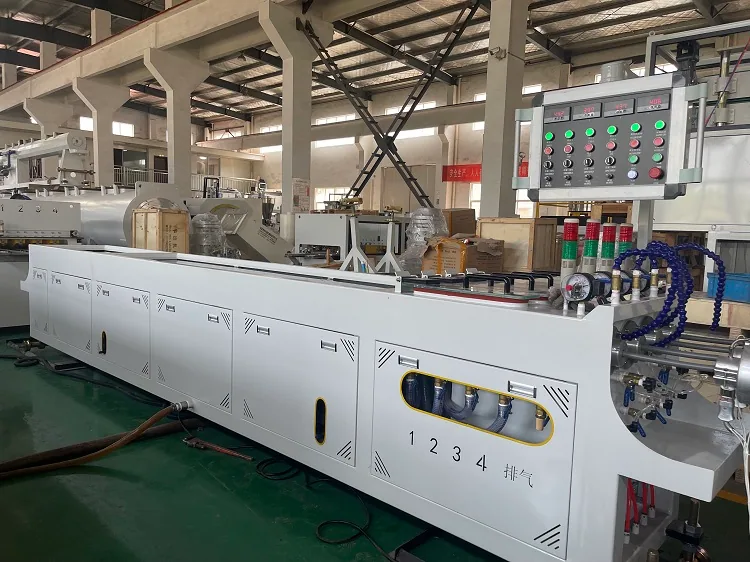

Four cavity vacuum calibration tank for PVC conduit pipe sizing 03

4 cavity cooling calibration tank

Sizes and cools each pipe path after the mould and calibrator.

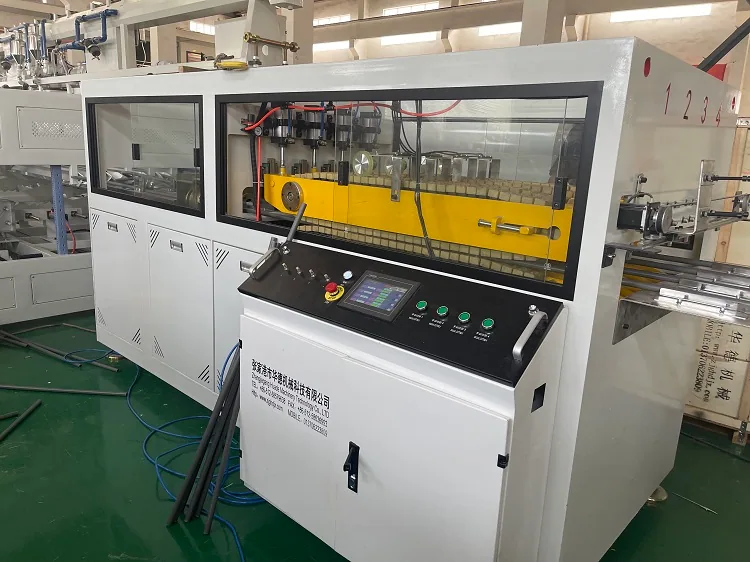

Four station haul off and cutter machine for PVC conduit pipe production 04

4 station haul-off and cutter

Pulls and cuts the four conduit pipes in a synchronized downstream section.

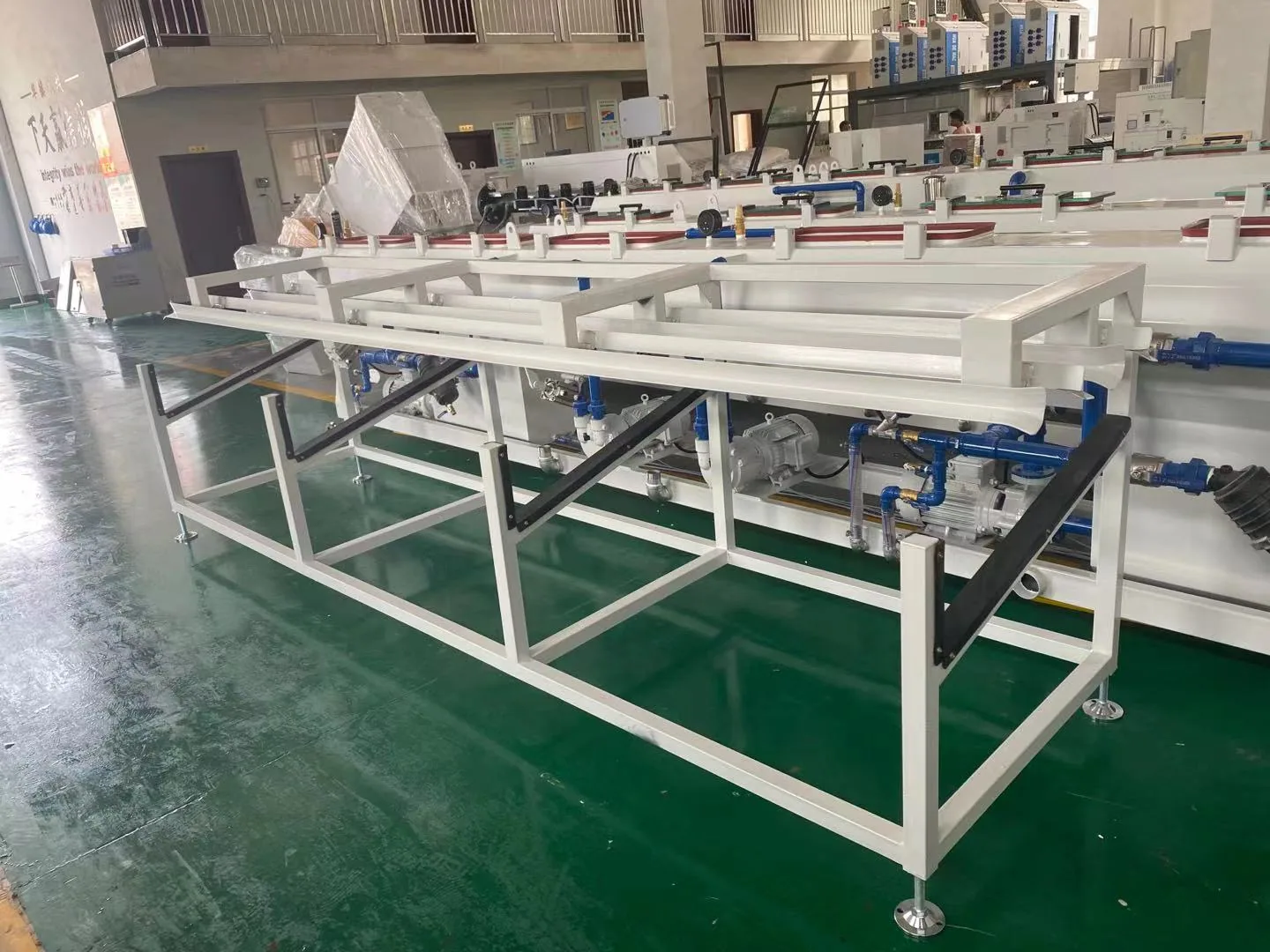

PVC conduit pipe stacker for collecting finished pipes from the 4 station line 05

4 station tipping table and stacker

Collects finished 16-32mm PVC conduit pipes after cutting.

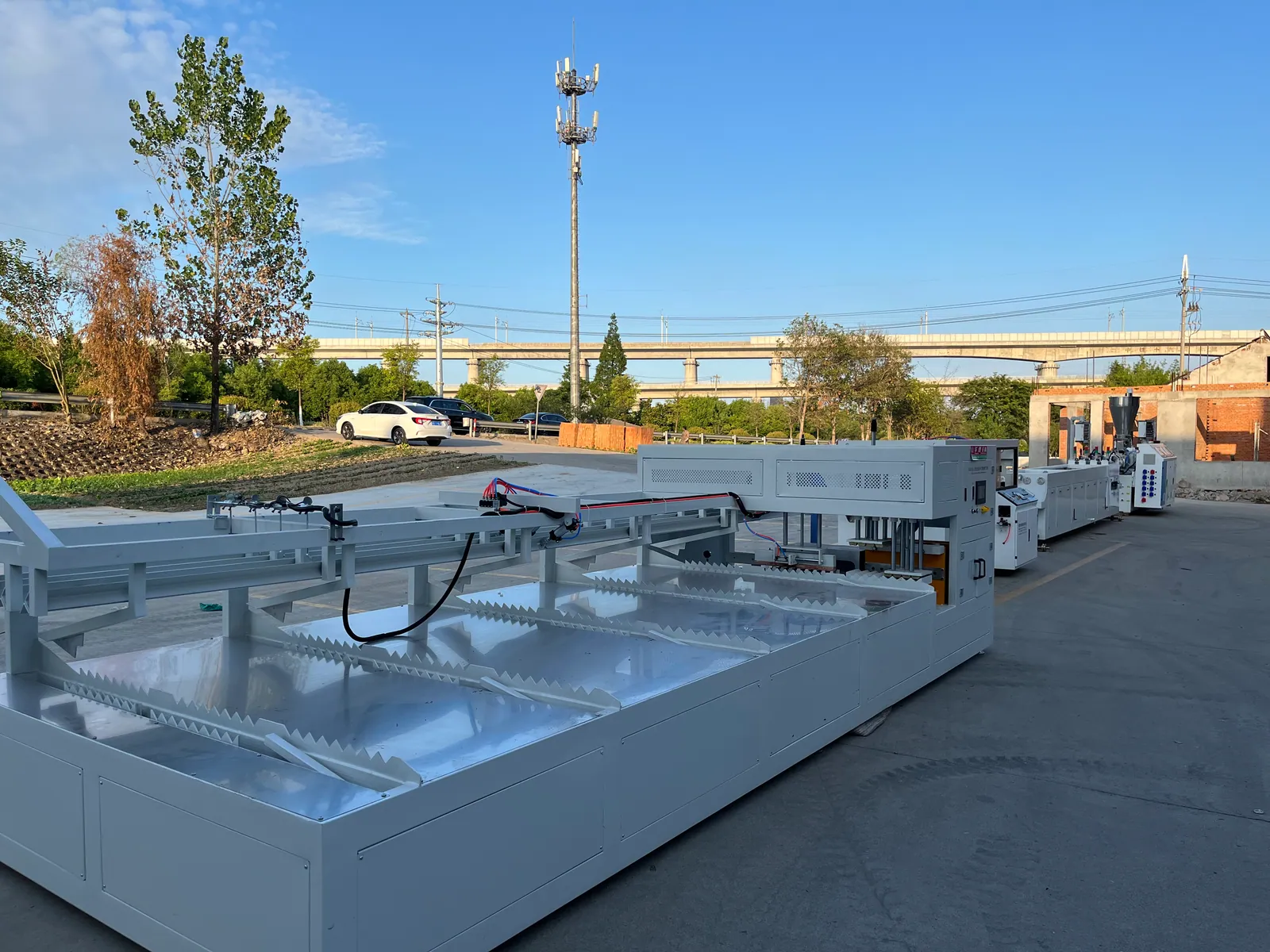

Optional PVC conduit pipe belling machine for socket forming after extrusion 06

Optional belling machine

Available when socket forming is required after the extrusion line.

Configuration highlights

Four pipes are extruded at the same time to raise conduit output from one compact line.

Application reference: PVC electrical conduit.

SJSZ65 conical twin screw extruder provides stable PVC powder plasticizing and high daily output.

Application reference: Water supply pipe.

4 cavity mould and calibration tank keep 16-32mm pipe sizing consistent across all four outlets.

Application reference: Cable protection tube.

4 station haul-off and cutter synchronize downstream handling for continuous production.

Application reference: Building conduit production.

Compact layout reduces workshop space, investment cost and production time.

Matched according to material, output and project configuration.

Technical parameters

Product type 4 Cavity PVC Conduit Pipe Production Line
Application PVC electrical conduit / Water supply pipe
Pipe diameter 16-32mm
Daily output 5.5-6.5 tons/day
Extruder model SJSZ65 conical twin screw
16mm speed 8-10m/min+
Mould 4 cavity
Downstream 4 station haul-off, cutter and tipping table
ItemWord document parameter
Suitable diameter16-32mm
ExtruderSJSZ65 conical twin screw extruder
Daily output5.5-6.5 tons/day
16mm pipe speedMore than 8-10m/min
Mould4 cavity mould
Calibration4 cavity cooling calibration tank
Downstream4 station haul-off, 4 station cutter and 4 station tipping table

Product gallery

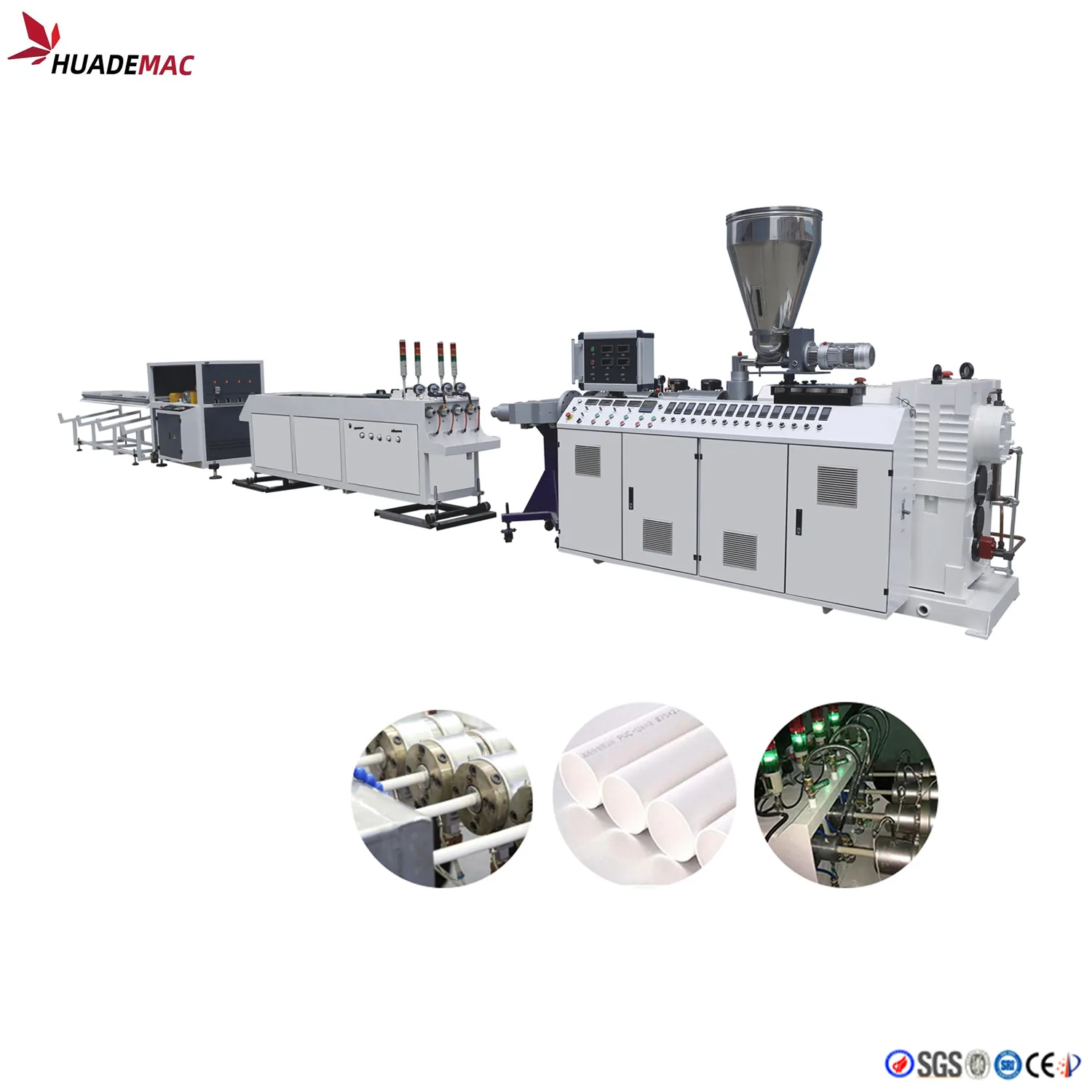

Complete 4 cavity PVC conduit pipe production line for simultaneous four pipe extrusion
Complete 4 cavity conduit line
SJSZ65 conical twin screw extruder connected to the 4 cavity PVC conduit line
SJSZ65 conical twin screw extruder

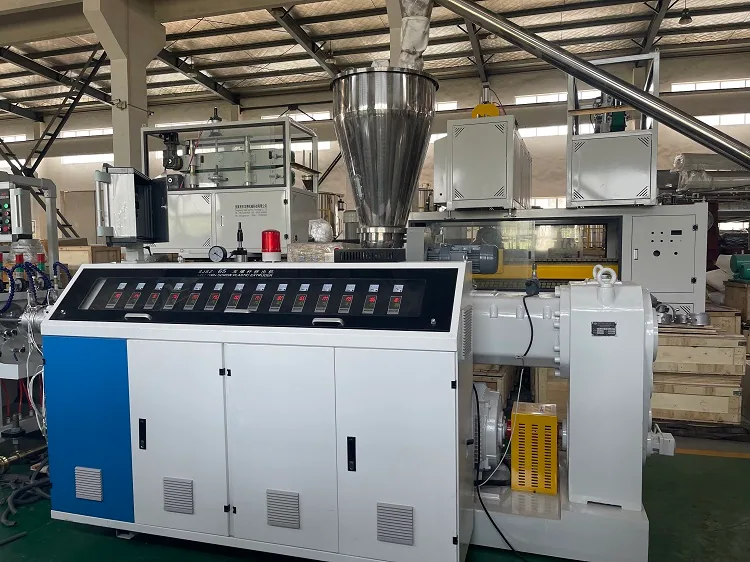

Control side of the conical twin screw extruder for PVC conduit pipe production
Extruder control side
Four cavity PVC conduit extrusion mould for 16-32mm pipe production
4 cavity extrusion mould
Four cavity vacuum calibration tank for PVC electrical conduit pipe sizing
Vacuum calibration tank
Four station haul off and cutter machine for PVC conduit pipe cutting
4 station haul-off and cutter
PVC conduit pipe stacker for collecting finished 16-32mm pipes
Finished pipe stacker
Optional PVC conduit pipe belling machine for socket forming
Optional belling machine

Customer references

PVC window profile extrusion line customer project in Belize
Belize

PVC window profile line

630mm PVC pipe extrusion line customer inspection in Egypt
Egypt

Ø630mm PVC pipe line

PVC pelletizing line customer project in Ethiopia
Ethiopia

PVC pelletizing line

200mm PVC pipe extrusion line customer project in Kenya
Kenya

Ø200mm PVC pipe line

Technical resources

Spec sheet download

Available on request with the technical proposal and machine configuration details.

Request details
Project reference

Available on request with the technical proposal and machine configuration details.

Request details
FAQ
What applications is this pvc pipe production line used for?

4 Cavity PVC Conduit Pipe Production Line is commonly used for pvc electrical conduit, water supply pipe, cable protection tube, building conduit.

What is included in the production line?

The line includes sjsz65 conical twin screw extruder, 4 cavity pvc conduit mould, 4 cavity cooling calibration tank, 4 station haul-off, 4 station cutter, 4 station tipping table.

What range and output can be configured?

Reference configuration covers 16-32mm with 5.5-6.5 tons/day output. Final layout is matched to pipe material, diameter and factory requirements.
