PVC Pipe Production Line

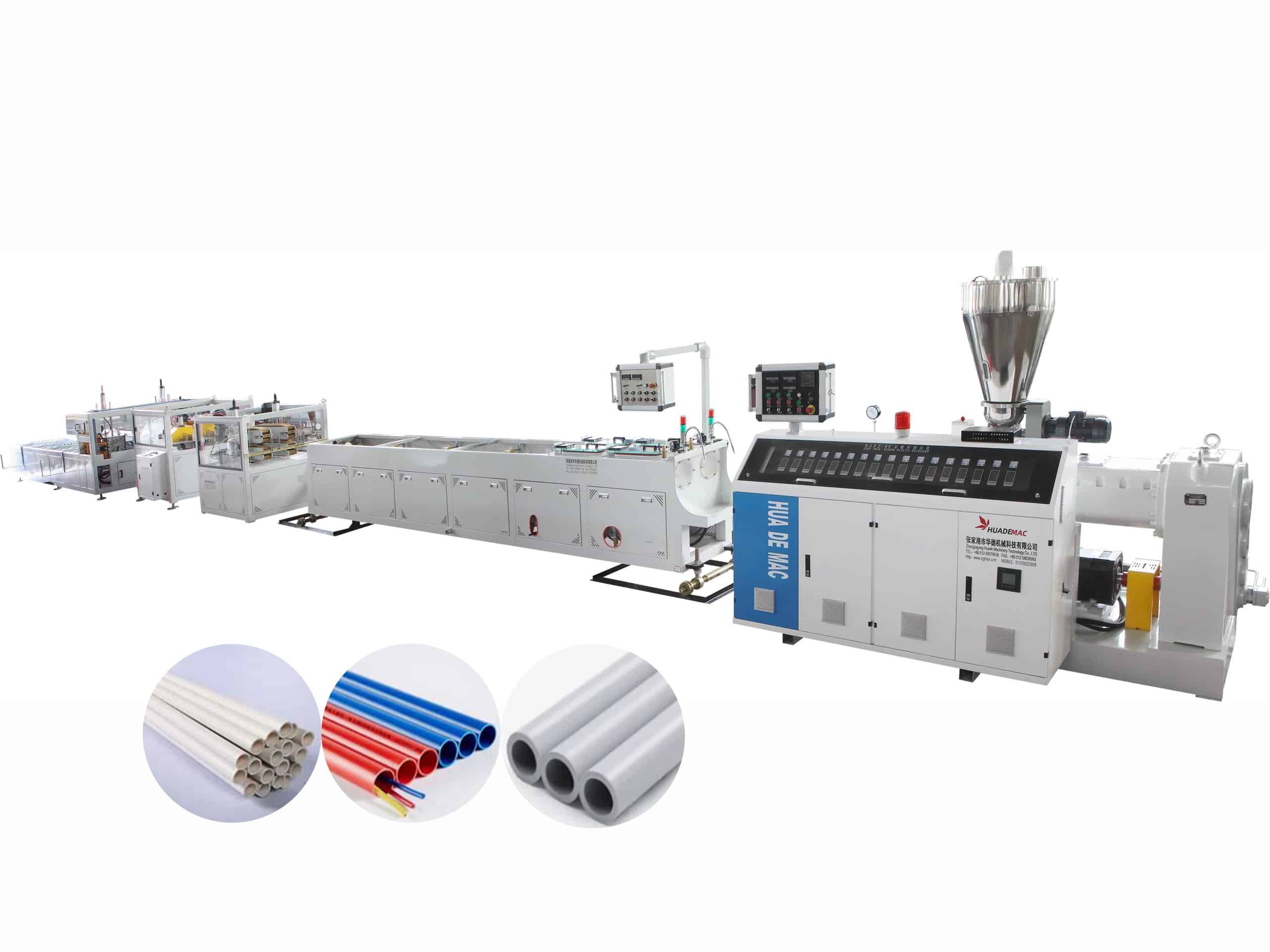

2 Cavity PVC Pipe Production Line

Twin-screw 2 cavity PVC pipe production line for water supply, drainage, conduit and cable protection pipe production.

Get Quote WhatsApp
16-200 mm Diameter range
120-400 kg/h Max Output
200+ Customers 40+ Countries CE & ISO Certified
2 Cavity PVC Pipe Production Line

Overview

Matched line setup

Twin-screw 2 cavity PVC pipe production line for water supply, drainage, conduit and cable protection pipe production.

Application range

Conduit pipe, Household water supply pipe, CPVC power conduit, Municipal sewage drainage pipe

Range and output

16-200 mm diameter range with 120-400 kg/h output reference.

Core configuration

Conical twin screw extruder, Two cavity PVC pipe mould, Vacuum calibration tank, Haul-off machine

Machine video

Watch machine video

Applications

Orange PVC conduit pipes installed along a concrete ceiling for electrical wiring protection
Conduit pipe Lightweight flame-retardant conduit with strong insulation and long service life.
White PVC household water supply pipes installed below a concrete ceiling
Household water supply pipe Corrosion-resistant cold-water piping that is light, hygienic and easy to install.
White CPVC power cable conduit pipes laid in an underground trench
CPVC power conduit Heat-resistant, insulated conduit for safer high-voltage cable protection.
Large blue municipal PVC sewage drainage pipes installed in an outdoor trench
Municipal sewage drainage pipe Buried drainage pipe with corrosion resistance, smooth flow and pressure resistance.
White PVC building drainage pipe installed along an exterior wall trench
Building drainage Cost-effective drainage pipe with smooth discharge, sewage resistance and good sound insulation.
White PVC farmland irrigation pipes and valves installed in an agricultural trench
Farmland irrigation Lightweight irrigation piping that resists water and soil acidity and installs flexibly.

Process flow

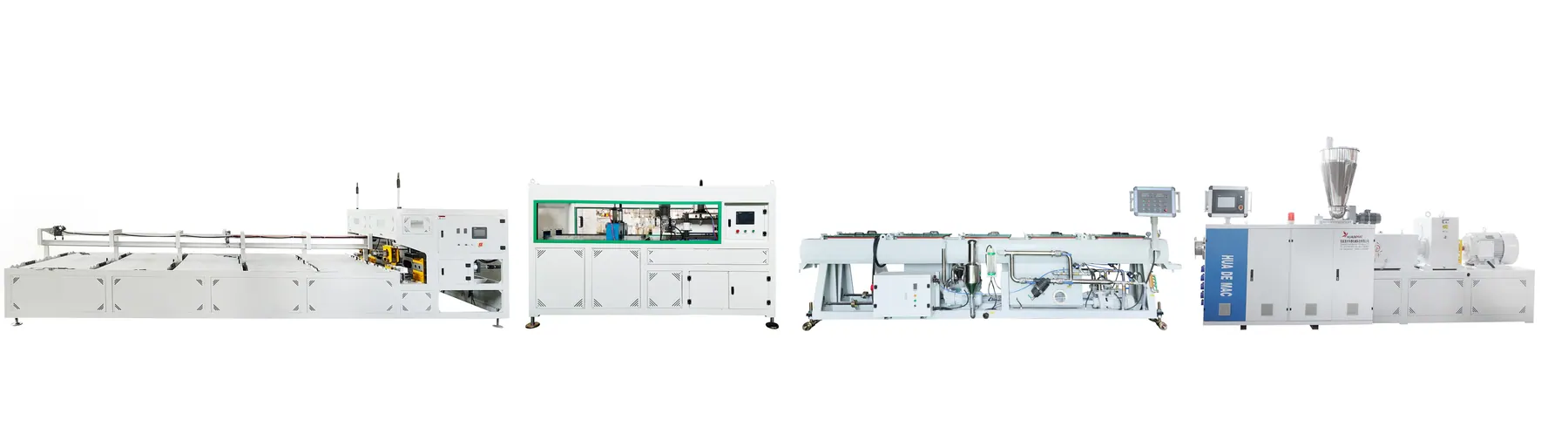

Complete 2 cavity PVC pipe production line from extruder to downstream stacker
Complete 2 cavity PVC pipe production line from extruder to downstream stacker
01
PVC powder and additives
02
Screw feeder
03
Conical twin screw extruder
04
Two cavity mould and calibrator
05
Vacuum calibration tank
06
Haul-off machine
07
Automatic cutting machine
08
Stacker or belling machine

Line composition

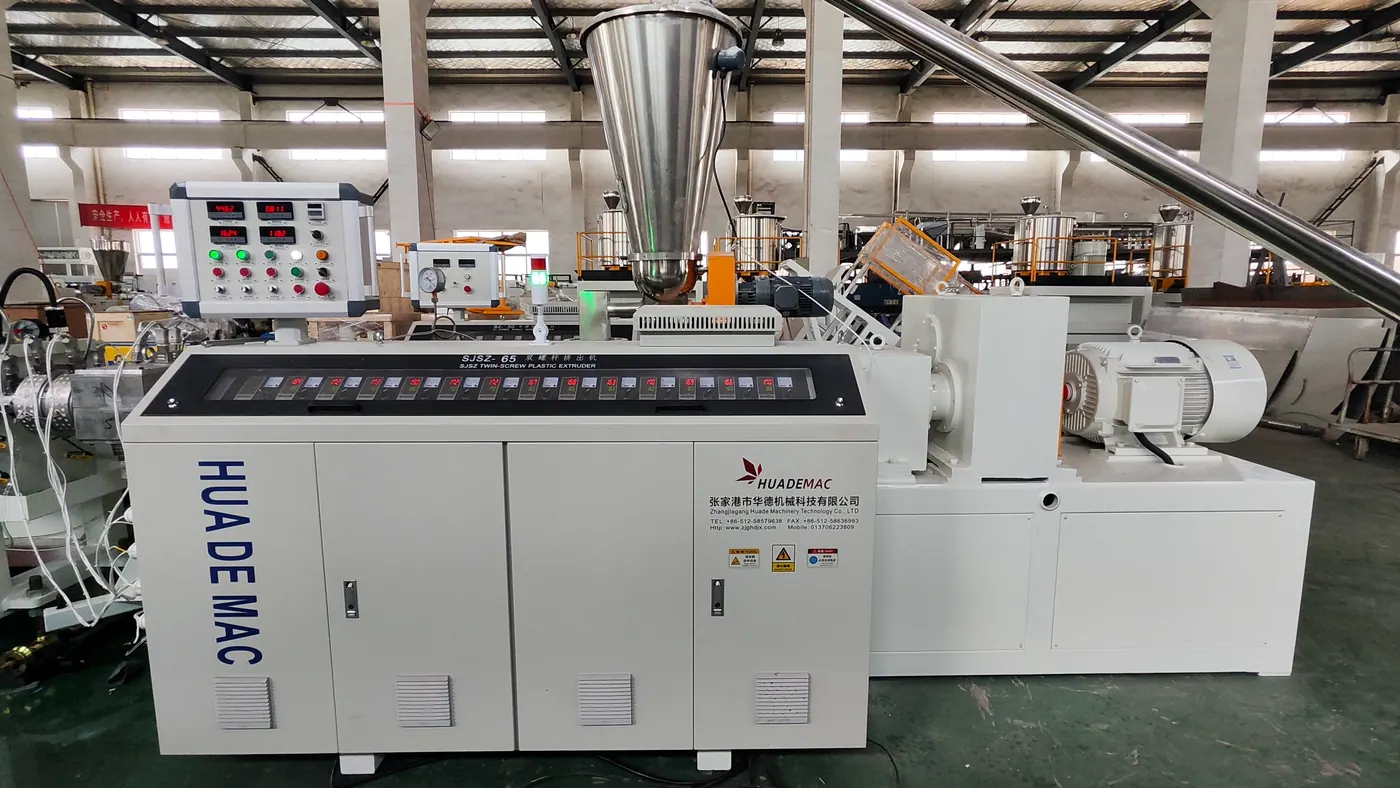

Conical twin screw extruder for 2 cavity PVC pipe production 01

Conical twin screw extruder

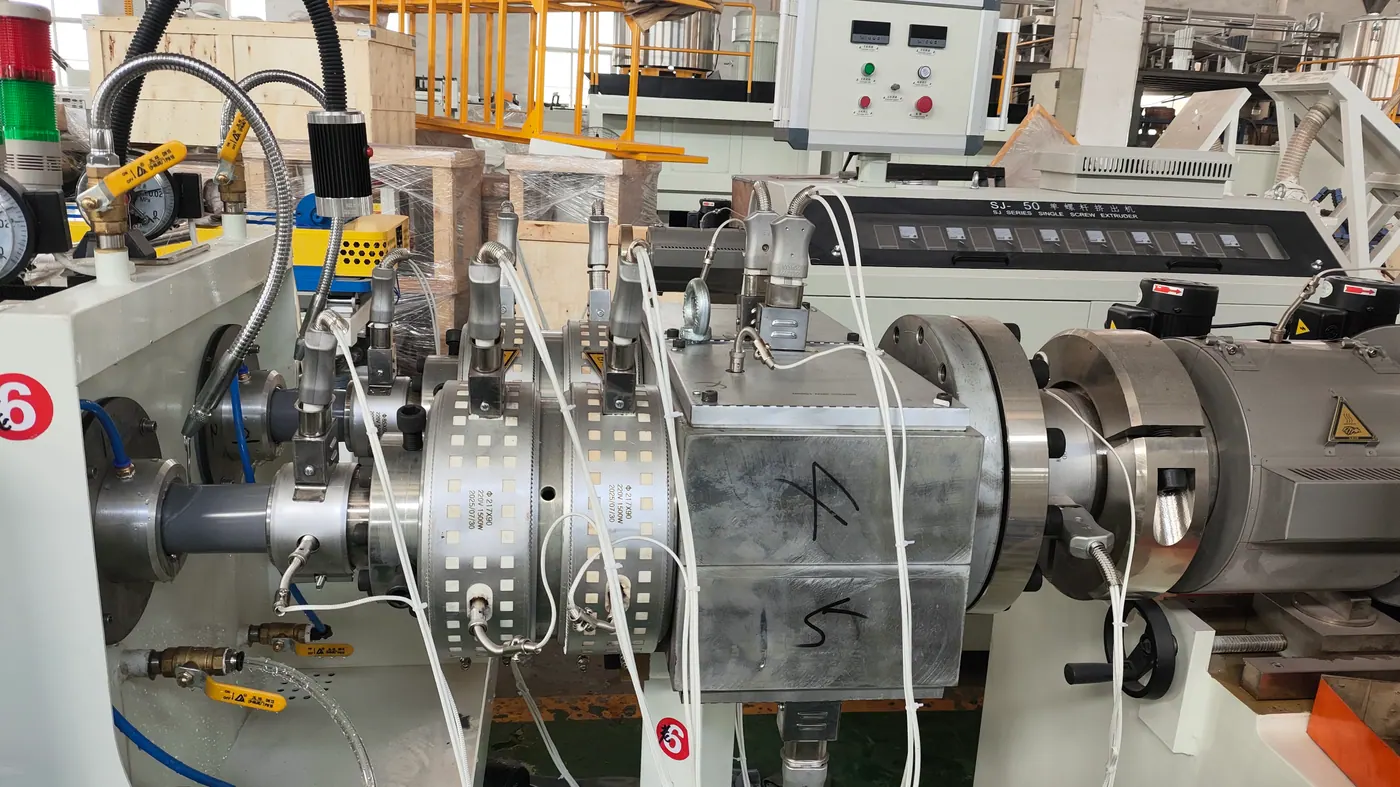

Two cavity PVC pipe extrusion mould and calibrator 02

Two cavity PVC pipe mould

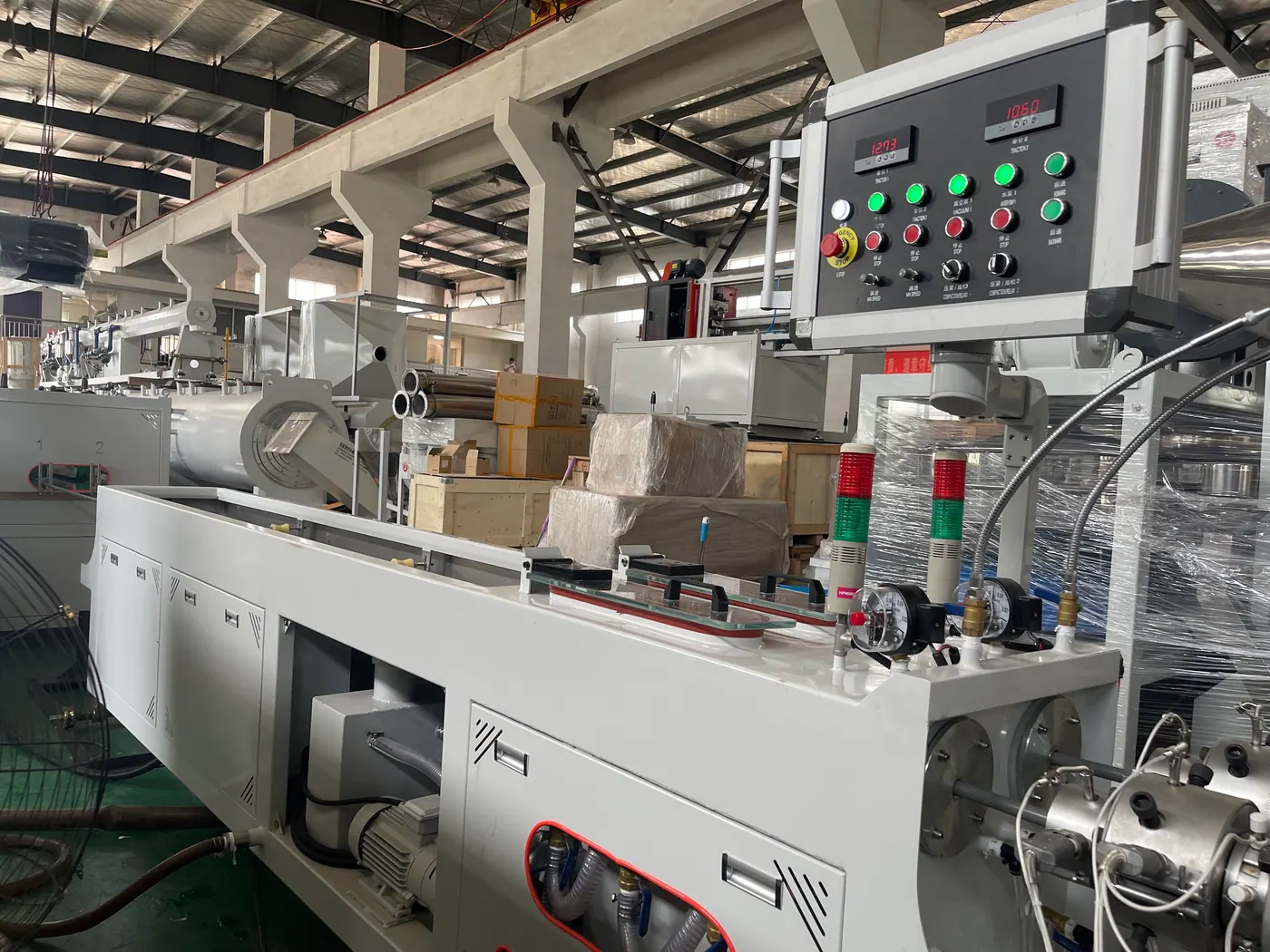

Vacuum calibration tank for PVC pipe sizing and cooling 03

Vacuum calibration tank

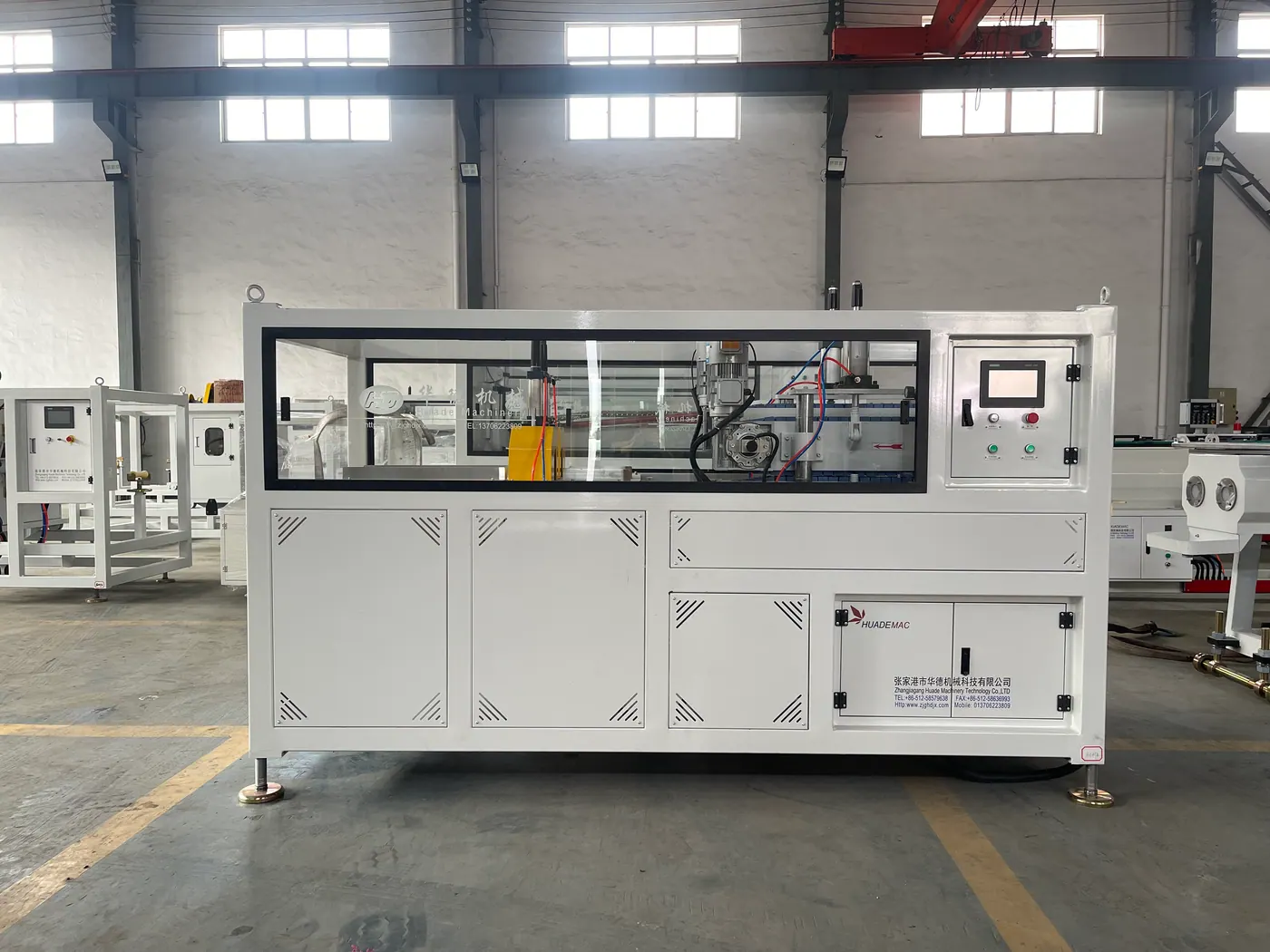

Haul-off and cutter unit for PVC pipe length control 04

Haul-off and cutting machine

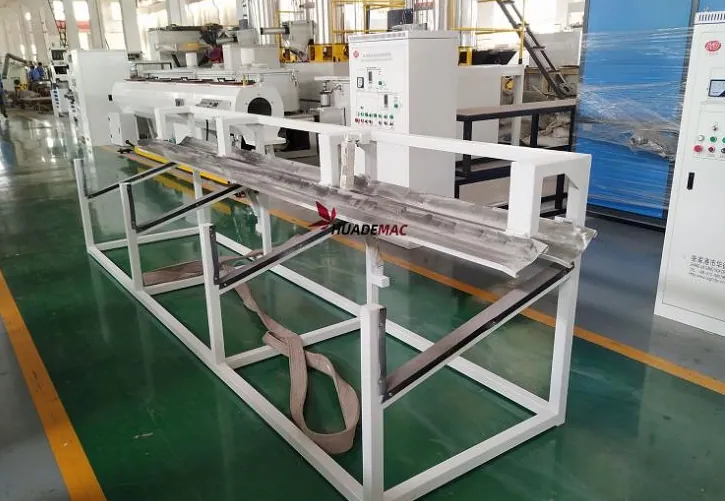

PVC pipe stacker for finished pipe collection 05

Pipe stacker

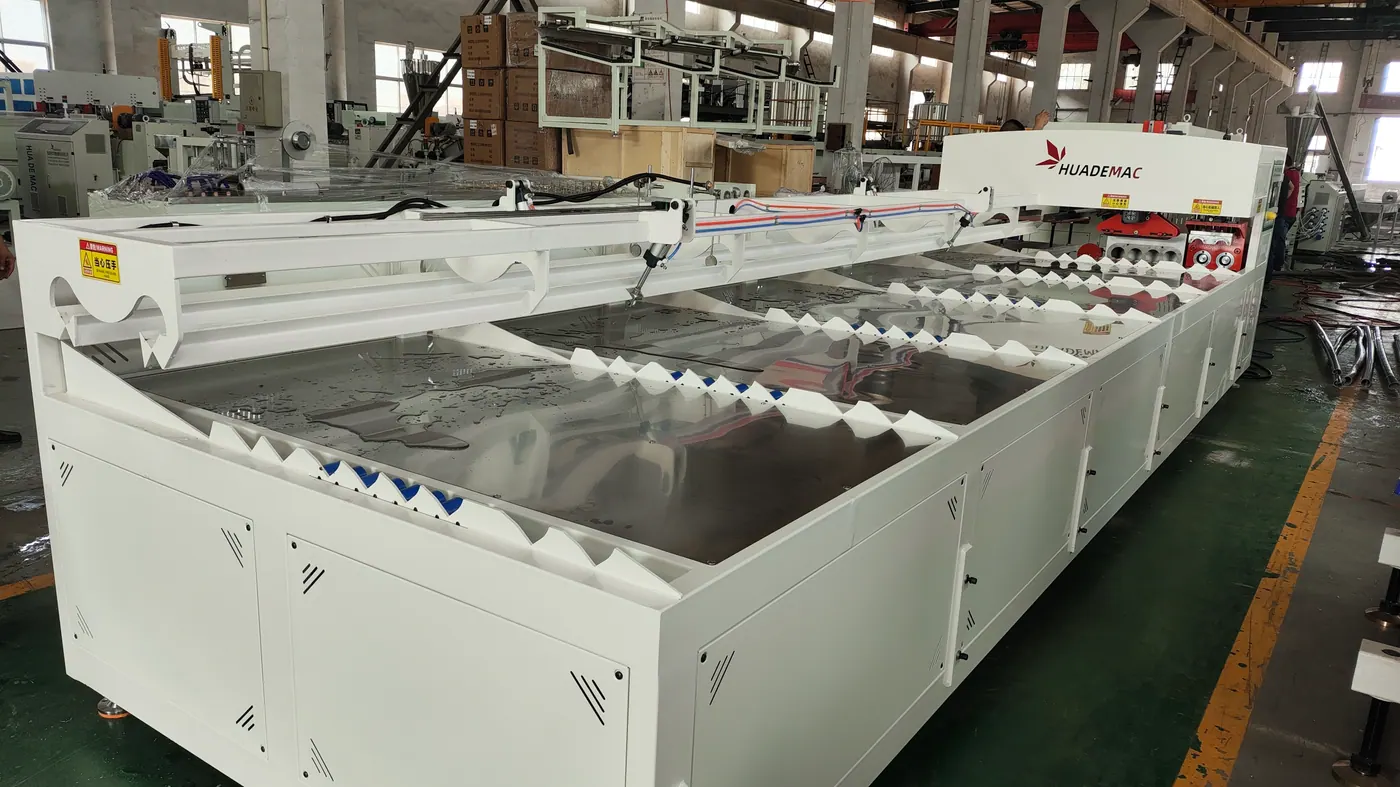

Automatic belling machine for PVC pipe socket forming 06

Belling machine

Configuration highlights

Conical twin screw extruder for PVC plasticizing

Application reference: Conduit pipe.

Two cavity mould for higher small-pipe output

Application reference: Household water supply pipe.

Vacuum calibration and cooling for stable pipe sizing

Application reference: CPVC power conduit.

Haul-off and PLC cutting with meter counter

Application reference: Municipal sewage drainage pipe.

Optional belling machine, thickness controller and ink-jet printer

Application reference: Building drainage.

Configurable downstream layout for different pipe diameters

Application reference: Farmland irrigation.

Technical parameters

Pipe diameter 16-200 mm
Extruder SJSZ55/110, SJSZ65/132, SJSZ80/156
Mould 2 cavity
Capacity 120-400 kg/h
Cutting control Automatic PLC control + meter counter
Haul-off model 2, 3, 4, 6 or 8 claws
Pipe diameter (mm)ExtruderMouldCapacity (kg/h)
16-40SJSZ55/1102 cavity120-180
50-110SJSZ65/1322 cavity180-250
50-200SJSZ80/1562 cavity300-400

Product gallery

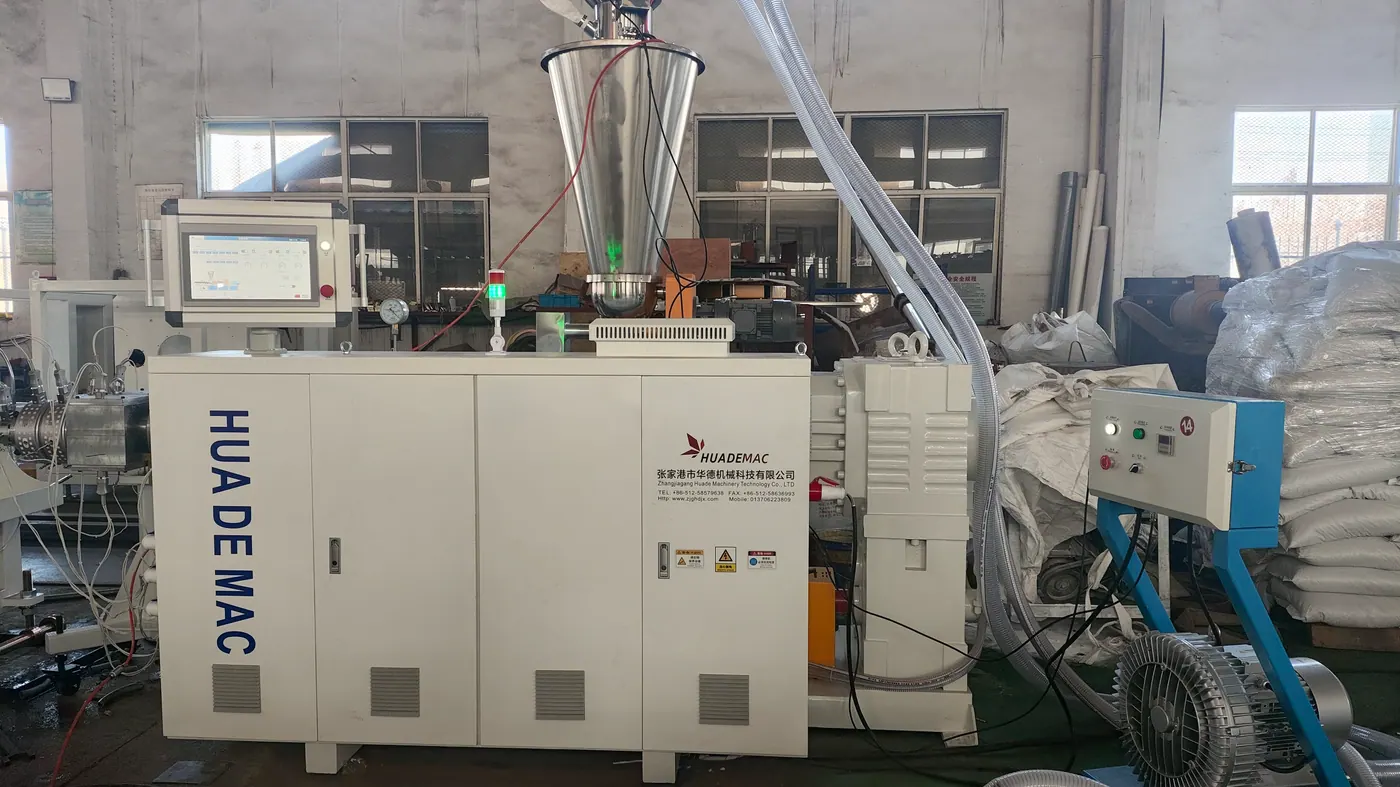

Control side view of the conical twin screw extruder for the 2 cavity PVC pipe production line
Two cavity PVC pipe extrusion mould and calibrator detail

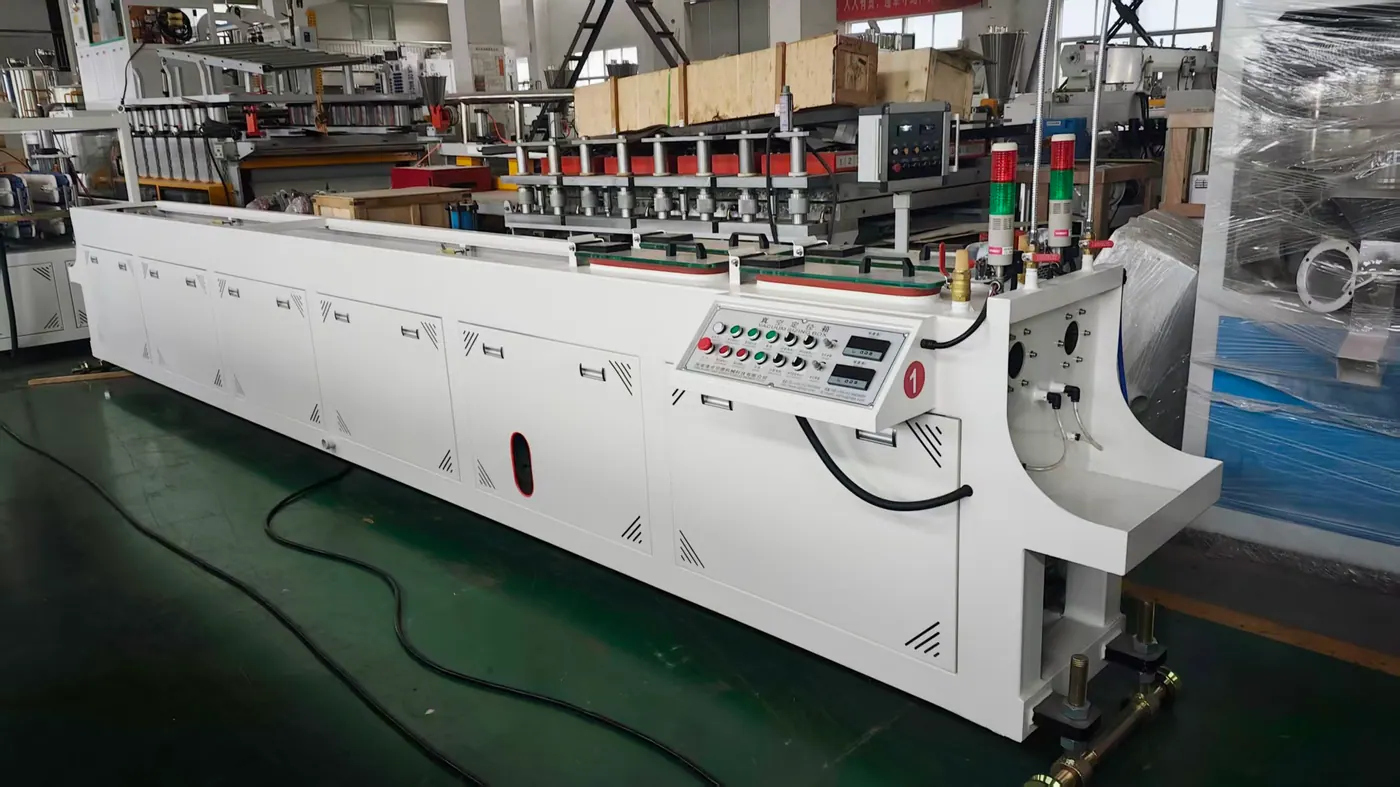

Vacuum cooling tank for PVC pipe sizing and cooling
Vacuum calibration tank with water cooling channels for PVC pipe production
Haul-off and cutter unit for automatic PVC pipe length control
Automatic PVC pipe belling machine connected after the cutting section
PVC pipe stacker for collecting finished pipes after cutting

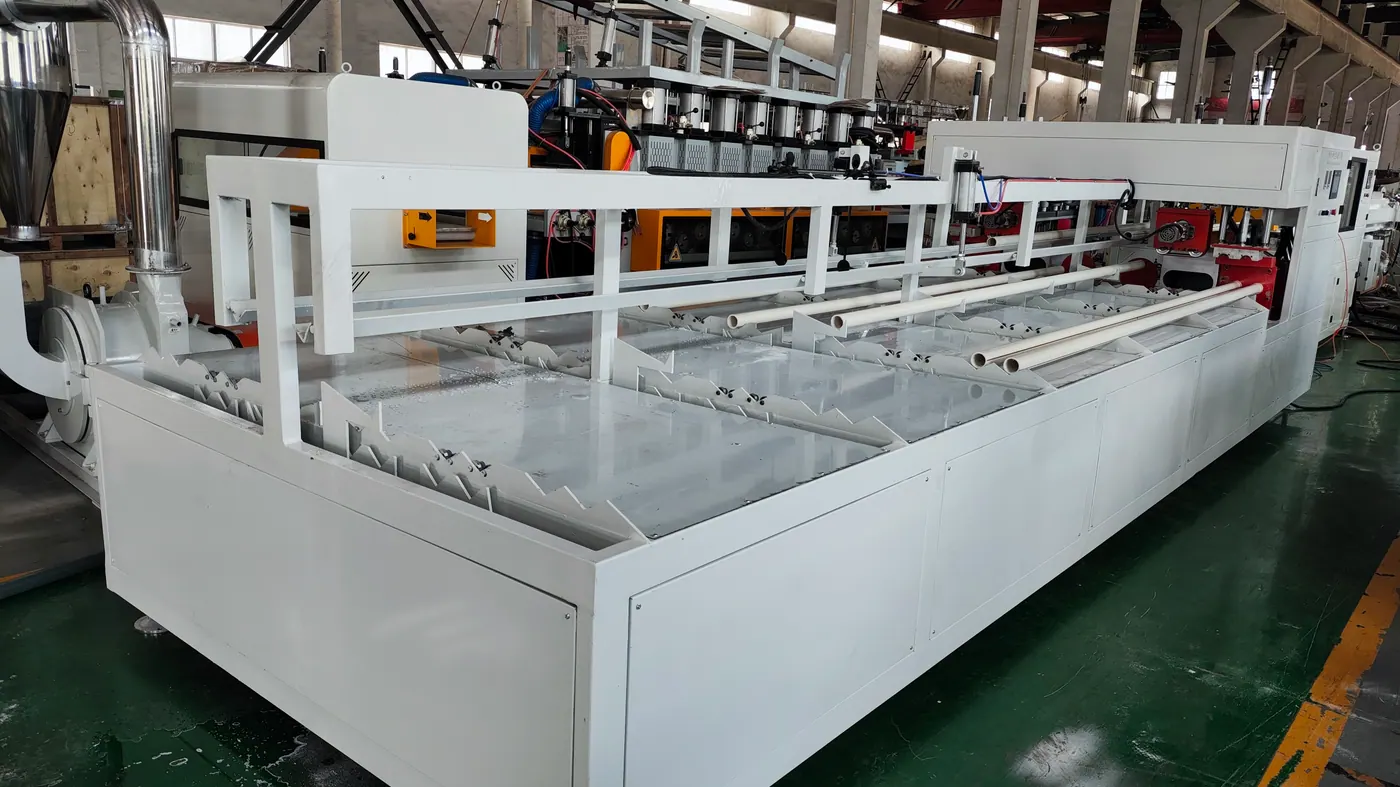

PVC pipe production line control and calibration section in the workshop

Customer references

PVC window profile extrusion line customer project in Belize
Belize

PVC window profile line

630mm PVC pipe extrusion line customer inspection in Egypt
Egypt

Ø630mm PVC pipe line

PVC pelletizing line customer project in Ethiopia
Ethiopia

PVC pelletizing line

200mm PVC pipe extrusion line customer project in Kenya
Kenya

Ø200mm PVC pipe line

Technical resources

Spec sheet download

Available on request with the technical proposal and machine configuration details.

Request details
Project reference

Available on request with the technical proposal and machine configuration details.

Request details
FAQ
What applications is this pvc pipe production line used for?

2 Cavity PVC Pipe Production Line is commonly used for conduit pipe, household water supply pipe, cpvc power conduit, municipal sewage drainage pipe,.

What is included in the production line?

The line includes conical twin screw extruder, two cavity pvc pipe mould, vacuum calibration tank, haul-off machine, cutting machine, stacker.

What range and output can be configured?

Reference configuration covers 16-200 mm with 120-400 kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
