PPR Pipe Production Line

PPR Multi-layer Co-extrusion Production Line

PPR multi-layer co-extrusion production line for reinforced PP-R pipe with adjustable layer thickness and lower linear expansion.

Get Quote WhatsApp
20-160 mm Diameter range
90-330 kg/h Max Output
200+ Customers 40+ Countries CE & ISO Certified
PPR Multi-layer Co-extrusion Production Line

Overview

Matched line setup

PPR multi-layer co-extrusion production line for reinforced PP-R pipe with adjustable layer thickness and lower linear.

Application range

Residential hot and cold water pipes, Underfloor heating pipes, Food workshop pure and drinking water pipes

Range and output

20-160 mm diameter range with 90-330 kg/h output reference.

Core configuration

Main extruder, Co-extruder, Spiral co-extrusion die, Vacuum calibration tank

Machine video

Watch machine video

Applications

PPR residential hot and cold water pipes installed in a building ceiling
Residential hot and cold water pipes Hygienic PPR plumbing for household hot and cold water, with heat resistance, insulation and leak-proof joints.
Red PPR underfloor heating pipes laid in a floor heating loop
Underfloor heating pipes PPR heating pipe for floor systems, resistant to heat, pressure and scale formation.
White PPR pure water and drinking water pipes installed in a food workshop
Food workshop pure and drinking water pipes Clean water piping for food workshop pure water and drinking water, with hygienic material and long service life.

Process flow

01
Raw material feeding
02
Main extrusion
03
Co-extrusion layer feeding
04
Spiral die forming
05
Vacuum calibration
06
Spray cooling
07
Marking line
08
Haul-off traction
09
Fixed length cutting
10
Finished pipe stacking

Line composition

Main extruder machine for PPR multi-layer co-extrusion line 01

Main extruder

Main extruder plasticizes the PPR material for the base pipe layer.

Co-extruder machine for PPR multi-layer pipe production 02

Co-extruder

Co-extruder feeds the additional material layer for multi-layer pipe structure.

Spiral co-extrusion die for multi-layer PPR pipe forming 03

Spiral co-extrusion die

Special die structure helps distribute each layer uniformly.

Vacuum calibration tank for multi-layer PPR pipe sizing 04

Vacuum calibration tank

Calibration tank keeps pipe size stable after the die.

Spray cooling tank for multi-layer PPR pipe production 05

Spray cooling tank

Spray cooling section stabilizes the pipe before marking and traction.

Hot stamping machine for PPR pipe marking line 06

Hot stamping machine

Optional marking equipment adds color line or pipe identification.

Cutter for multi-layer PPR pipe fixed length cutting 07

Cutter

Cutting unit prepares fixed pipe lengths after haul-off.

Stacker for finished multi-layer PPR pipe collection 08

Stacker

Stacker collects finished multi-layer PPR pipes after cutting.

Configuration highlights

Slotted feeder barrel and screw design improves the plasticizing effect.

Application reference: Residential hot and cold water pipes.

High extrusion rate with low melt temperature and uniform temperature control.

Application reference: Underfloor heating pipes.

New secondary split die supports low-temperature and low-pressure extrusion.

Application reference: Food workshop pure and drinking water pipes.

Water film sizing sleeve helps ensure high-speed pipe production.

Matched according to material, output and project configuration.

Good man-machine interface with optional color marking line.

Matched according to material, output and project configuration.

The production line can produce PE pipe by changing the mould.

Matched according to material, output and project configuration.

Technical parameters

Product type PPR Multi-layer Co-extrusion Line
Application PPR multi-layer / ABA reinforced pipe
Range 20-160 mm
Output 90-330 kg/hr
Extruder SJ65/33 or SJ75/33
Total power 133-280 kW
Extruder modelPipe diameter rangeOutputTotal power
SJ65/3320-63 mm90 kg/hr133 kW
SJ65/3320-110 mm110 kg/hr195 kW
SJ75/3350-160 mm330 kg/hr280 kW

Product gallery

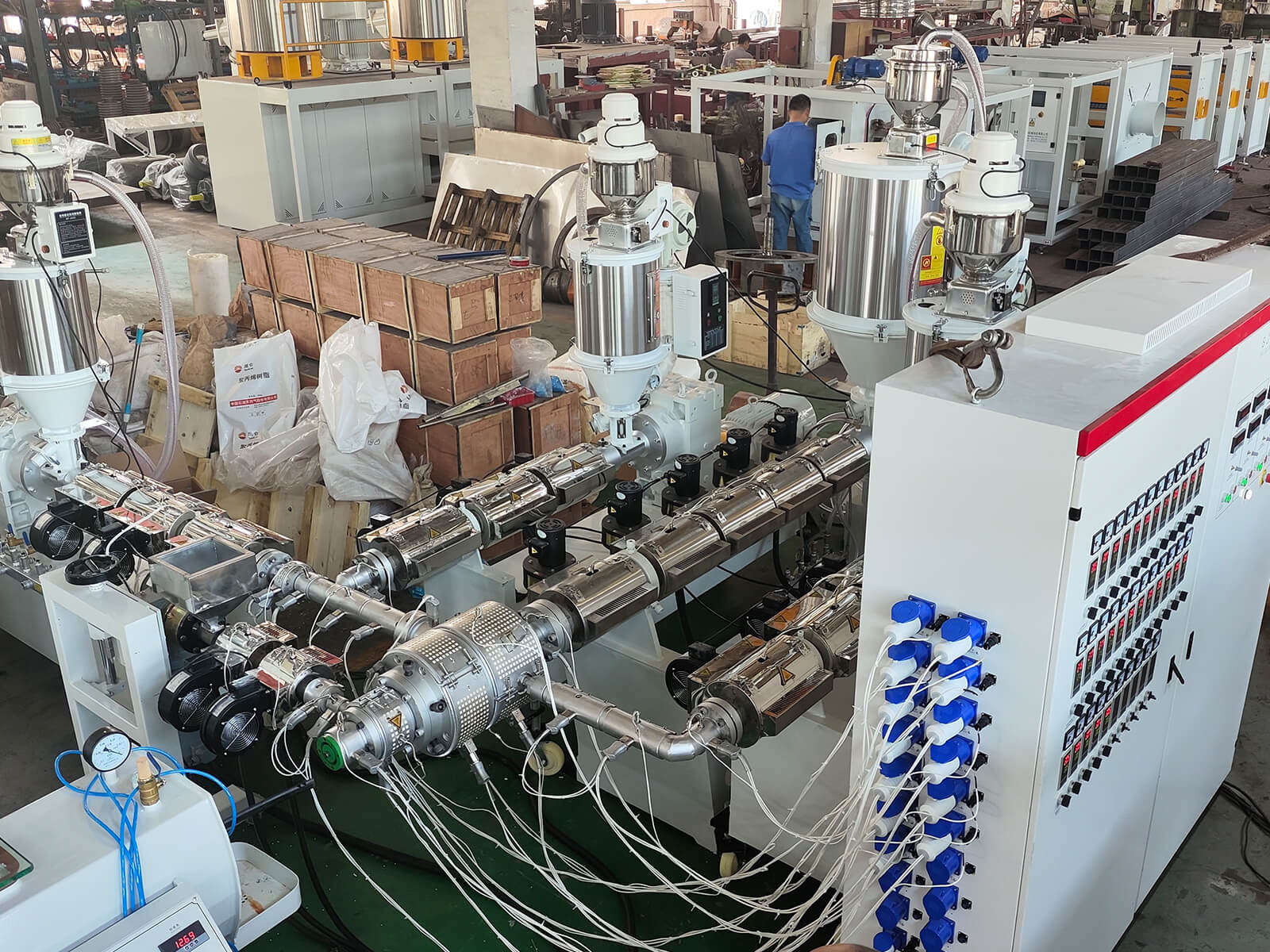

PPR multi-layer co-extrusion production line overview with finished pipe samples
Complete PPR multi-layer pipe line reference image with finished pipe applications.
Four layer PPR pipe products with blue outer layer and reinforced middle layer
Four-layer PPR pipe products show the reinforced layer structure.

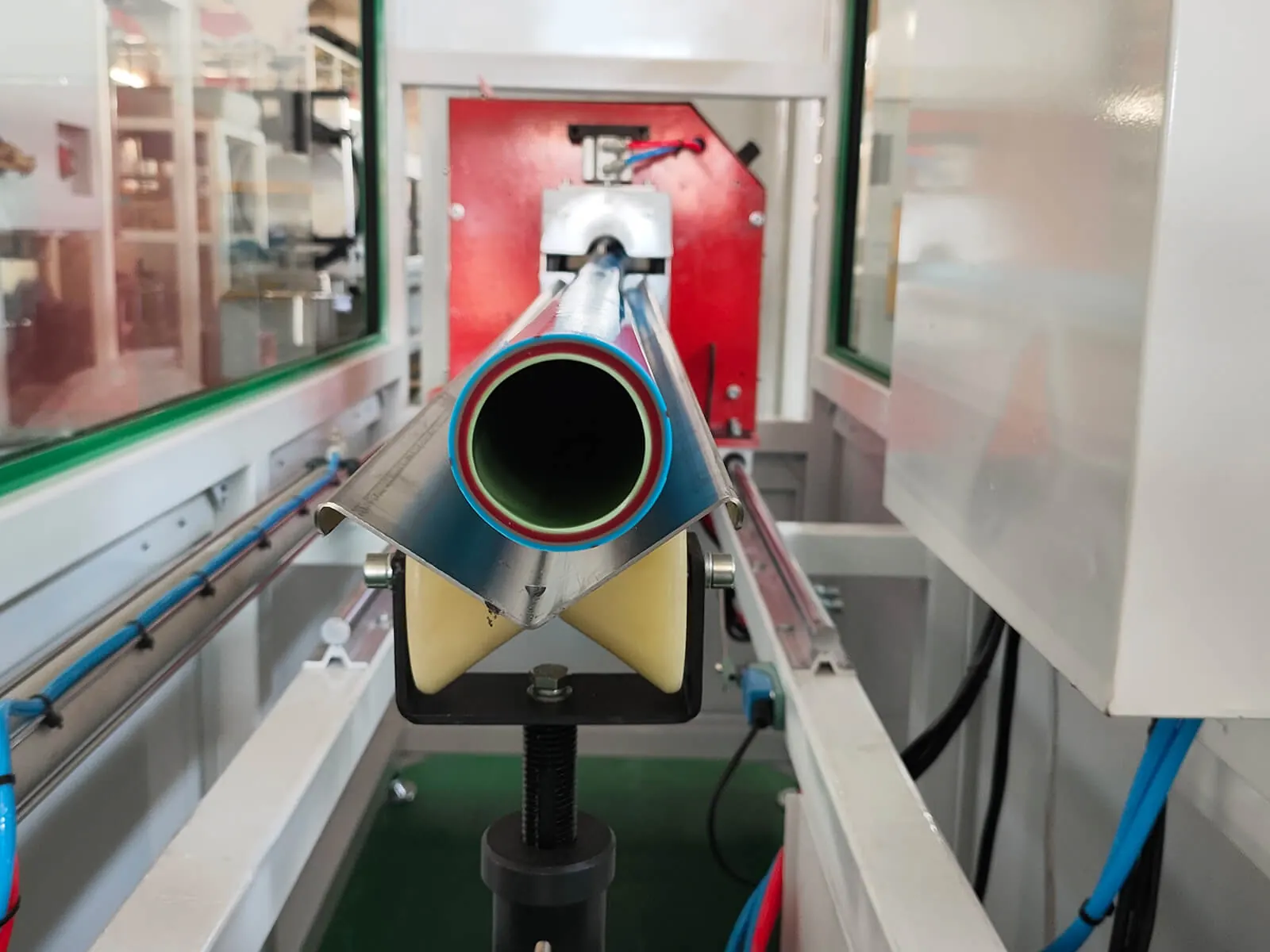

Close up of multi-layer PPR pipe during production
Close-up view of multi-layer PPR pipe after forming and cooling.
Main extruder machine for PPR multi-layer co-extrusion line
Main extruder provides the primary PPR material stream.

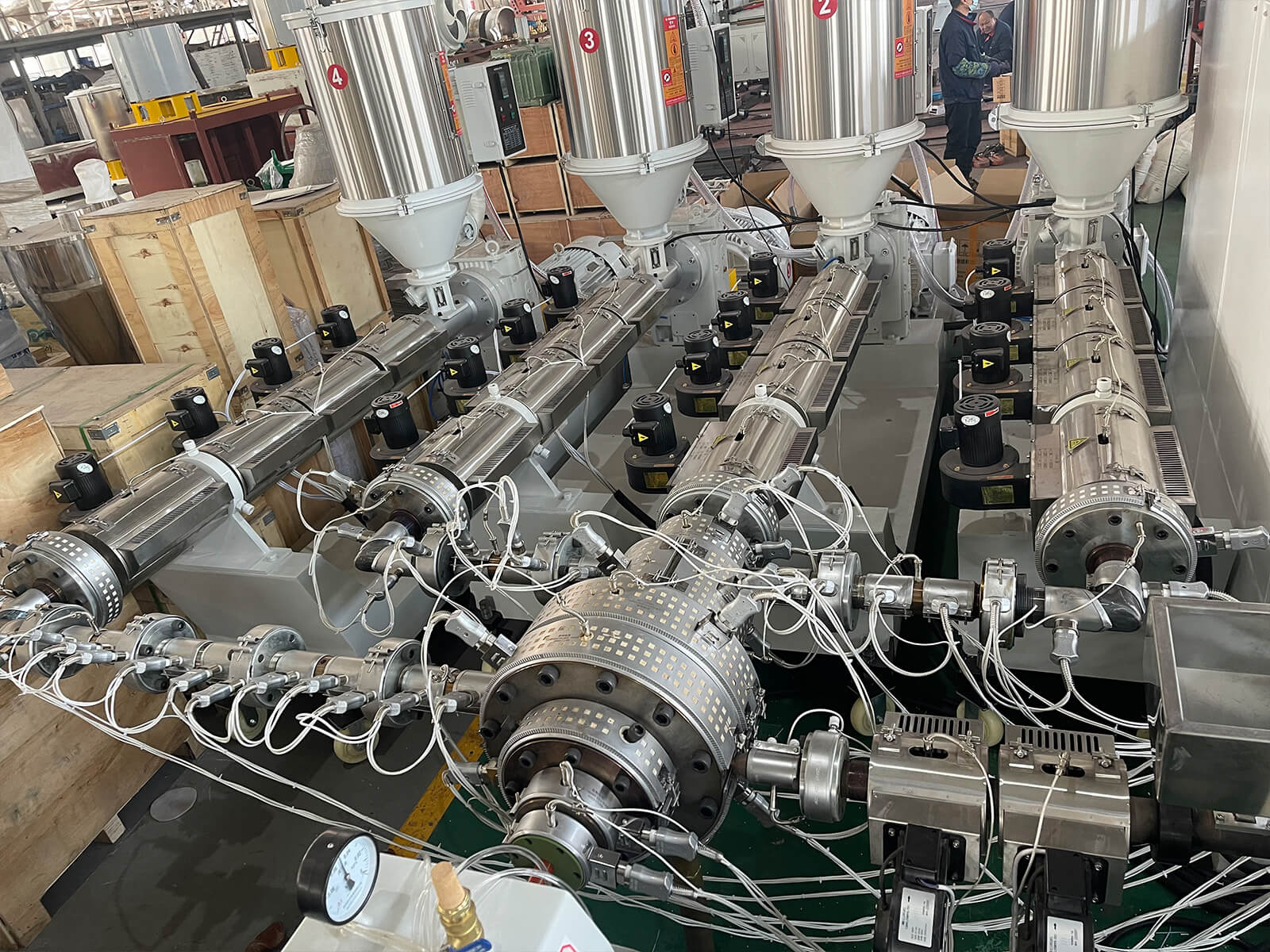

Co-extruder machine for PPR multi-layer pipe production
Co-extruder supports the additional material layer for multi-layer pipe.
Multi-layer PPR pipe extrusion mould section
Extrusion mould section forms the multi-layer pipe profile.

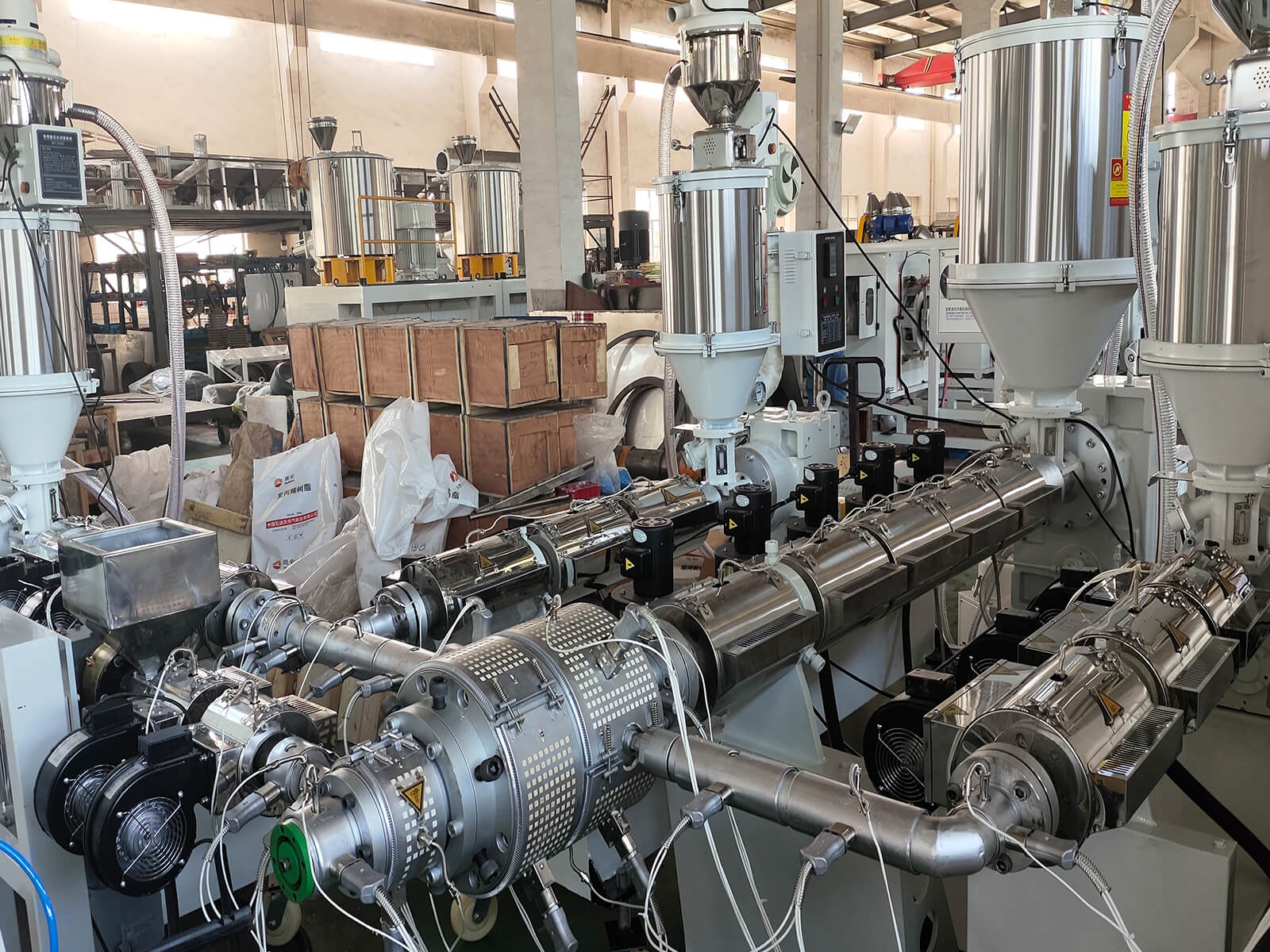

Spiral co-extrusion die for multi-layer PPR pipe forming
Spiral co-extrusion die helps overlap material layers uniformly.

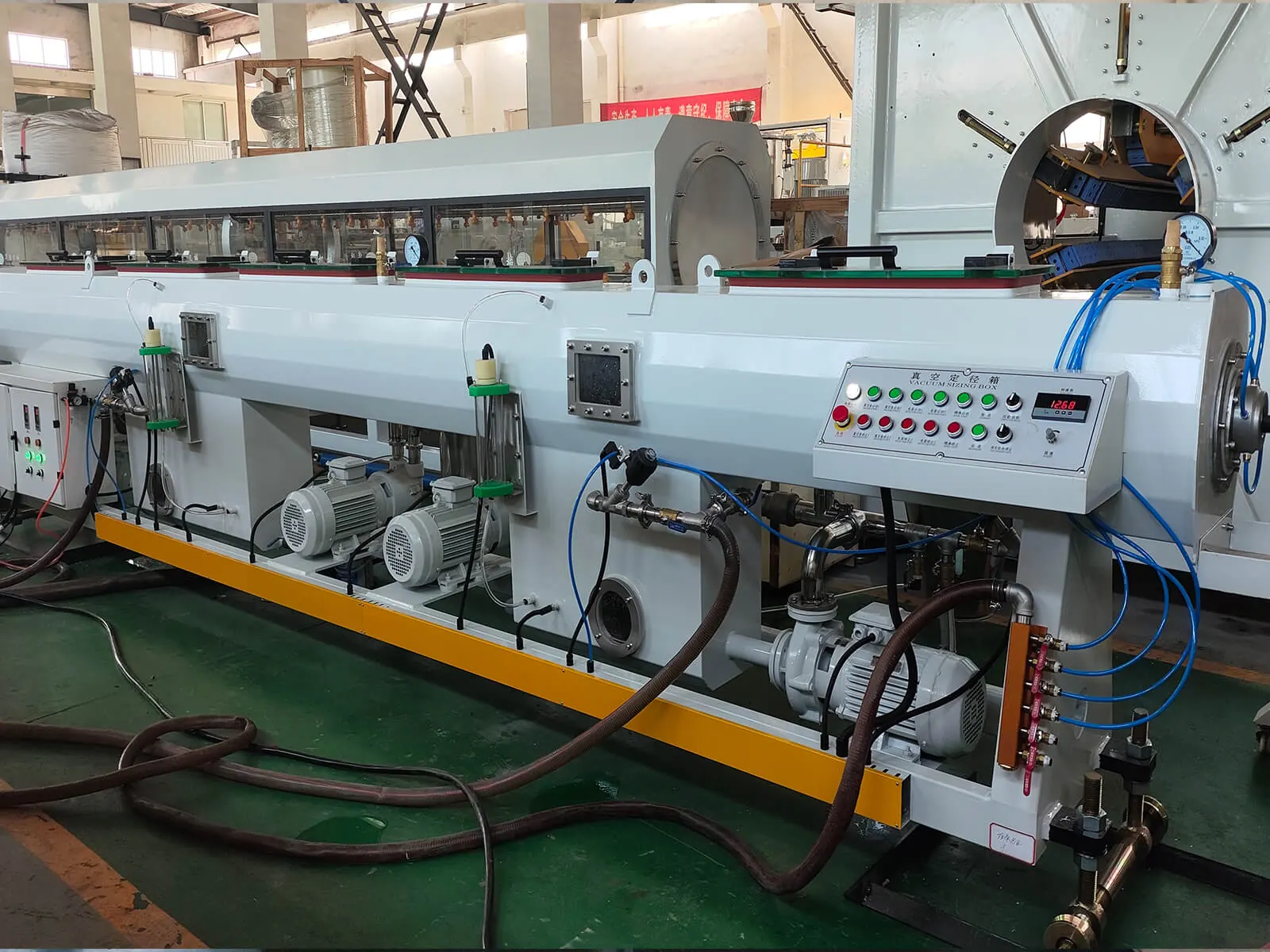

Vacuum calibration tank for multi-layer PPR pipe sizing
Vacuum calibration tank supports stable pipe sizing.

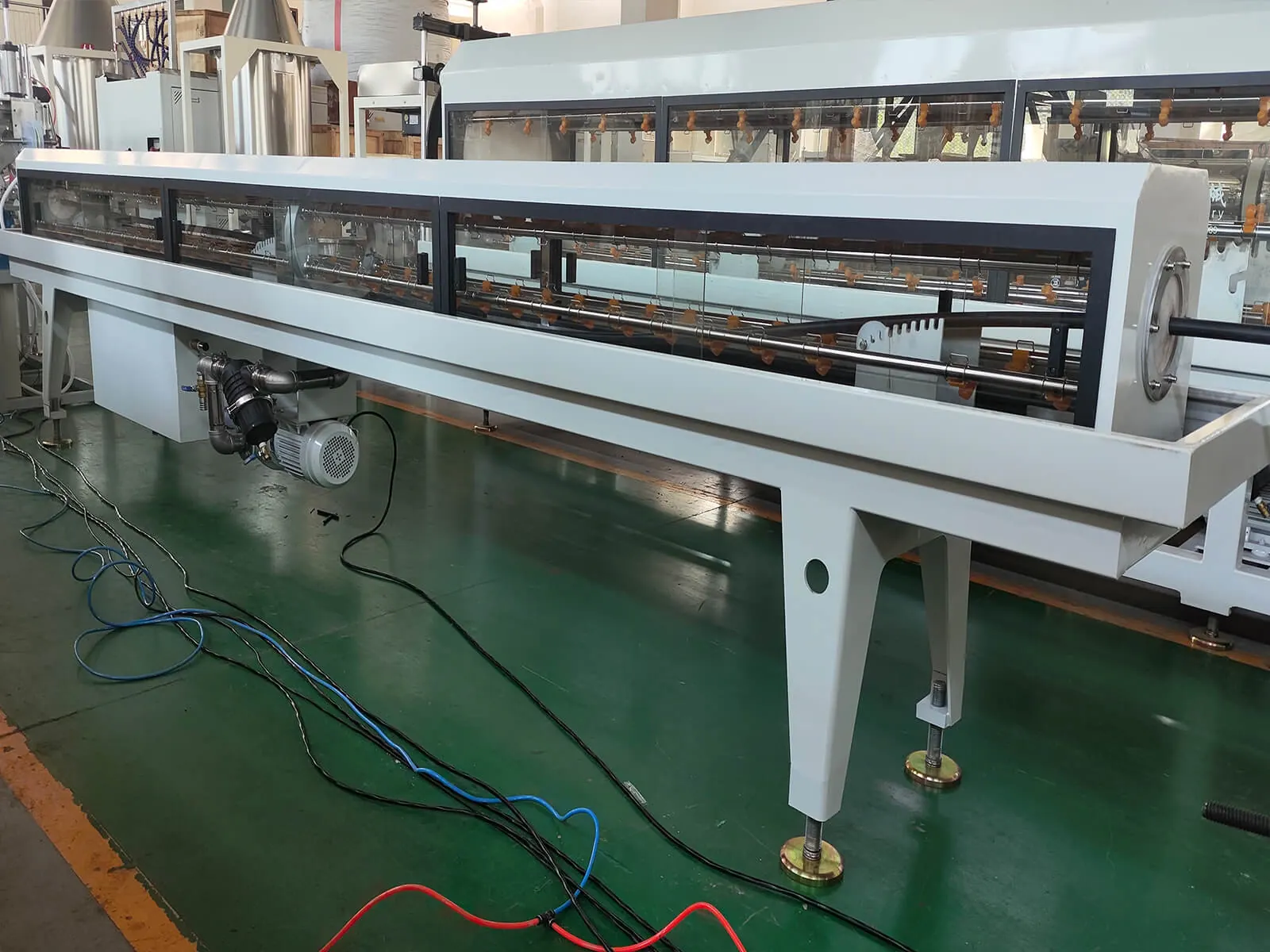

Spray cooling tank for multi-layer PPR pipe production
Spray cooling tank controls pipe cooling after calibration.

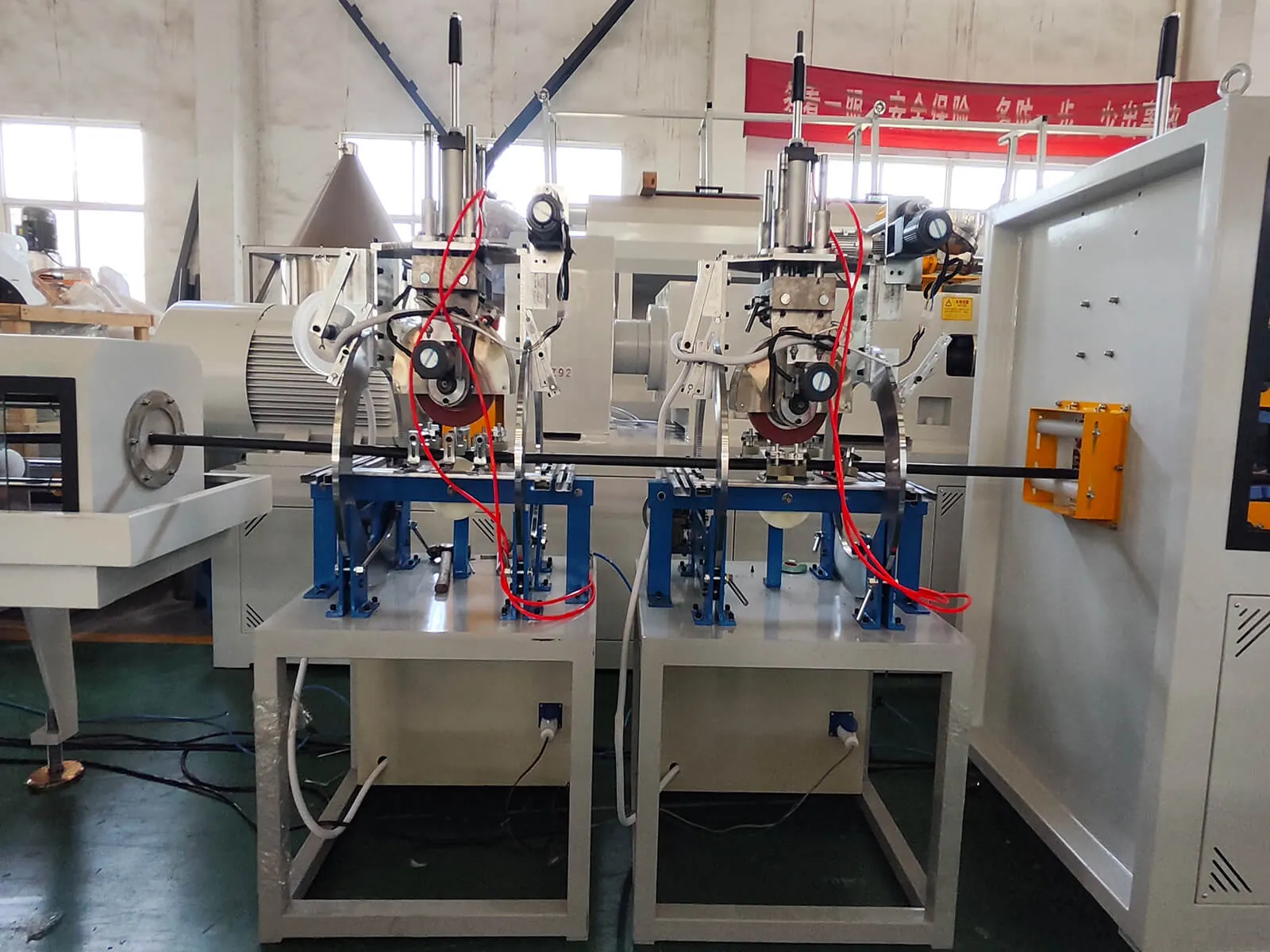

Hot stamping machine for PPR pipe marking line
Hot stamping machine can add the marking line or pipe identification.

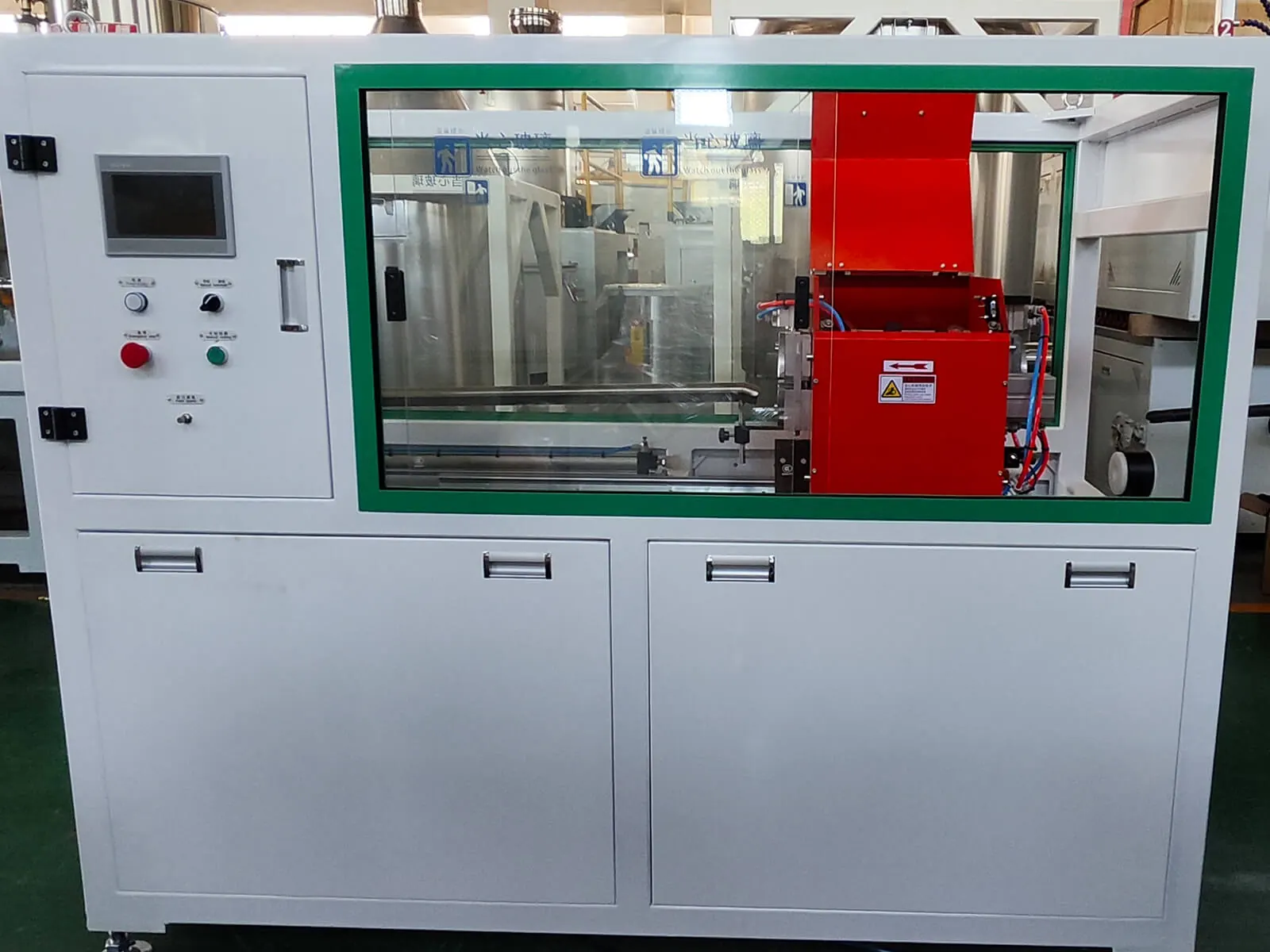

Cutter for multi-layer PPR pipe fixed length cutting
Cutting unit prepares fixed pipe lengths after haul-off.
Stacker for finished multi-layer PPR pipe collection
Stacker collects finished multi-layer PPR pipes after cutting.

Customer references

PVC window profile extrusion line customer project in Belize
Belize

PVC window profile line

630mm PVC pipe extrusion line customer inspection in Egypt
Egypt

Ø630mm PVC pipe line

PVC pelletizing line customer project in Ethiopia
Ethiopia

PVC pelletizing line

200mm PVC pipe extrusion line customer project in Kenya
Kenya

Ø200mm PVC pipe line

Technical resources

Spec sheet download

Available on request with the technical proposal and machine configuration details.

Request details
Project reference

Available on request with the technical proposal and machine configuration details.

Request details
FAQ
What applications is this ppr pipe production line used for?

PPR Multi-layer Co-extrusion Production Line is commonly used for residential hot and cold water pipes, underfloor heating pipes, food workshop pure.

What is included in the production line?

The line includes main extruder, co-extruder, spiral co-extrusion die, vacuum calibration tank, spray cooling tank, hot stamping machine.

What range and output can be configured?

Reference configuration covers 20-160 mm with 90-330 kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
