WPC PVC foam board production line for 1220mm wide PVC/WPC foam board from 3-25mm thickness, using a conical twin screw.
Plastic Profile Production Line
WPC PVC Foam Board Production Line
WPC PVC foam board production line for 1220mm wide PVC/WPC foam board from 3-25mm thickness, using a conical twin screw extruder, flat die, calibration mould, haul-off, cutter and stacker for cabinet, partition and construction panel production.
3-25mm Board thickness
1220mm Board width
Overview
Application range
Foam board signage panel, Door board, Panel board, Grating decorative panel
Range and output
3-25mm board thickness with 1220mm output reference.
Core configuration
Conical twin screw extruder, Extrusion die head, Calibration mould table, Haul-off machine
Machine video
Watch machine video
Applications
Process flow
01
Mixer 02
Loader 03
Conical twin screw extruder 04
Extrusion mould 05
Calibration mould table 06
Cooling bracket 07
Haul-off machine 08
Cutting machine 09
Stacker 10
Packing Line composition

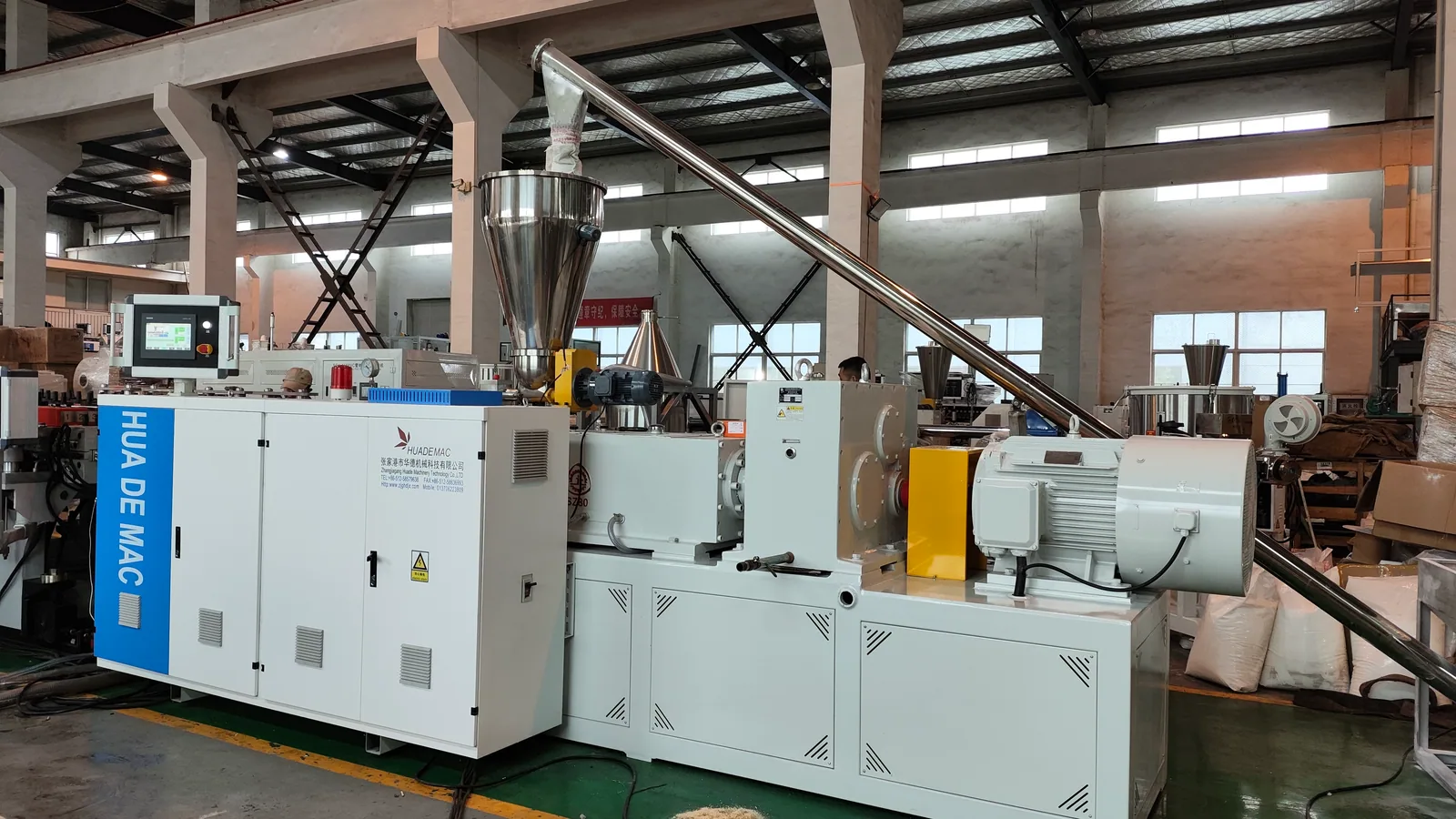

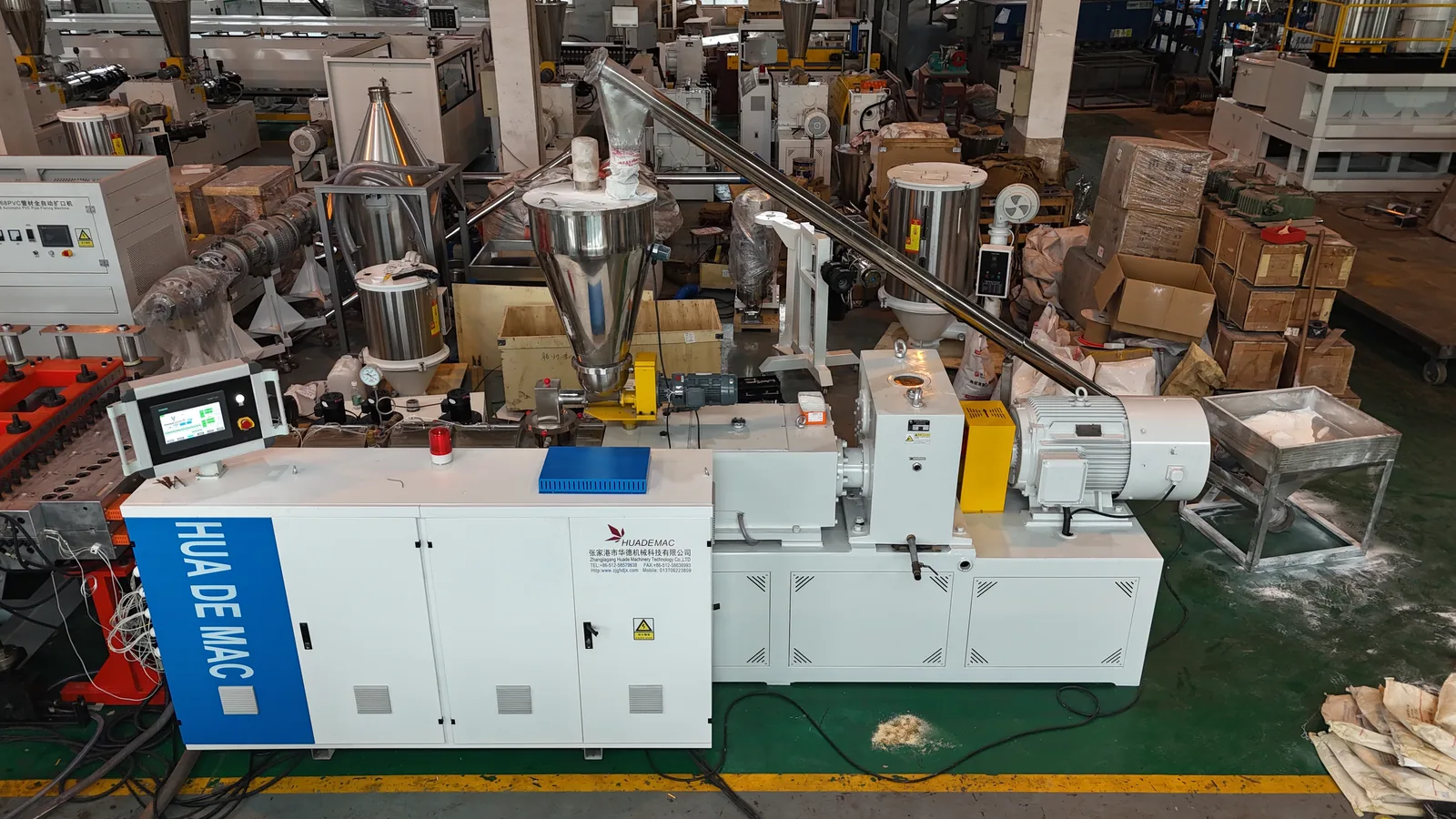

01 Conical twin screw extruder
Plasticizes PVC/WPC formulation and provides stable melt output for foam board extrusion.

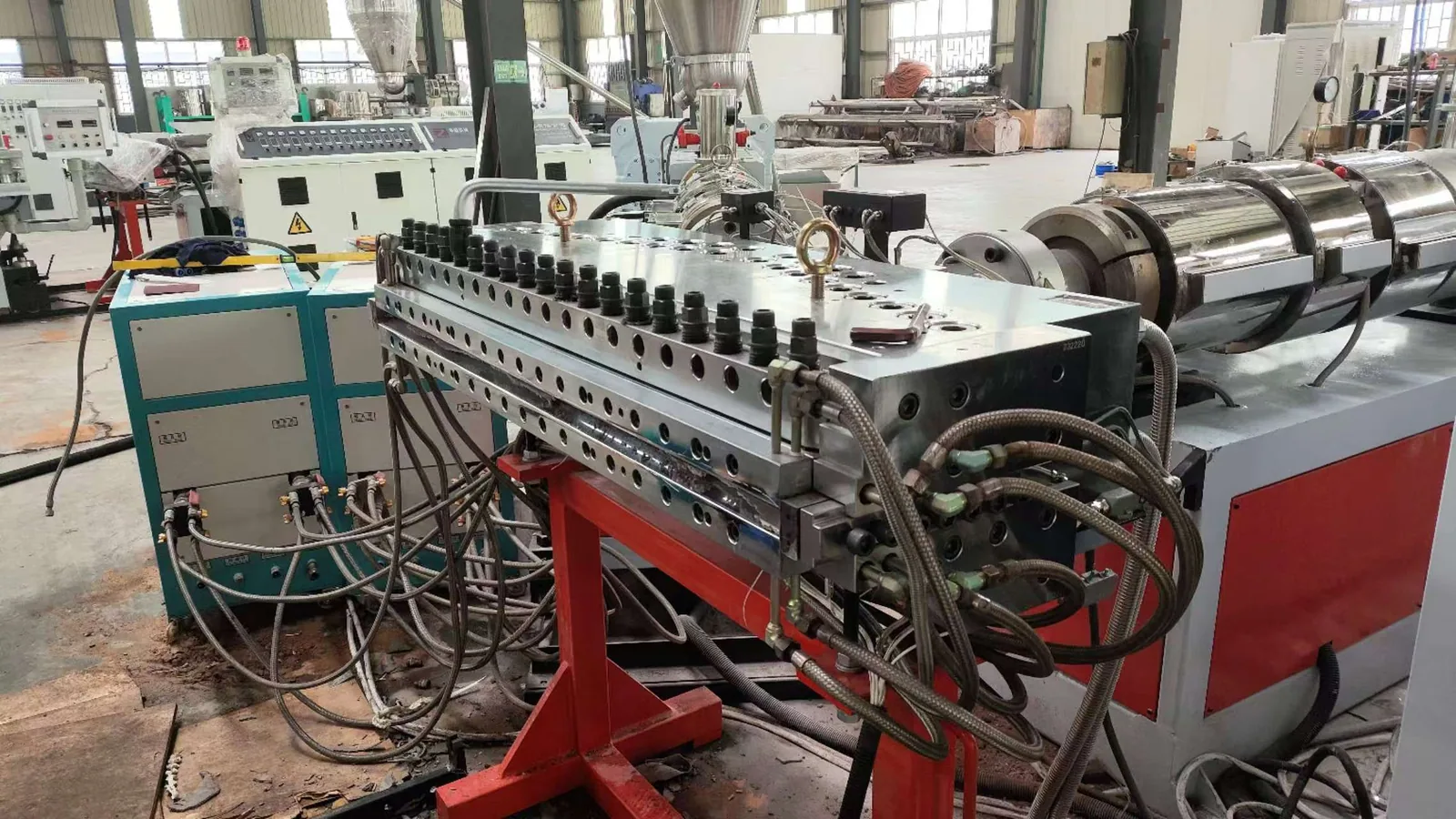

02 Extrusion die head
Forms the plasticized material into the required board width before calibration.

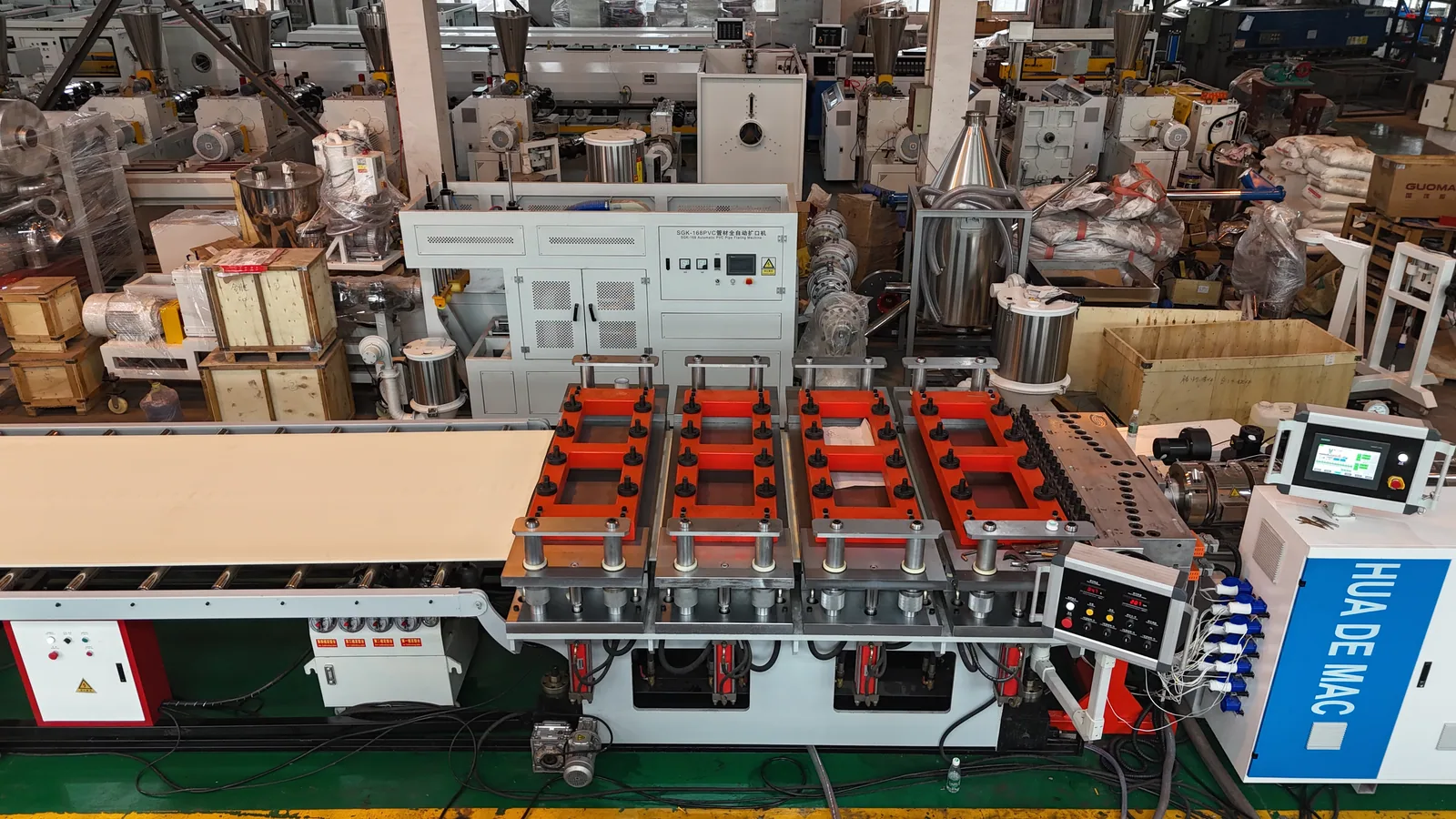

03 Calibration mould table
Controls board thickness, surface quality and dimensional stability after the die.

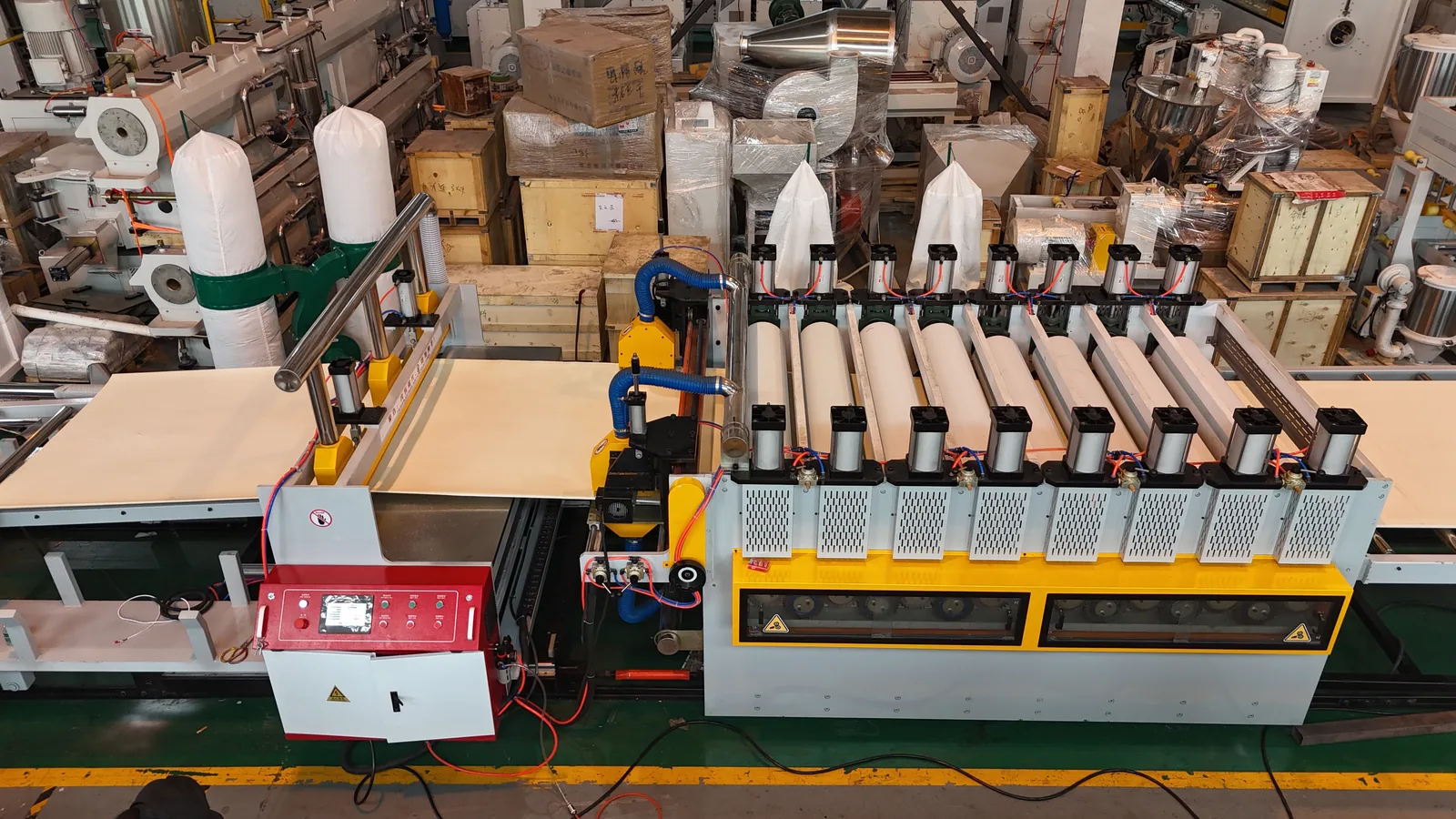

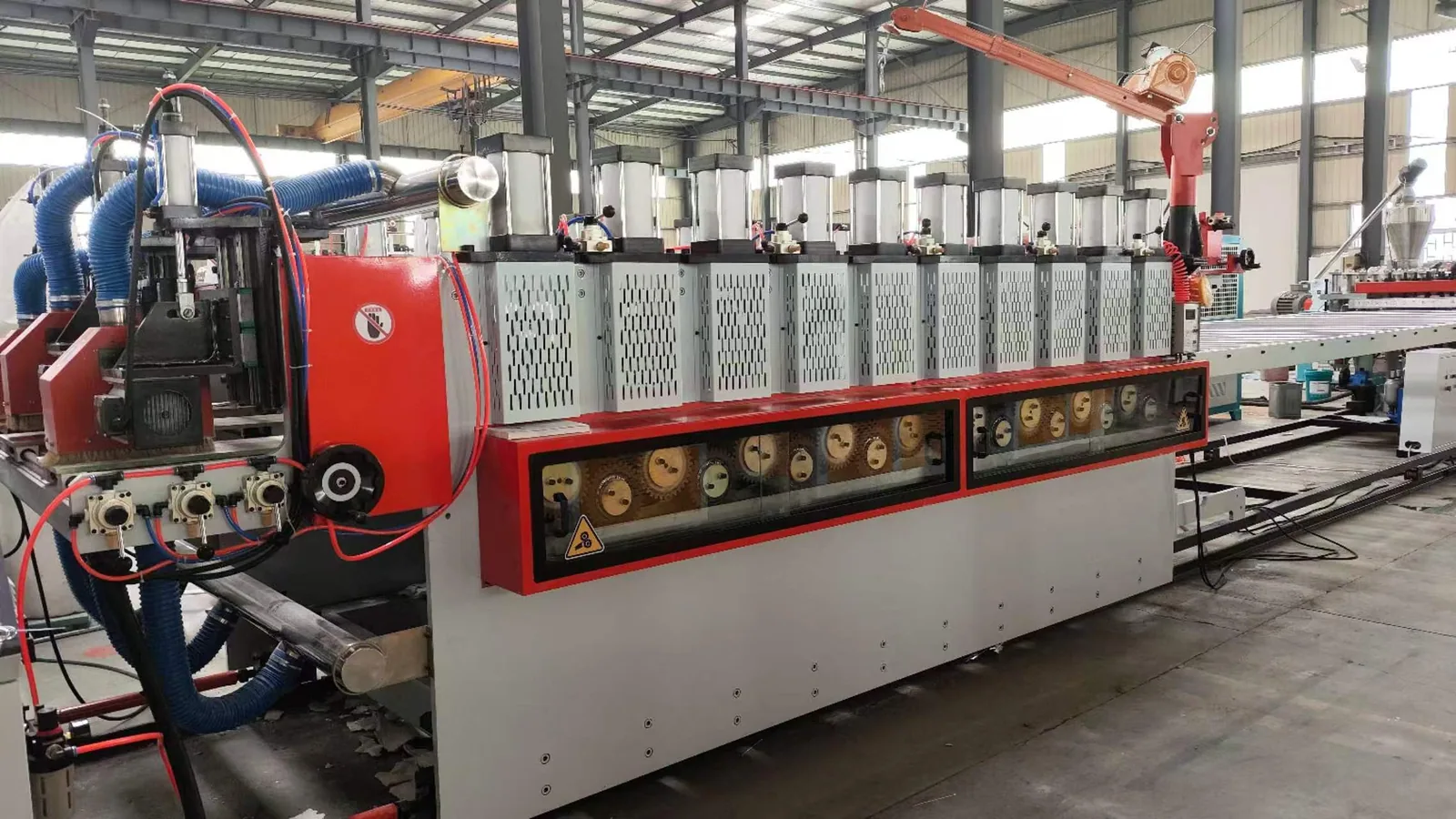

04 Haul-off machine
Pulls the board at synchronized speed so thickness and surface remain consistent.

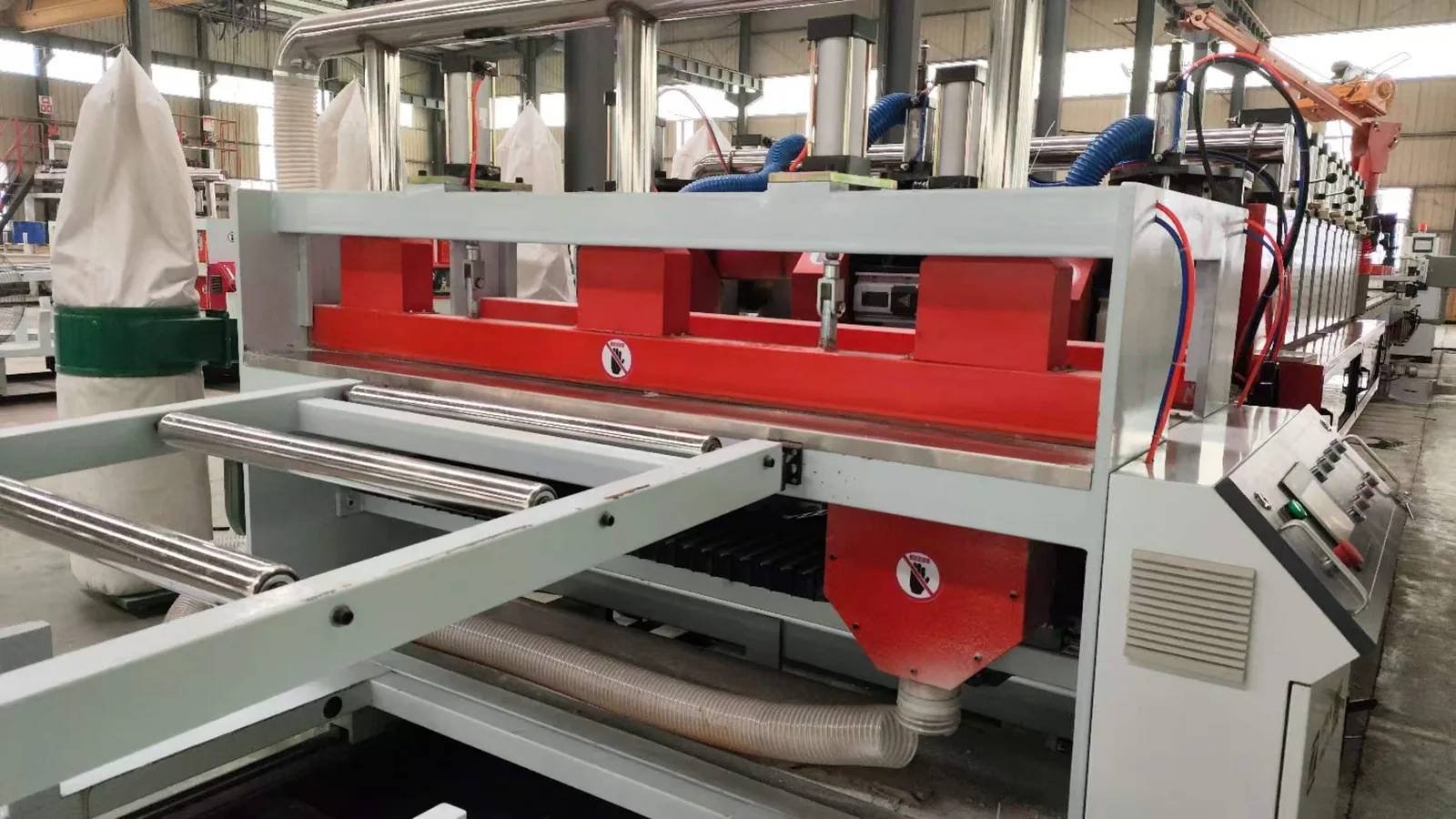

05 Cutting machine
Cuts the continuous board to the required length after haul-off.

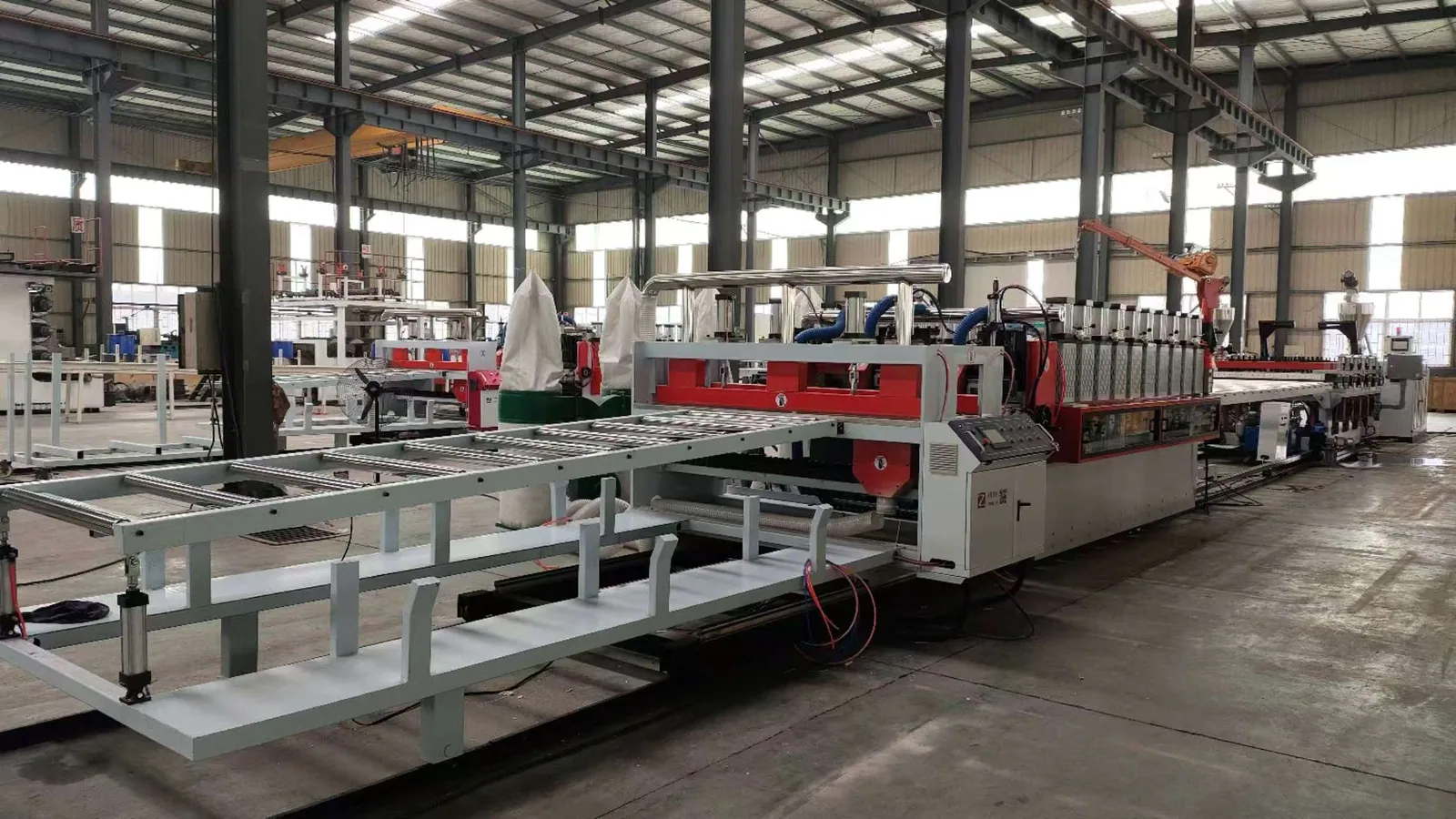

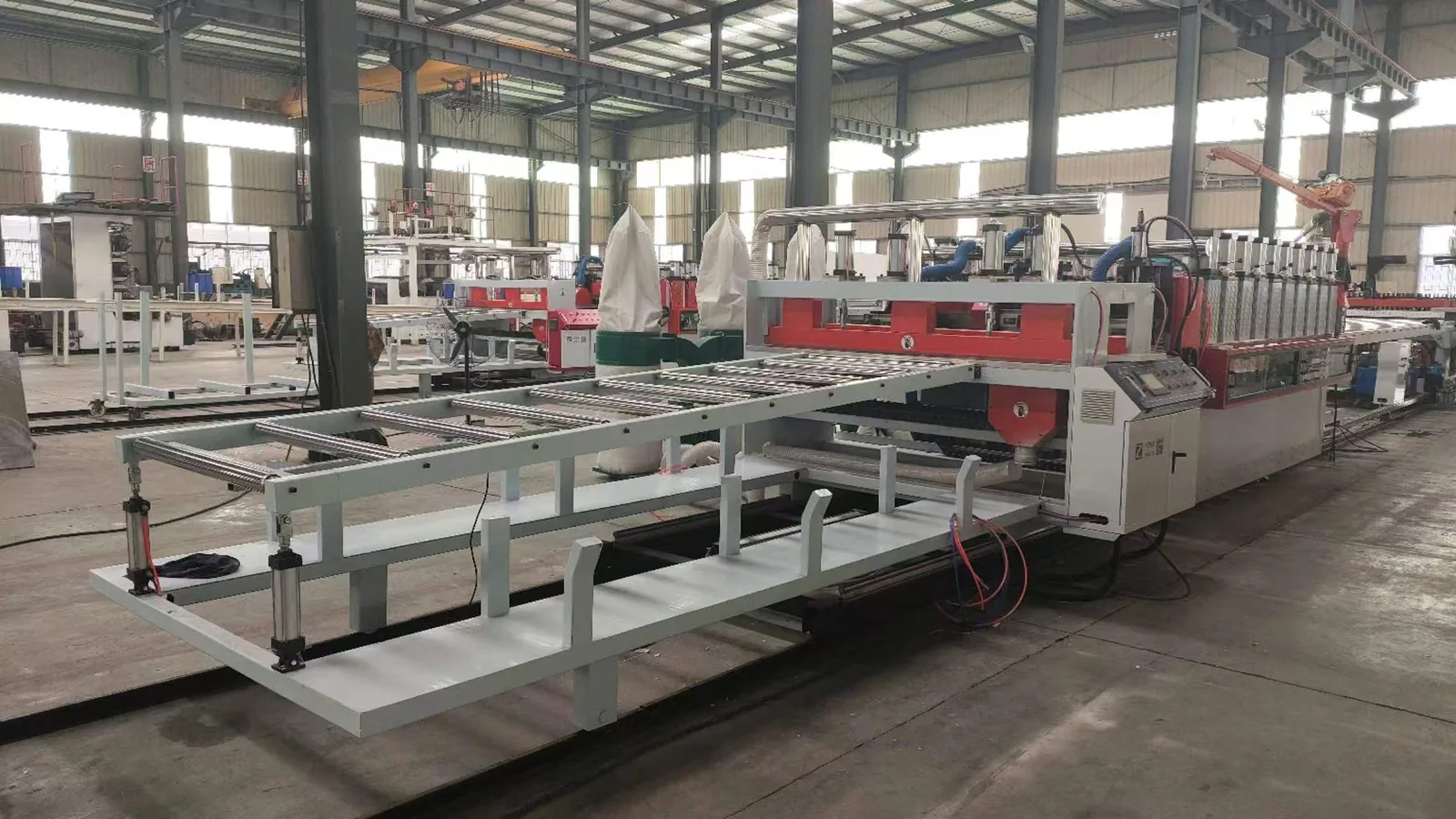

06 Stacker
Supports finished board collection, inspection and downstream packing.
01 Conical twin screw extruder
Plasticizes PVC/WPC formulation and provides stable melt output for foam board extrusion.
02 Extrusion die head
Forms the plasticized material into the required board width before calibration.
03 Calibration mould table
Controls board thickness, surface quality and dimensional stability after the die.
04 Haul-off machine
Pulls the board at synchronized speed so thickness and surface remain consistent.
05 Cutting machine
Cuts the continuous board to the required length after haul-off.
06 Stacker
Supports finished board collection, inspection and downstream packing.
Configuration highlights
Conical twin screw extruder supports stable PVC/WPC powder plasticizing for foam board production.
Application reference: Foam board signage panel.
Flat extrusion die and calibration mould are matched for 1220mm board width and 3-25mm thickness range.
Application reference: Door board.
Vacuum calibration table helps maintain board flatness, surface quality and dimensional stability.
Application reference: Panel board.
Haul-off and cutting units synchronize traction and fixed-length cutting for continuous production.
Application reference: Grating decorative panel.
Finished board is waterproof, damp-proof, insect-resistant, lightweight and easy to install.
Matched according to material, output and project configuration.
Line layout can include mixer, loader, crusher and pulverizer for material preparation and recycling.
Matched according to material, output and project configuration.
Technical parameters
Product type WPC PVC Foam Board Production Line

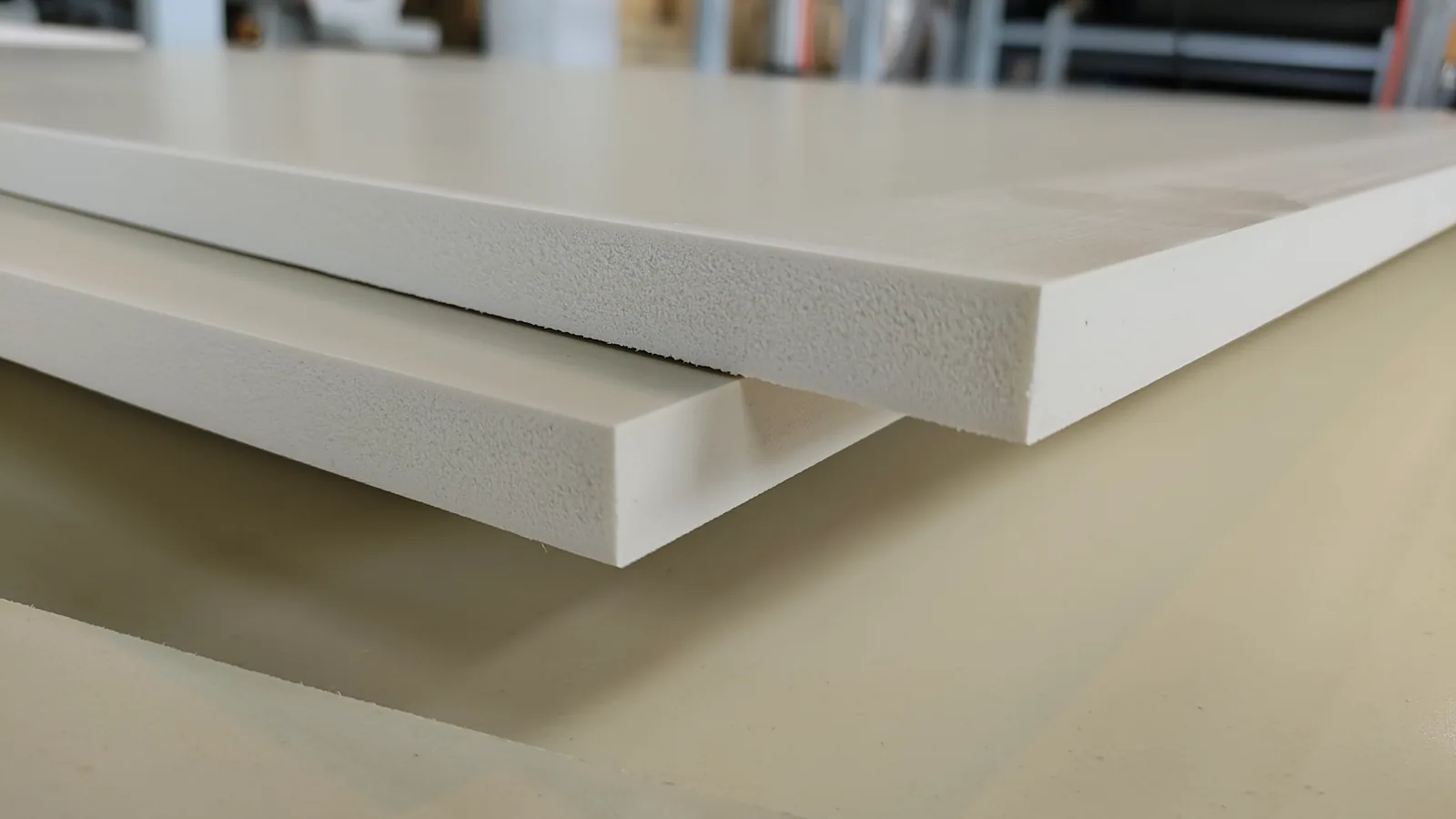

Finished product PVC / WPC foam board
