Plastic Profile Production Line

PVC Window and Door Frame Production Line

UPVC window and door frame line with double screw extrusion, vacuum calibration, haul-off, cutting and stacking.

Get Quote WhatsApp
180-600mm Profile width
120-350 kg/hr Max Output
200+ Customers 40+ Countries CE & ISO Certified
PVC Window and Door Frame Production Line

Overview

Matched line setup

UPVC window and door frame line with double screw extrusion, vacuum calibration, haul-off, cutting and stacking.

Application range

UPVC window frame profiles, PVC door frame profiles, Building and decorative profiles

Range and output

180-600mm profile width with 120-350 kg/hr output reference.

Core configuration

Double screw extruder, Extrusion mould, Vacuum calibration table, Vacuum calibration tank

Machine video

Watch machine video

Applications

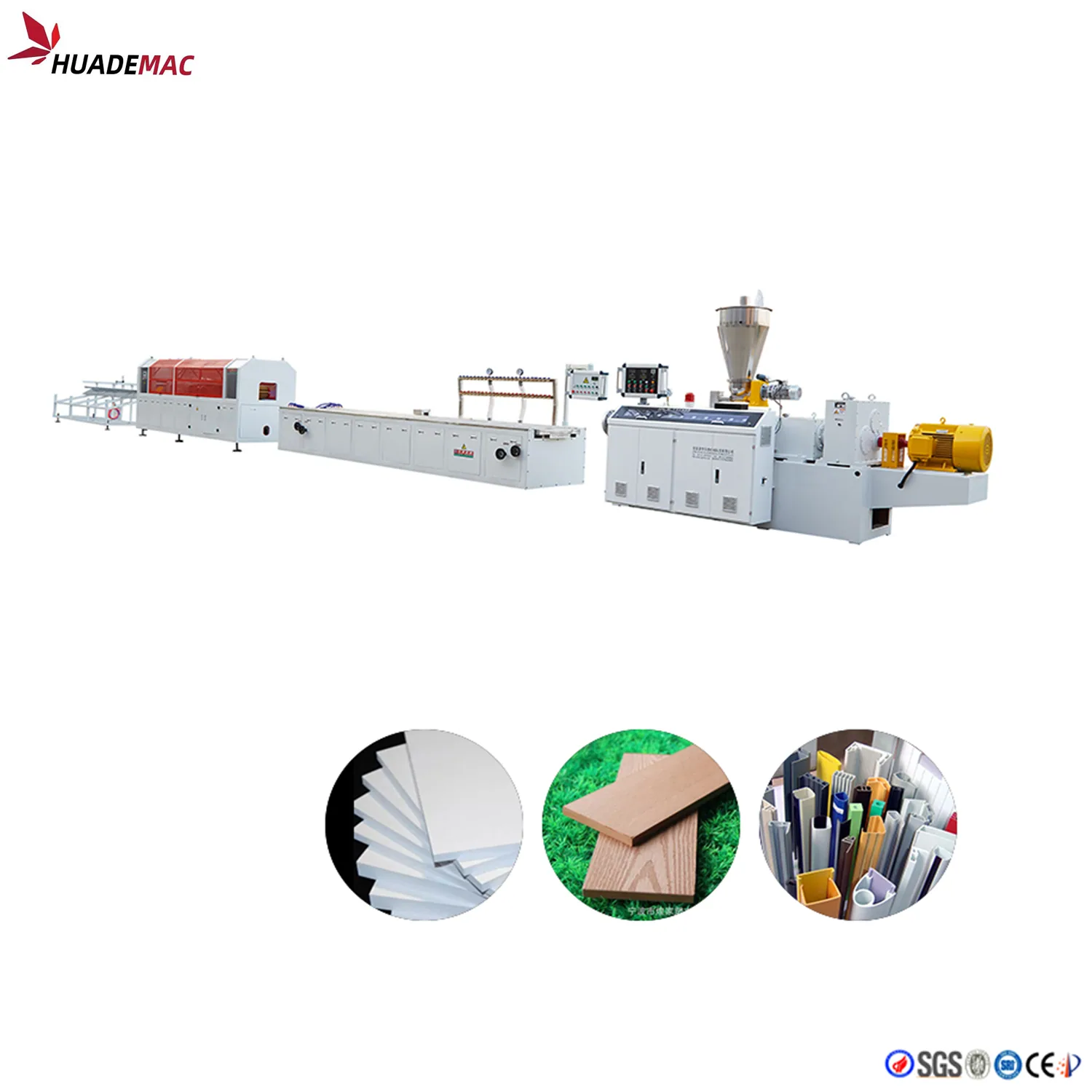

Finished PVC window and door frame profile samples in different sections
Finished PVC window and door profiles

Process flow

Raw material
mixing
feeder
double screw extruder
mould
vacuum calibration table
haul-off unit
cutting machine
stacker

Line composition

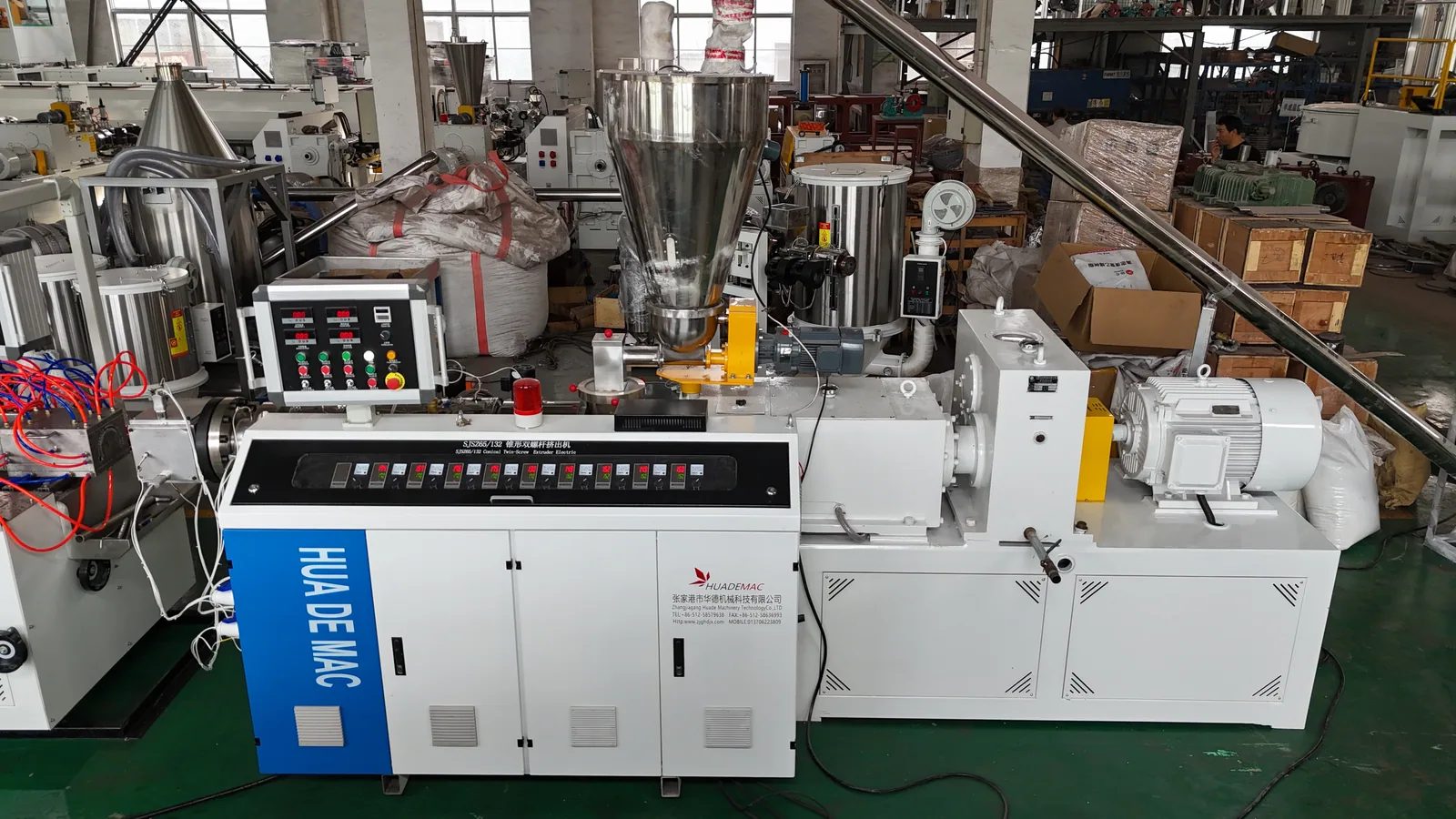

Conical double screw extruder for UPVC window and door frame profile line
01 Double screw extruder

Melts and plasticizes UPVC material before pushing it into the profile mould.

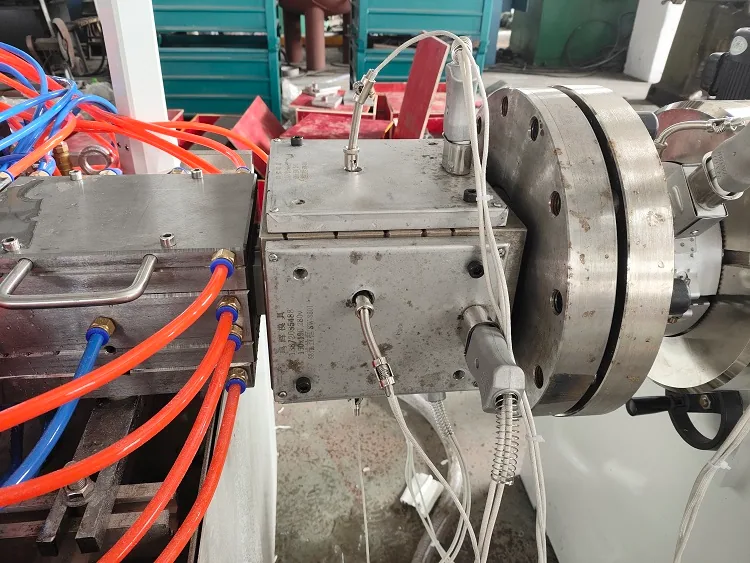

PVC window and door frame extrusion mould for custom profile sections
02 Extrusion mould

Forms the target window frame, door frame or decorative building profile shape.

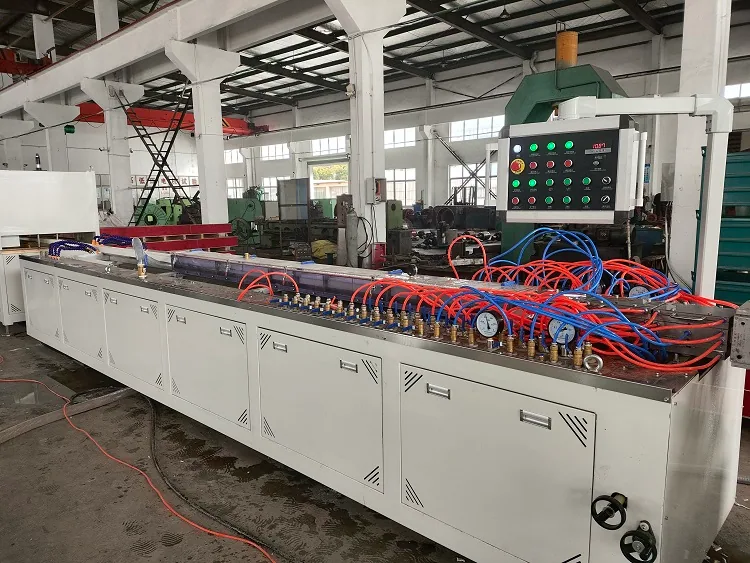

Vacuum calibration table for PVC window and door frame profile sizing
03 Vacuum calibration table

Uses vacuum sizing and cooling to stabilize the profile after extrusion.

Vacuum calibration tank for stable UPVC profile cooling
04 Vacuum calibration tank

Supports continued profile cooling and dimensional control downstream.

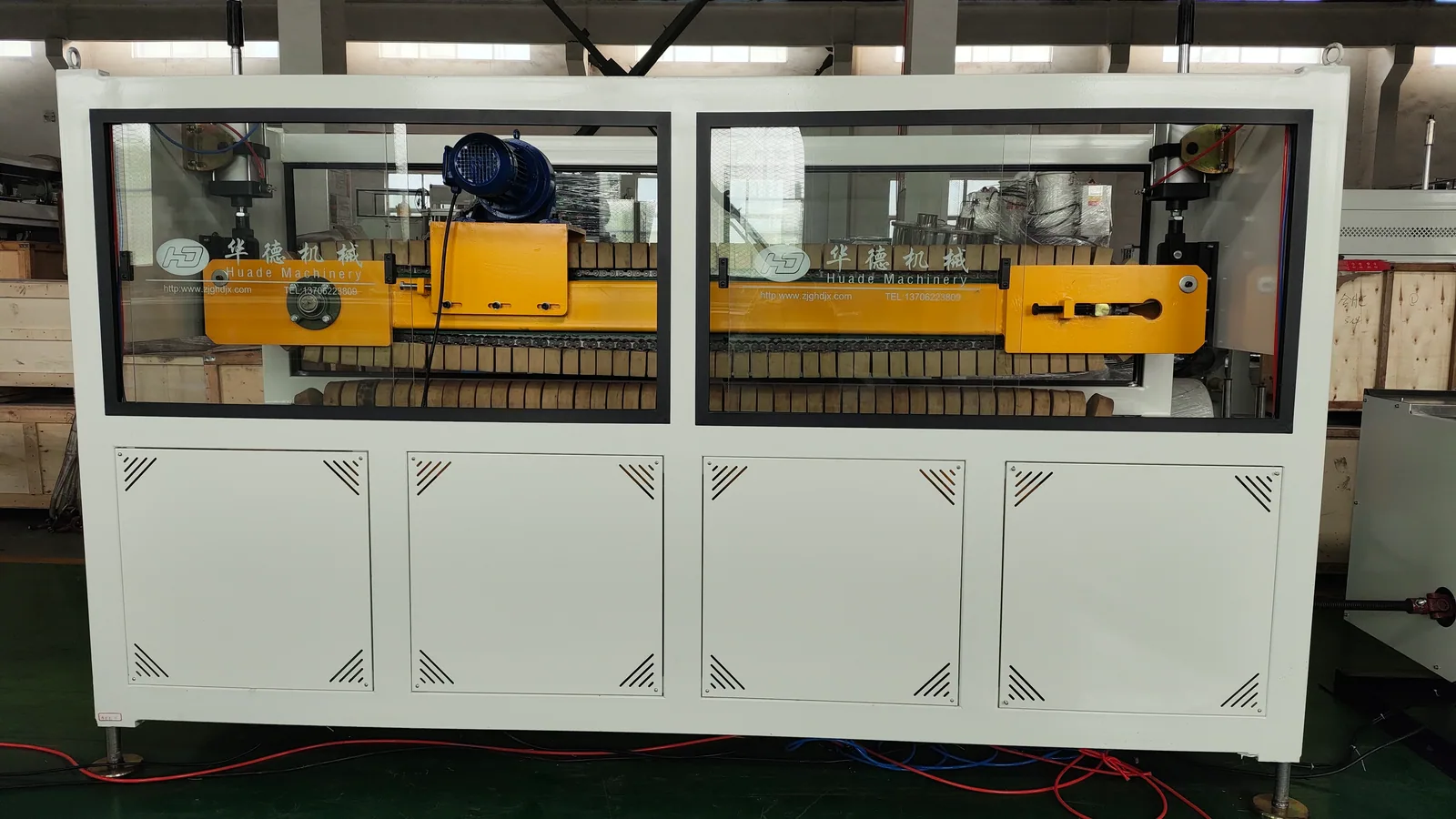

Haul-off machine pulling PVC window frame profiles after calibration
05 Haul-off machine

Pulls the profile at matched speed to maintain straightness and surface quality.

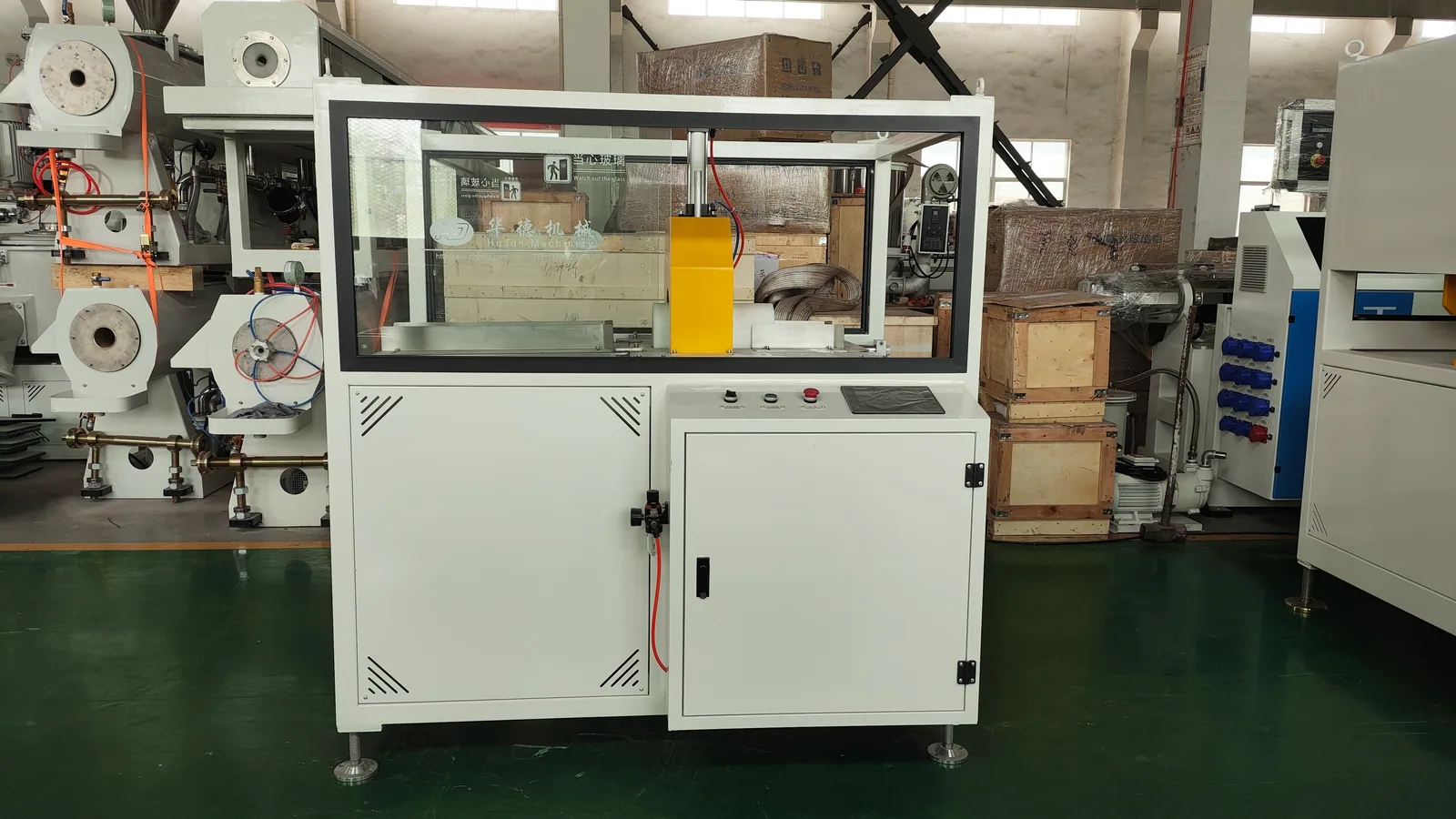

Automatic cutting machine for PVC window and door frame profiles
06 Cutting machine

Cuts profiles to preset lengths for stacking, inspection and packing.

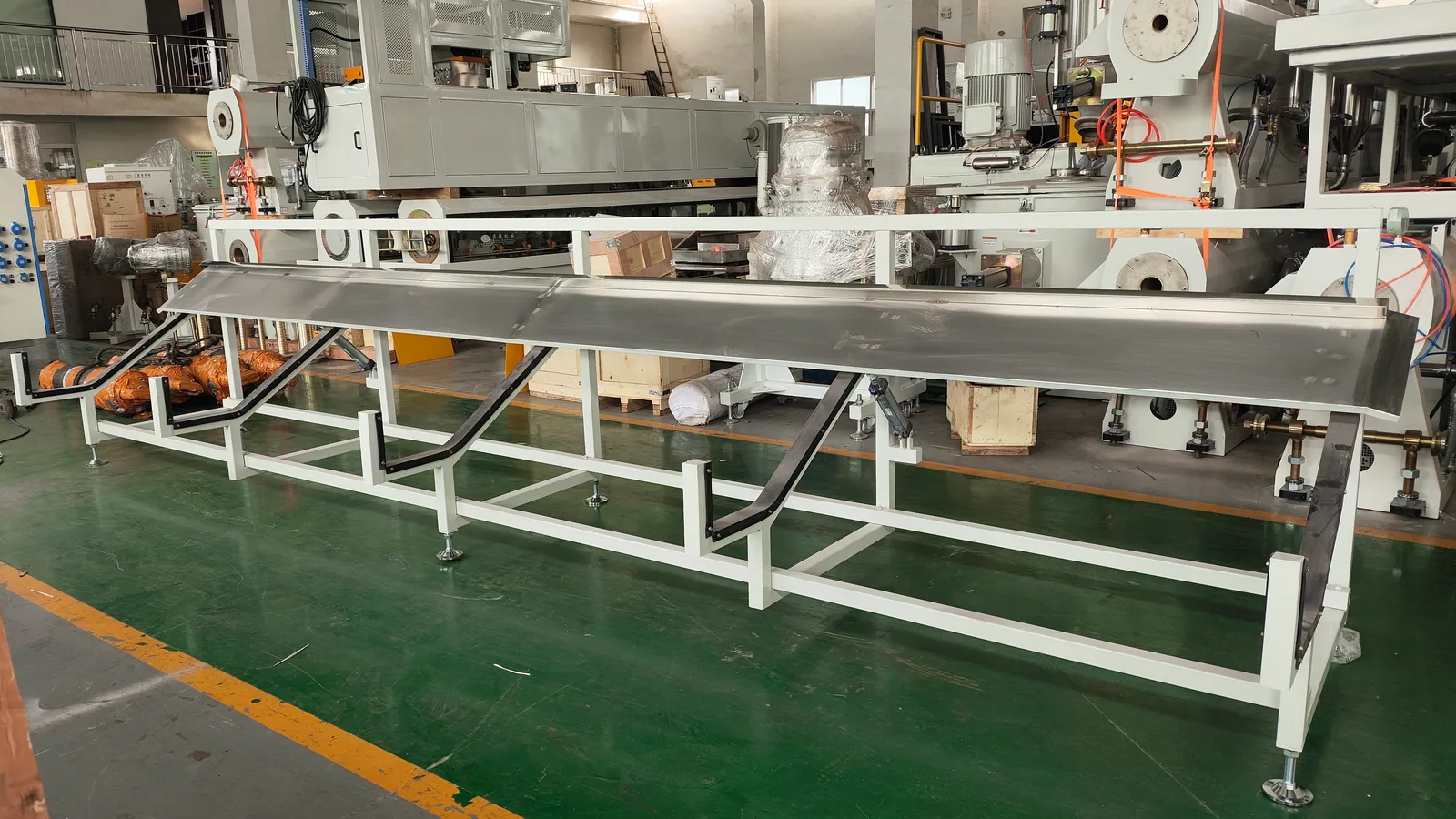

Stacker collecting PVC window and door frame profiles
07 Stacker

Collects finished profiles after cutting for downstream handling.

Configuration highlights

Highly automated extrusion line for continuous UPVC frame profile production.

Application reference: UPVC window frame profiles.

Custom mould options support different profile shapes, sizes and colors.

Application reference: PVC door frame profiles.

Vacuum calibration and synchronized haul-off help keep profile dimensions stable.

Application reference: Building and decorative profiles.

YF180 to YF600 configurations cover 180-600mm profile width and 120-350 kg/hr output.

Matched according to material, output and project configuration.

Technical parameters

Product type PVC Window and Door Frame Production Line
Application UPVC window frame / PVC door frame / Building profile
Profile width 180-600mm
Output 120-350 kg/hr
ItemYF180YF240YF300YF400YF600
Main extruderSJSZ51/105SJSZ65/132SJSZ65/132SJSZ65/132SJSZ80/156
Max board width (mm)180240300400600
Production speed (m/min)0.5-50.5-50.5-50.5-50.5-5
Max capacity (kg/hr)120250250250350

Product gallery

Conical double screw extruder for PVC window and door frame profile production
Double screw extruder plasticizes UPVC powder and feeds a stable melt into the profile mould.
PVC window and door frame extrusion mould for custom profile shapes
Custom extrusion mould forms window frame, door frame and building profile sections.
Vacuum calibration table for cooling and sizing UPVC window profiles
Vacuum calibration table fixes profile dimensions while the material cools.
Vacuum calibration tank section for stable PVC profile forming
Vacuum calibration tank supports stable shaping and cooling after the die head.
Haul-off machine pulling PVC window frame profiles after calibration
Haul-off machine keeps synchronized traction so the profile remains straight and consistent.
Automatic cutting machine for PVC window and door frame profiles
Automatic cutter cuts profiles to the required length for downstream stacking.
Stacker collecting finished PVC window and door frame profiles
Stacker collects finished profiles for inspection, packing or further processing.
Finished PVC window and door frame profile samples
Finished PVC profiles can be configured in different shapes, sizes and colors.

Customer references

PVC window profile extrusion line customer project in Belize
Belize

PVC window profile line

630mm PVC pipe extrusion line customer inspection in Egypt
Egypt

Ø630mm PVC pipe line

PVC pelletizing line customer project in Ethiopia
Ethiopia

PVC pelletizing line

200mm PVC pipe extrusion line customer project in Kenya
Kenya

Ø200mm PVC pipe line

Technical resources

Spec sheet download

Available on request with the technical proposal and machine configuration details.

Request details
Project reference

Available on request with the technical proposal and machine configuration details.

Request details
FAQ
What applications is this plastic profile production line used for?

PVC Window and Door Frame Production Line is commonly used for upvc window frame profiles, pvc door frame profiles, building and decorative profiles.

What is included in the production line?

The line includes double screw extruder, extrusion mould, vacuum calibration table, vacuum calibration tank, haul-off machine, cutting machine.

What range and output can be configured?

Reference configuration covers 180-600mm with 120-350 kg/hr output. Final layout is matched to profile size and factory requirements.
