PVC ceiling panel board production line with inverter speed control and Omron intelligent temperature controller. Low.
Plastic Profile Production Line
PVC Ceiling Panel Board Production Line

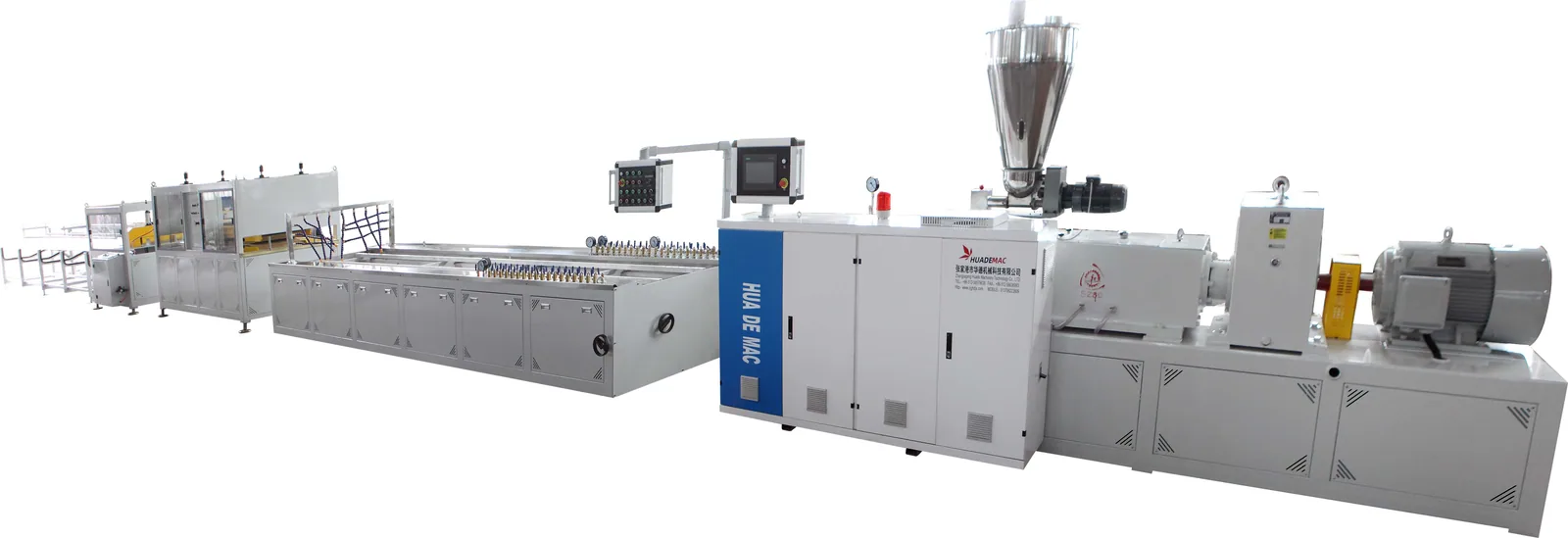

PVC ceiling panel board production line with inverter speed control and Omron intelligent temperature controller. Low power consumption of only 25kw/hour, easy operation, and ideal for large-scale investment. Includes vacuum calibration, hot stamping, cutting, and stacking for high-quality ceiling profiles.
200-400mm Panel width
80-400 kg/h Capacity
Overview
Application range
Panel board, Grating panel, Door and window frames, Foam board
Range and output
200-400mm panel width with 80-400 kg/h output reference.
Core configuration
Conical twin screw extruder, Extrusion mould, Vacuum calibration table, Hot stamping / lamination machine
Machine video
Watch machine video
Applications
Process flow
01
Raw material 02
Mixing 03
Feeder 04
Double screw extruder 05
Mould 06
Vacuum calibration table 07
Hot stamping / lamination 08
Haul-off unit 09
Cutting machine 10
Stacker Line composition
01 Conical twin screw extruder
Plasticizes PVC material with converter control and stable temperature control.
02 Extrusion mould
Forms the ceiling panel profile section before vacuum calibration.
03 Vacuum calibration table
Uses vacuum calibration mould and platform to stabilize panel shape and size.
04 Hot stamping / lamination machine
Applies decorative film or hot stamping finish according to product requirement.
05 Haul-off machine

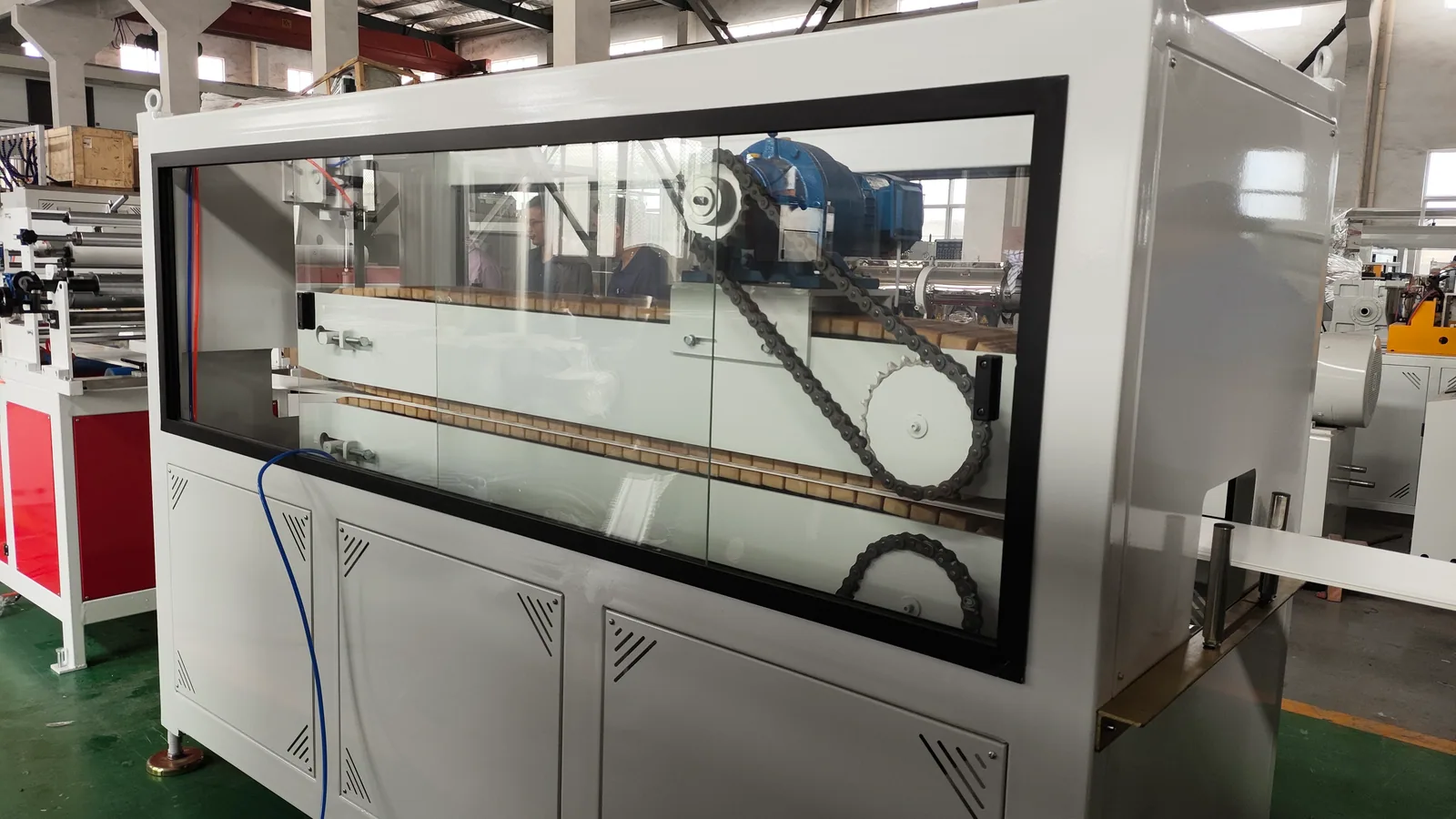

Pulls the profile at matched speed to keep production stable.
06 Cutting machine
Cuts the continuous panel profile to the required finished length.
07 Cutter blade detail
Shows the cutting station detail used for fixed-length panel cutting.

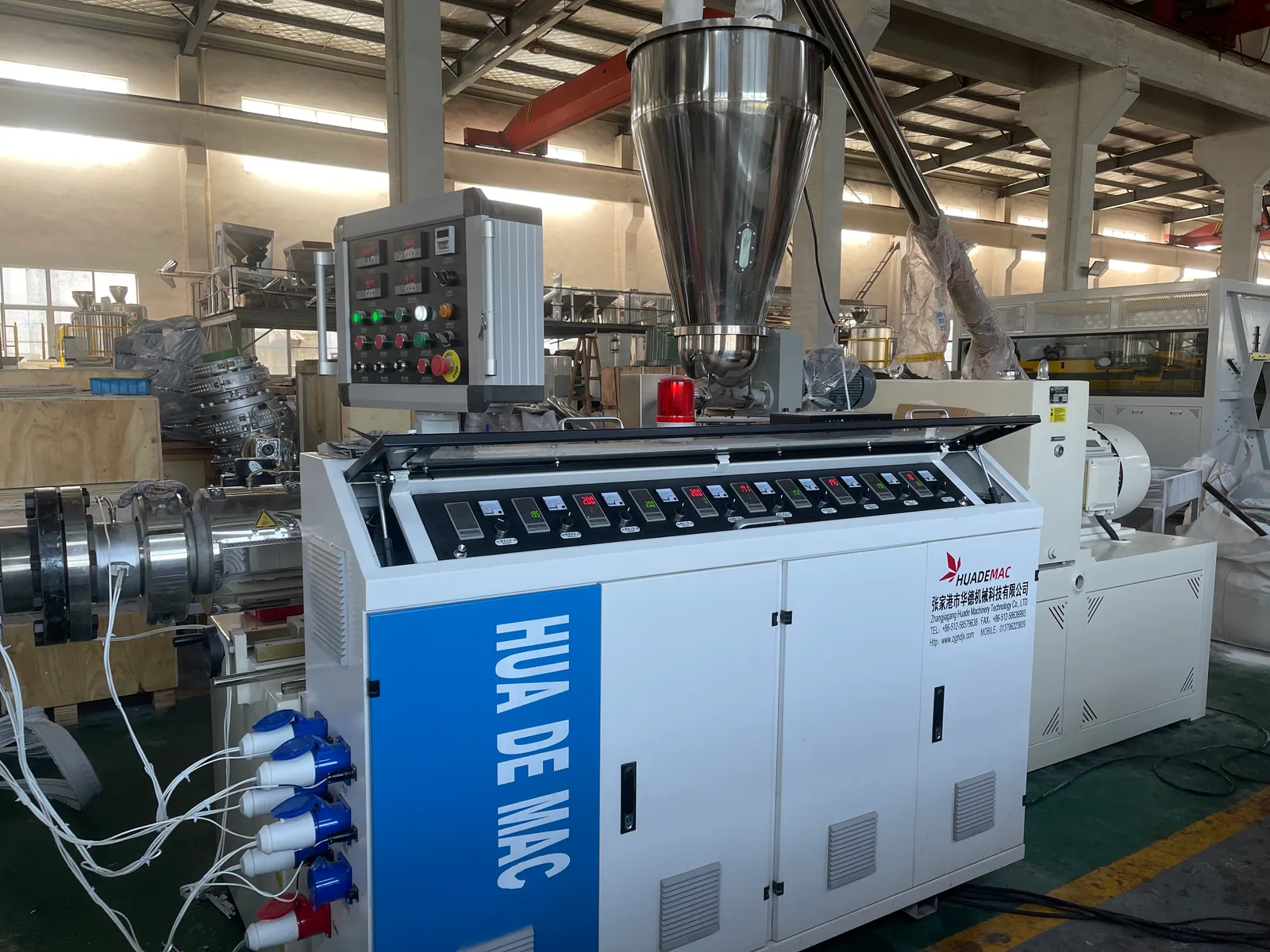

01 Conical twin screw extruder
Plasticizes PVC material with converter control and stable temperature control.

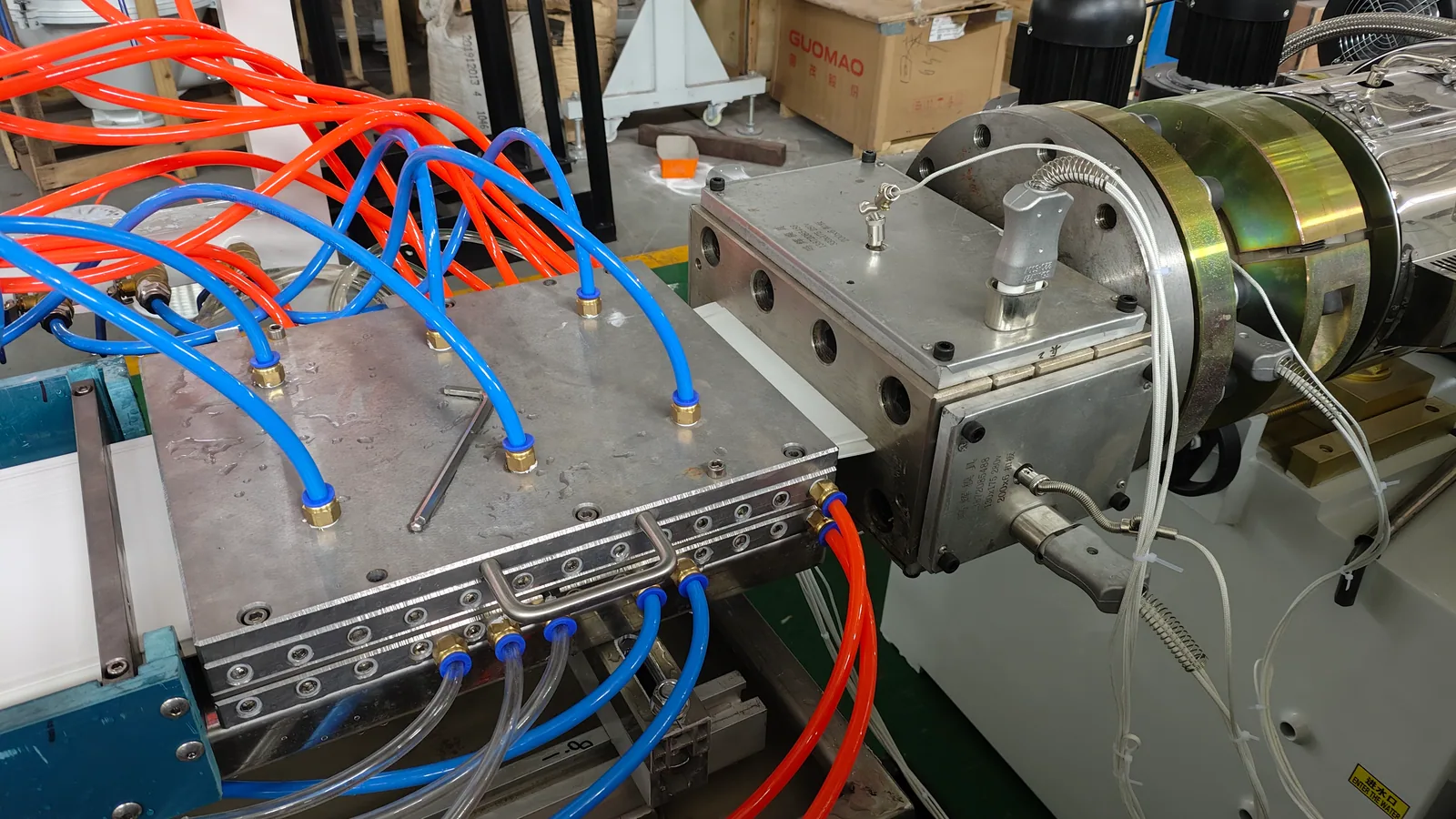

02 Extrusion mould
Forms the ceiling panel profile section before vacuum calibration.

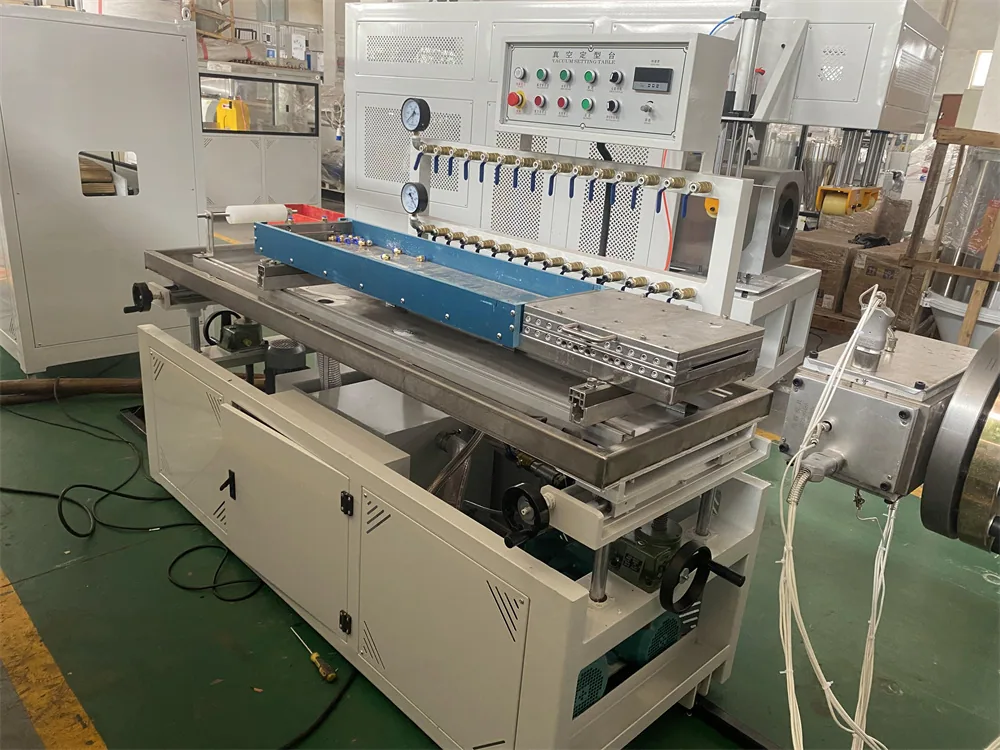

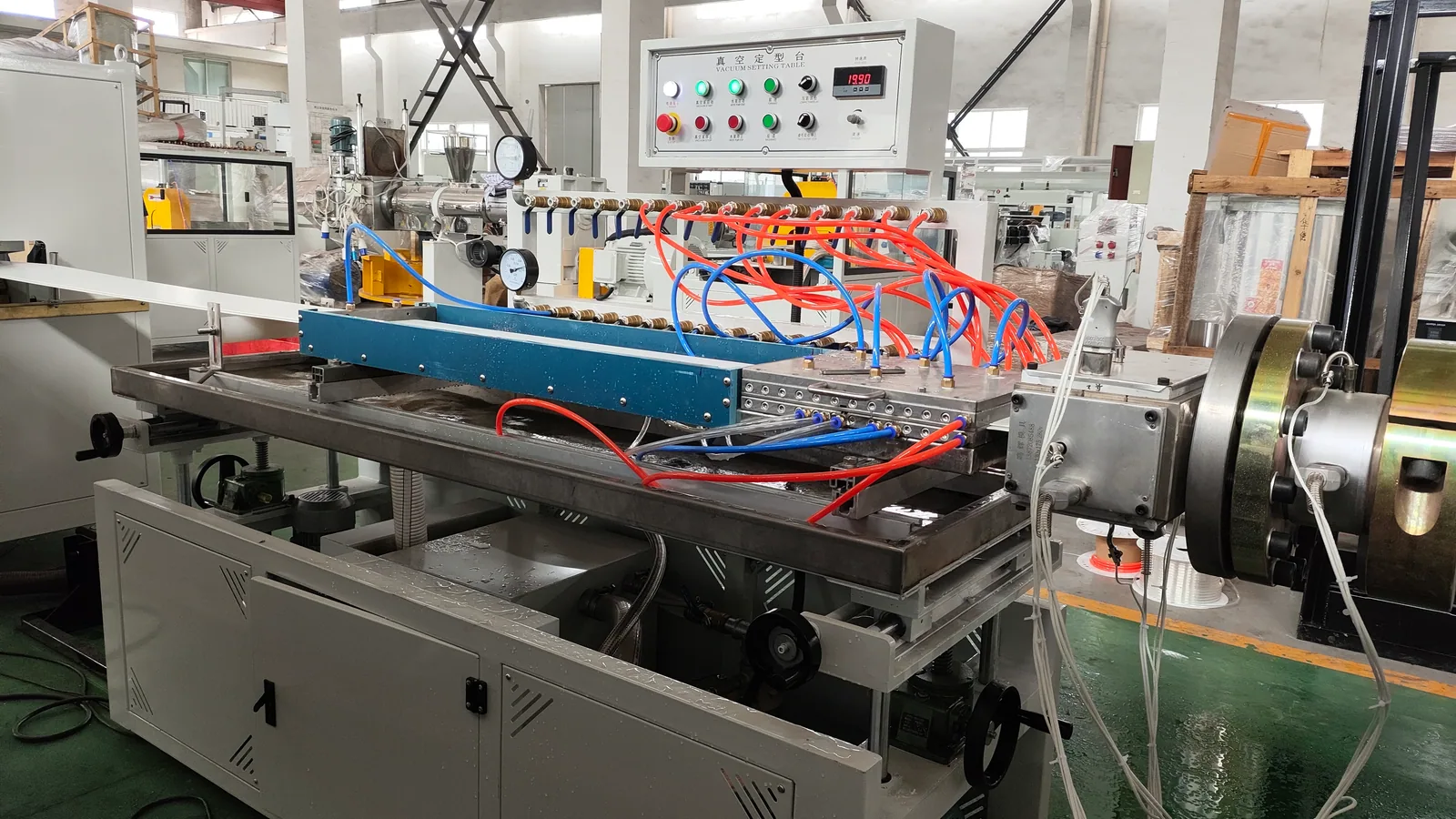

03 Vacuum calibration table
Uses vacuum calibration mould and platform to stabilize panel shape and size.

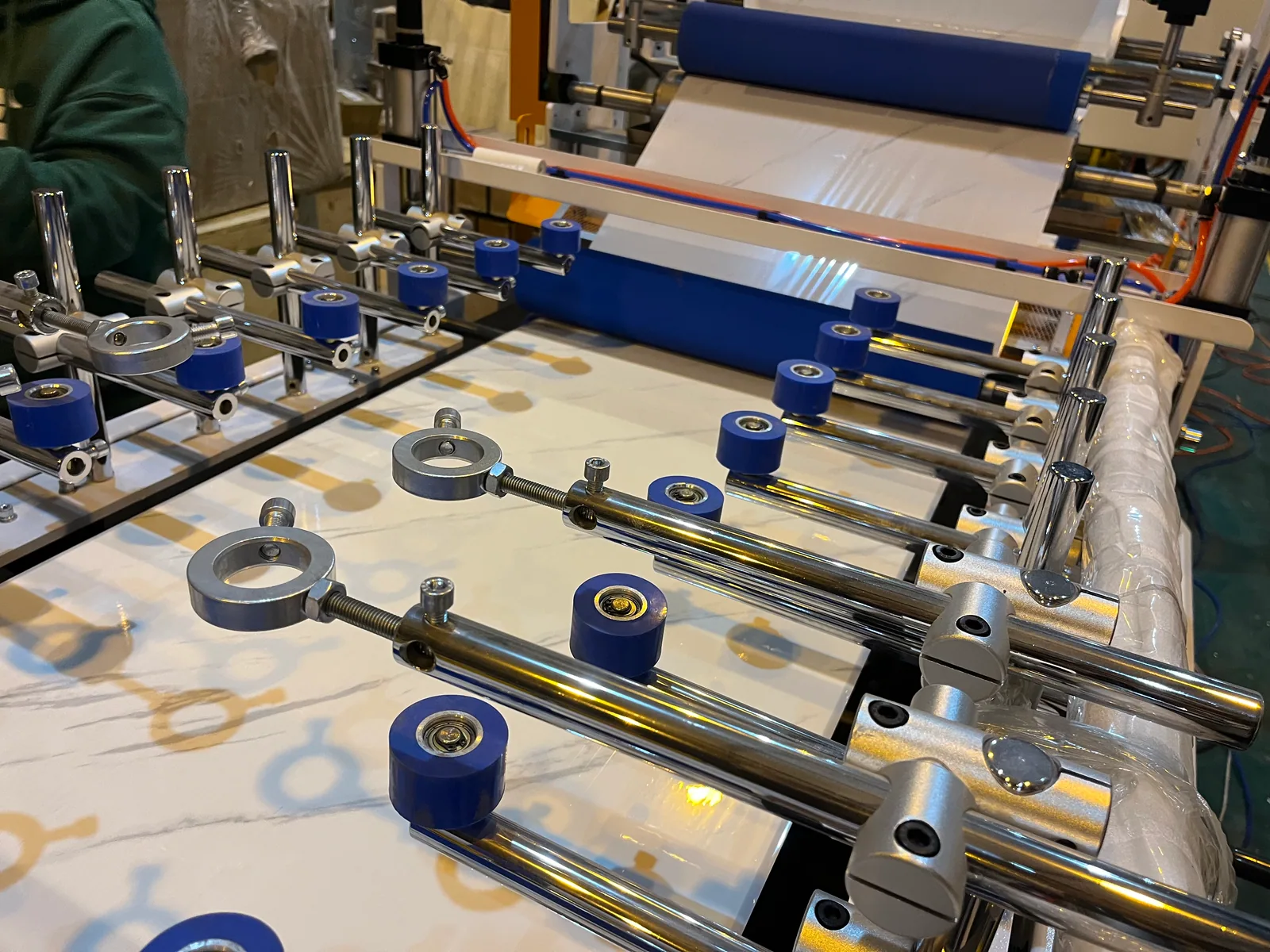

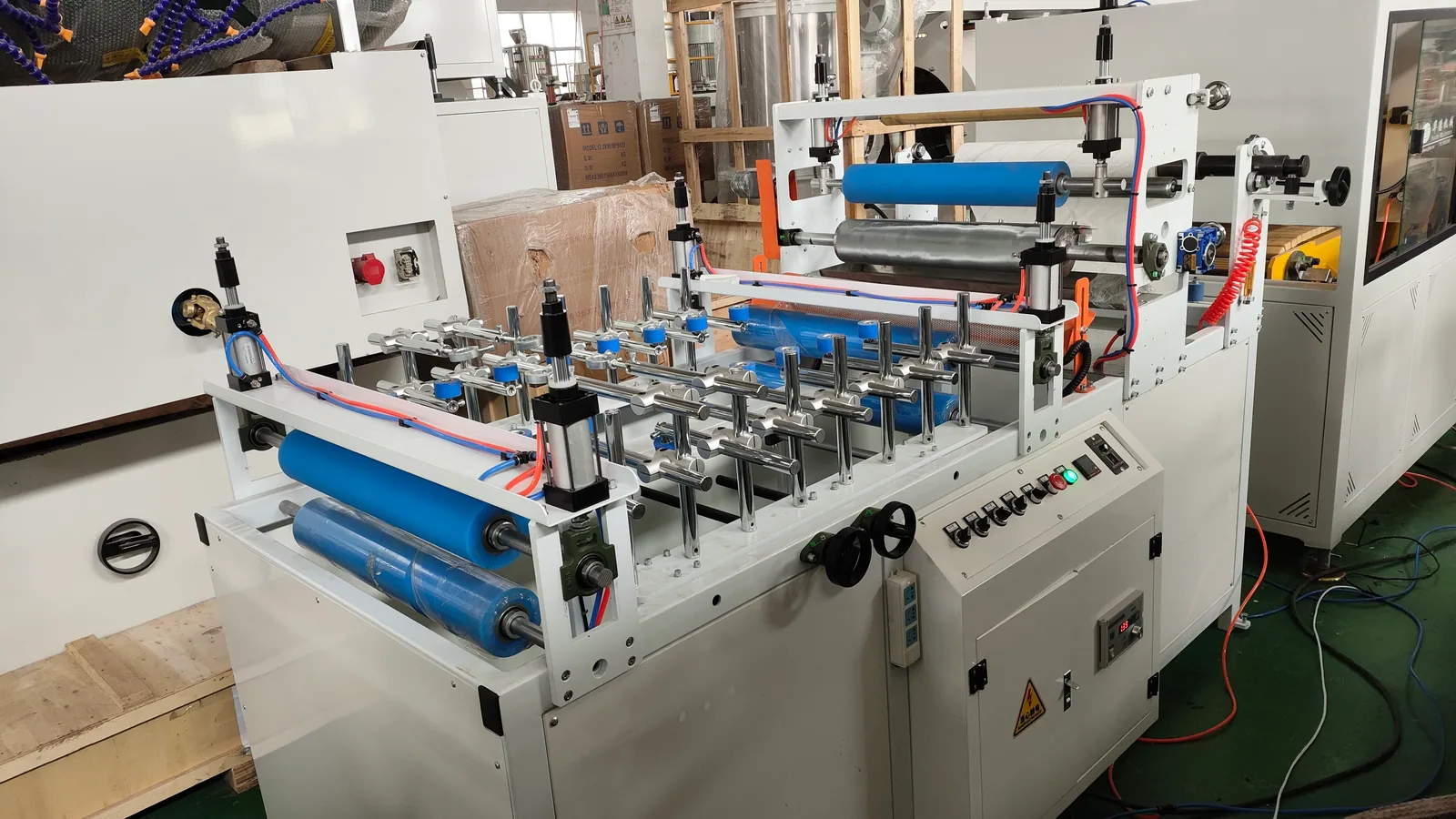

04 Hot stamping / lamination machine
Applies decorative film or hot stamping finish according to product requirement.
05 Haul-off machine
Pulls the profile at matched speed to keep production stable.

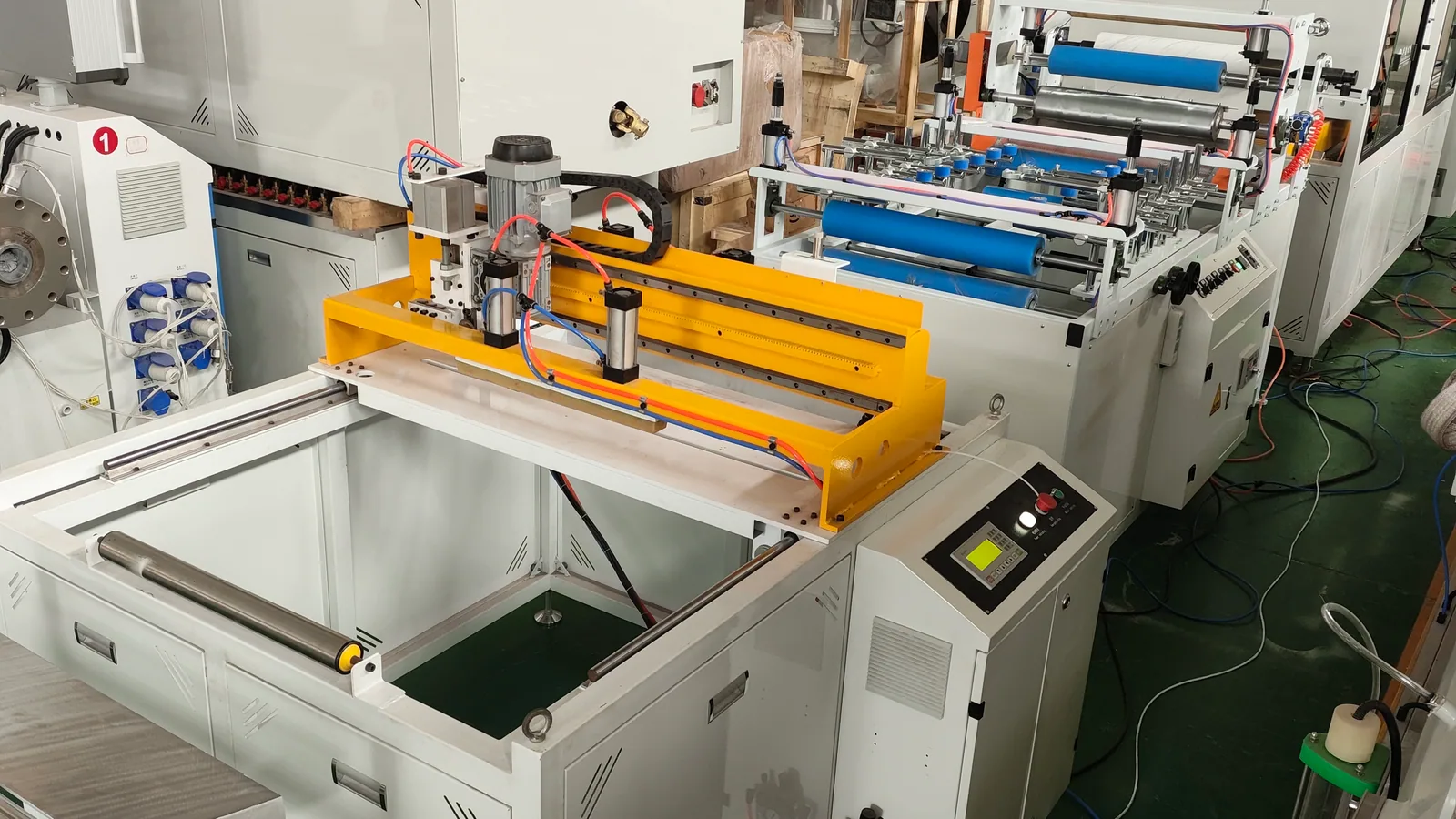

06 Cutting machine
Cuts the continuous panel profile to the required finished length.

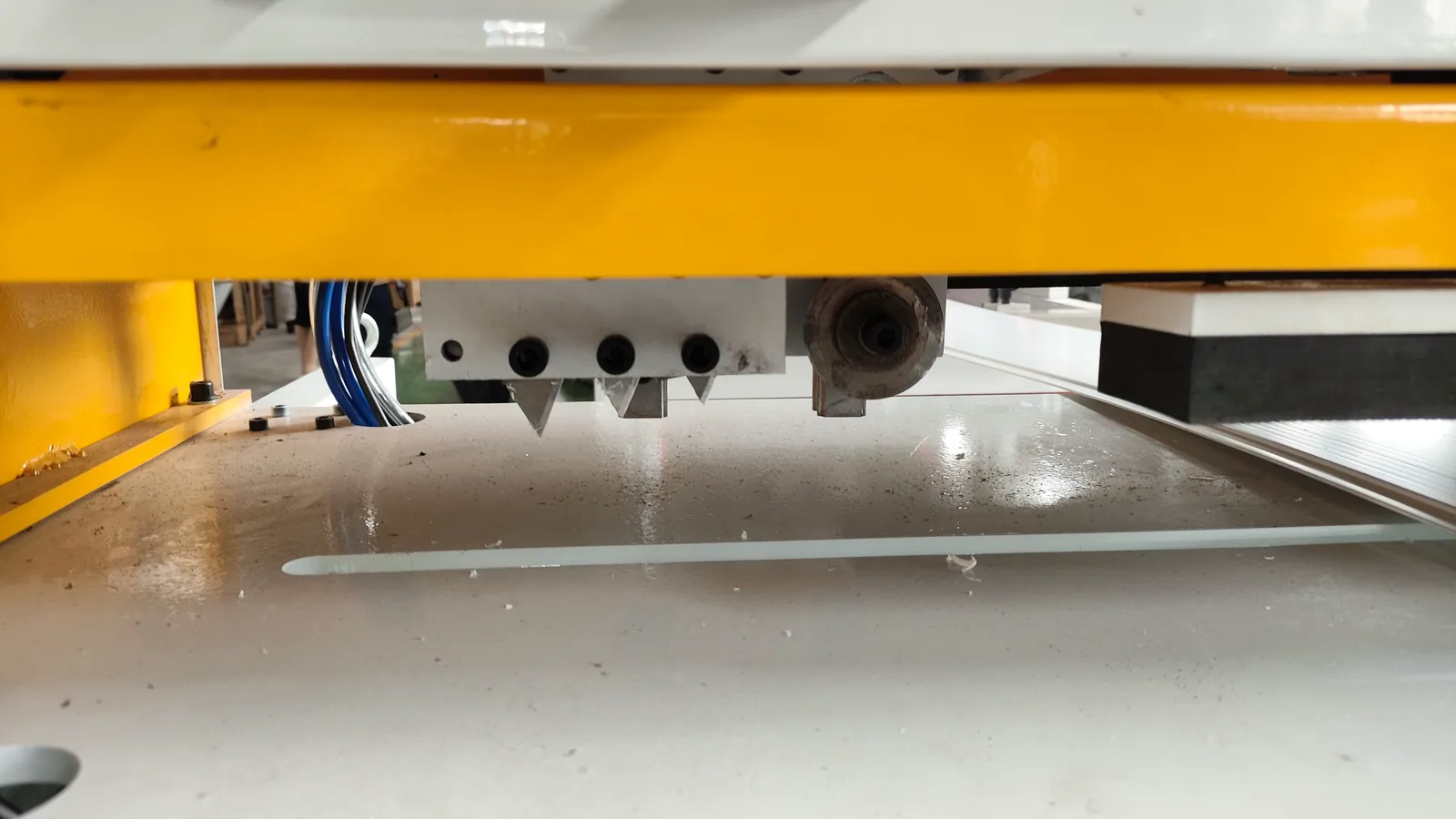

07 Cutter blade detail
Shows the cutting station detail used for fixed-length panel cutting.
Configuration highlights
Conical twin screw extruder supports stable PVC powder plasticizing for ceiling panel profiles.
Application reference: Panel board.
Converter control system allows line speed adjustment across extrusion and downstream units.
Application reference: Grating panel.
Omron temperature control unit provides accurate and stable heating zone control.
Application reference: Door and window frames.
Vacuum calibration mould and platform help keep panel size and surface stable.
Application reference: Foam board.
Optional hot stamping or lamination section supports decorative panel finishing.
Application reference: Door board.
Reference specifications cover 200-400mm panel width and 80-400 kg/h capacity.
Matched according to material, output and project configuration.
Technical parameters
Product type PVC Ceiling Panel Board Production Line
Panel width 200-400mm
Capacity 80-400 kg/h
Extruder power 18.5-75kW
Line length 10-30m
Control Converter control / Omron temperature
| Width(mm) | Capacity (Kg/h) | Extruder power(kw) | Line Length |
|---|---|---|---|
| 200 | 80-100 | 18.5 | 10-16m |
| 250 | 100-180 | 22-30 | 12-20m |
| 300 | 150-200 | 37 | 15-25m |
| 400 | 300-400 | 55-75 | 15-30m |
