Matched line setup
Twin screw extruder machine for converting thermoplastic materials, especially PVC powder, into pipe, plate, sheet,.
Plastic Extruder
Twin Screw Extruder Machine

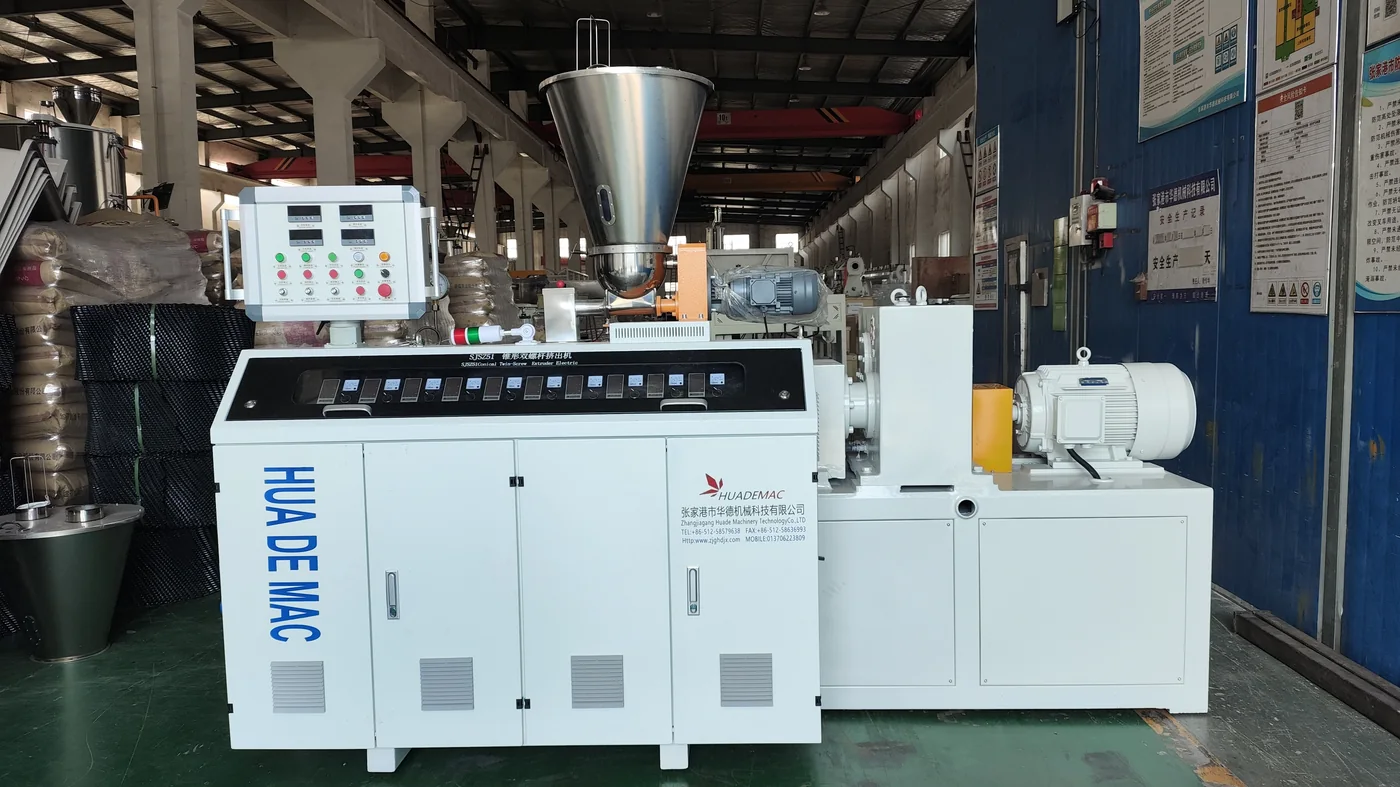

Twin screw extruder machine for converting thermoplastic materials, especially PVC powder, into pipe, plate, sheet, film and profile products. It supports modelling and pelletizing functions when matched with the proper die mould and downstream auxiliary machines.
51/105-92/188 mm Diameter range
120-750 kg/h Max Output
Overview
Application range
Pipe extrusion, Profile extrusion, Sheet and board extrusion, Film extrusion
Range and output
51/105-92/188 mm diameter range with 120-750 kg/h output reference.
Core configuration
Feeding system, Forced feeding device, Twin screw and barrel, Vacuum venting
Machine video
Watch machine video
Applications
Pipe extrusionProfile extrusionSheet and board extrusionFilm extrusionPelletizing and modelling
Line composition

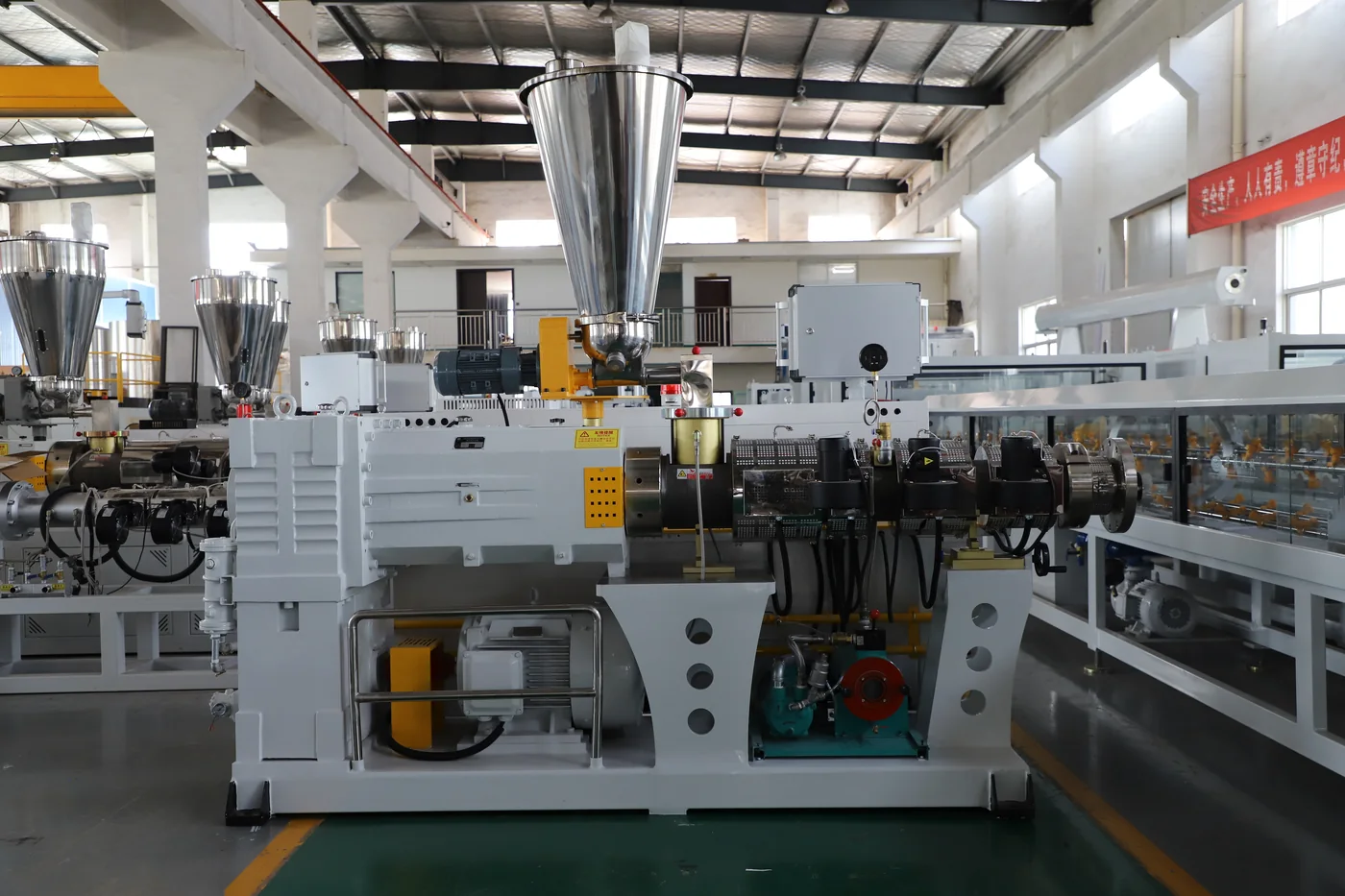

01 Twin screw extruder
Core machine for PVC powder plasticizing before pipe, profile, sheet, film or pelletizing downstream lines.

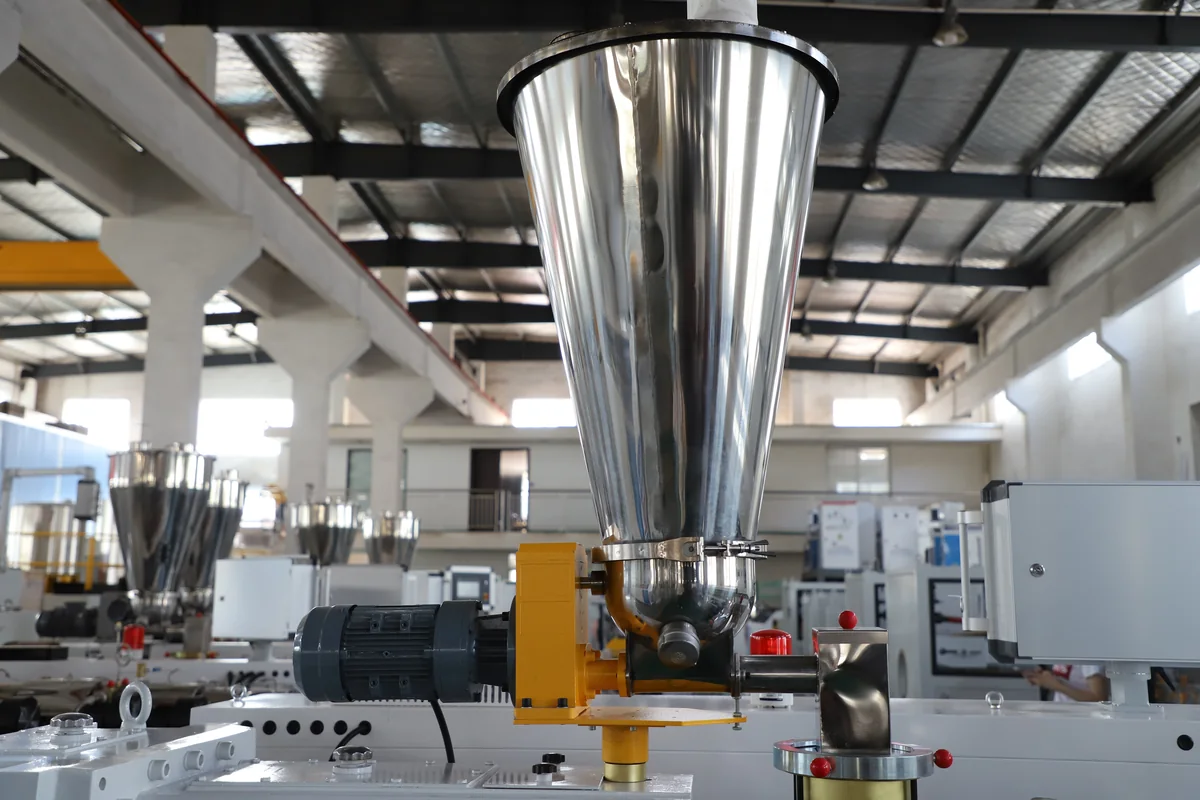

02 Forced feeding device
Maintains consistent material discharge speed into the screw barrel.

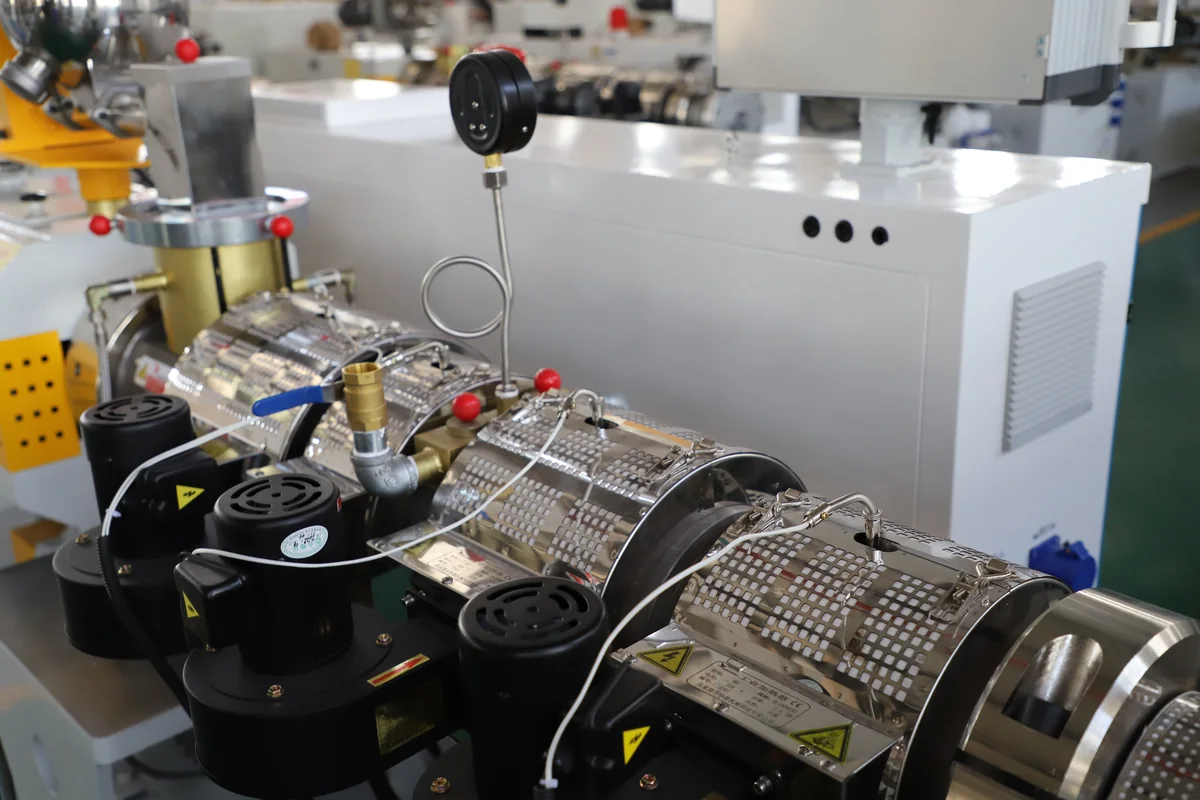

03 Oil cooling system
Circulating oil cooling helps control screw friction temperature.

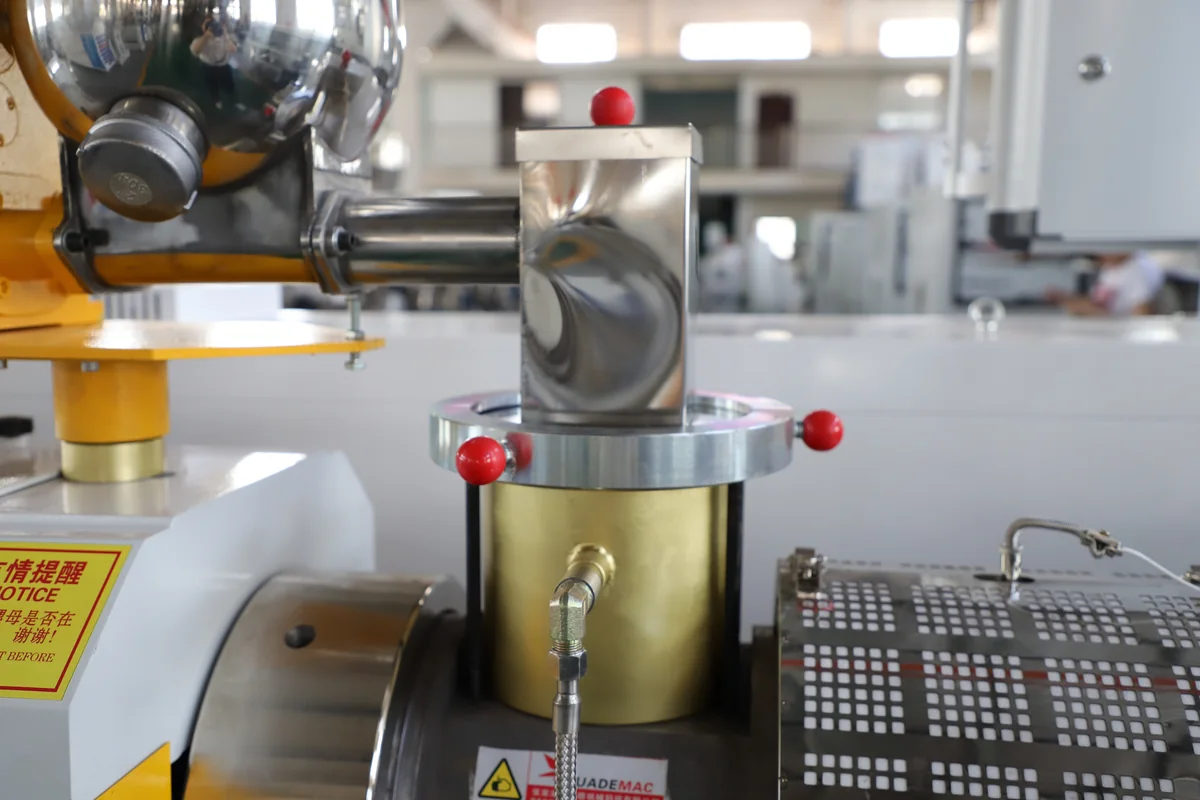

04 Vacuum venting section
Supports material degassing and stable plasticizing during extrusion.

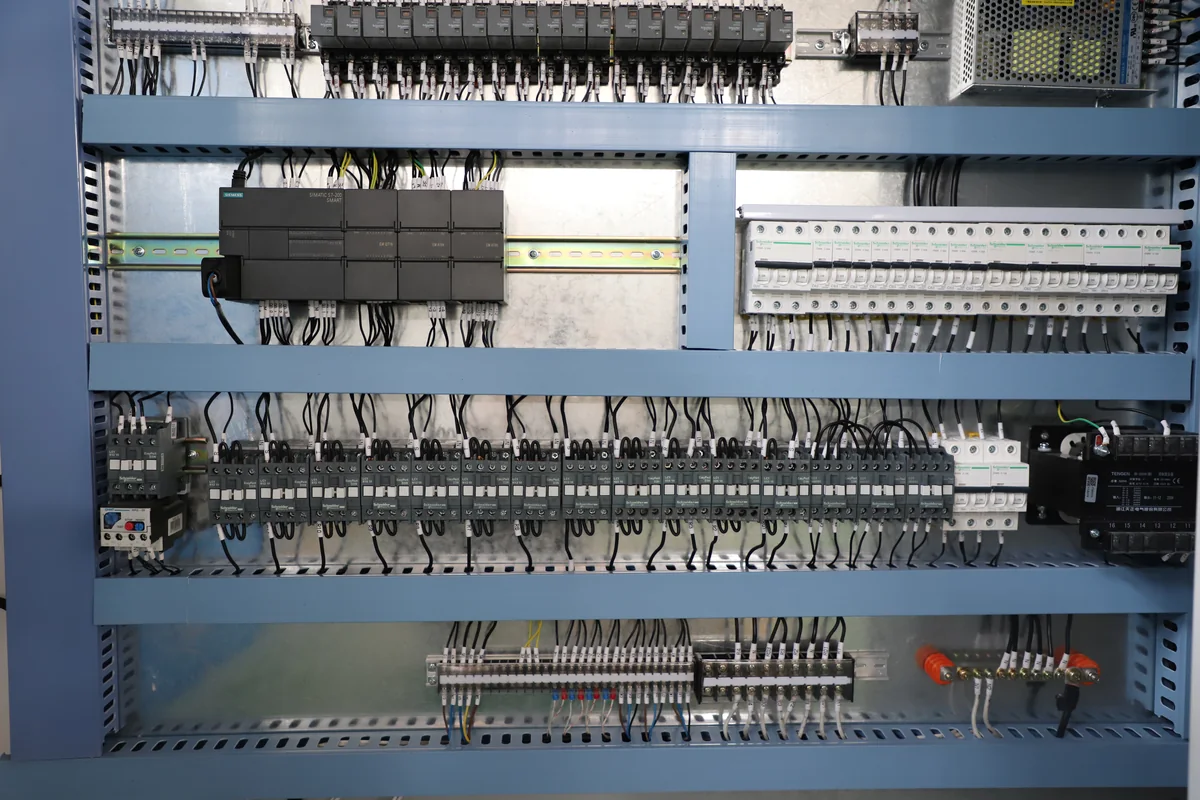

05 Control cabinet
Organizes electrical control, alarm and protection components.

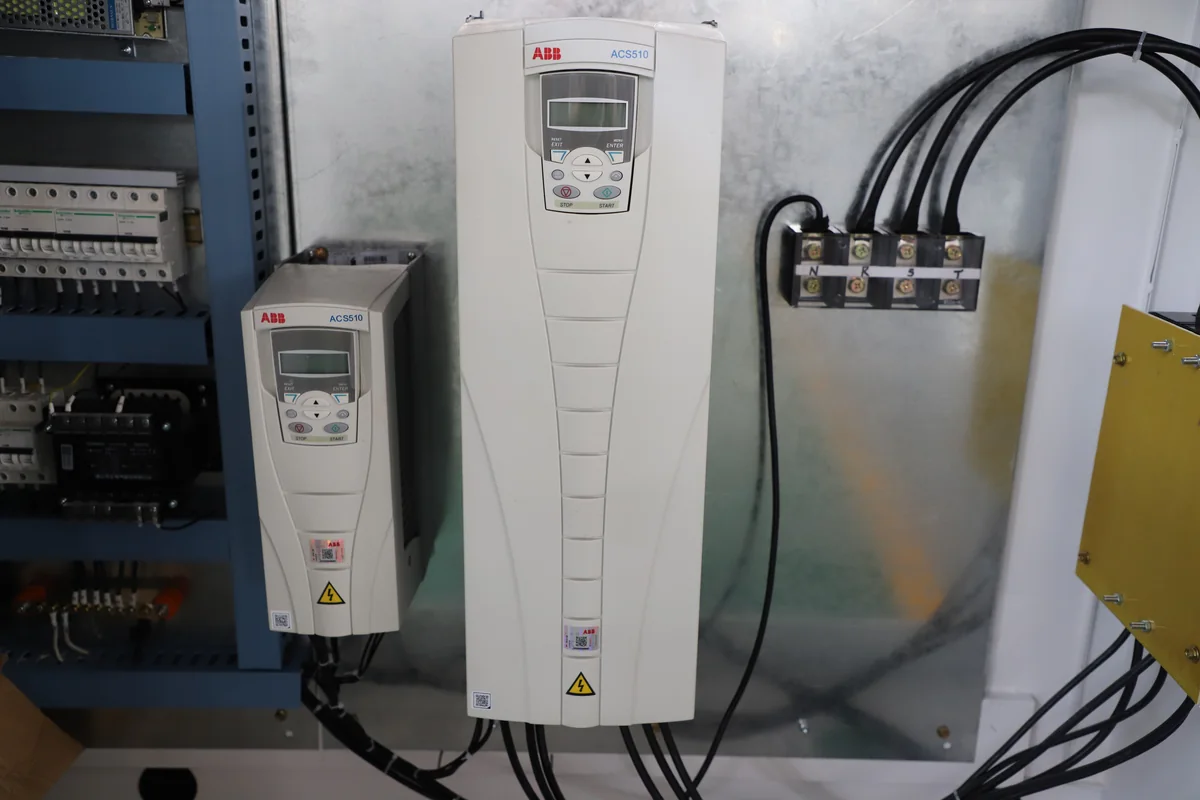

06 AC motor drive
Regulates motor speed and extrusion output during production.
Configuration highlights
Circulating oil cooling on the screw keeps friction temperature within an allowable range.
Application reference: Pipe extrusion.
Special wind cooling system on the screw barrel makes repair and maintenance easier.
Application reference: Profile extrusion.
Reasonable screw structure can be matched for different material mixing requirements.
Application reference: Sheet and board extrusion.
Main drive motor, reduction box and screw are assembled in line for easier repair.
Application reference: Film extrusion.
Forced feeding device helps ensure consistent material discharge speed.
Application reference: Pelletizing and modelling.
Technical parameters
Product type Twin Screw Extruder Machine
Application PVC pipe / profile / sheet / film / pelletizing
Screw diameter 51/105-92/188 mm
Output 120-750 kg/h
| Model | SJSZ-51 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
|---|---|---|---|---|---|
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max. Screw Rotary Speed (rpm) | 0-36 | 0-36 | 0-36 | 0-36 | 0-36 |
| Main Motor (kw) | 18.5 | 22/30 | 37 | 55/75 | 110 |
| Output (kg/h) | 120 | 180 | 280 | 400 | 750 |
| Center Height (mm) | 1000 | 1000 | 1000 | 1050 | 1100 |

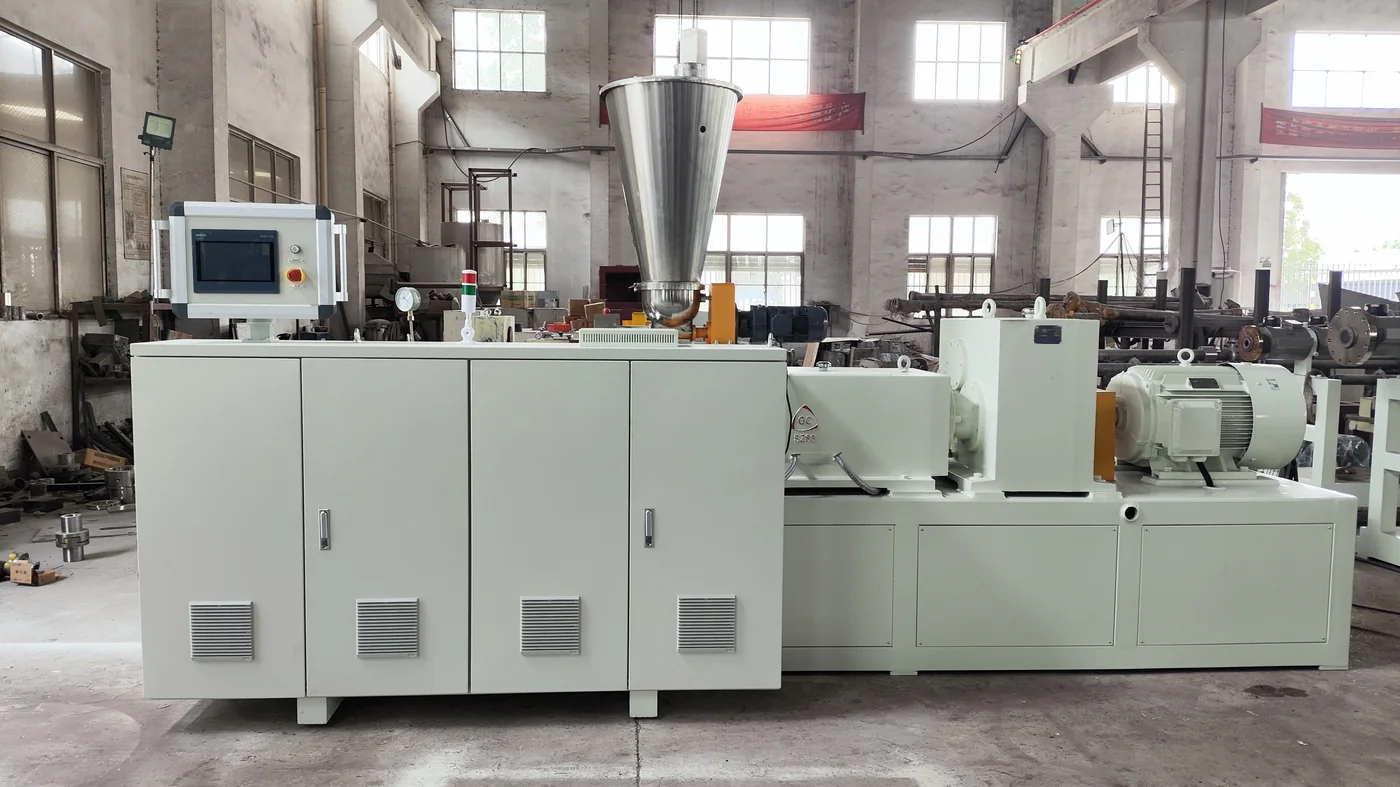

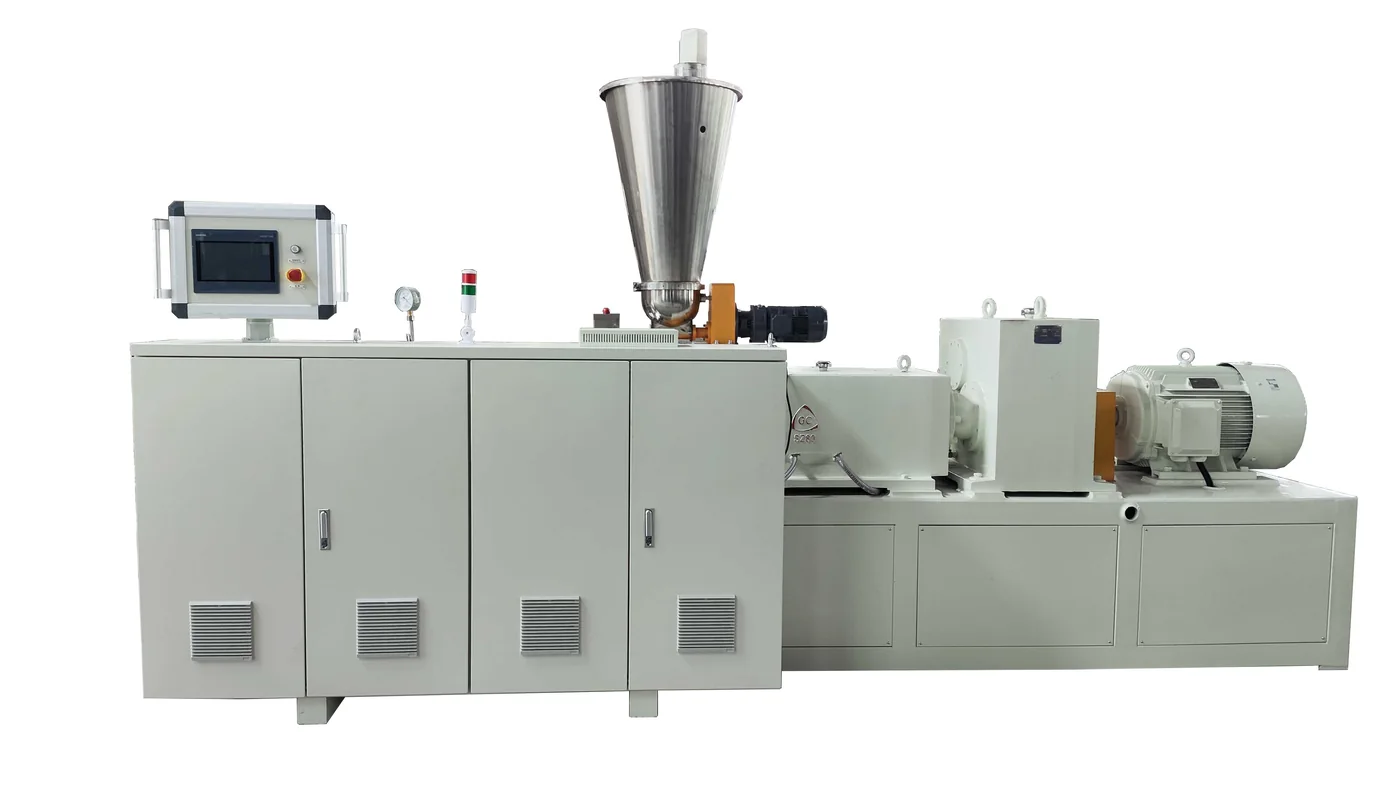

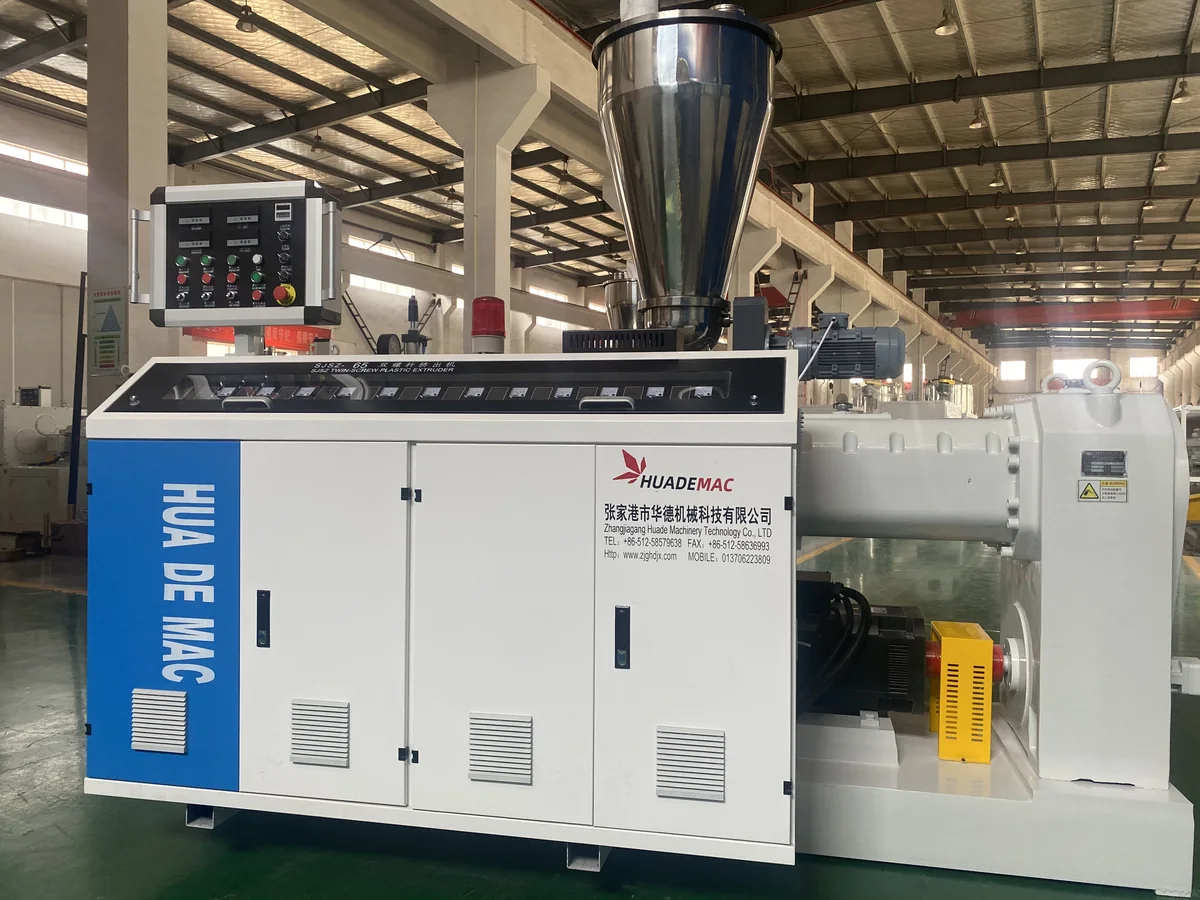

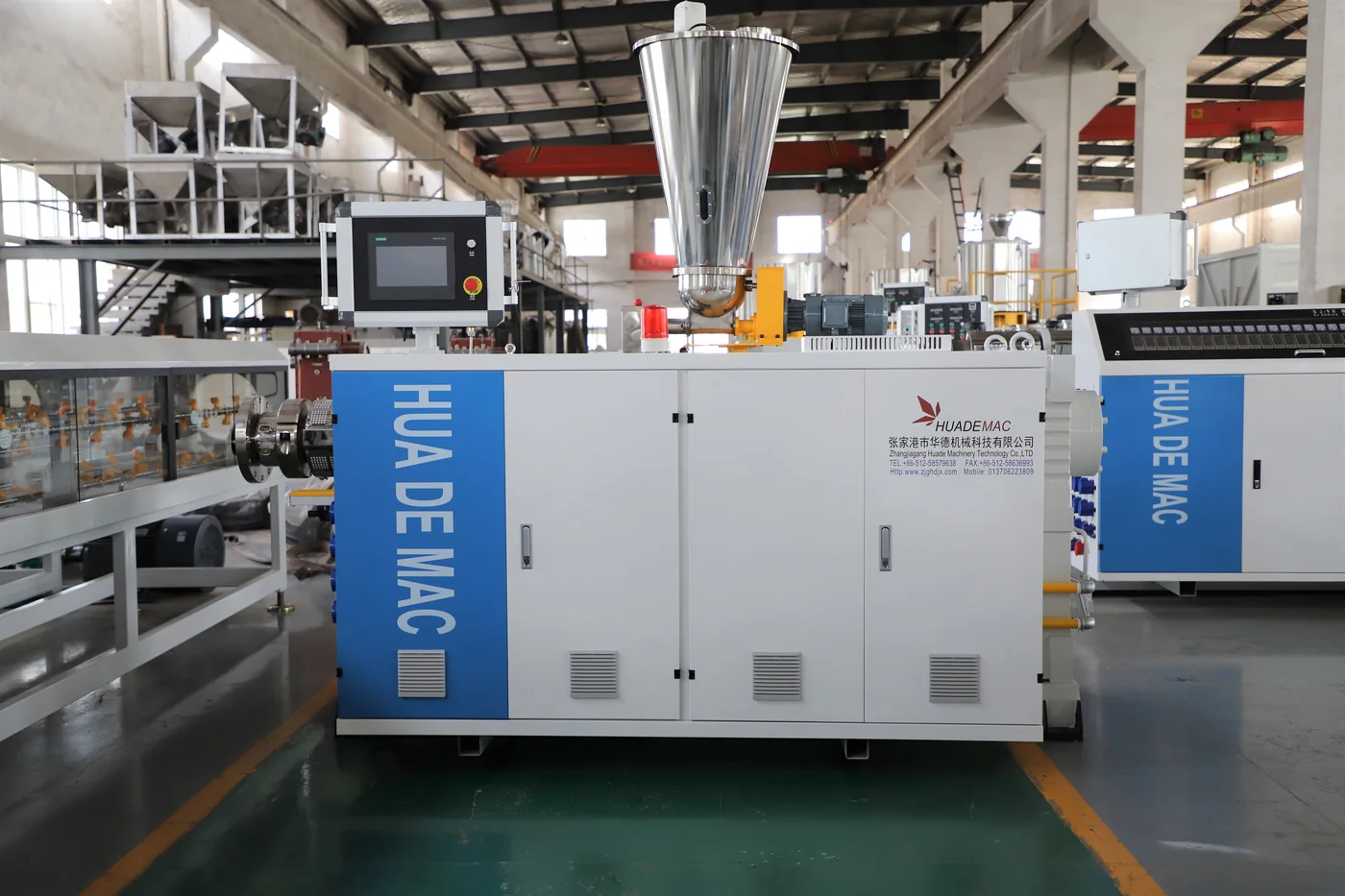

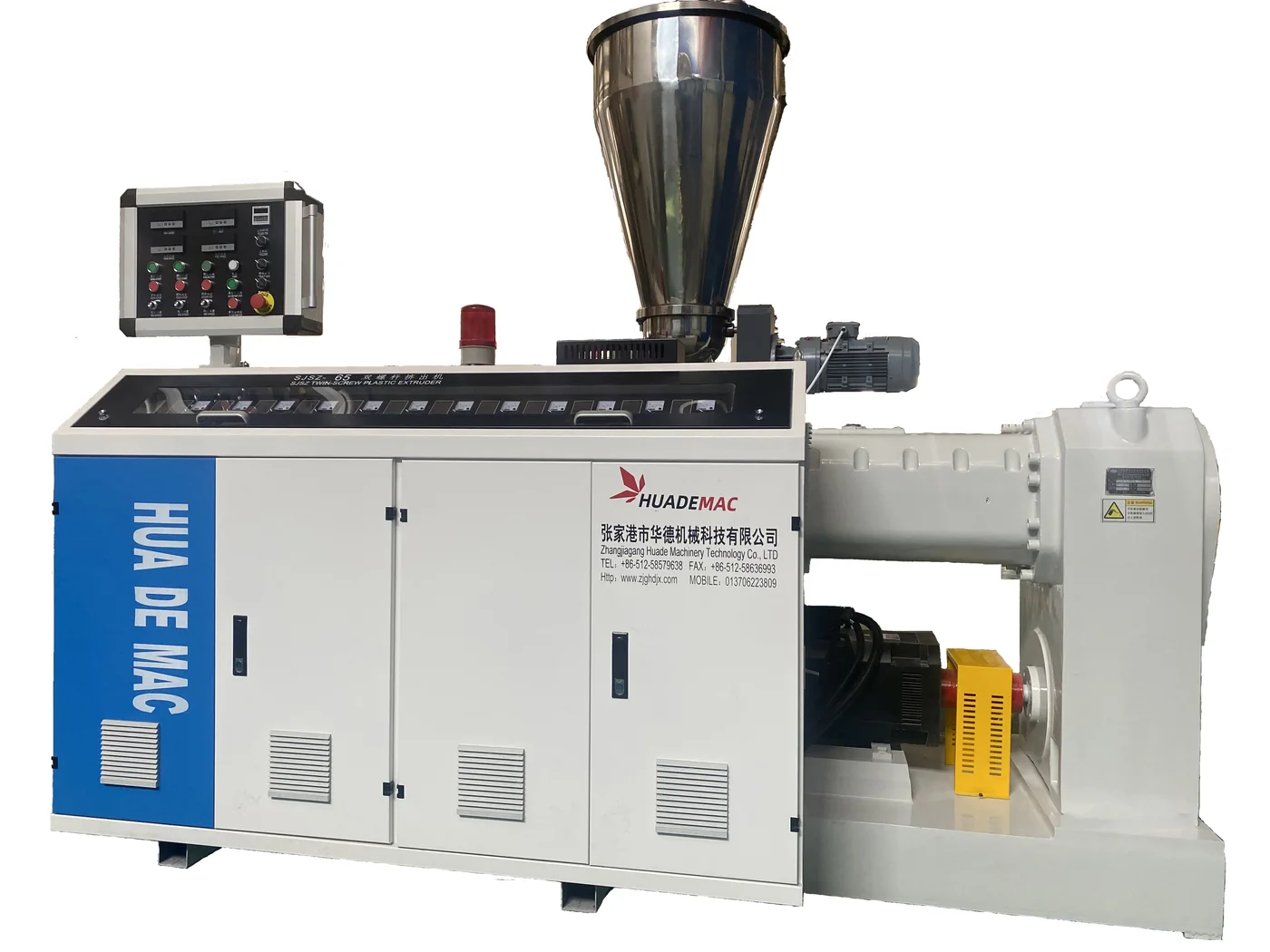

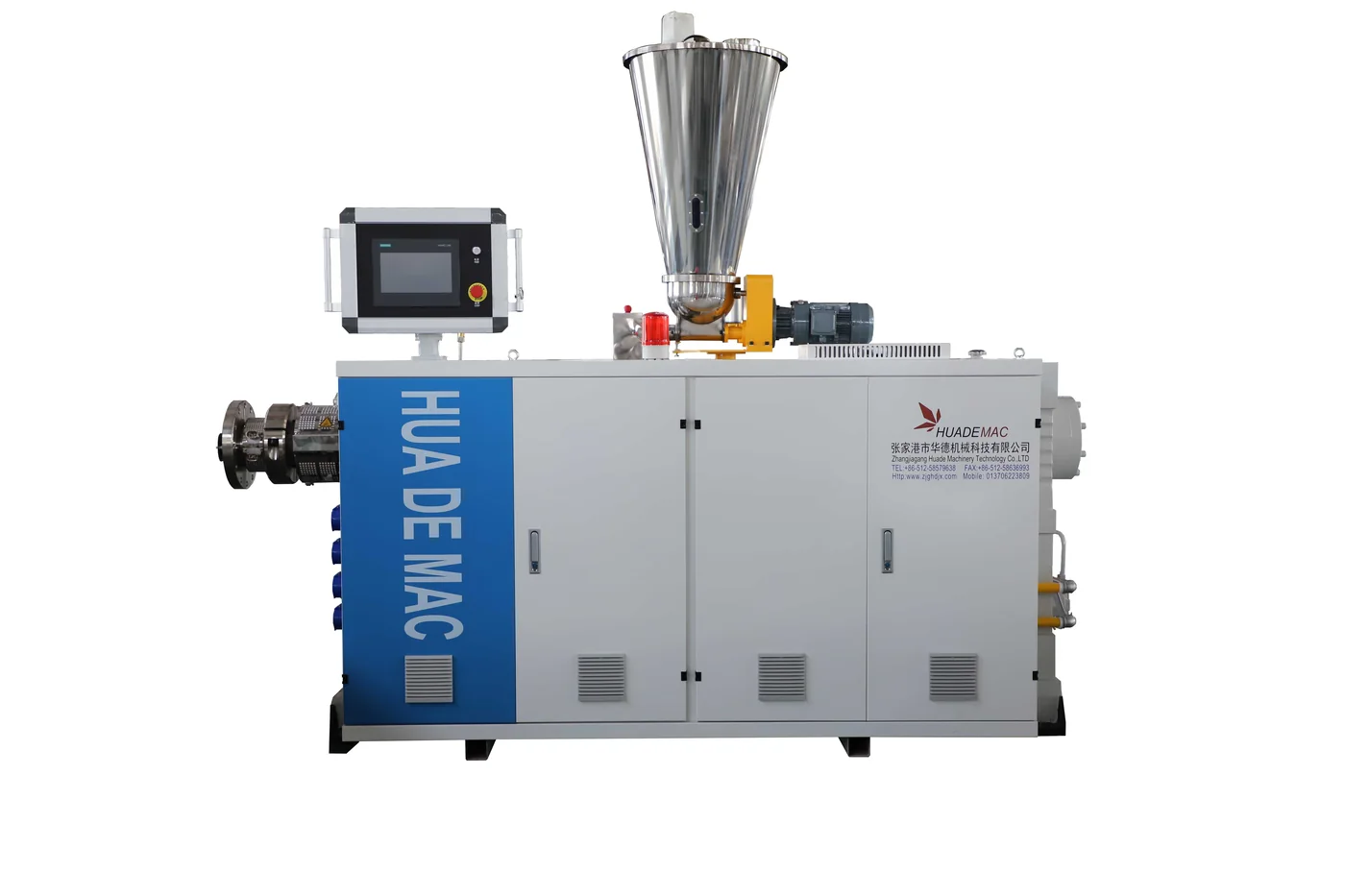

Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this plastic extruder used for?
Twin Screw Extruder Machine is commonly used for pipe extrusion, profile extrusion, sheet and board extrusion, film extrusion, pelletizing and.
What is included in the production line?
The line includes feeding system, forced feeding device, twin screw and barrel, vacuum venting, oil and wind cooling, ac motor and reducer.
What range and output can be configured?
Reference configuration covers 51/105-92/188 mm with 120-750 kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
