Single screw extruder machine for polyolefin material extrusion, recycling, pelletizing, pipe, profile, board, sheet.
Plastic Extruder

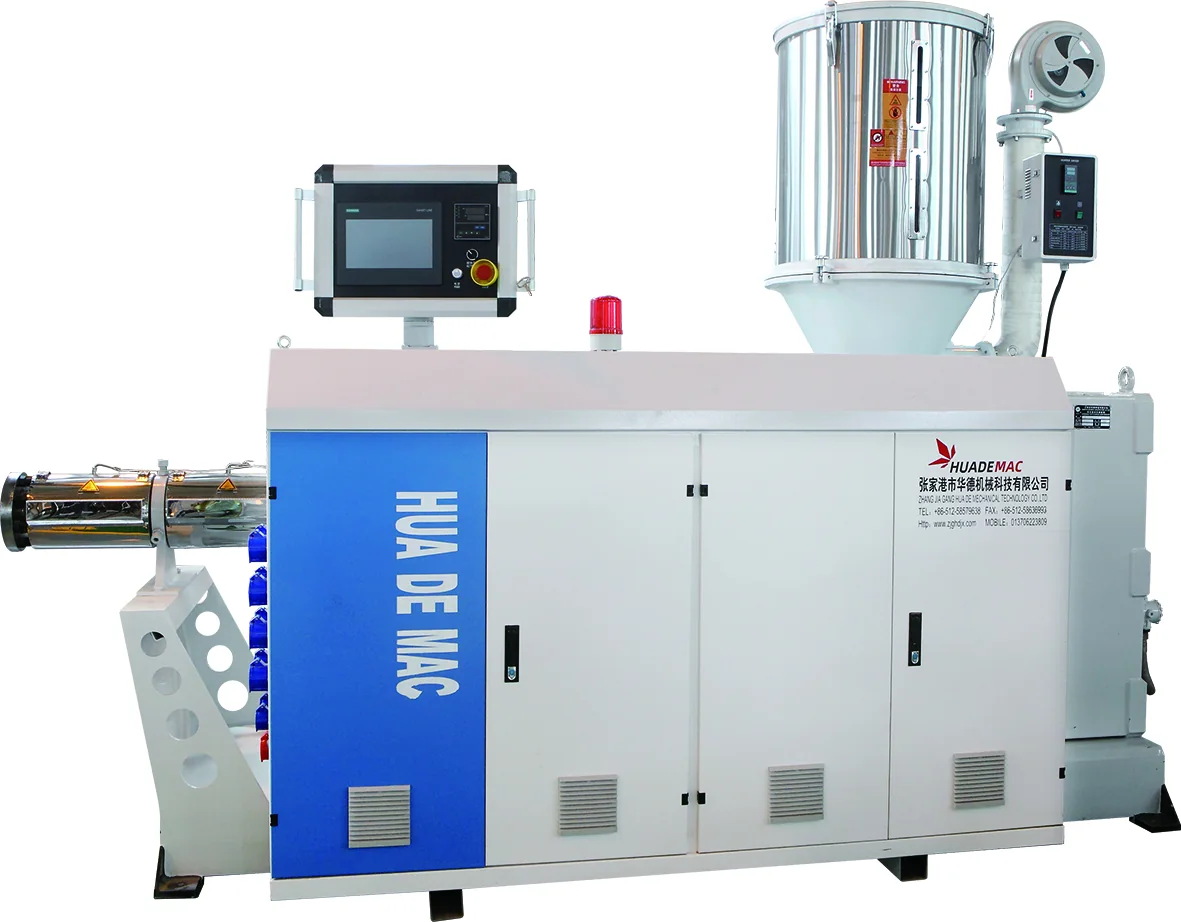

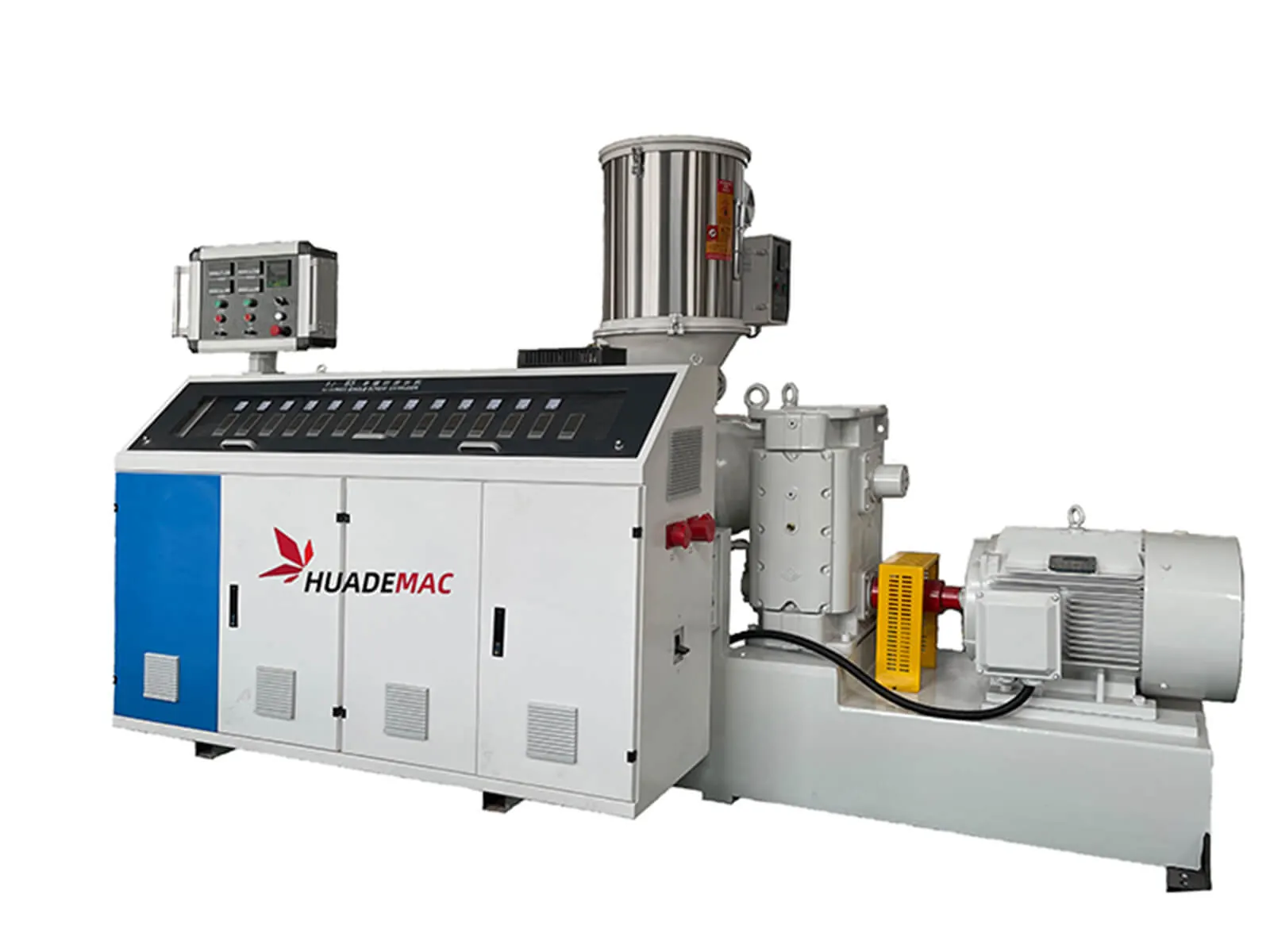

Single Screw Extruder Machine
Single screw extruder machine for polyolefin material extrusion, recycling, pelletizing, pipe, profile, board, sheet and film production. Screw diameters from 25-150mm, L/D ratio 25:1-38:1 and Normal, PID or PLC control can be configured.
25-150 mm screw Diameter range
5-1200 kg/h Max Output
Overview
Application range
Pipe extrusion, Profile extrusion, Board, sheet and film, Recycling and pelletizing
Range and output
25-150 mm screw diameter range with 5-1200 kg/h output reference.
Core configuration
Feeding system, Single screw barrel, High-torque reducer, Main motor
Machine video
Watch machine video
Applications
Pipe extrusionProfile extrusionBoard, sheet and filmRecycling and pelletizing
Line composition

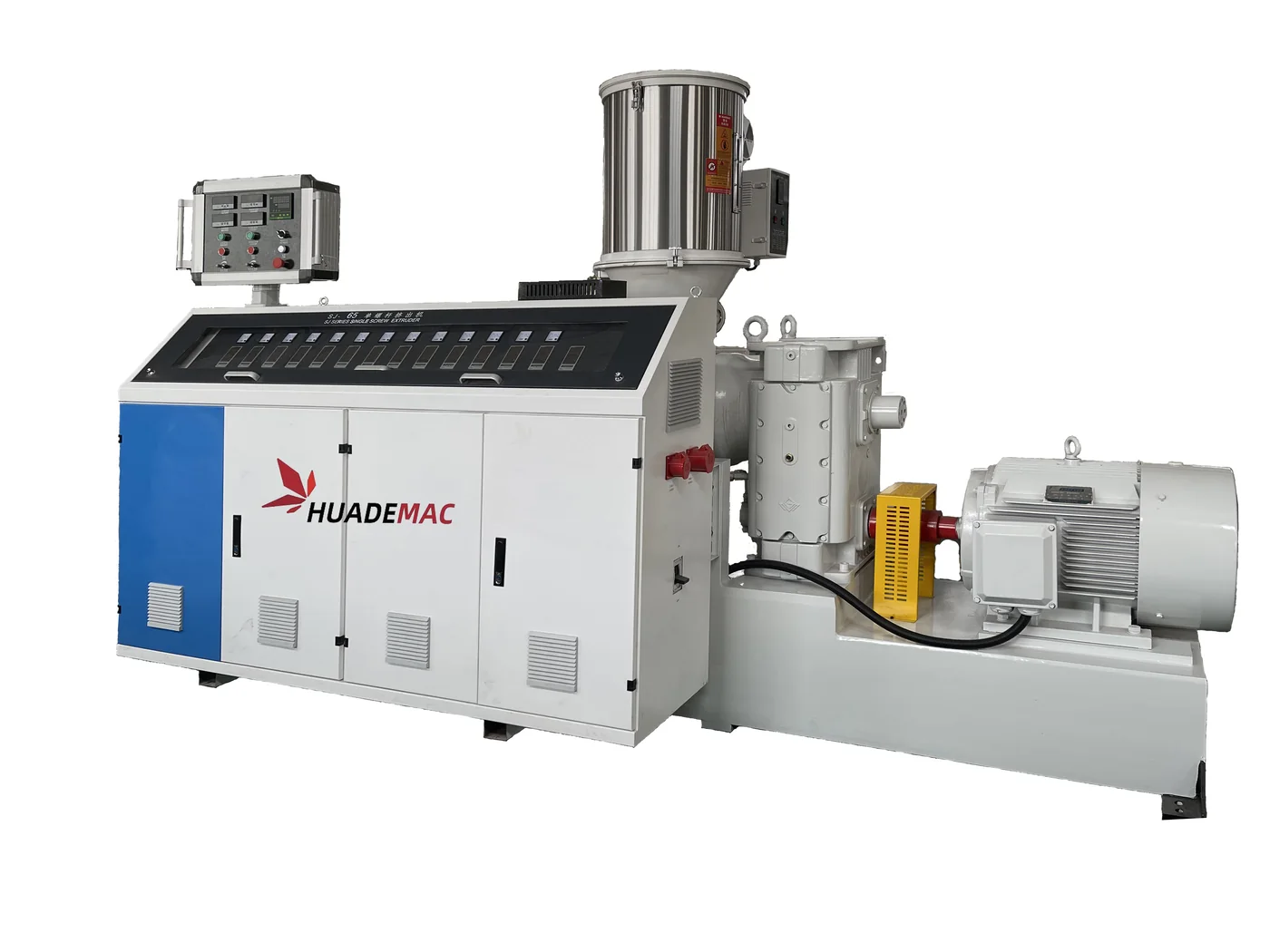

01 Single screw extruder
Core extrusion unit for polyene material processing and downstream production lines.

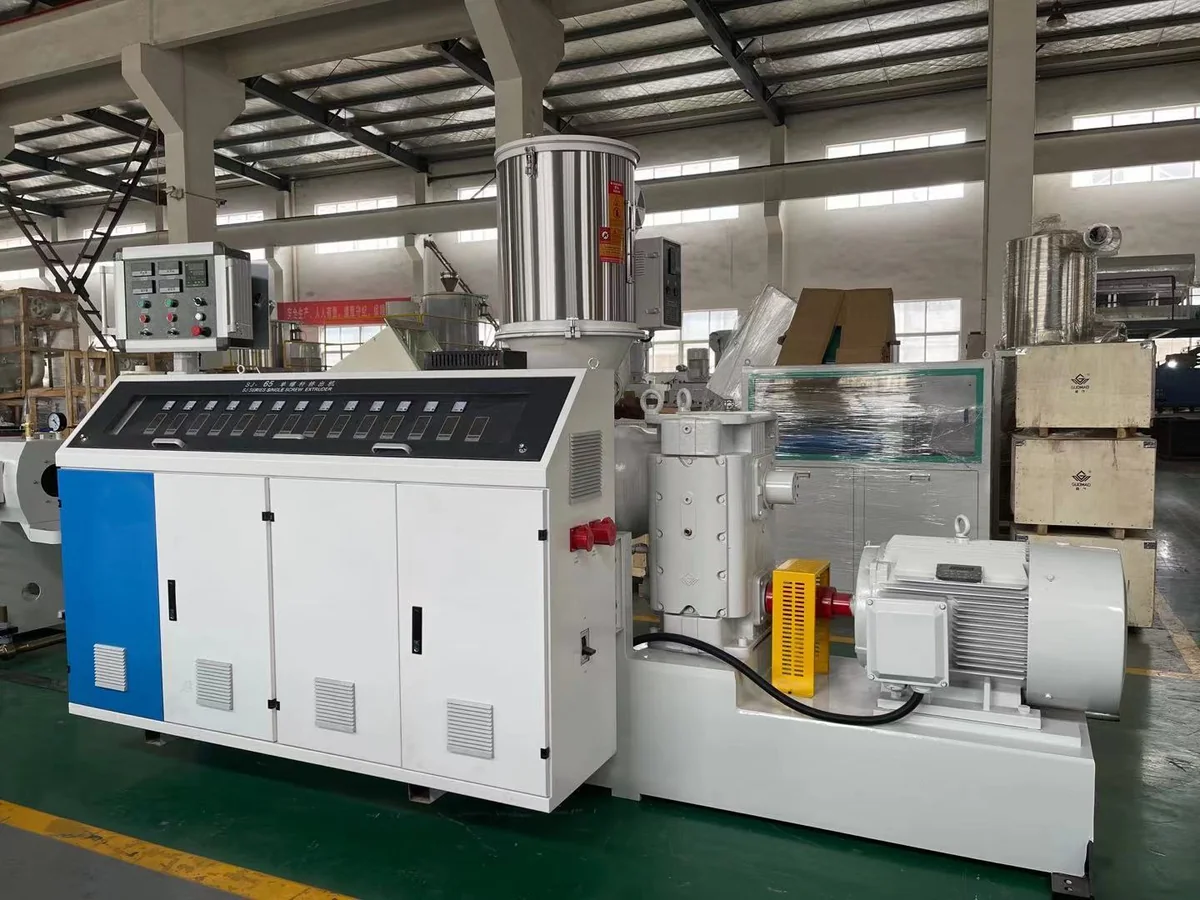

02 PID control model
PID control option for stable temperature and extrusion parameter adjustment.

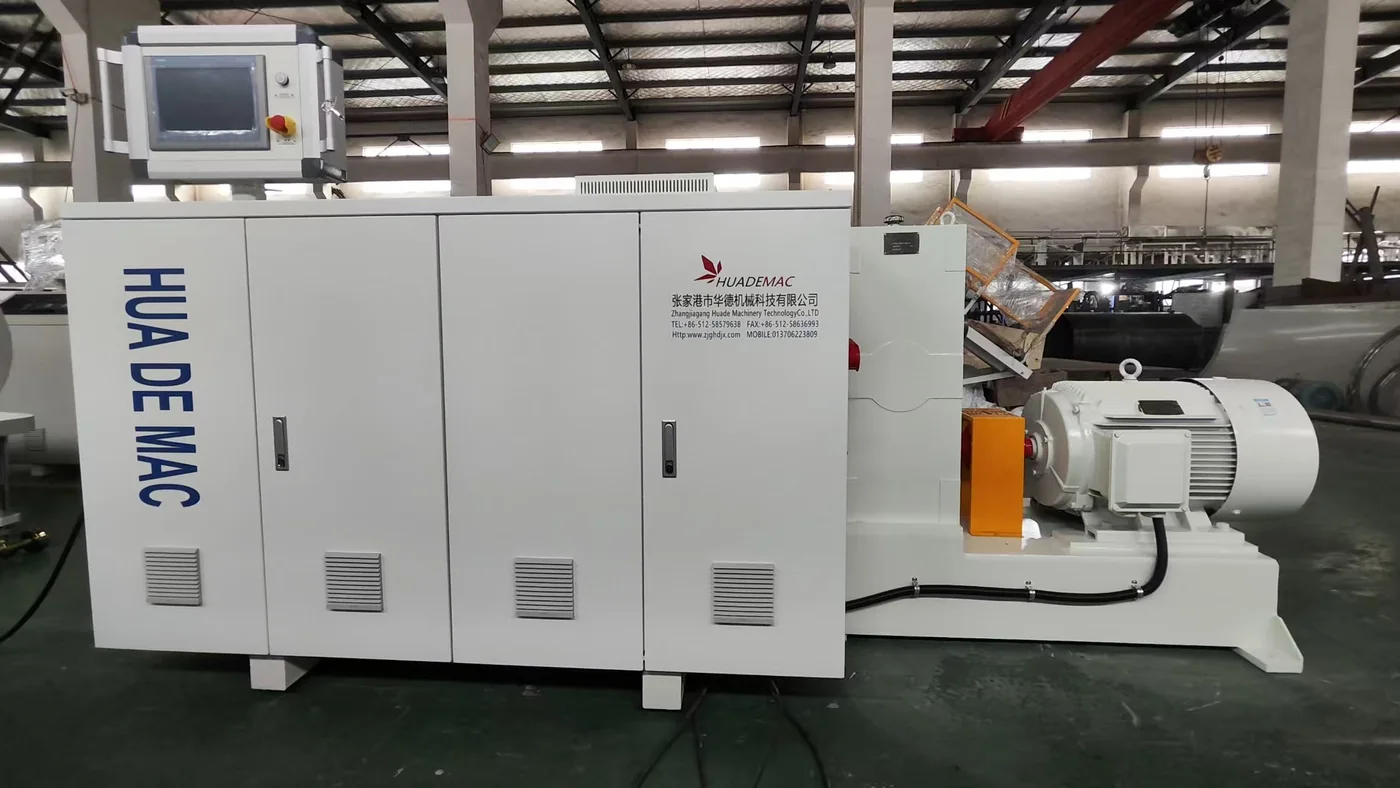

03 PLC control model
PLC control option for centralized operation and higher automation.

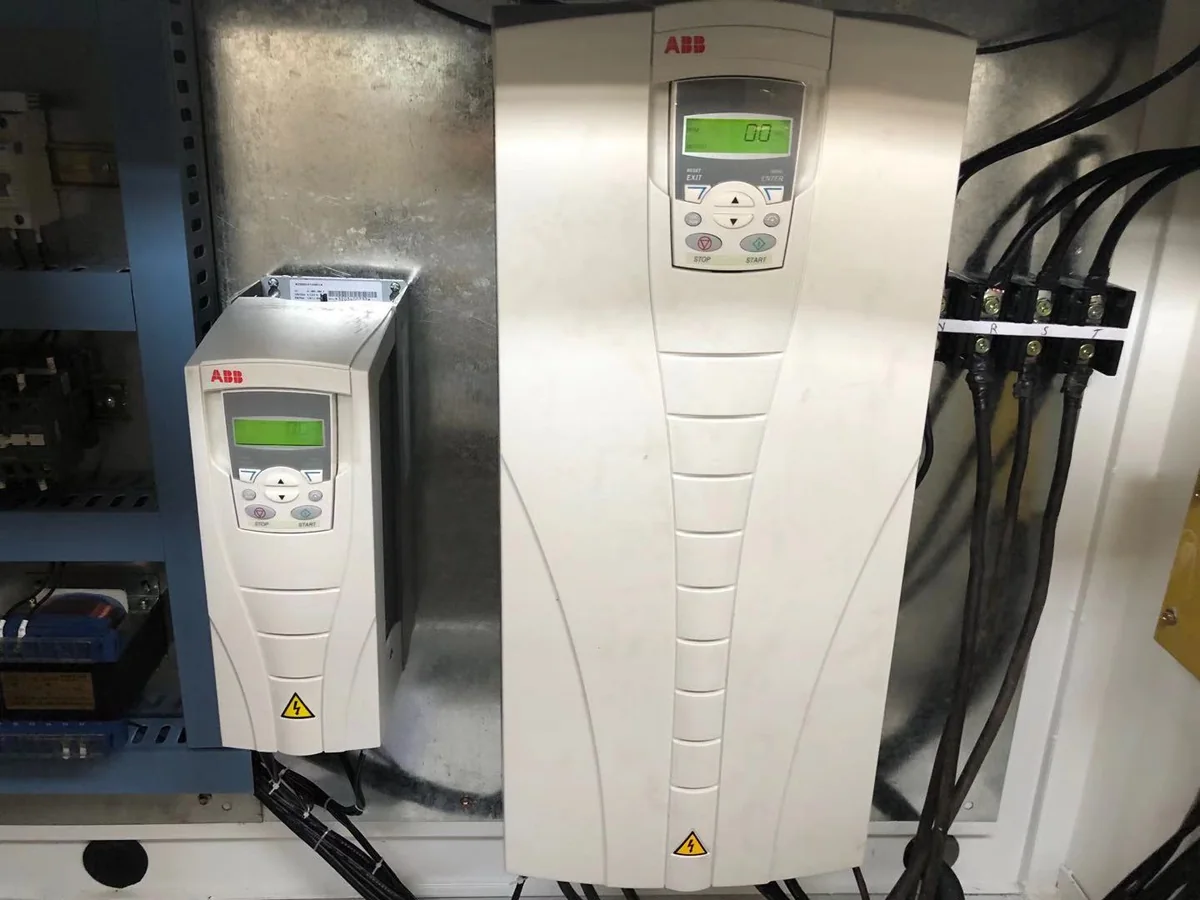

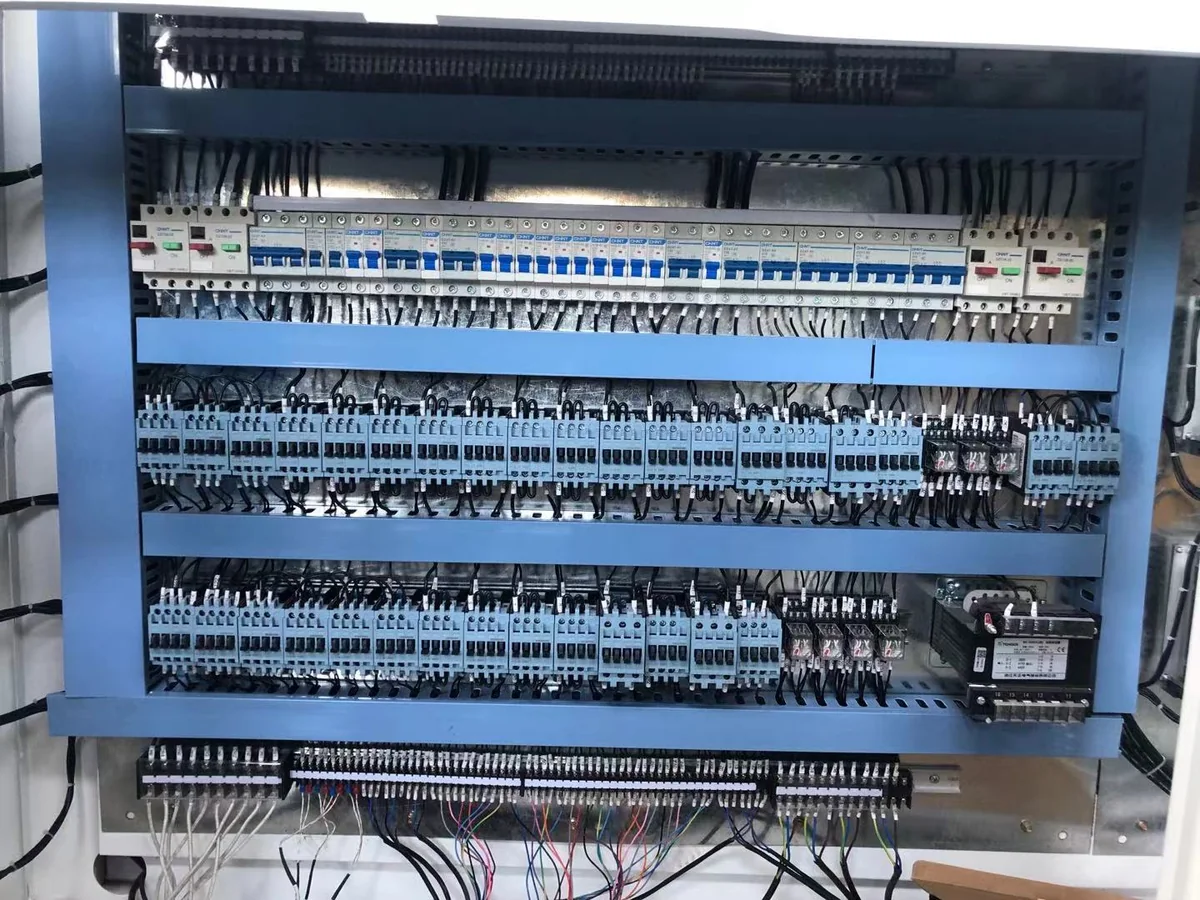

04 Control cabinet
Controls drive, heating and operation parameters for extrusion processing.

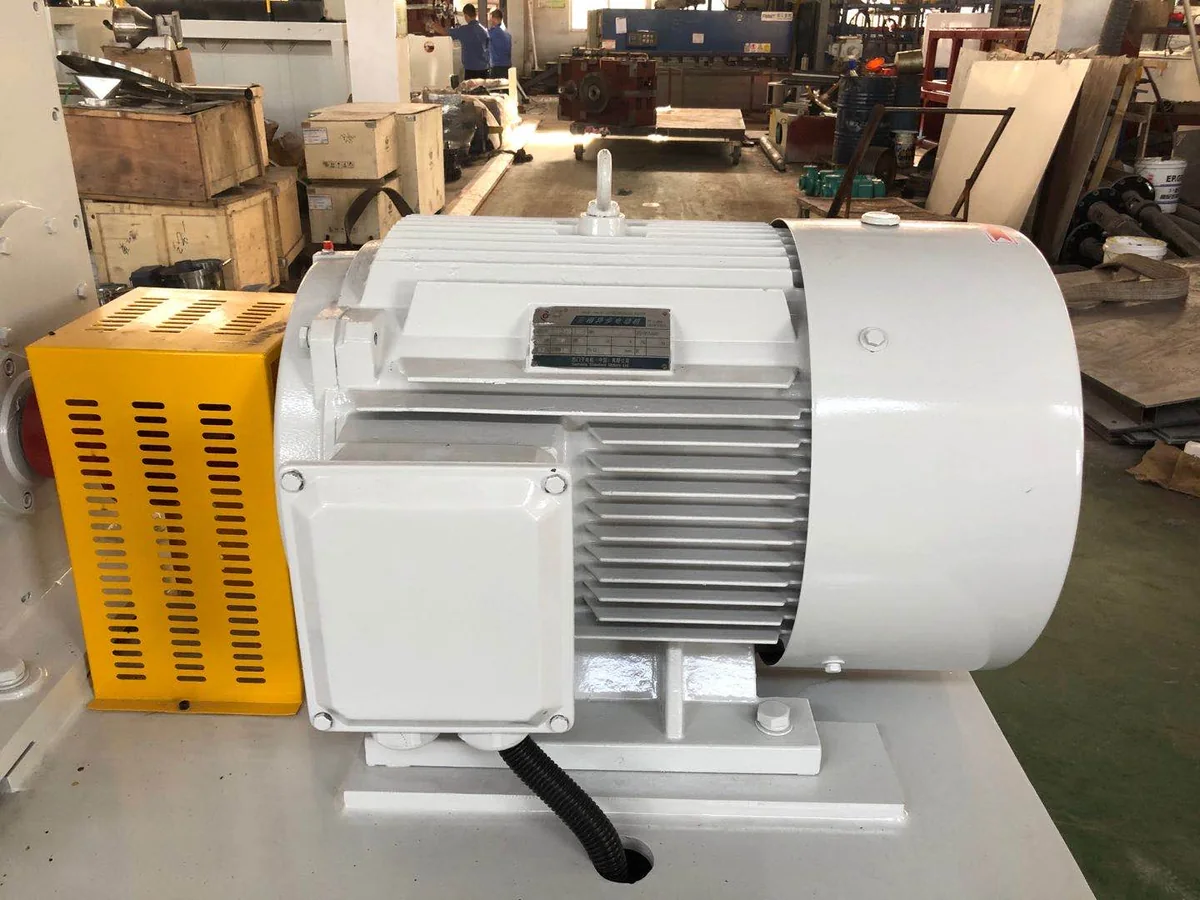

05 Main motor
High-power motor supports stable screw rotation and output.

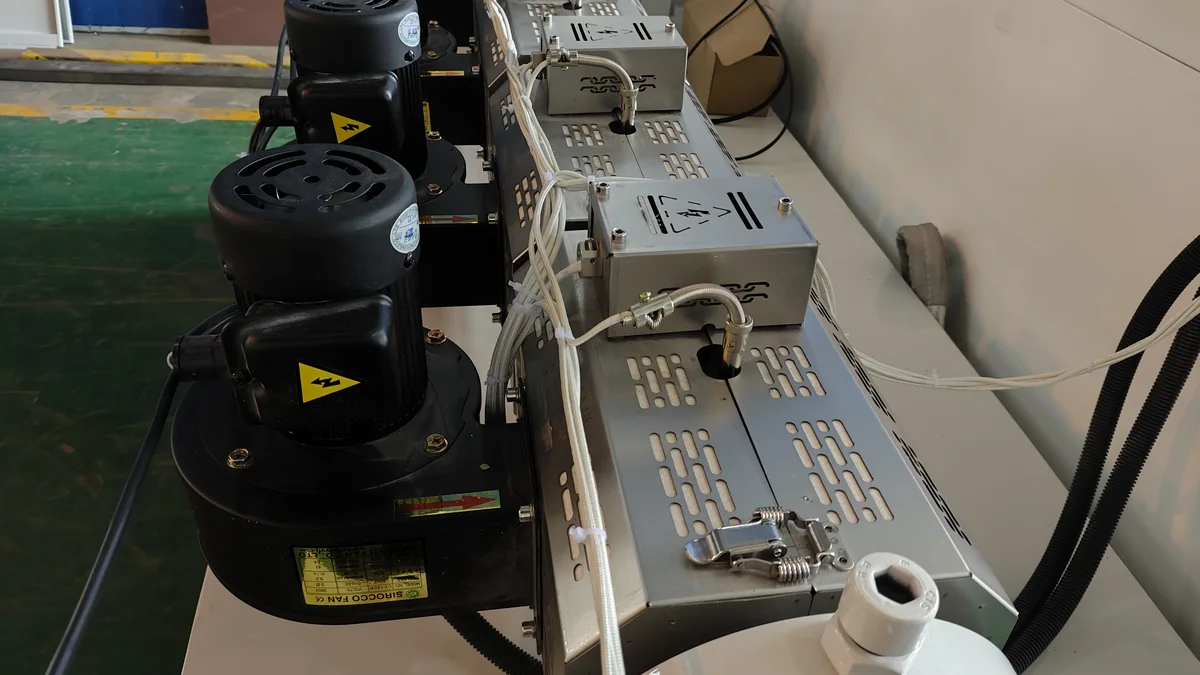

06 Gearbox and drive
High-torque decelerator transmits power and supports material mixing.
Configuration highlights
Lower specific energy consumption; energy saving can be up to 30% plus.
Application reference: Pipe extrusion.
Higher capacity; output can be 50% more at the same screw diameter.
Application reference: Profile extrusion.
Higher plastication efficiency with better material mixing effect.
Application reference: Board, sheet and film.

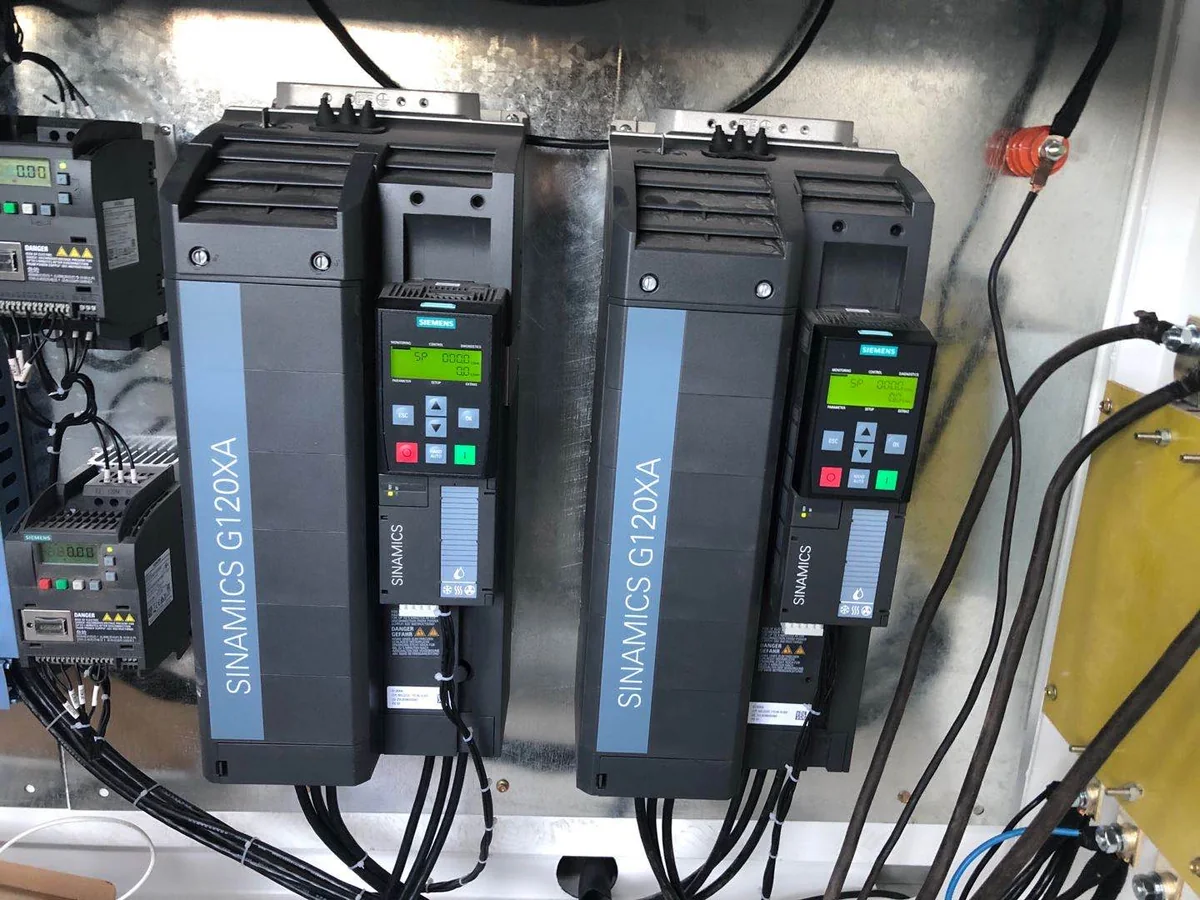

More accurate extrusion processing control with Normal, PID or PLC options.
Application reference: Recycling and pelletizing.
Technical parameters
Screw diameter 25-150 mm
L/D ratio 25:1-38:1
Capacity 5-1200 kg/h
Controller Normal, PID or PLC optional
| Model | Screw diameter (mm) | L/D ratio | Main motor power (kW) | Capacity (kg/h) |
|---|---|---|---|---|
| SJ-25 | 45 | 25/1 | 2.2 | 5 |
| SJ-30 | 30 | 25/1 | 5.5 | 10 |
| SJ-45 | 45 | 25-33/1 | 7.3-37 | 50-150 |
| SJ-65 | 65 | 25-33/1 | 22-90 | 60-250 |
| SJ-75 | 75 | 25-33/1 | 55-110 | 200-350 |
| SJ-90 | 90 | 25-33/1 | 37-185 | 180-550 |
| SJ-120 | 120 | 25-33/1 | 75-280 | 320-800 |
| SJ-150 | 150 | 25-33/1 | 90-355 | 400-1200 |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this plastic extruder used for?
Single Screw Extruder Machine is commonly used for pipe extrusion, profile extrusion, board, sheet and film, recycling and pelletizing.
What is included in the production line?
The line includes feeding system, single screw barrel, high-torque reducer, main motor, control cabinet, matched downstream equipment.
What range and output can be configured?
Reference configuration covers 25-150 mm screw with 5-1200 kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
