PVC Compound Pelletizing Line
PVC compound pelletizing line for granulating rigid PVC, soft PVC and recycled waste PVC. The line combines PVC powder compounding extrusion, die-face hot cutting, strong-wind pneumatic conveying, pellet cooling, classifying and stainless steel storage for stable continuous production.
3-5 mm granules Diameter range
150-800 kg/h Max Output
Overview
Application range
PVC compounding, Plastic recycling, Rigid PVC granules, Soft PVC granules
Range and output
3-5 mm granules diameter range with 150-800 kg/h output reference.
Core configuration
Feeding system, Conical twin screw extruder, Die-face hot cutting pelletizer, Air conveying cooling system
Machine video
Watch machine video
Applications
PVC compoundingPlastic recyclingRigid PVC granulesSoft PVC granulesWaste PVC recycling

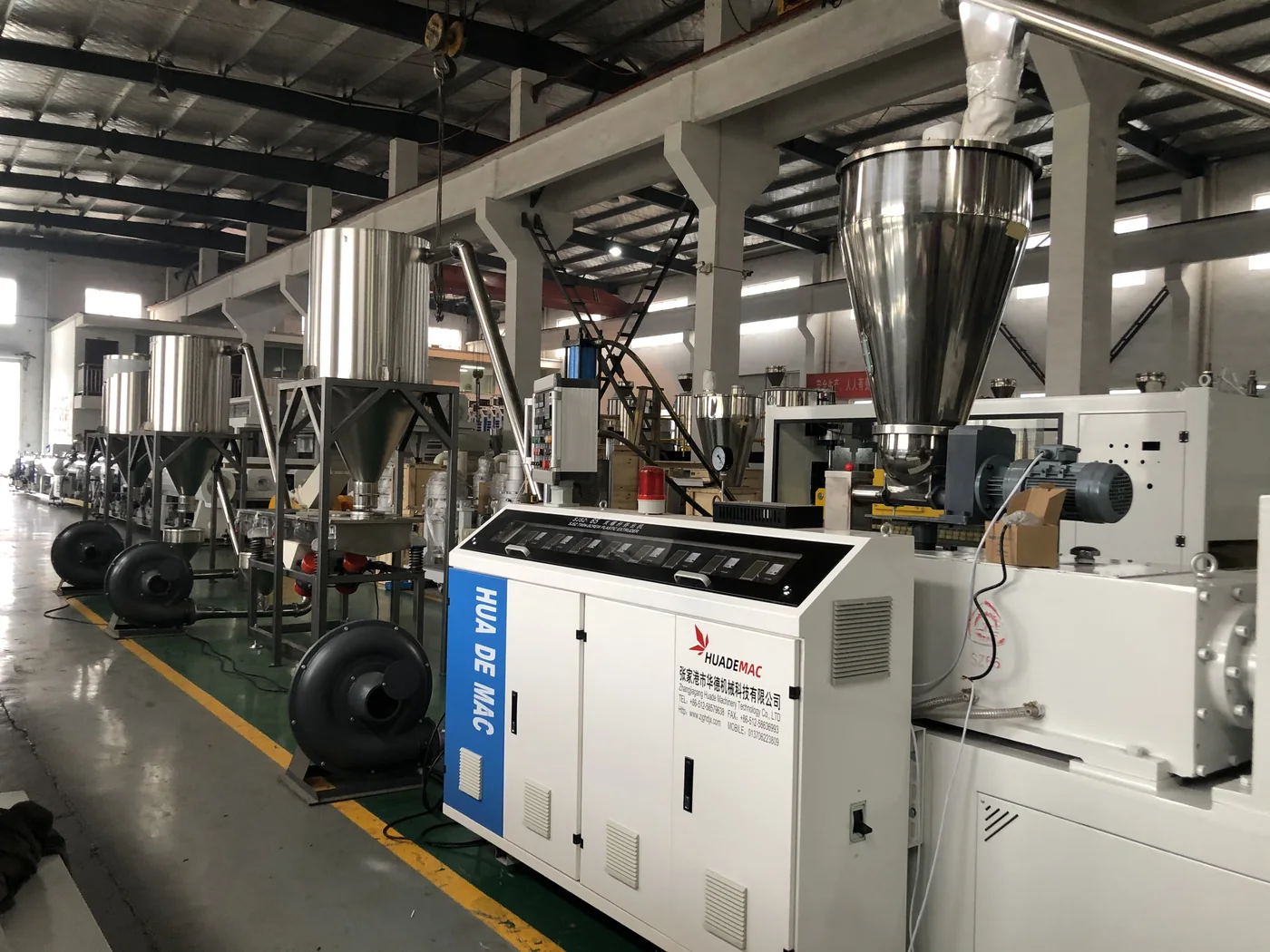

Process flow
Line composition

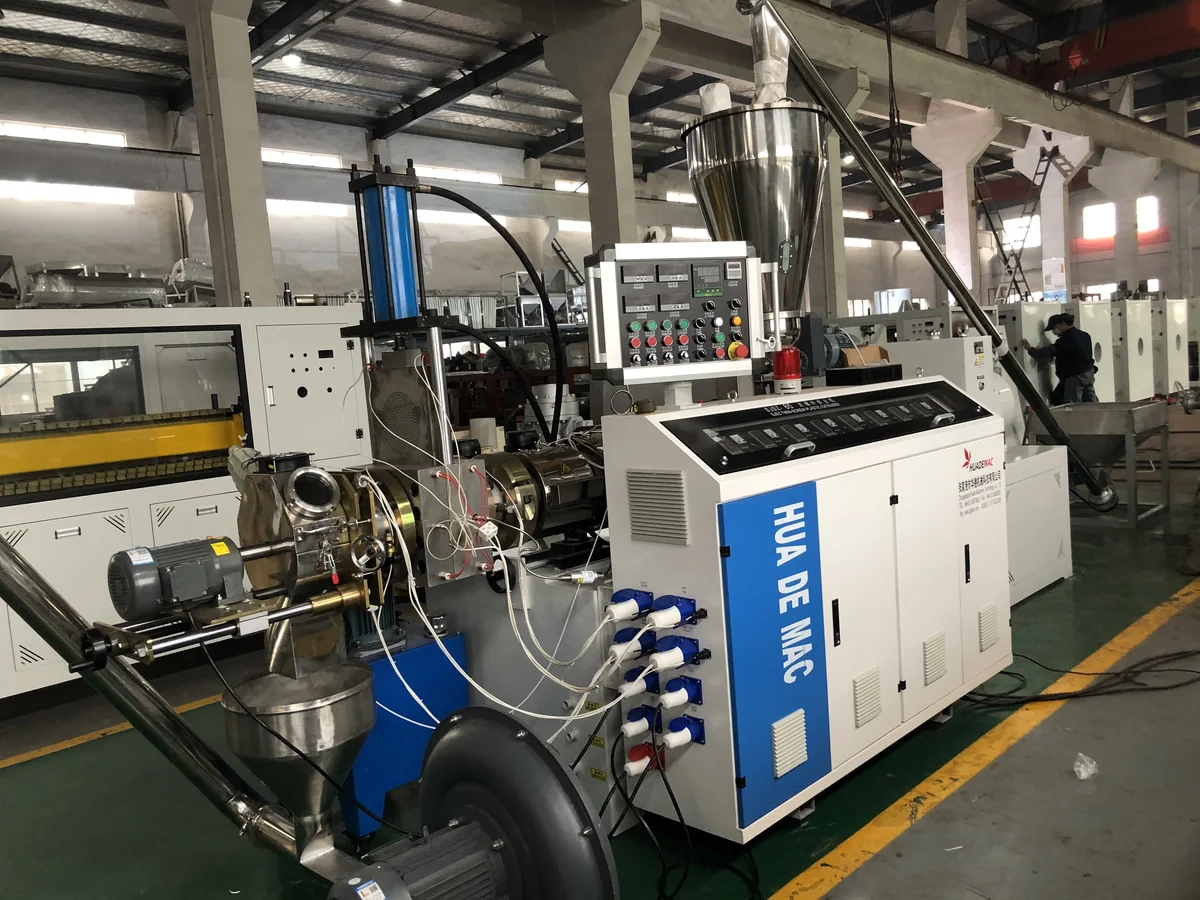

01 Conical twin screw extruder
Processes PVC powder and recycled PVC material with stable melt output.

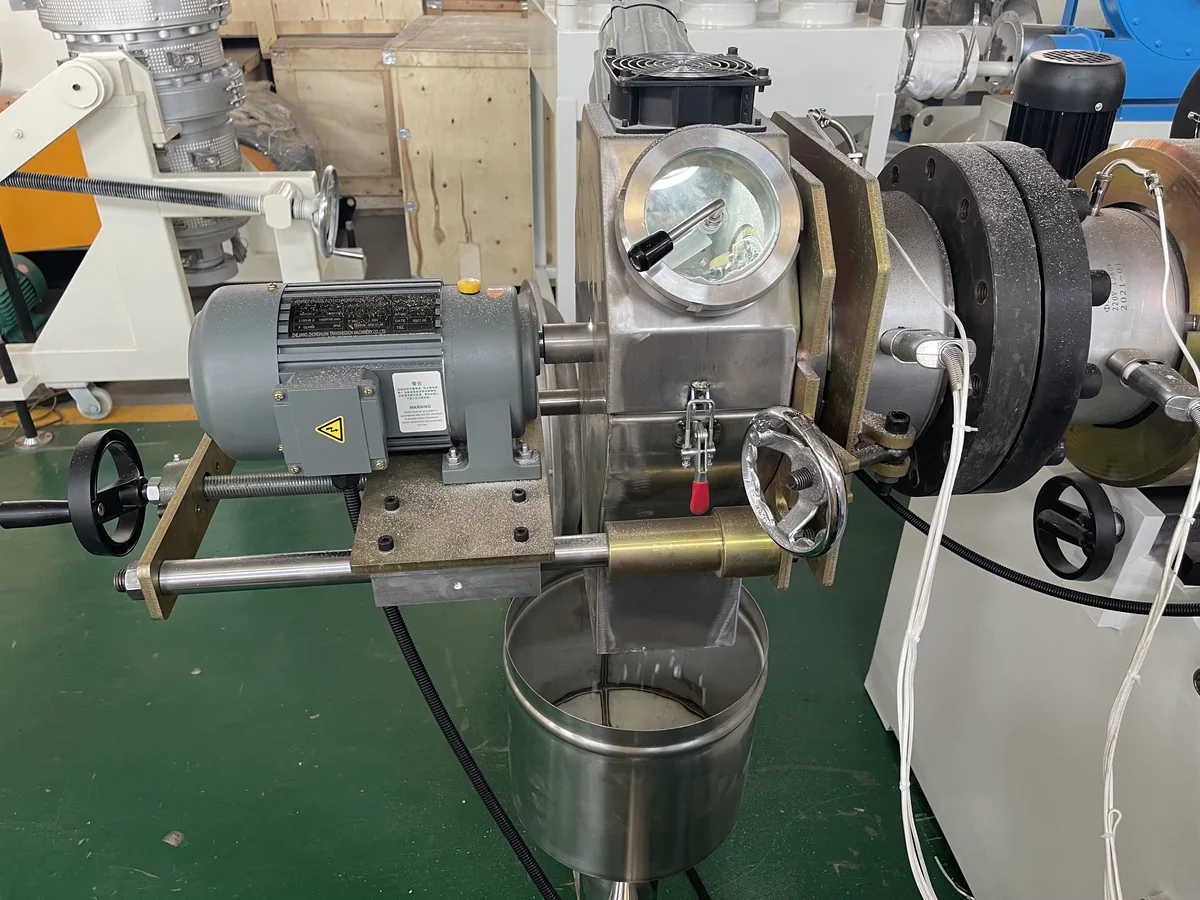

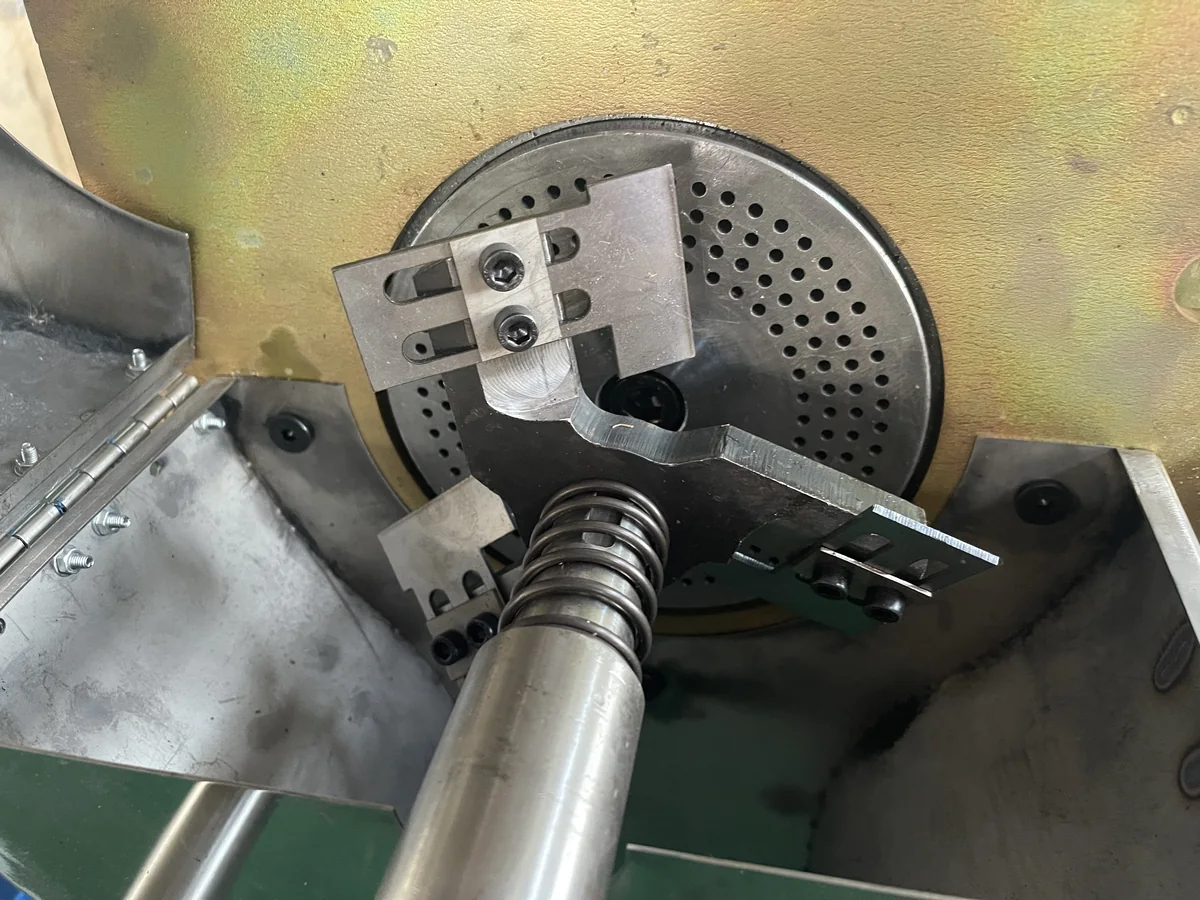

02 Die-face hot-cut pelletizer
Cuts molten PVC at the die face to produce uniform 3-5mm pellets.

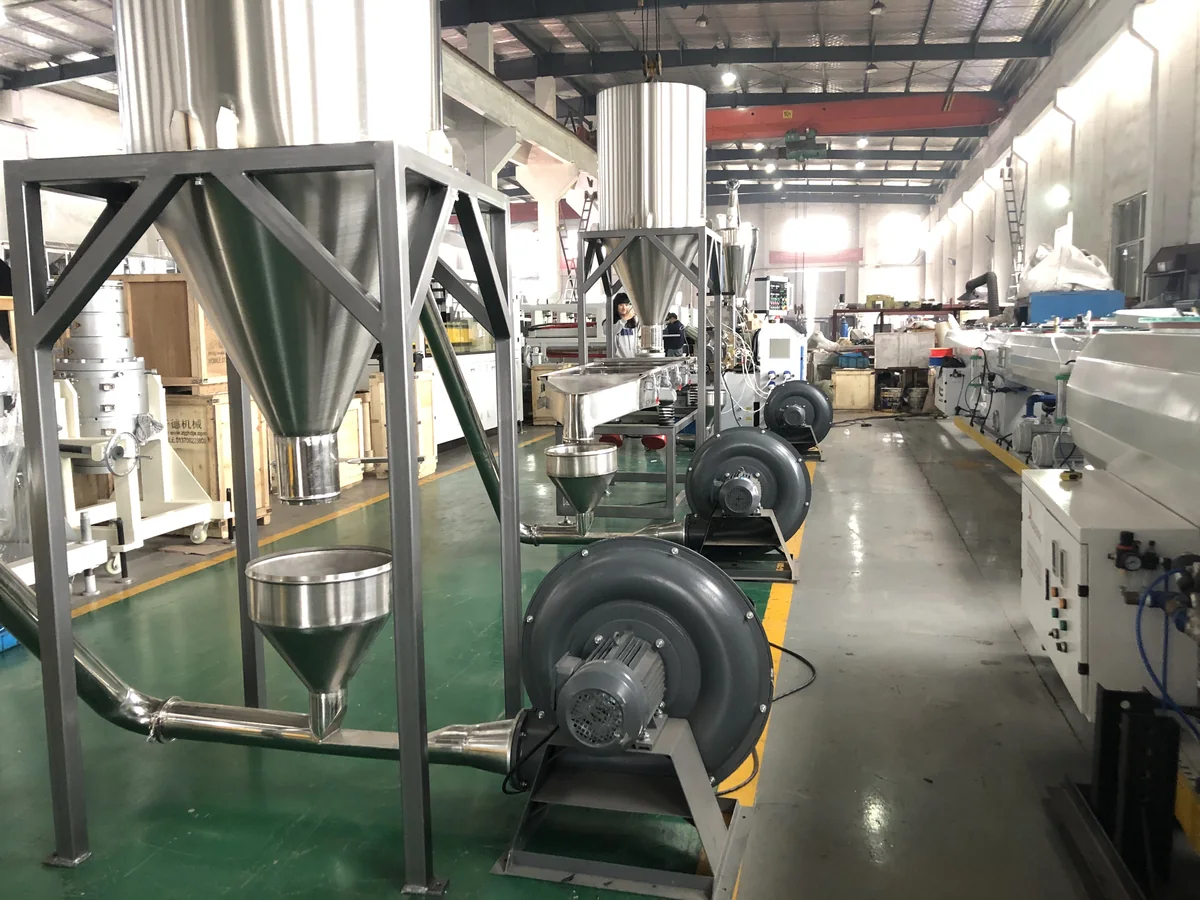

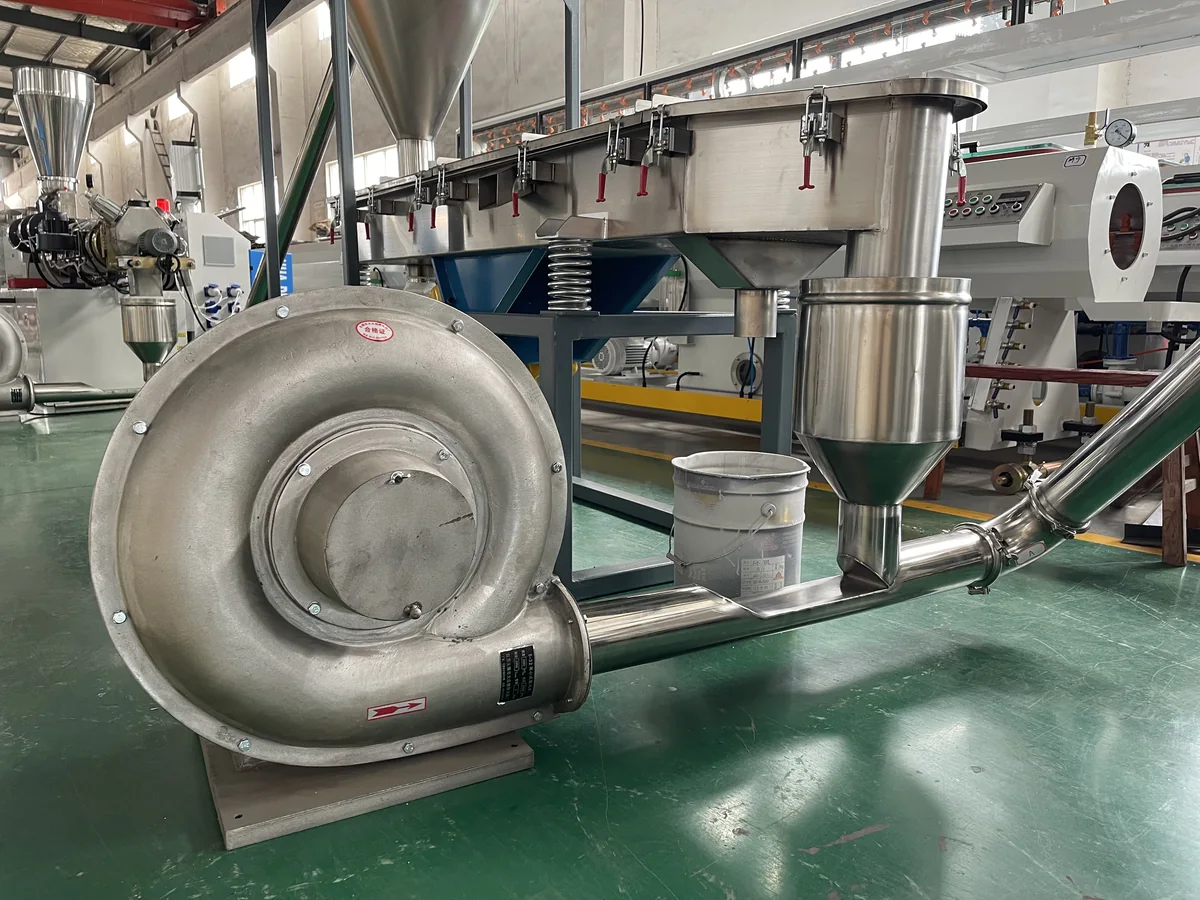

03 Air conveying cooling system
Uses strong-wind blowing to cool and transfer pellets continuously.

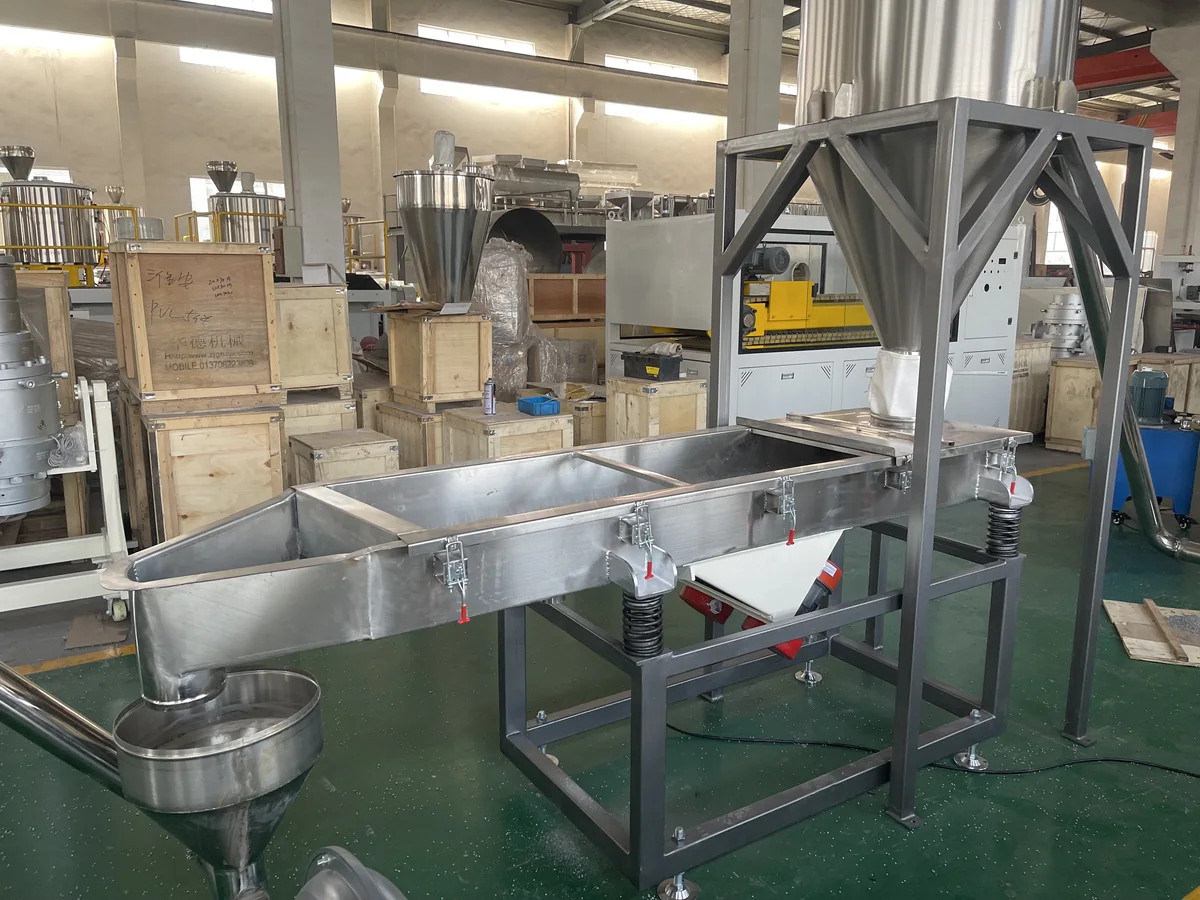

04 Vibrating screen classifier
Cools and separates pellets before final collection.

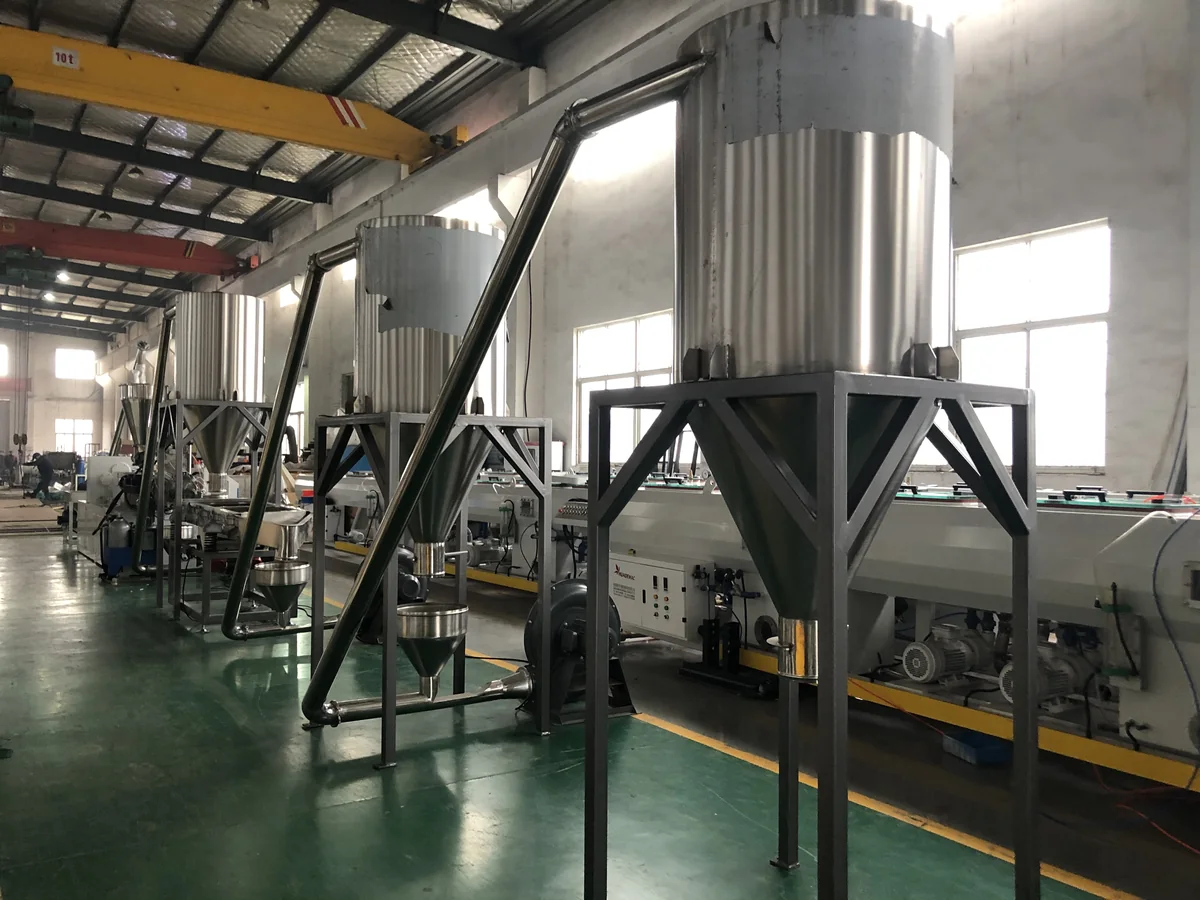

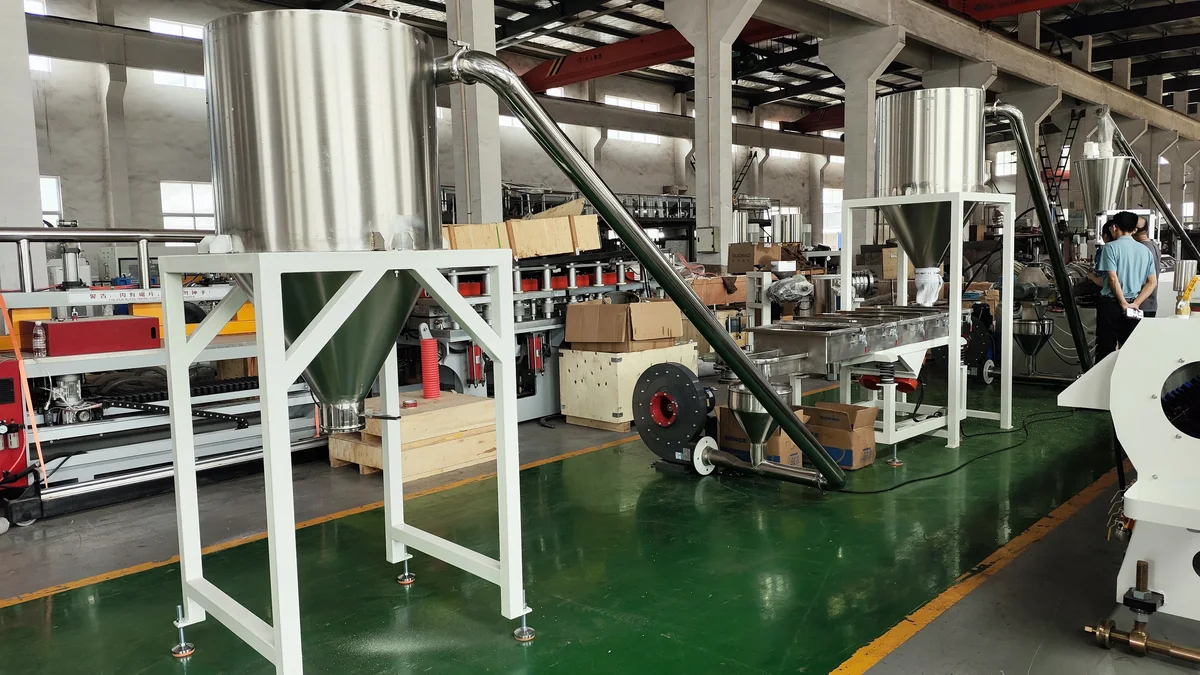

05 Storage silo
Adjustable stainless steel storage container supports long continuous runs.
06 Collection system
Receives classified pellets after pneumatic conveying and screening.
Configuration highlights
Advanced equipment, precise pelletizing and high producing capacity.
Application reference: PVC compounding.
Conical twin-screw extruder and single screw extruder are suitable for high-capacity PVC powder processing.
Application reference: Plastic recycling.
Die-face hot cutting produces even pellets with good shape.
Application reference: Rigid PVC granules.
Strong-wind air conveying supports pellet cooling and continuous transfer.
Application reference: Soft PVC granules.
Auxiliary cooling and classifying equipment prepares pellets for final storage.
Application reference: Waste PVC recycling.
Technical parameters
Product type PVC Compound Pelletizing Line
Application Rigid PVC / soft PVC / recycled waste PVC
Granule specification 3-5 mm
Max output 150-800 kg/h
| Model | Extruder model | Max. output (kg/h) | Extruder motor power (kW) | Granule specification |
|---|---|---|---|---|
| BDXPVC51 | SJZ51/105 | 150 | 18.5 | 3~5mm |
| BDXPVC55 | SJZ55/110 | 190 | 22 | 3~5mm |
| BDXPVC65 | SJZ65/132 | 250 | 37 | 3~5mm |
| BDXPVC80 | SJZ80/156 | 350 | 55 | 3~5mm |
| BDXPVC92 | SJZ92/188 | 800 | 110 | 3~5mm |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pelletizing line used for?
PVC Compound Pelletizing Line is commonly used for pvc compounding, plastic recycling, rigid pvc granules, soft pvc granules, waste pvc recycling.
What is included in the production line?
The line includes feeding system, conical twin screw extruder, die-face hot cutting pelletizer, air conveying cooling system, vibrating screen classifier, stainless steel storage silo.
What range and output can be configured?
Reference configuration covers 3-5 mm granules with 150-800 kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
