Efficient PE PP recycling pelletizing line with single or double stage extruders designed for PE, PP, HDPE, LDPE film.
Pelletizing Line
PE PP Recycling Pelletizing Line
Efficient PE PP recycling pelletizing line with single or double stage extruders designed for PE, PP, HDPE, LDPE film and plastic waste. Features high-capacity forced feeders, hydraulic screen changers, water-ring pelletizing, and precise cutting system. Ideal for producing uniform plastic pellets from recycled materials.
SJ85-SJ150 Diameter range
180-600 kg/hr Max Output
Overview
Application range
PE film recycling, PP woven bag recycling, LDPE printed film, Agricultural film
Range and output
SJ85-SJ150 diameter range with 180-600 kg/hr output reference.
Core configuration
Belt conveyor, Force feeder, Mother extruder, Hydraulic screen changer
Machine video
Watch machine video
Applications
PE film recyclingPP woven bag recyclingLDPE printed filmAgricultural filmEPS and raffia recycling

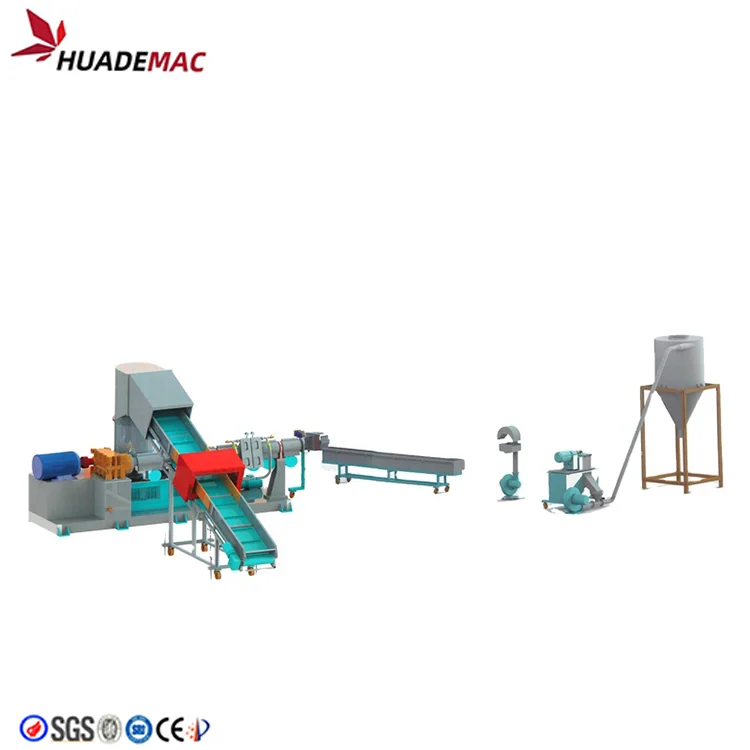

Process flow
Line composition

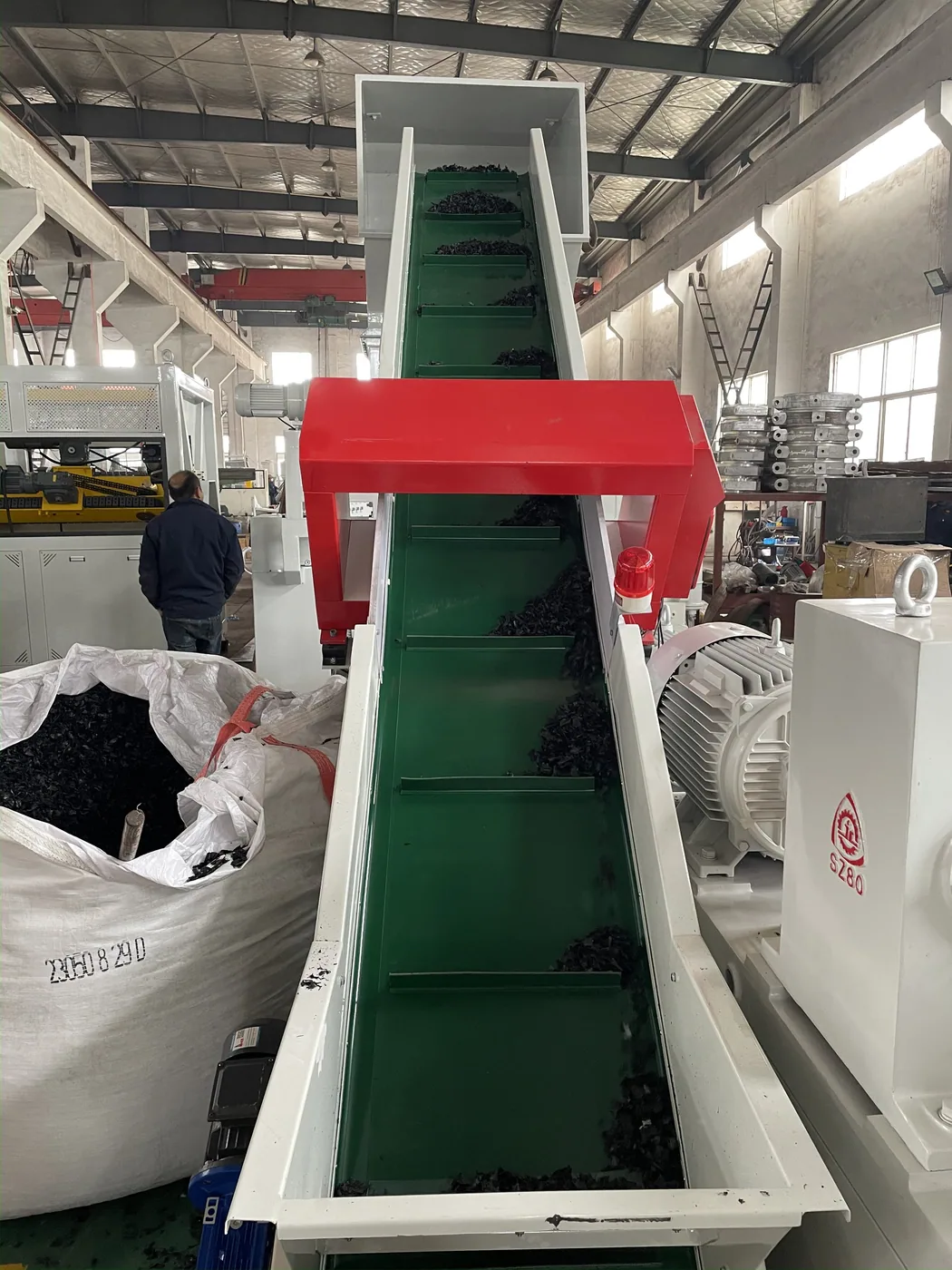

01 Belt conveyor
Transfers woven bag, film roll, loose film and raffia scrap toward forced feeding.

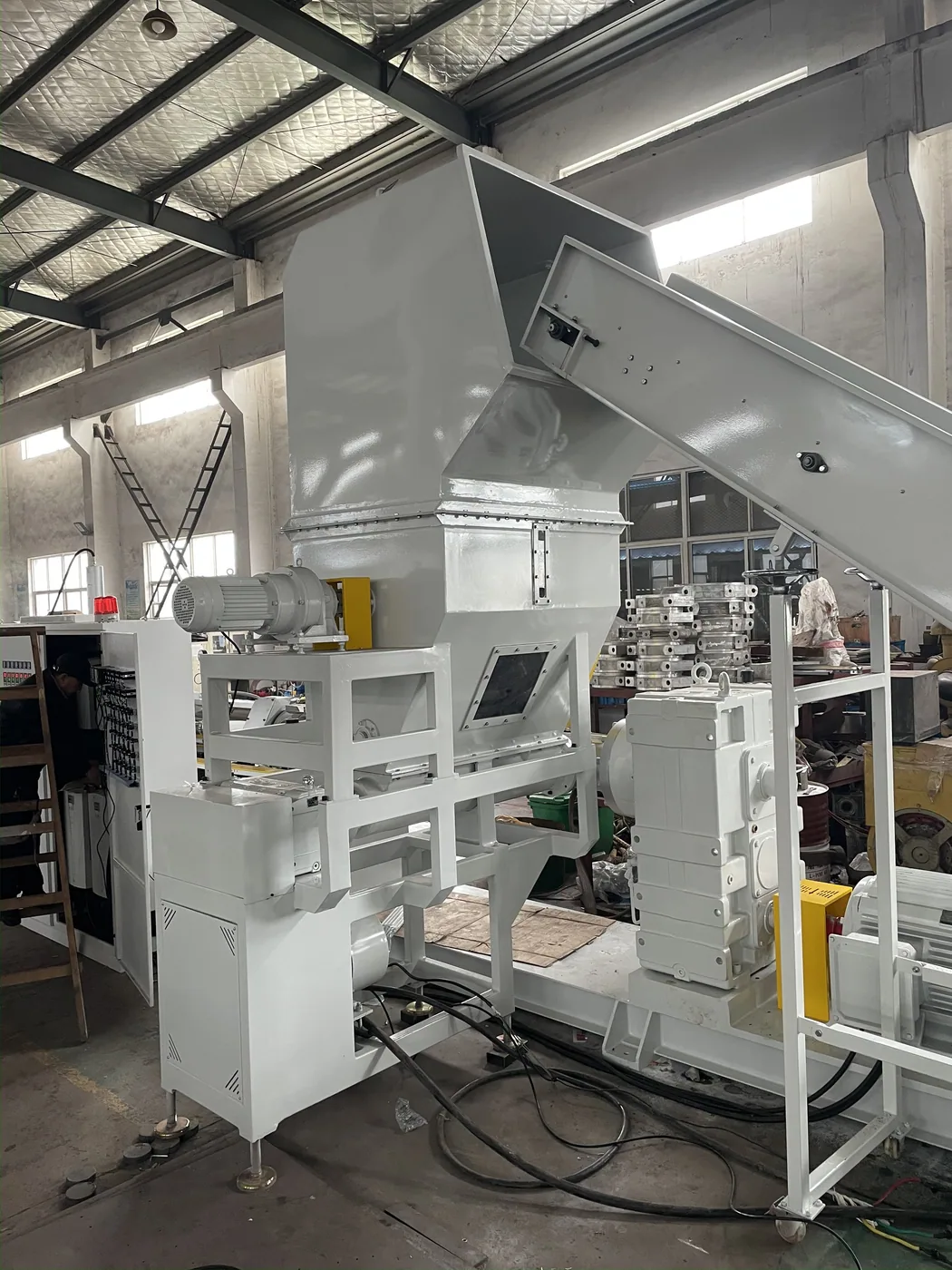

02 Force feeder
Improves feeding stability and capacity for lightweight film and bag materials.

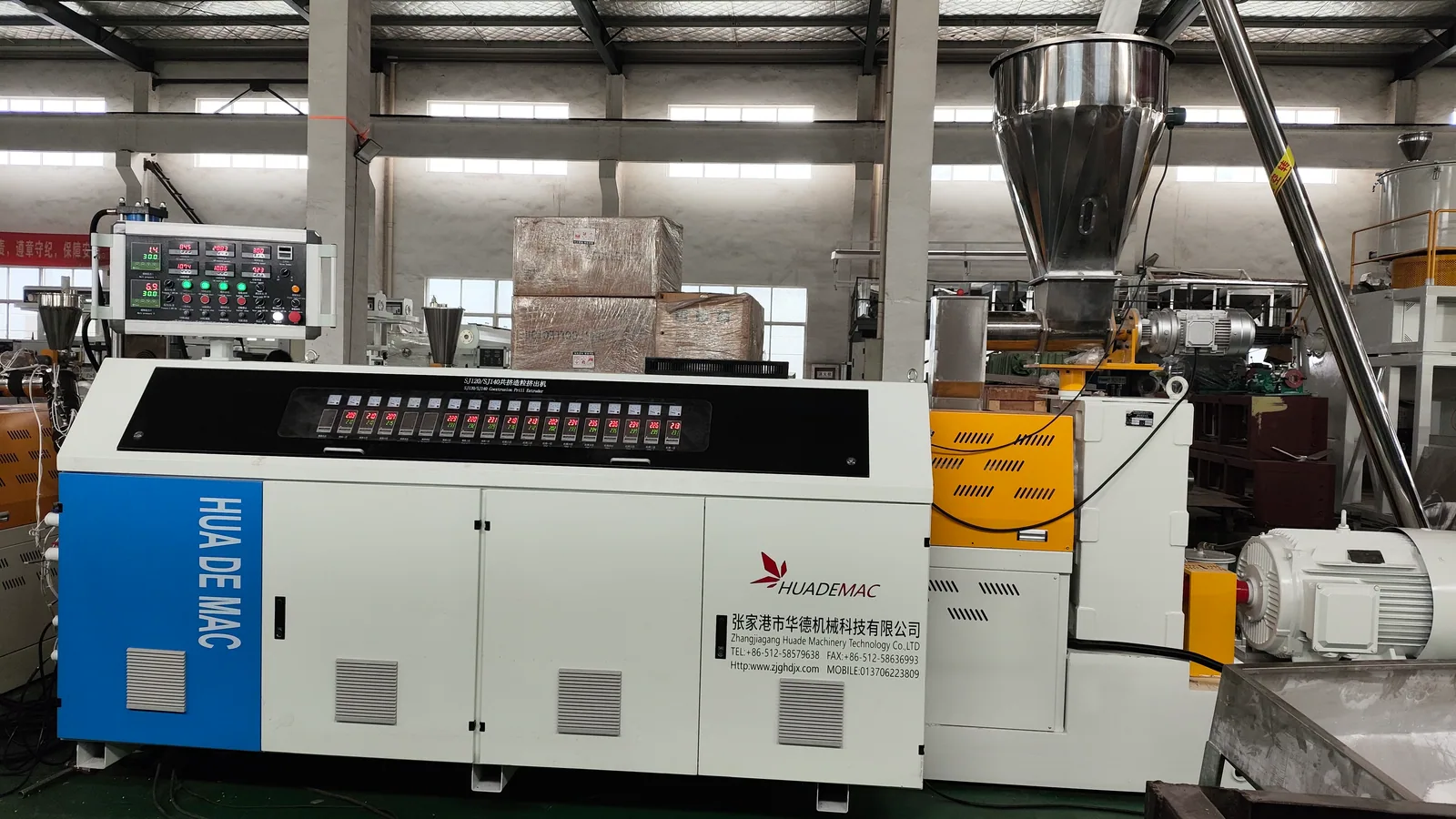

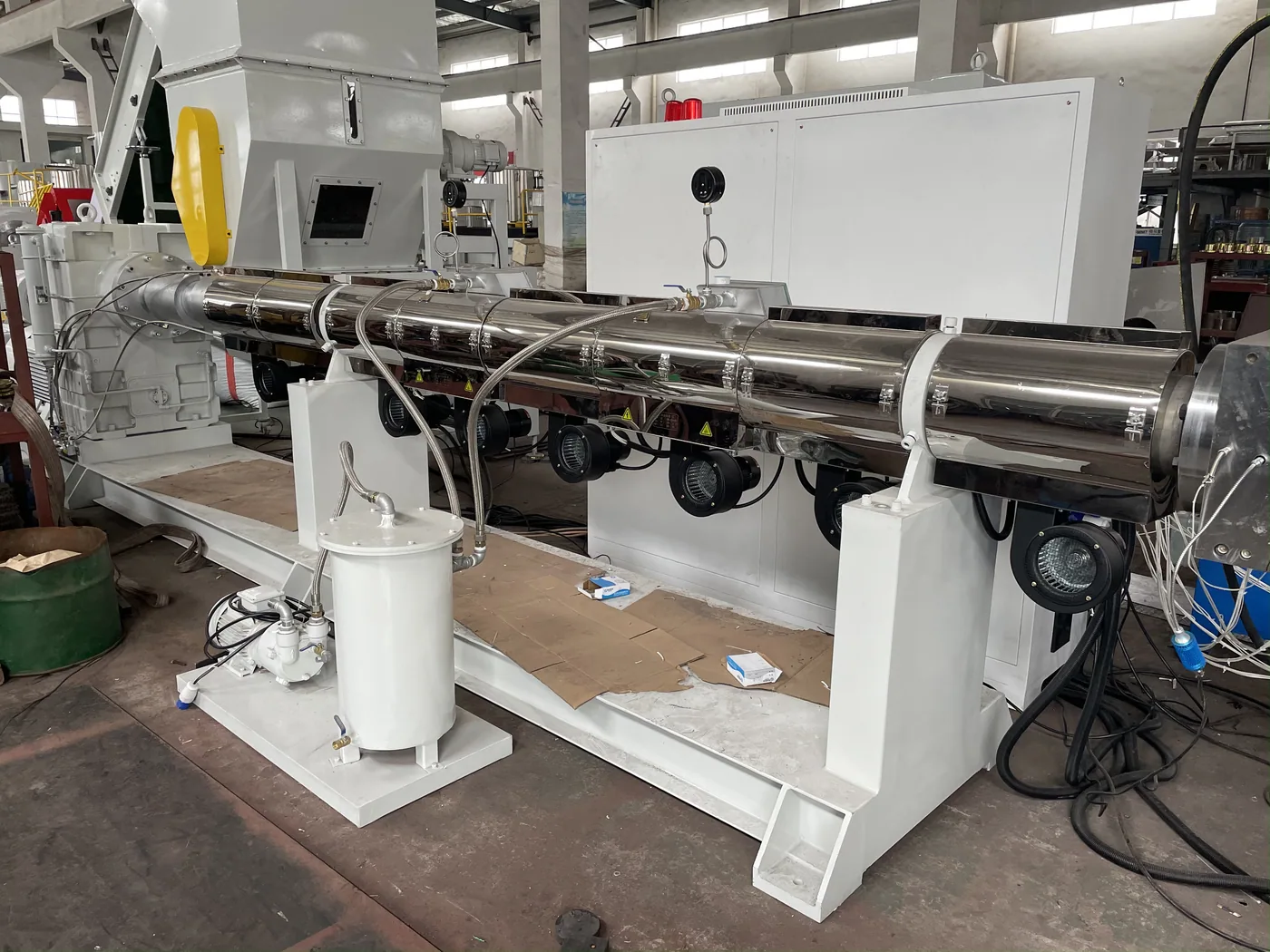

03 Mother extruder
Melts and vents PE/PP material with a dedicated screw and barrel design.

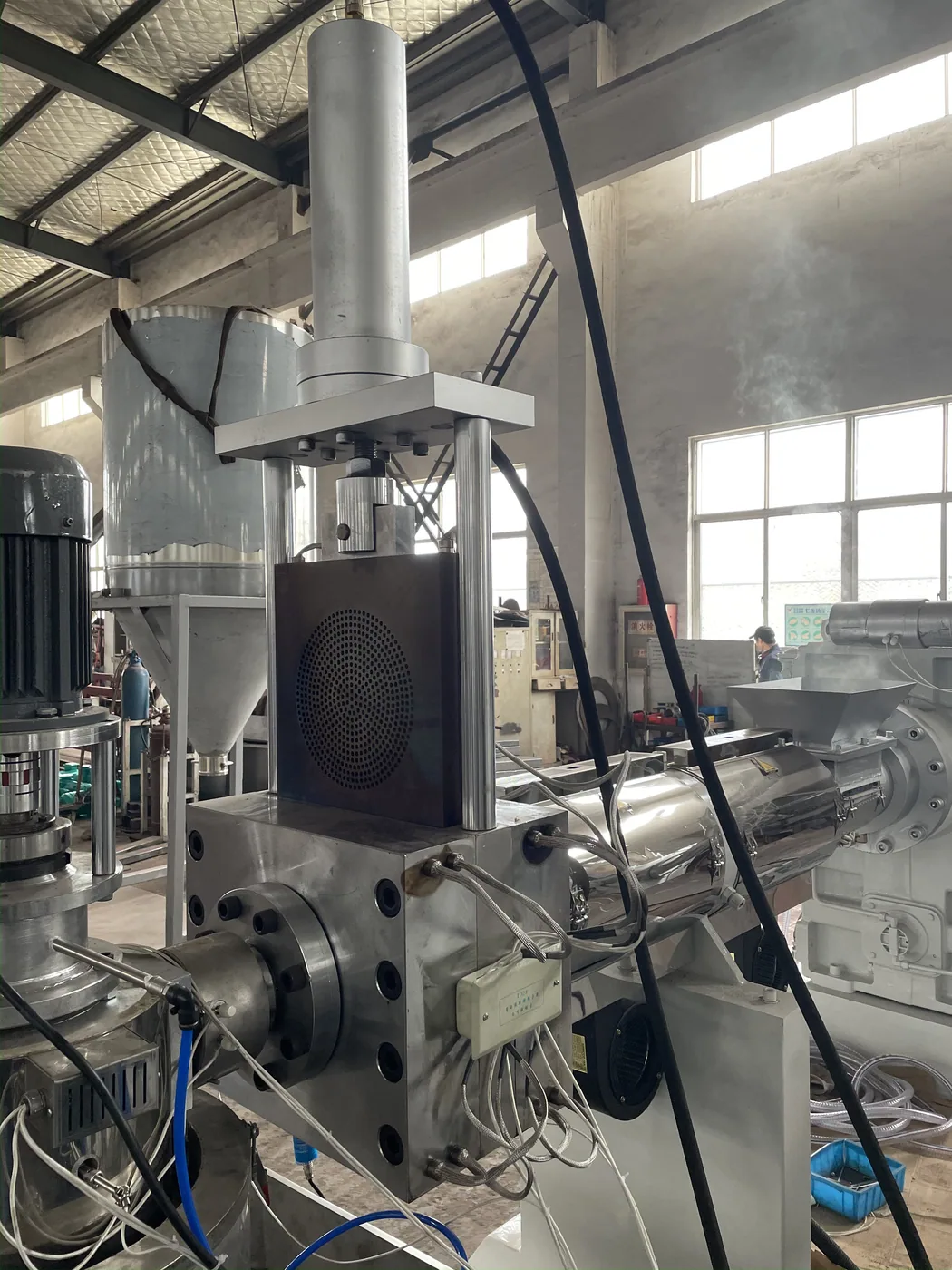

04 Hydraulic screen changer
Filters contamination before pellet cutting or second-stage extrusion.

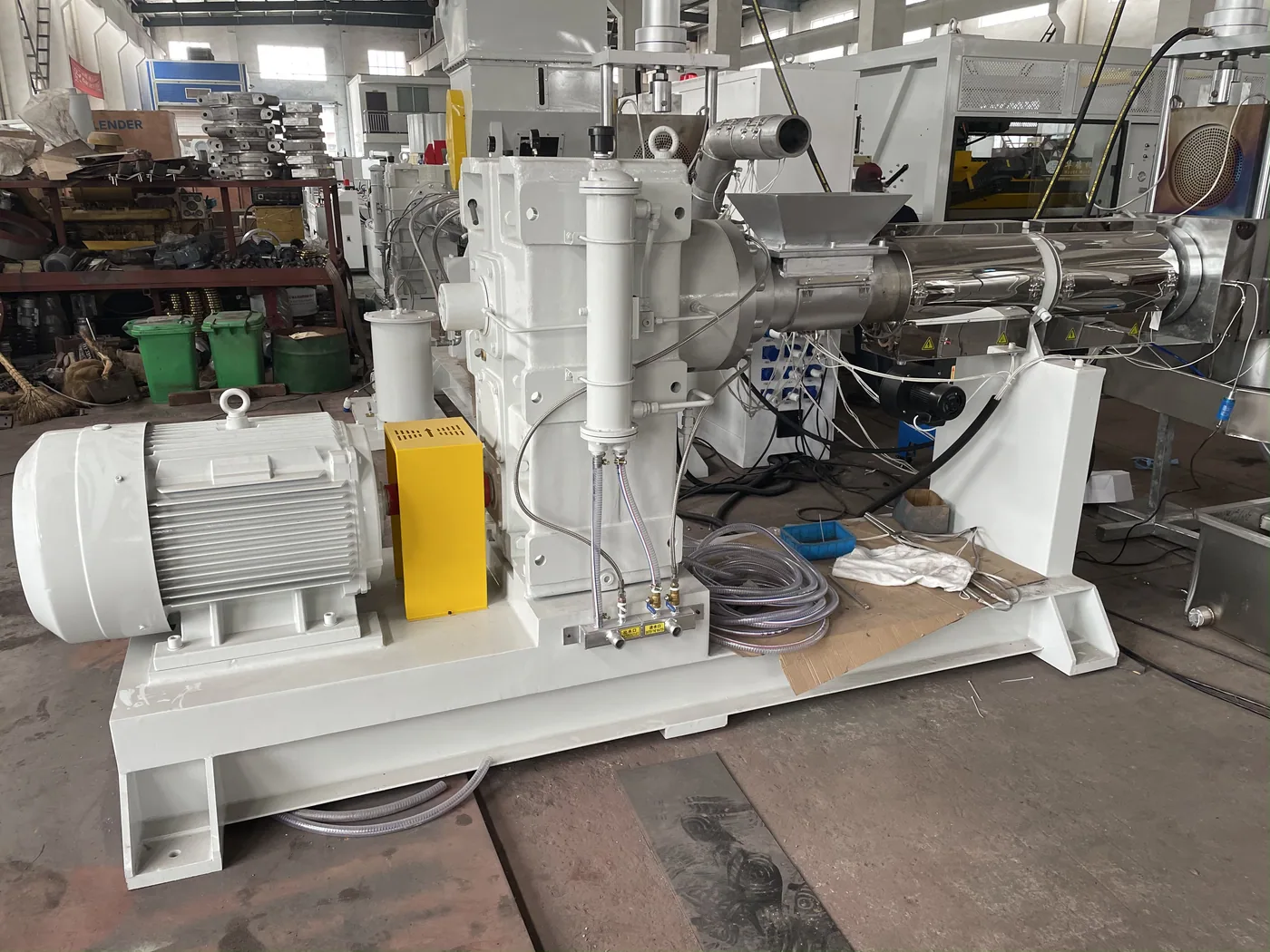

05 Baby extruder
Second-stage extrusion improves melt uniformity for cleaner pellet production.

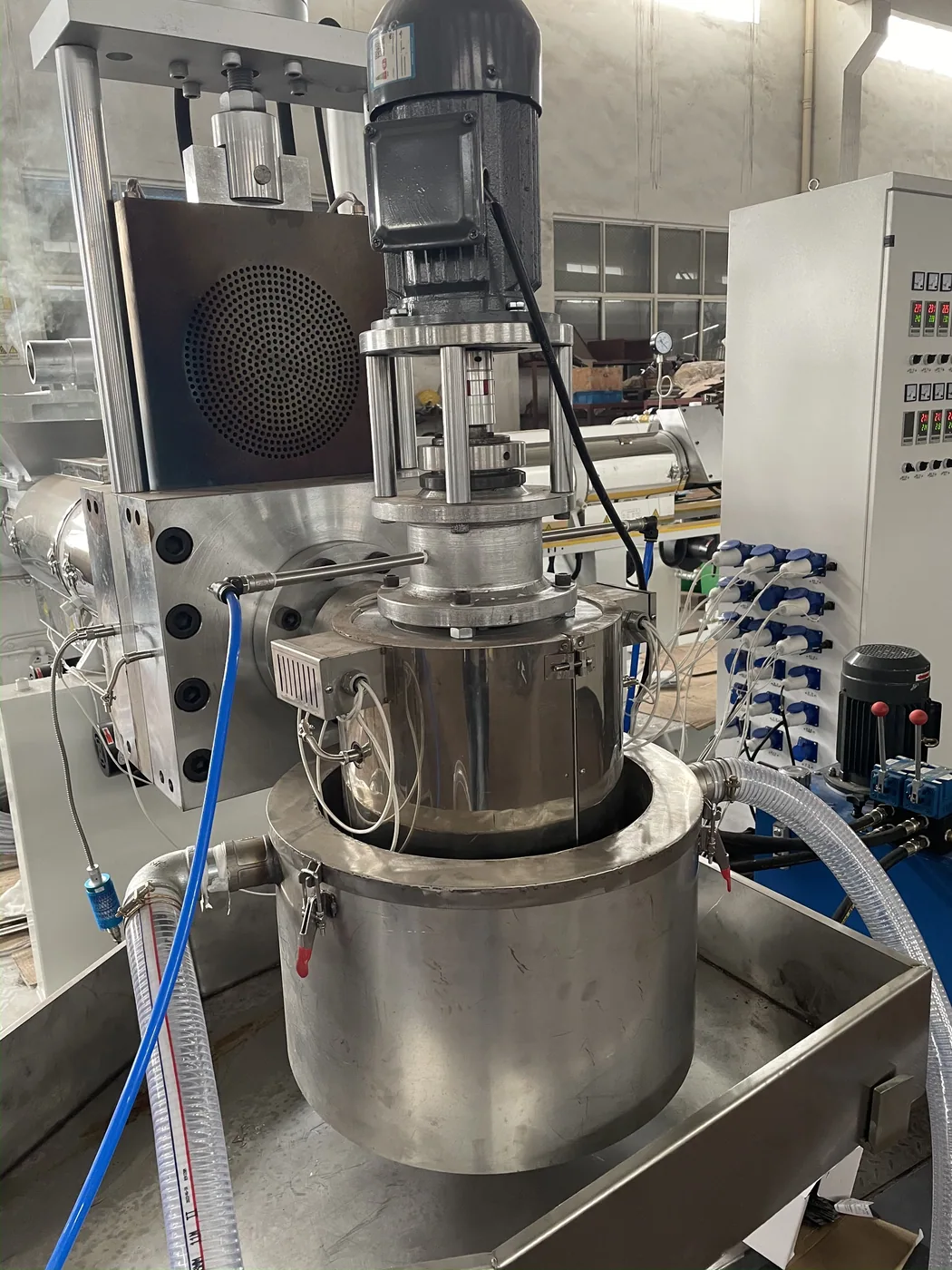

06 Water-ring cutting device
Cuts pellets evenly at the die face and sends them into water cooling.

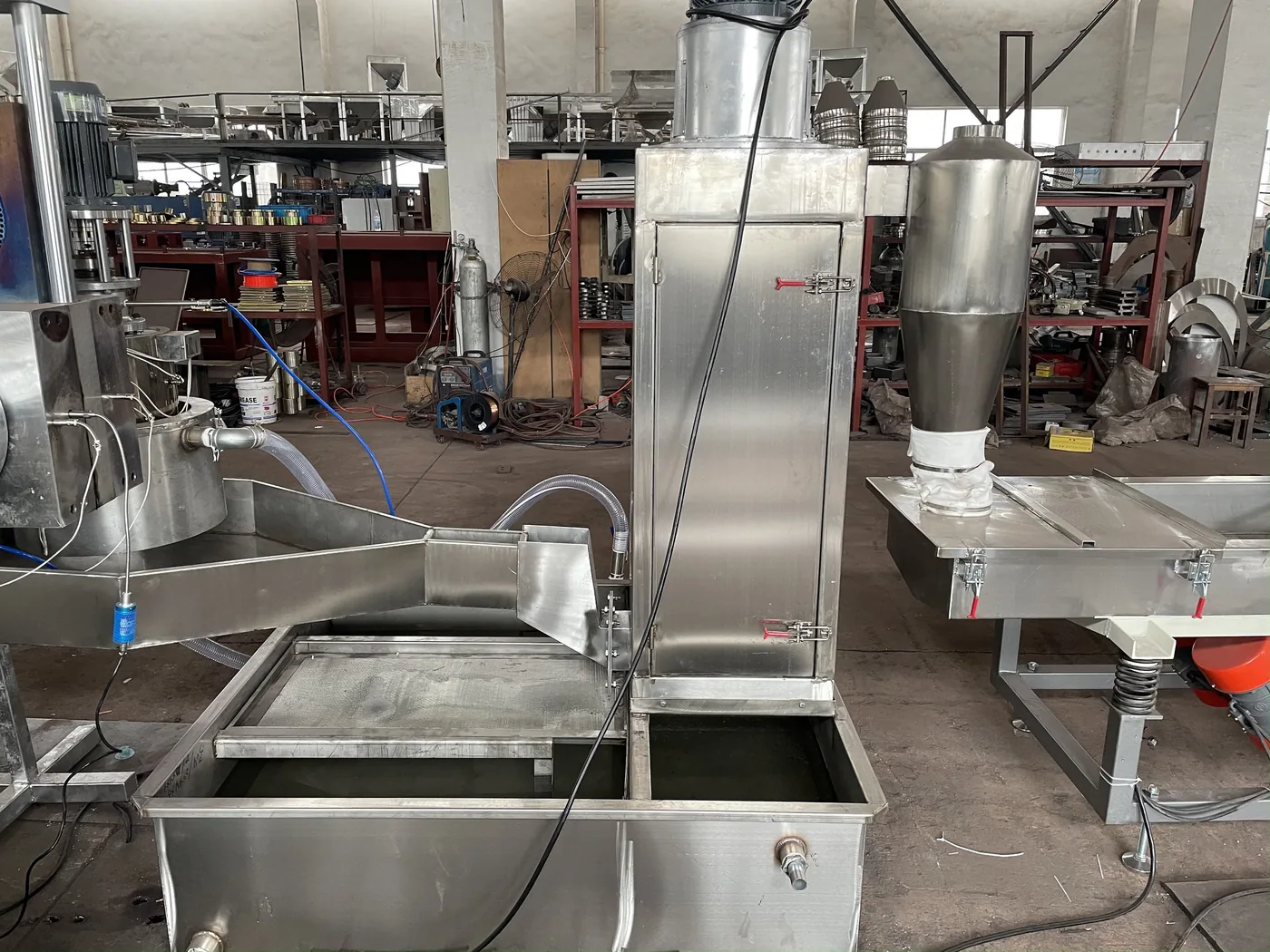

07 Dewatering machine
Removes process water after water-ring cutting.

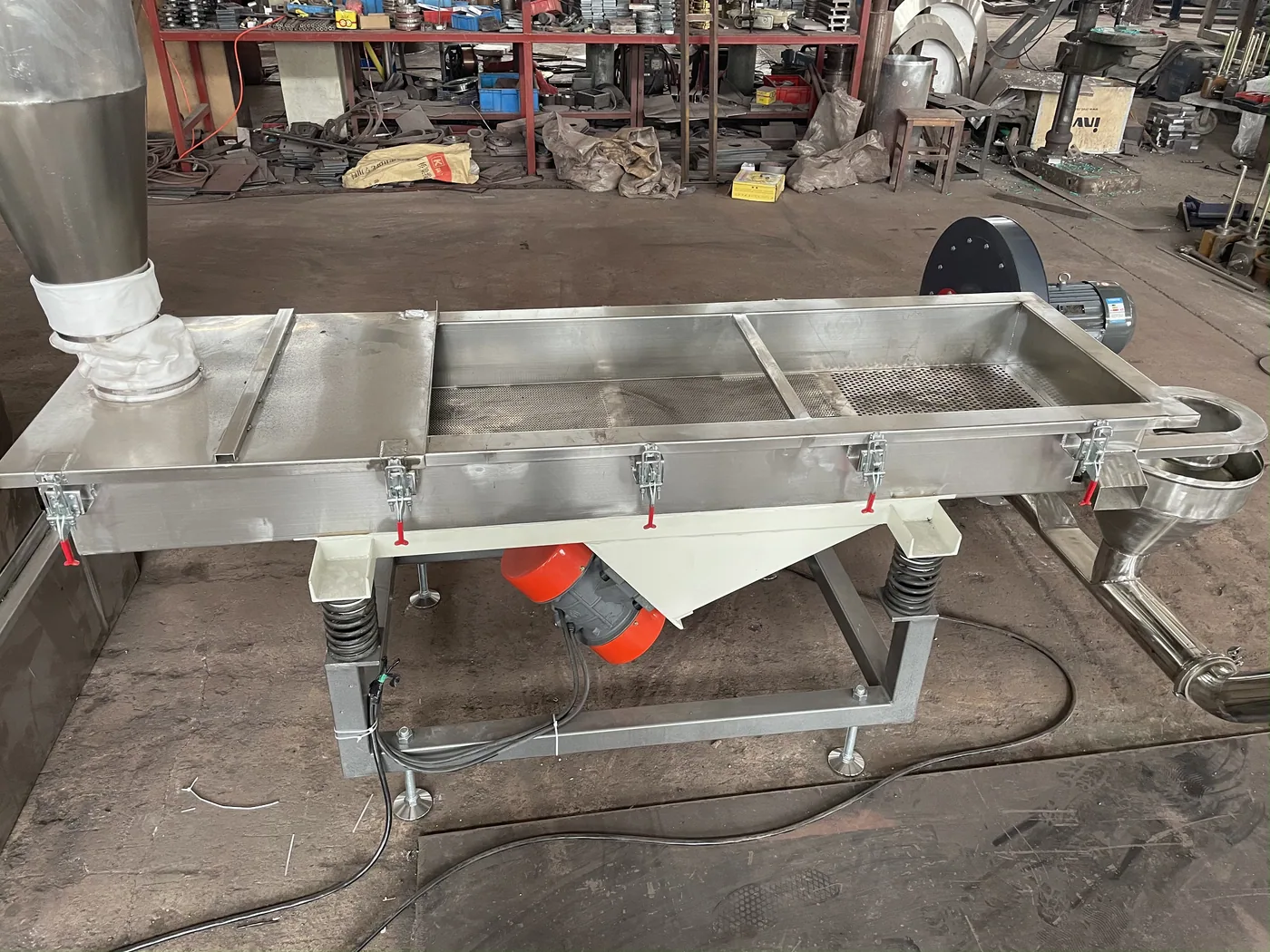

08 Vibrating screen
Separates fines and oversized particles before final conveying.

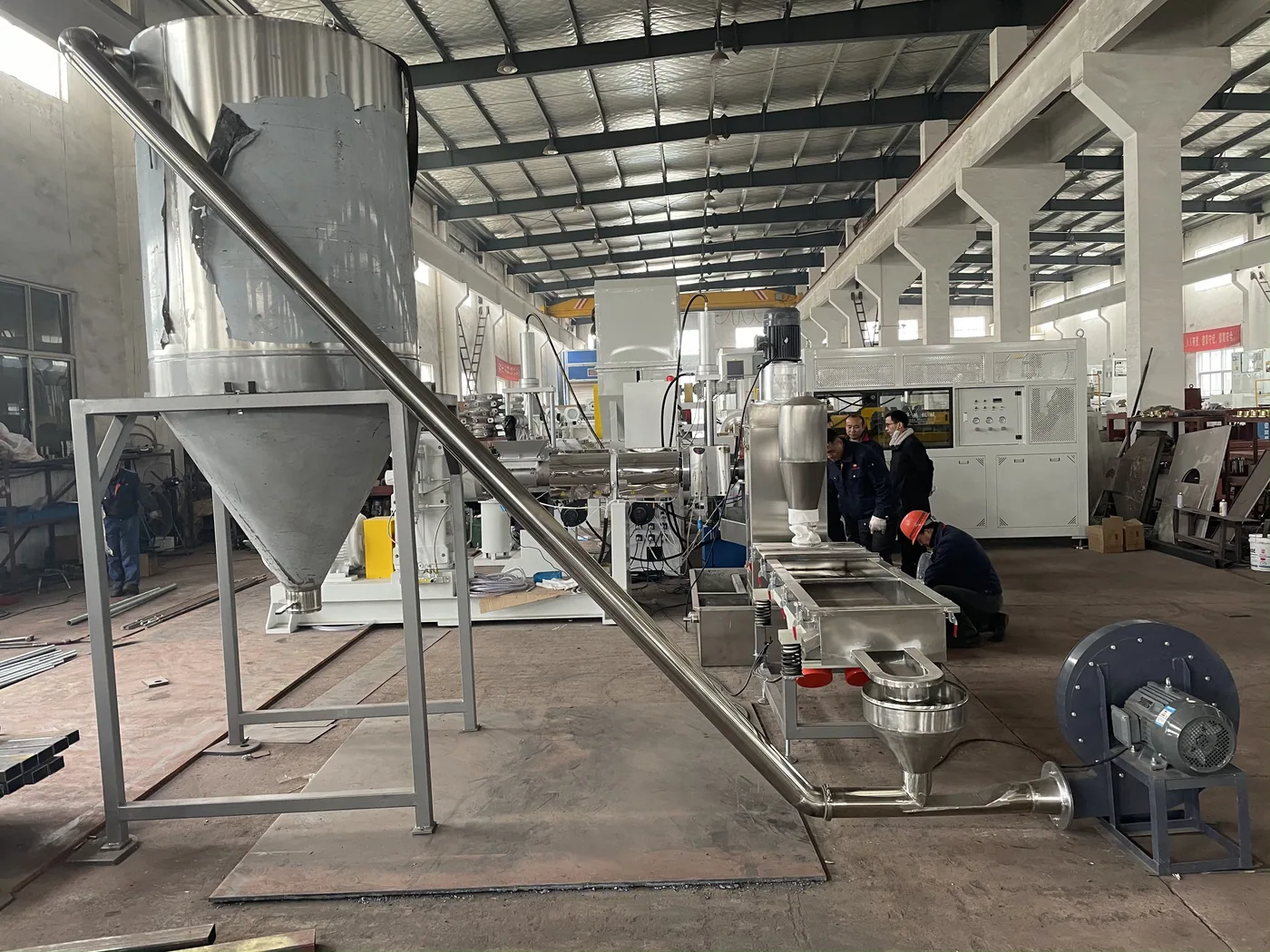

09 Air blower and silo
Conveys finished pellets and stores them for packaging or reuse.
Configuration highlights
High efficiency force-feeder ensures high capacity feeding, low energy consumption.
Application reference: PE film recycling.
Single-stage or double-stage pelletizing can be configured for PE PP film granules making.
Application reference: PP woven bag recycling.
Specially designed single screw extruder with venting system supports good output capacity.
Application reference: LDPE printed film.
Water-ring and water-cooling strand cutting styles are available according to material and output.
Application reference: Agricultural film.
Hydraulic screen changing, dewatering, vibration and air conveying prepare stable finished pellets.
Application reference: EPS and raffia recycling.
Technical parameters
Product type PE PP Recycling Pelletizing Line
Application PE / PP film, woven bag, raffia and plastic waste recycling
Extruder models SJ85-SJ150
Output 180-600 kg/hr
| Extruder model | Compactor Power(kw) | Extruder Power(kw) | Capacity(kg/hr) |
|---|---|---|---|
| SJ85 | 37 | 55 | 180-250 |
| SJ100 | 55 | 90 | 250-300 |
| SJ120 | 75 | 110 | 300-400 |
| SJ130 | 90 | 132 | 400-500 |
| SJ150 | 110 | 160 | 500-600 |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pelletizing line used for?
PE PP Recycling Pelletizing Line is commonly used for pe film recycling, pp woven bag recycling, ldpe printed film, agricultural film, eps and raffia.
What is included in the production line?
The line includes belt conveyor, force feeder, mother extruder, hydraulic screen changer, baby extruder, water-ring cutting device.
What range and output can be configured?
Reference configuration covers SJ85-SJ150 with 180-600 kg/hr output. Final layout is matched to pipe material, diameter and factory requirements.
