PE Single Wall Corrugated Pipe Production Line

PE single wall corrugated pipe production line for small-diameter PE, PVC and PP corrugated pipe used in electrical conduit, washing-machine drain pipe, dust collector pipe and ventilation duct applications.

Get Quote WhatsApp
8-63 mm Diameter range
20-80 kg/hr Max Output
200+ Customers 40+ Countries CE & ISO Certified
PE Single Wall Corrugated Pipe Production Line

Overview

Matched line setup

PE single wall corrugated pipe production line for small-diameter PE, PVC and PP corrugated pipe used in electrical.

Application range

Electrical conduit, Washing-machine drain pipe, Dust collector pipe, Ventilation duct

Range and output

8-63 mm diameter range with 20-80 kg/hr output reference.

Core configuration

Single screw extruder, Extrusion mould, Corrugating forming machine, Double cavity form block

Machine video

Watch machine video

Applications

Corrugated conduit for automotive wiring harness and cable protection
Automotive wiring and cable conduits Flexible corrugated conduit for cable protection, non-pressure drainage and appliance hose use.
HDPE pipeline installation for natural gas pipeline application
Natural gas pipelines Flexible, settlement-resistant pipe for safer residential and utility gas distribution.
HDPE irrigation pipe used in agricultural field irrigation
Agricultural irrigation piping Lightweight irrigation pipe with weather resistance, long service life and low maintenance.
Large HDPE water pipes for municipal pipeline project
Municipal water pipeline projects Durable water pipeline solution with impact resistance, clean water safety and efficient installation.
HDPE industrial fluid conveyance pipeline in plant area
Industrial fluid conveyance pipelines Chemical-resistant pipe with smooth inner wall, reliable sealing and low flow resistance.
Large corrugated HDPE pipe installed for sewage and infrastructure drainage
Main sewage and infrastructure drainage High ring stiffness pipe for sewage mains, traffic infrastructure and smooth drainage flow.

Process flow

01
Raw material feeding
02
Single screw extrusion
03
Extrusion mould shaping
04
Corrugating forming
05
Form block ripple shaping
06
Cooling and stabilization
07
Winding or collection

Line composition

Single screw extruder for PE single wall corrugated pipe production line 01

Single screw extruder

Plasticizes PE, PVC or PP raw material and provides stable melt output for the corrugating section.

Extrusion mould for single wall corrugated pipe forming 02

Extrusion mould

Shapes the pipe before corrugation and works with the corresponding die for even ripple forming.

Corrugating forming machine for PE single wall corrugated pipe production 03

Corrugating forming machine

Moulds single wall corrugated pipe with smooth inner and outer surfaces in one continuous process.

Double cavity form block for corrugated pipe ripple forming 04

Double cavity form block

Form block option for matched corrugated pipe ripple shape and production configuration.

Single cavity form block for small diameter corrugated pipe forming 05

Single cavity form block

Single cavity forming block used to shape small-diameter single wall corrugated pipe.

Double station winder for collecting small diameter corrugated pipe 06

Double station winder

Collects and winds finished small-diameter corrugated pipe after forming.

Configuration highlights

Produces small-diameter single wall corrugated pipe from PE, PVC and PP raw materials.

Application reference: Electrical conduit.

Forms smooth inner and outer pipe surfaces with even ripples in one moulding process.

Application reference: Washing-machine drain pipe.

Matched dies and form blocks support stable corrugated pipe shape and repeatable production.

Application reference: Dust collector pipe.

Suitable for electrical conduit, washing-machine drain pipe, dust collector pipe and ventilation duct applications.

Application reference: Ventilation duct.

VDB25, VDB32 and VDB63 configurations cover 8-63mm pipe diameter ranges.

Application reference: Small-diameter PE corrugated pipe.

Production speed can be configured from 10-20m/min according to model and pipe size.

Application reference: Small-diameter PVC corrugated pipe.

Technical parameters

Product type PE single wall corrugated pipe production line
Suitable materials PE / PVC / PP
Pipe diameter range 8-63 mm
Production speed 10-20 m/min by model
Capacity 20-80 kg/hr by model
Mold block quantity 50-70 couples
Applications Electrical conduit / washing-machine drain pipe / dust collector pipe / ventilation duct
ModelPipe diameter rangeMold block (couple)Production speedCapacity
VDB258-25 mm5012-15 m/min20-40 kg/hr
VDB3216-32 mm5010-15 m/min30-50 kg/hr
VDB6320-63 mm7015-20 m/min60-80 kg/hr

Product gallery

PE PVC PP single wall corrugated pipe samples for conduit drain and ventilation use
Finished single wall corrugated pipe samples used for electrical conduit, washing-machine drain pipe, dust collector pipe and ventilation duct.

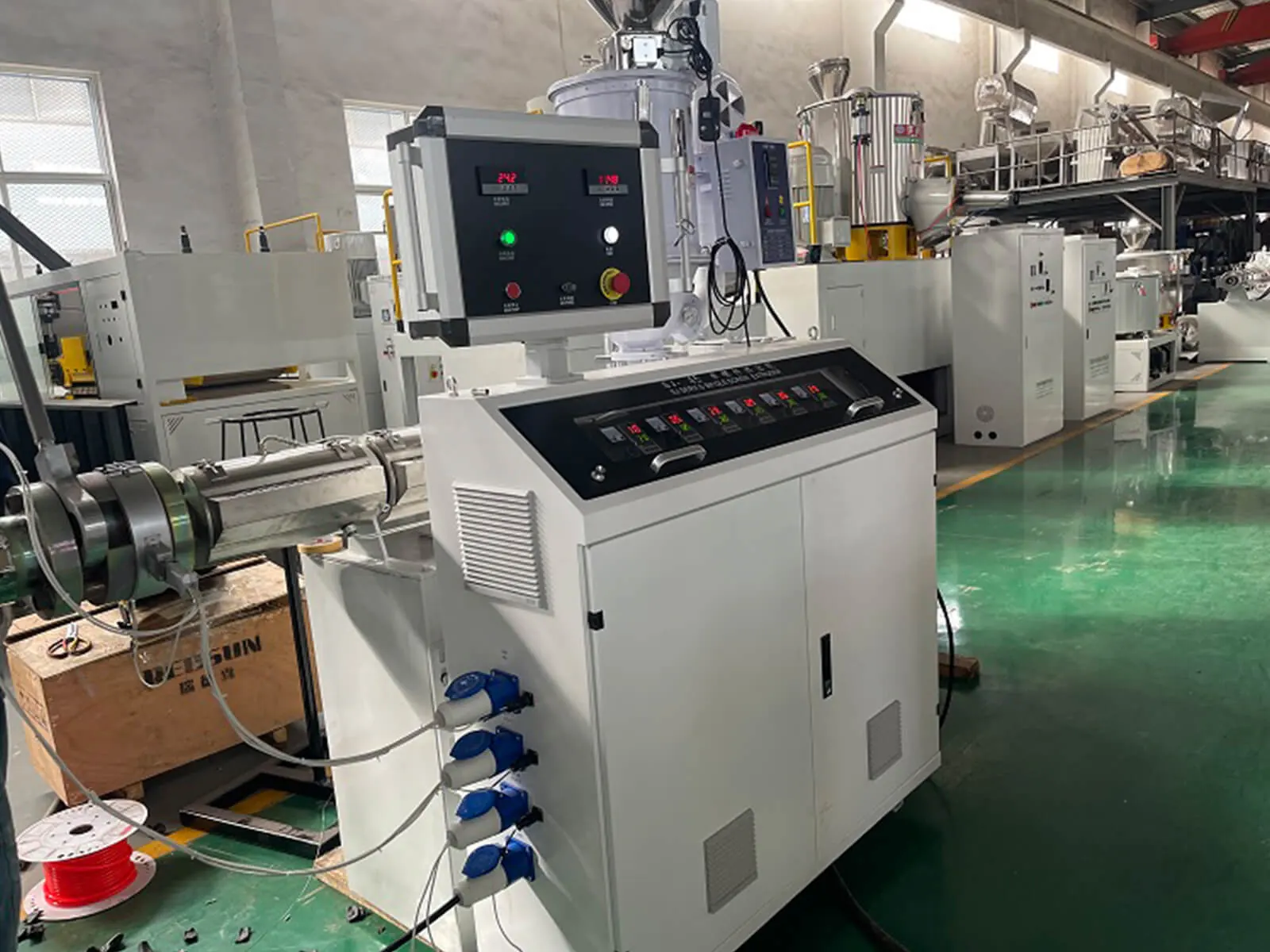

Single screw extruder for PE single wall corrugated pipe production line
Single screw extruder plasticizes PE, PVC or PP raw material before moulding.

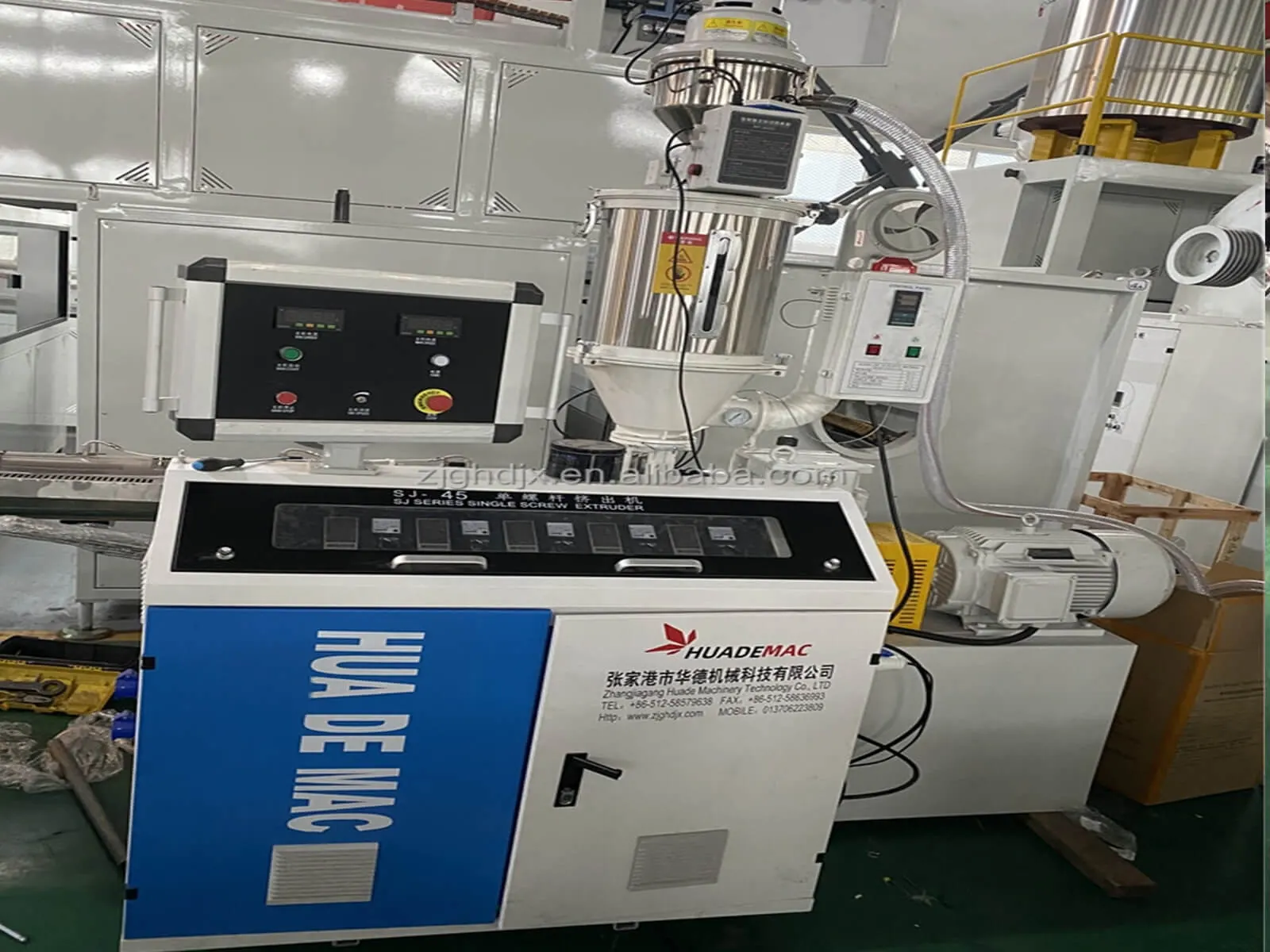

Front view of single screw extruder for small diameter corrugated pipe line
Front view reference of the extrusion section for small-diameter corrugated pipe production.

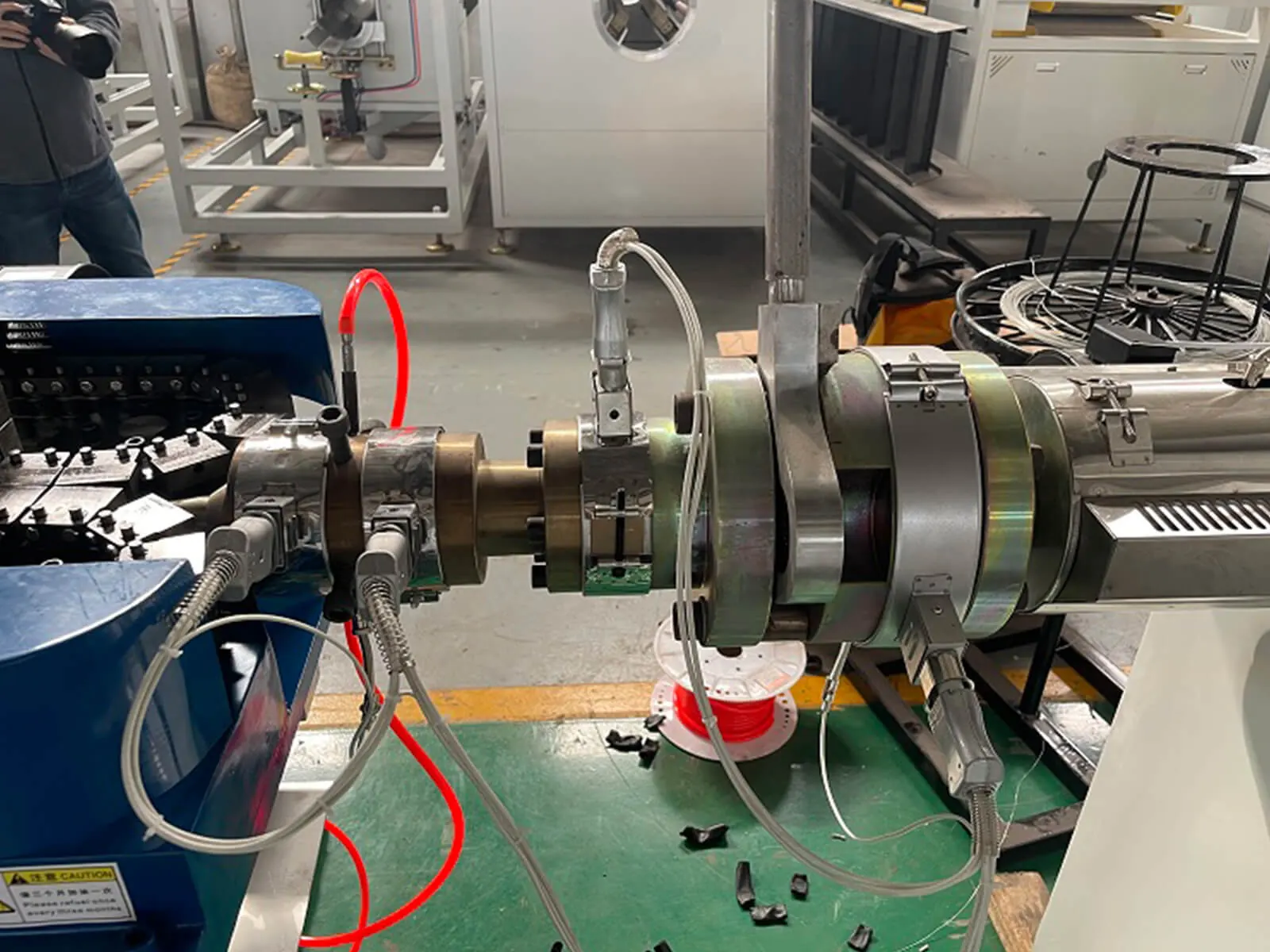

Extrusion mould for single wall corrugated pipe forming
Extrusion mould shapes the pipe before the corrugating forming section.

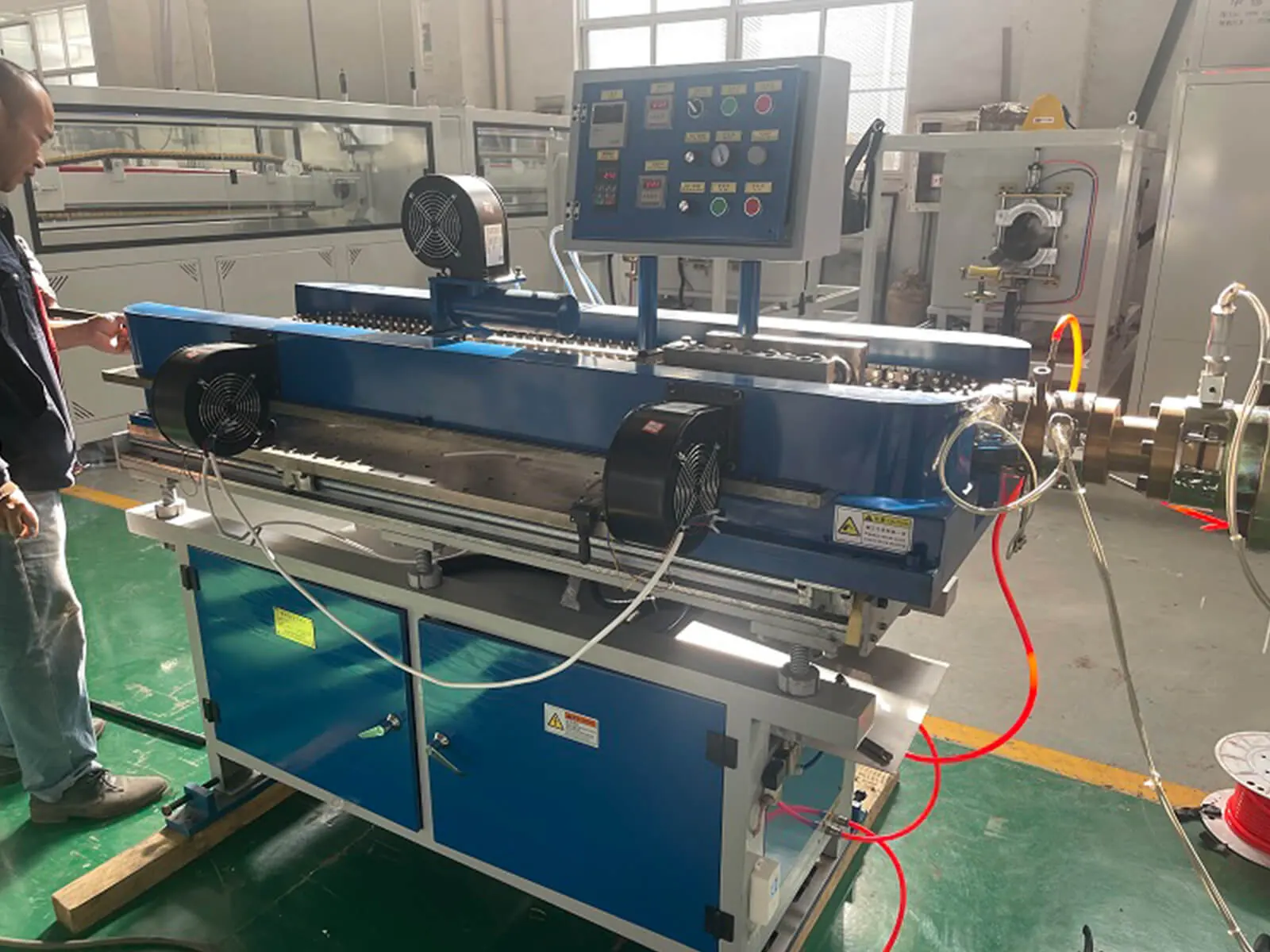

Corrugating forming machine for PE single wall corrugated pipe production
Corrugating forming machine moulds smooth inner and outer surfaces with even ripples in one process.

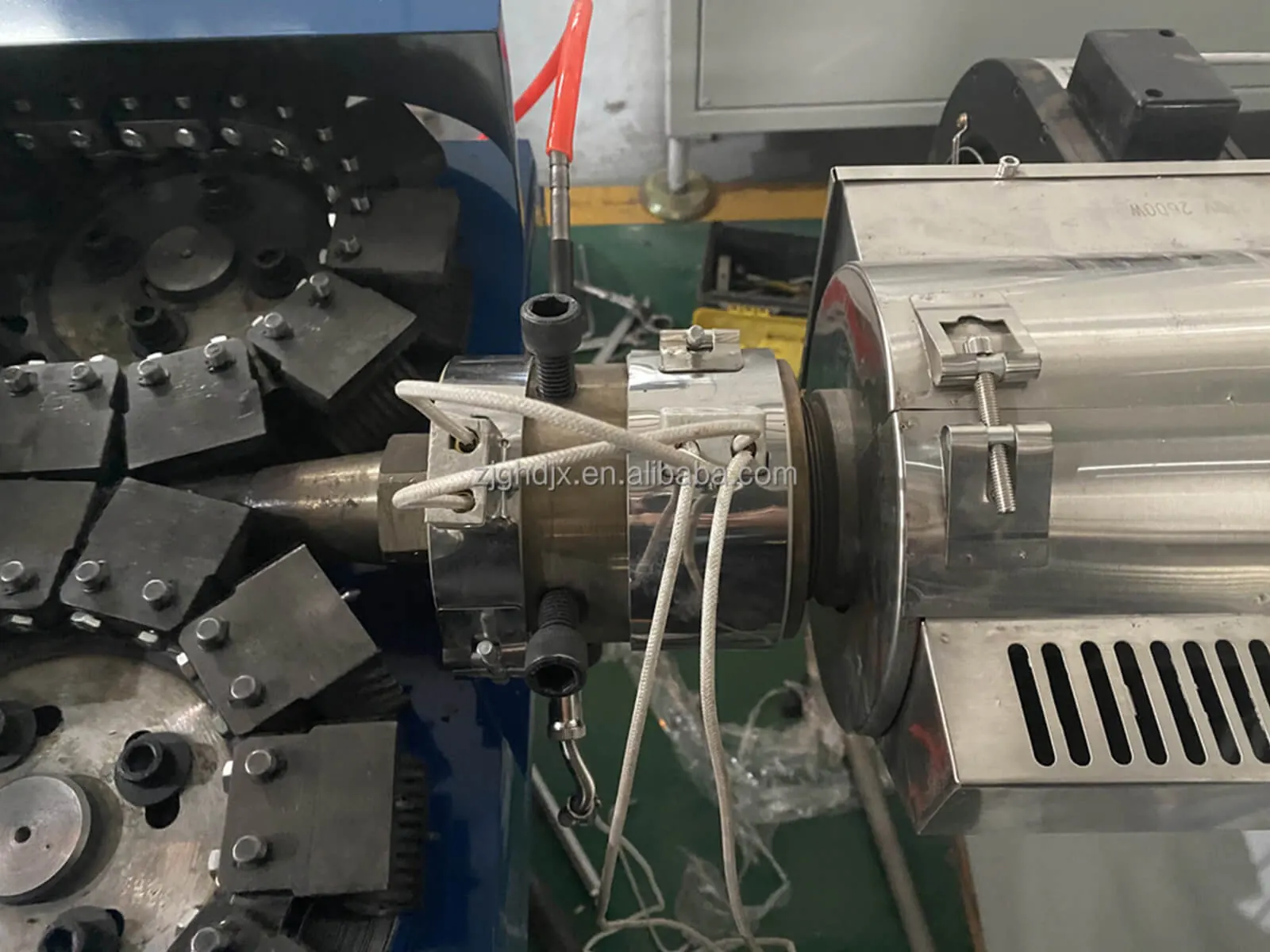

Double cavity form block for corrugated pipe ripple forming
Double cavity form block supports corrugated pipe ripple forming for matched production configurations.
Single cavity form block for small diameter corrugated pipe forming
Single cavity form block option for small-diameter corrugated pipe forming.

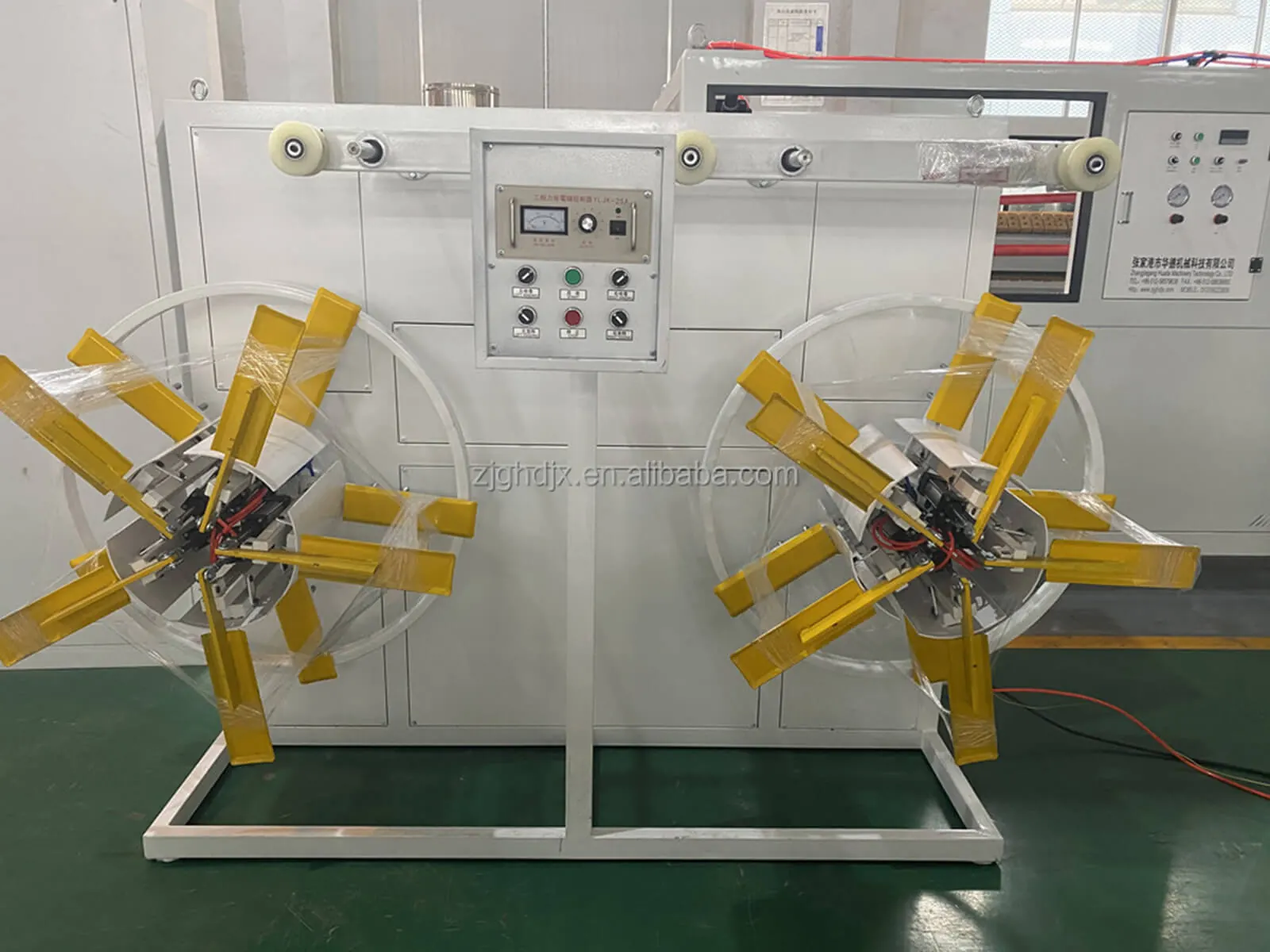

Double station winder for collecting small diameter corrugated pipe
Double station winder collects small-diameter corrugated pipe after forming.

Customer references

PVC window profile extrusion line customer project in Belize
Belize

PVC window profile line

630mm PVC pipe extrusion line customer inspection in Egypt
Egypt

Ø630mm PVC pipe line

PVC pelletizing line customer project in Ethiopia
Ethiopia

PVC pelletizing line

200mm PVC pipe extrusion line customer project in Kenya
Kenya

Ø200mm PVC pipe line

Technical resources

Spec sheet download

Available on request with the technical proposal and machine configuration details.

Request details
Project reference

Available on request with the technical proposal and machine configuration details.

Request details
FAQ
What applications is this pe pipe production line used for?

PE Single Wall Corrugated Pipe Production Line is commonly used for electrical conduit, washing-machine drain pipe, dust collector pipe, ventilation.

What is included in the production line?

The line includes single screw extruder, extrusion mould, corrugating forming machine, double cavity form block, single cavity form block, double station winder.

What range and output can be configured?

Reference configuration covers 8-63 mm with 20-80 kg/hr output. Final layout is matched to pipe material, diameter and factory requirements.
