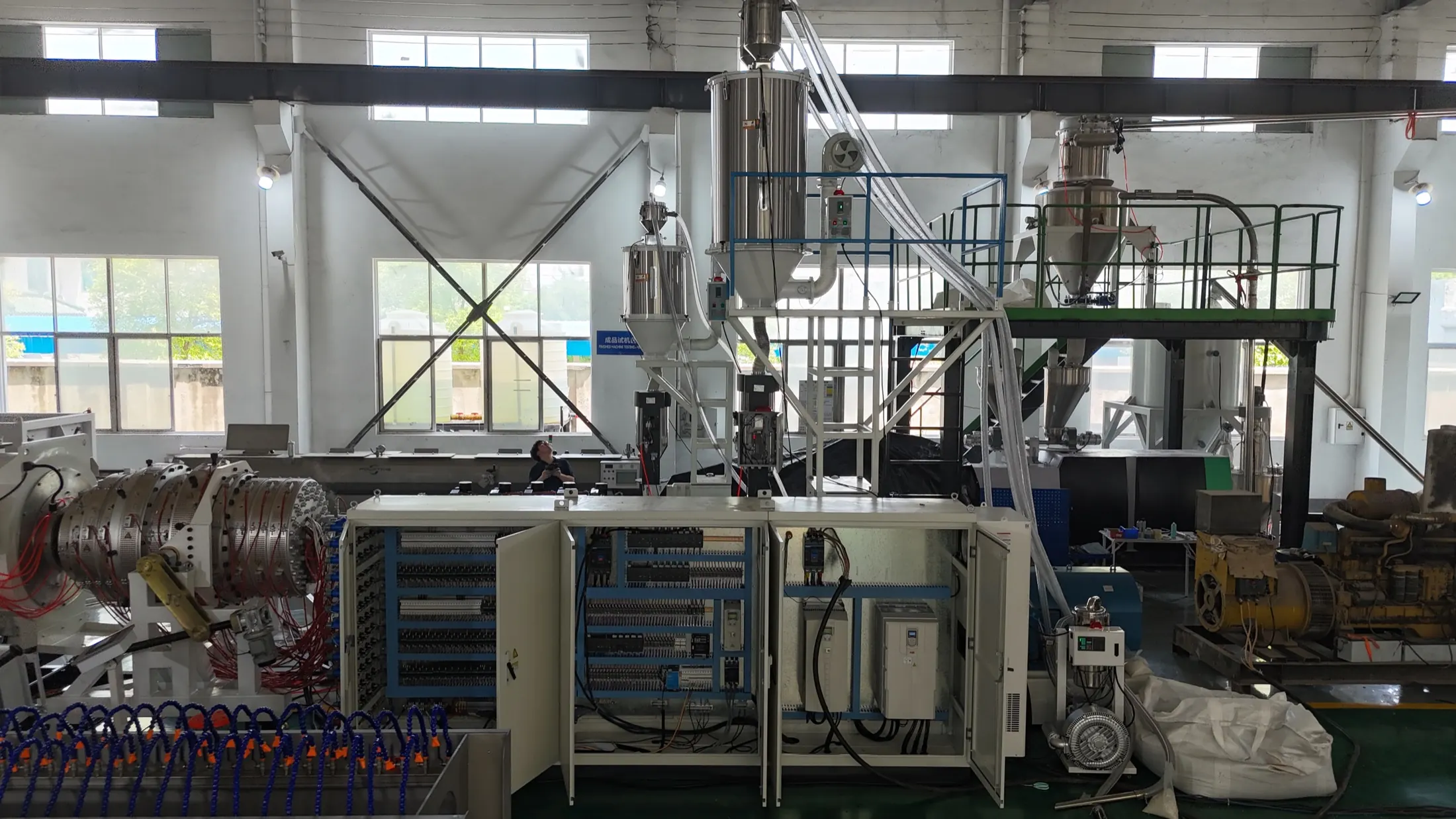

Complete turnkey line
Single supplier support from extrusion to downstream handling.
Overview
Multi-material configuration
Configurable for PE / PP / PVC / PEX / silicon-core pipe.
Wide production range
20-1600mm diameter with 125-1500 kg/h output coverage.

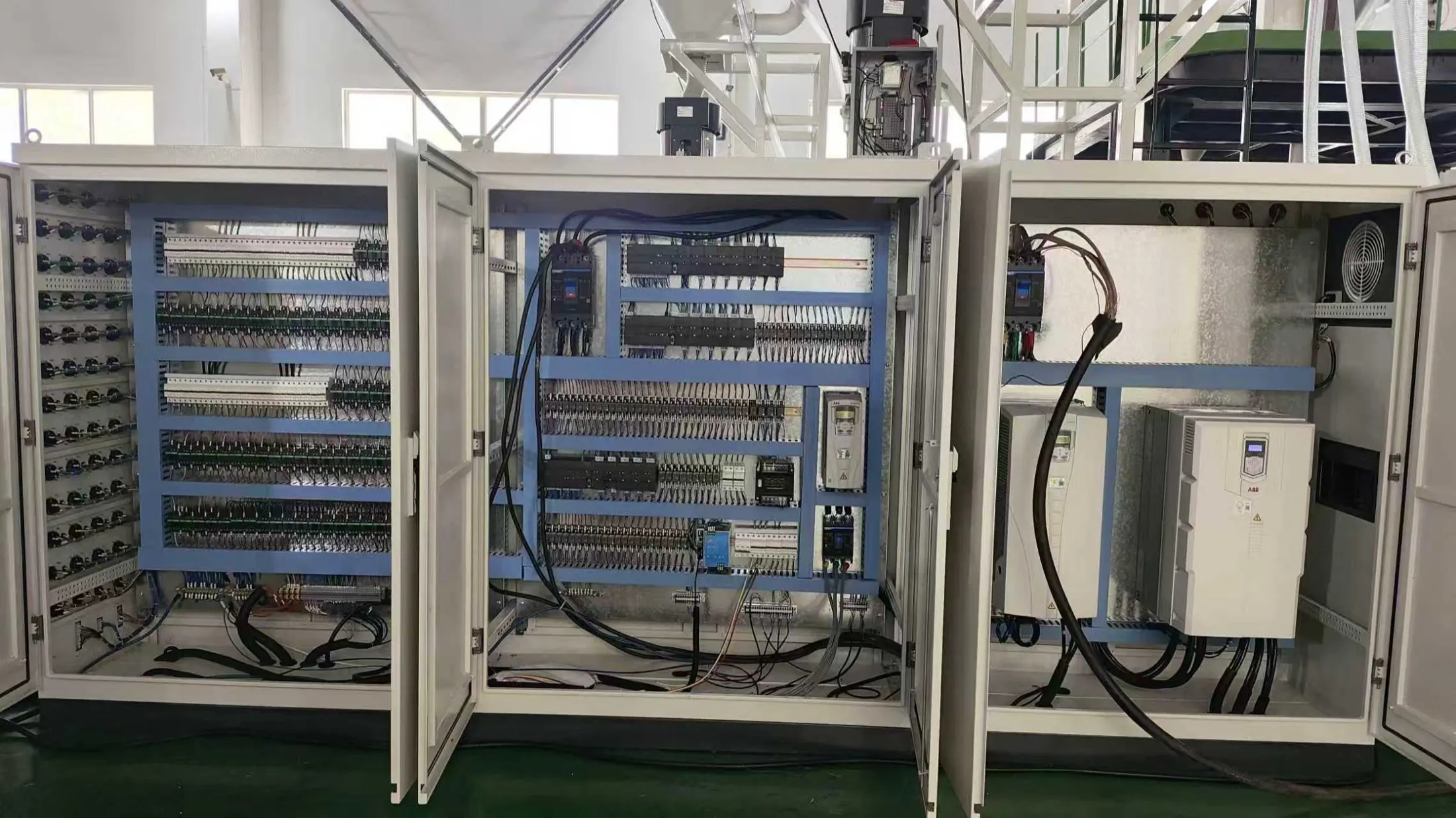

PLC auto-control
Automated control helps reduce operator cost and variation.
Machine video
Watch machine video
Applications
HDPE water supplyMPP power cable conduitGas pipeDrainageIndustrial pipe

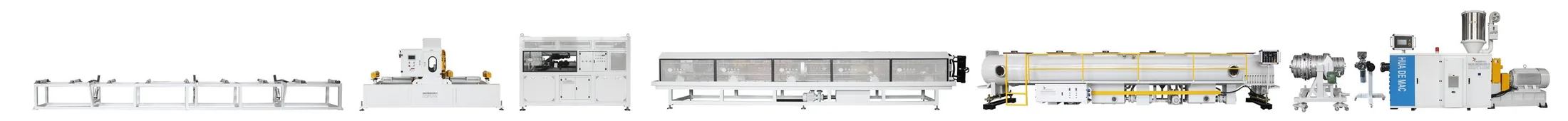

Process flow
Line composition

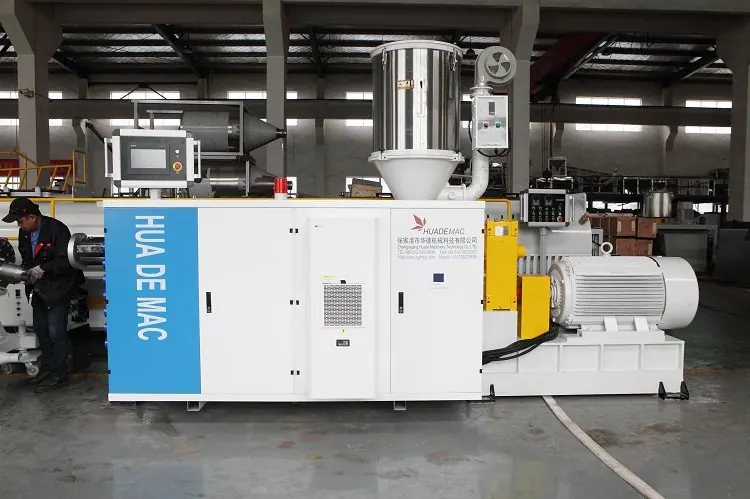

01 Single screw extruder
L/D ratio 33:1, optimized for PE/PP melt uniformity

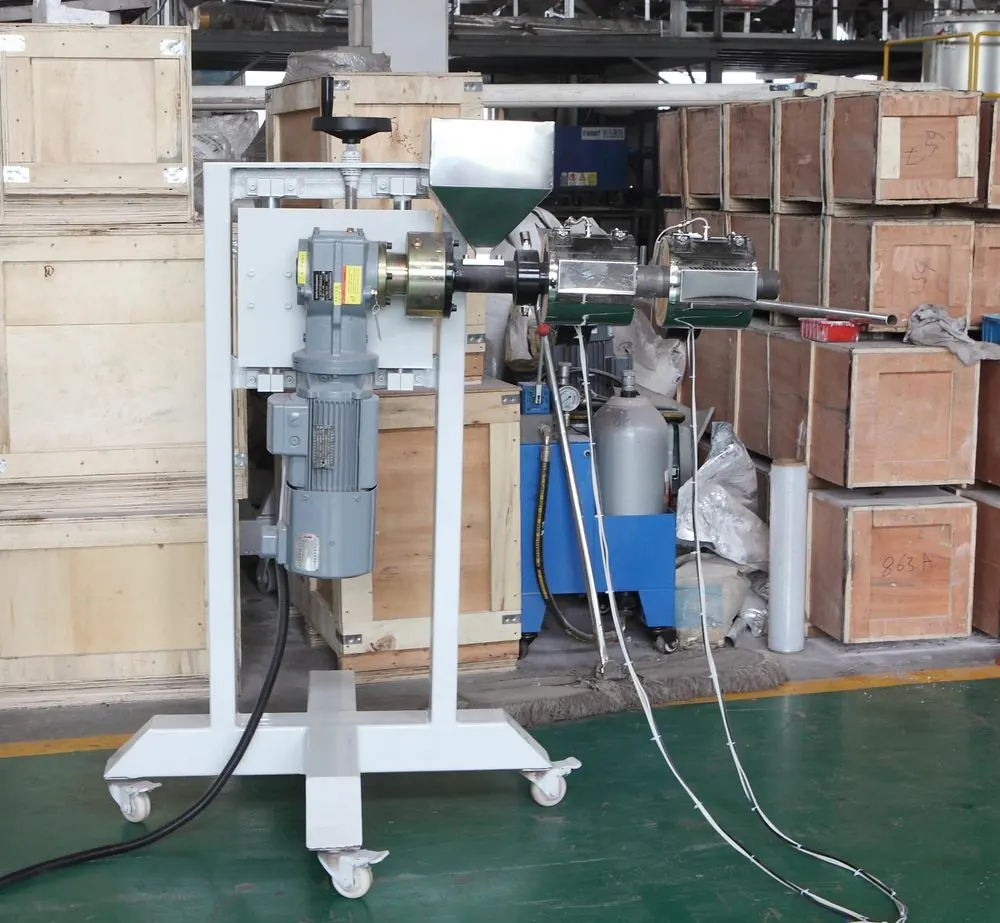

02 Color code extruder
Inline color stripe co-extrusion, up to 3 colors

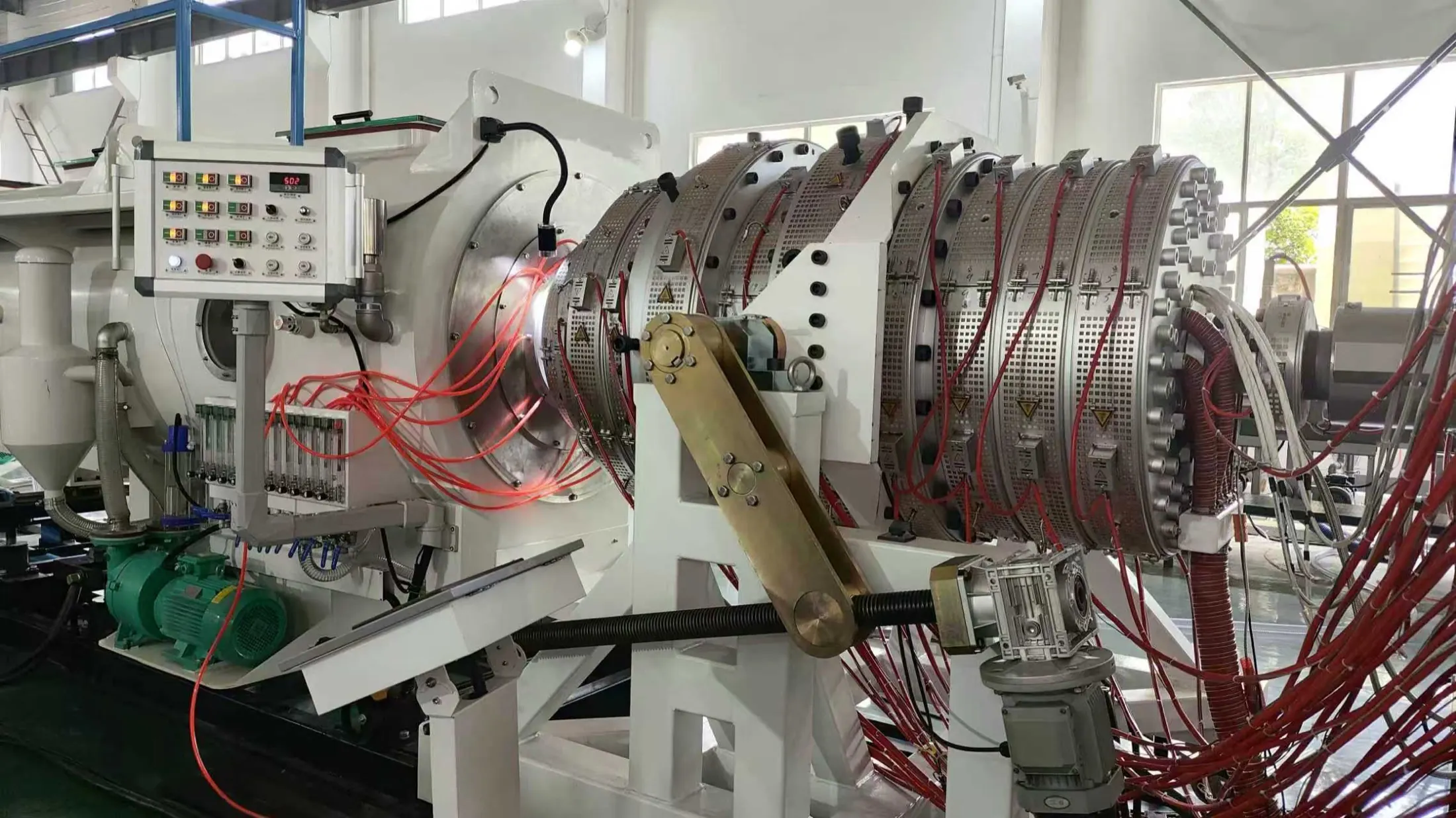

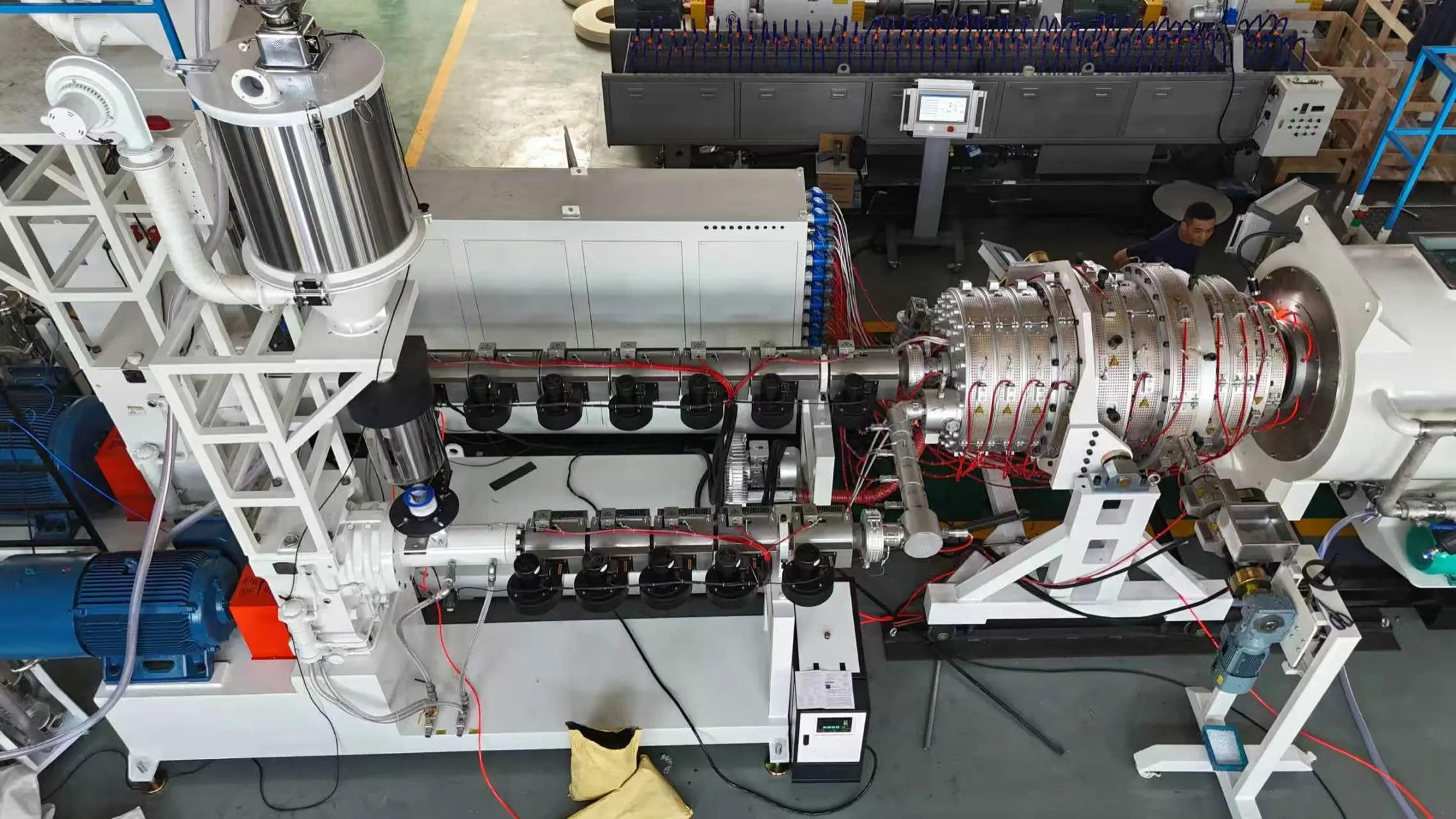

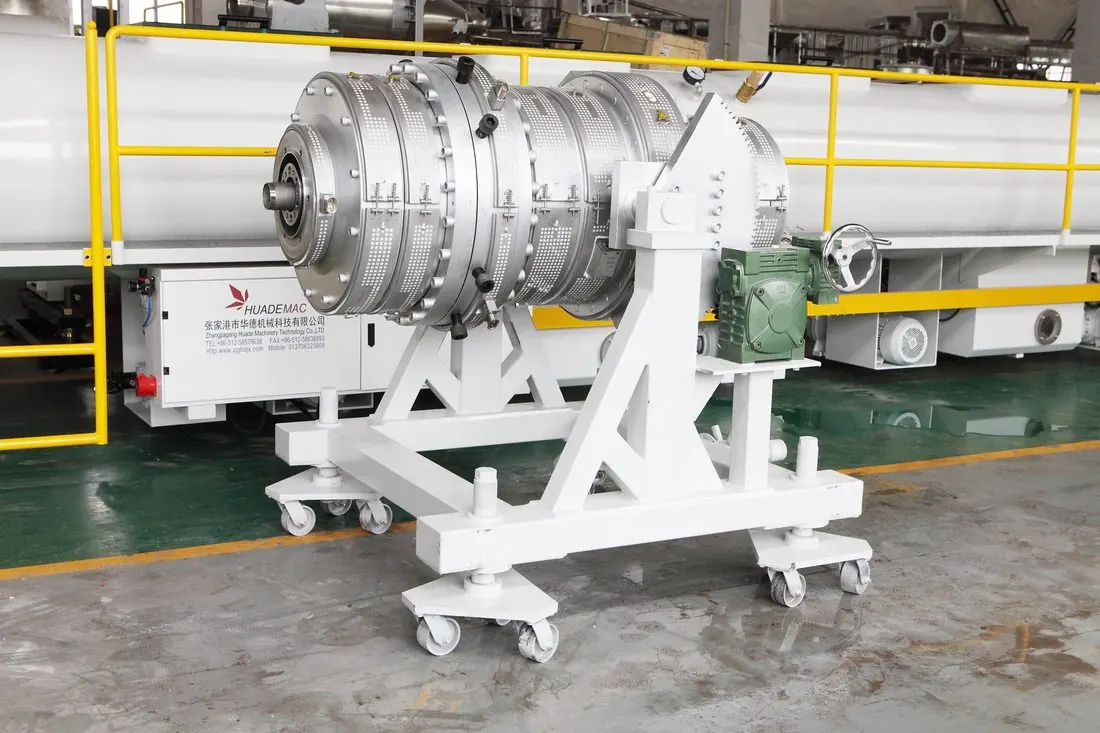

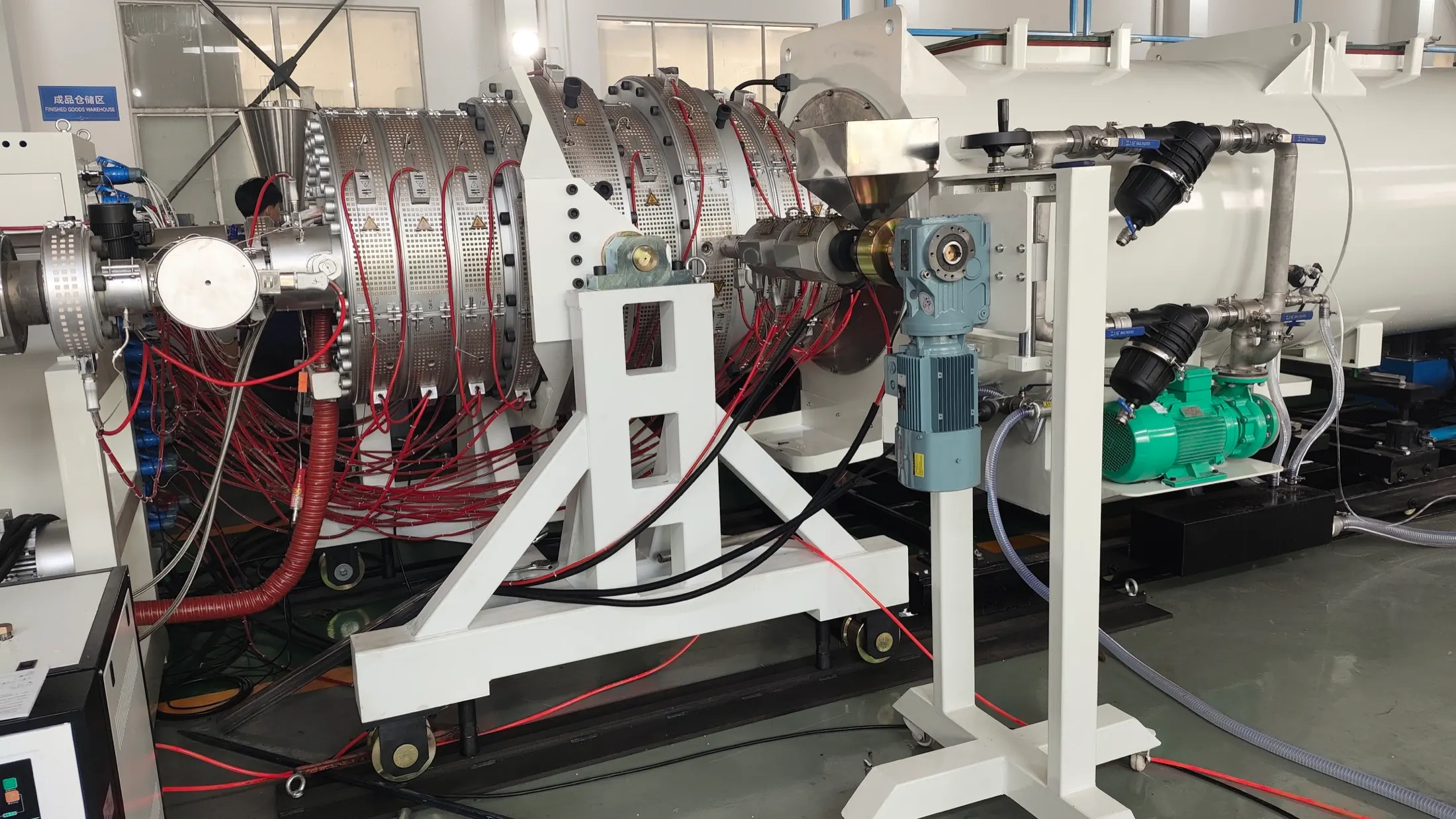

03 Die head & calibrator
Spiral or basket type, uniform wall thickness distribution

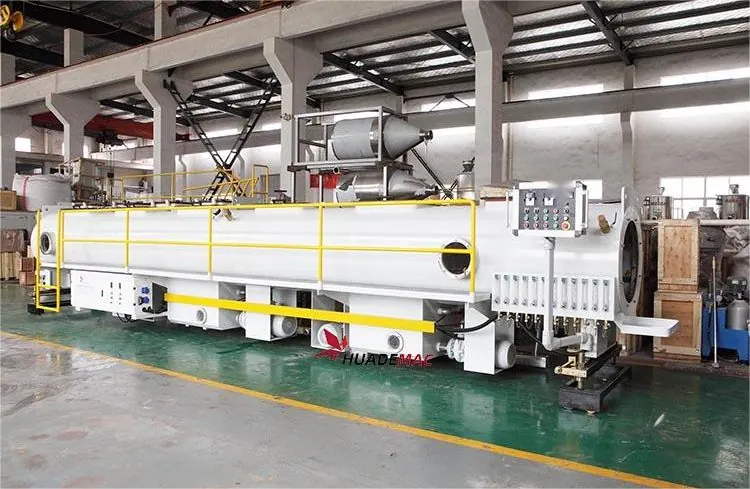

04 Vacuum calibration tank
Dual-pump vacuum, precision pipe sizing and cooling

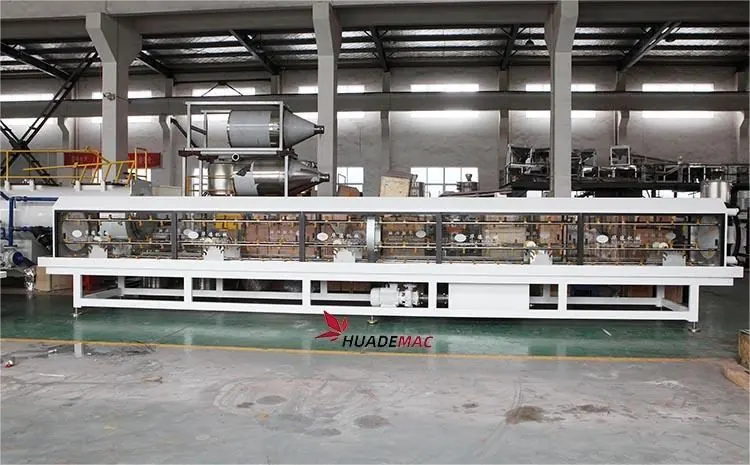

05 Spray cooling tank
Multi-zone spray, stable dimensional tolerances

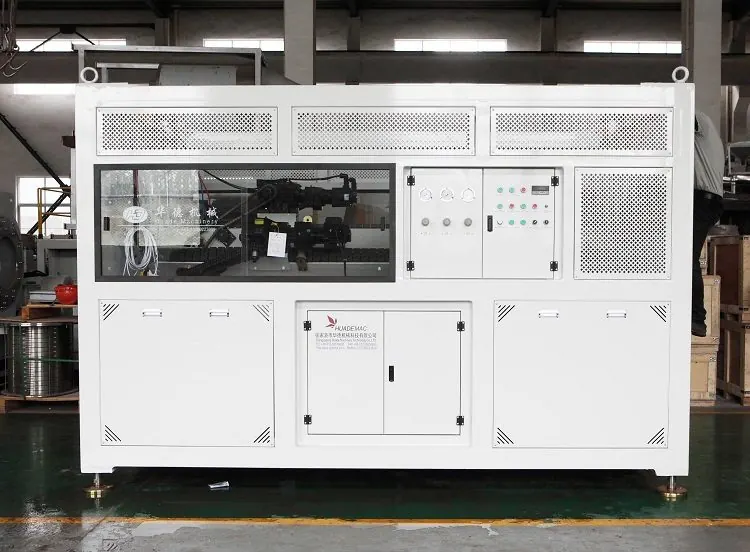

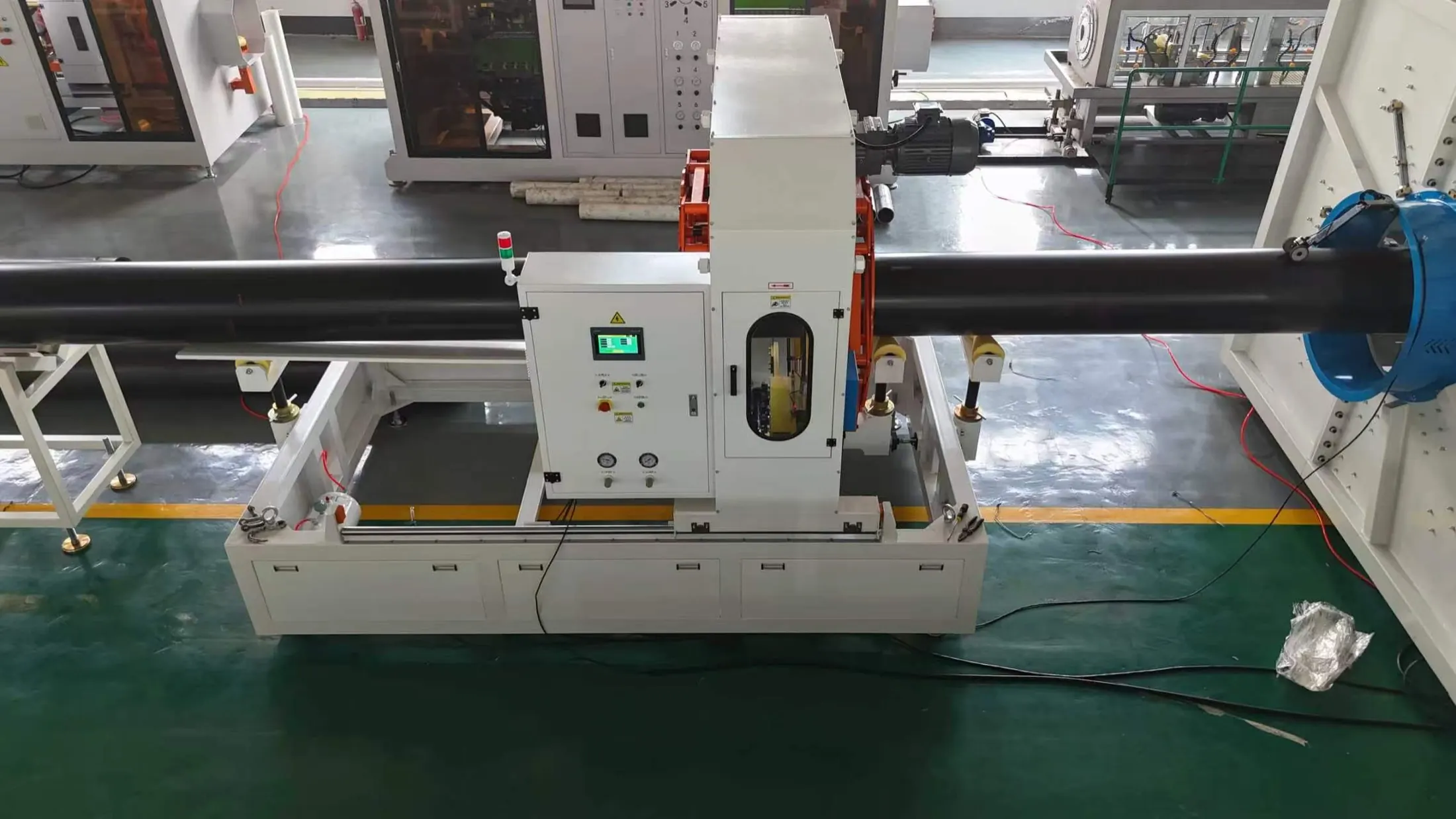

06 No-dust Cutter
Caterpillar type, synchronous speed control

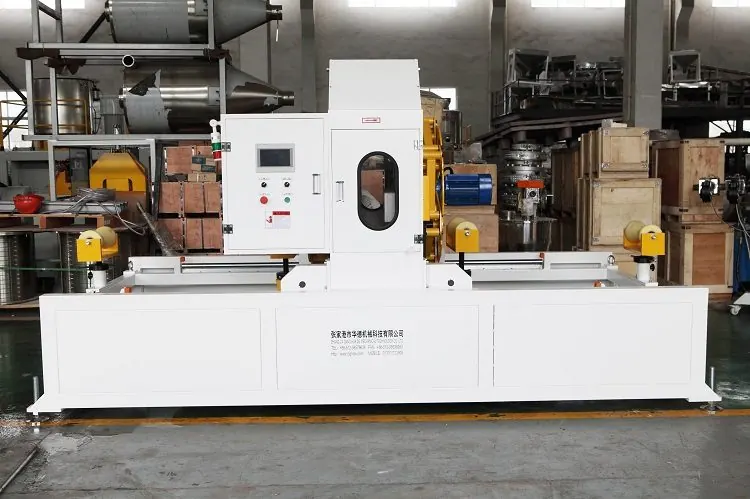

07 Planetary cutting
No-dust chip-free cutting, automatic length setting

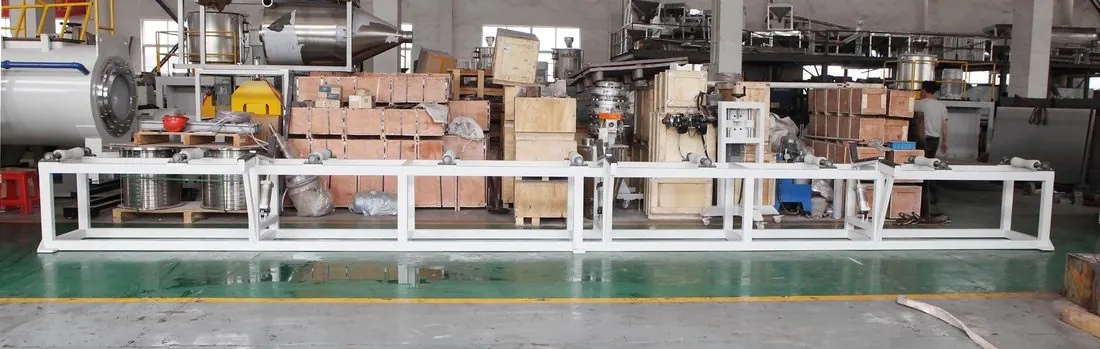

08 Pipe stacker
Automatic counting and bundling, adjustable for pipe diameter
Configuration highlights
Single screw extruder matched for PE and polyolefin pipe processing
Stable plasticizing and output for PE, PP and other polyolefin formulations.
Spiral or basket die head for stable melt distribution
Controls melt flow evenly to support consistent wall thickness.
Vacuum calibration and spray cooling for accurate pipe sizing
Maintains pipe roundness and dimensional accuracy after extrusion.
PLC control with optional wall-thickness and ultrasonic online measurement
Keeps production parameters visible, adjustable and repeatable.
Configurable single-layer, two-layer or multi-layer co-extrusion
Supports product upgrades without rebuilding the entire line.

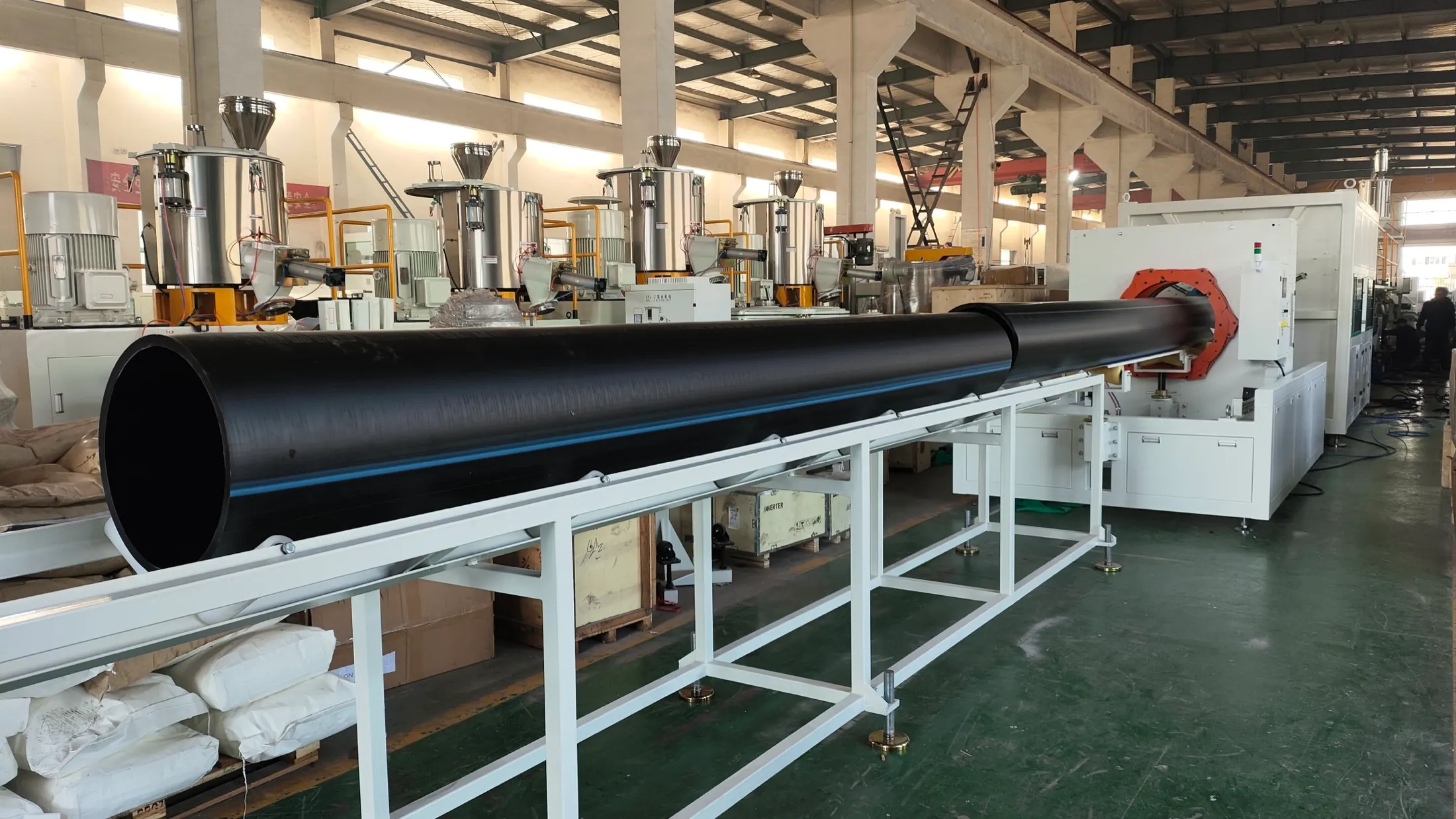

Rapid traction switching support for large-diameter pipe production
Allows large-pipe traction to stay stable during diameter changes.
Technical parameters
Pipe range 20-1600 mm
Suitable materials HDPE / MPP / PE / PP / PPR / PEX
Extruder model SJ65/33 to SJ120/38
Installed power 37-450 kW
Max output 120-1500 kg/h
View full parameters
| Pipe range | Extruder model | Power | Max output |
|---|---|---|---|
| 20-63 mm | SJ65/33 | 37 kW | 120 kg/h |
| 20-110 mm | SJ65/33 | 55 kW | 180 kg/h |
| 75-250 mm | SJ75/33 | 110 kW | 330 kg/h |
| 110-315 mm | SJ75/33 | 132 kW | 380 kg/h |
| 160-450 mm | SJ75/38 | 160 kW | 450 kg/h |
| 315-630 mm | SJ90/33 | 250 kW | 750 kg/h |
| 400-800 mm | SJ100/38 | 280 kW | 900 kg/h |
| 710-1200 mm | SJ120/33 | 355 kW | 1200 kg/h |
| 1000-1600 mm | SJ120/38 | 450 kW | 1500 kg/h |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Full technical specifications including extruder models, power ratings, and output data. Available as PDF upon request.
Request Spec Sheet Project reference
12+ completed installations across water supply, drainage, and conduit pipe projects in 8 countries.
View References FAQ
What materials can this line process?
HDPE, MPP, PP, PPR, PEX and silicon-core pipe materials.
How long does installation and commissioning take?
Typically 7-15 days on site, depending on pipe diameter range and local conditions.
What after-sales services are included?
12-month warranty, spare parts supply, remote technical support and on-site engineer dispatch.
