HDPE double wall corrugated pipe extrusion line for drainage, sewer systems, farmland irrigation and construction pipe.
PE Pipe Production Line
HDPE Double Wall Corrugated Pipe Production Line
HDPE double wall corrugated pipe extrusion line for drainage, sewer systems, farmland irrigation and construction pipe applications. The series supports PE, PP and PVC materials, with horizontal, vertical and shuttle-type configurations.
63-800mm Diameter range
2-5m/min by model Max Output
Overview
Application range
Natural gas pipelines, Agricultural irrigation piping, Municipal water pipeline projects, Industrial fluid conveyance.
Range and output
63-800mm diameter range with 2-5m/min by model output reference.
Core configuration
Single screw extruder, Corrugated pipe mould, Forming machine, Forming blocks
Machine video
Watch machine video
Applications
Process flow
01
Material feeding and plasticizing 02
Single screw extrusion 03
Double wall corrugated pipe moulding 04
Vacuum forming and cooling 05
Haul-off and synchronized forming 06
Fixed length cutting 07
Finished pipe stacking Line composition

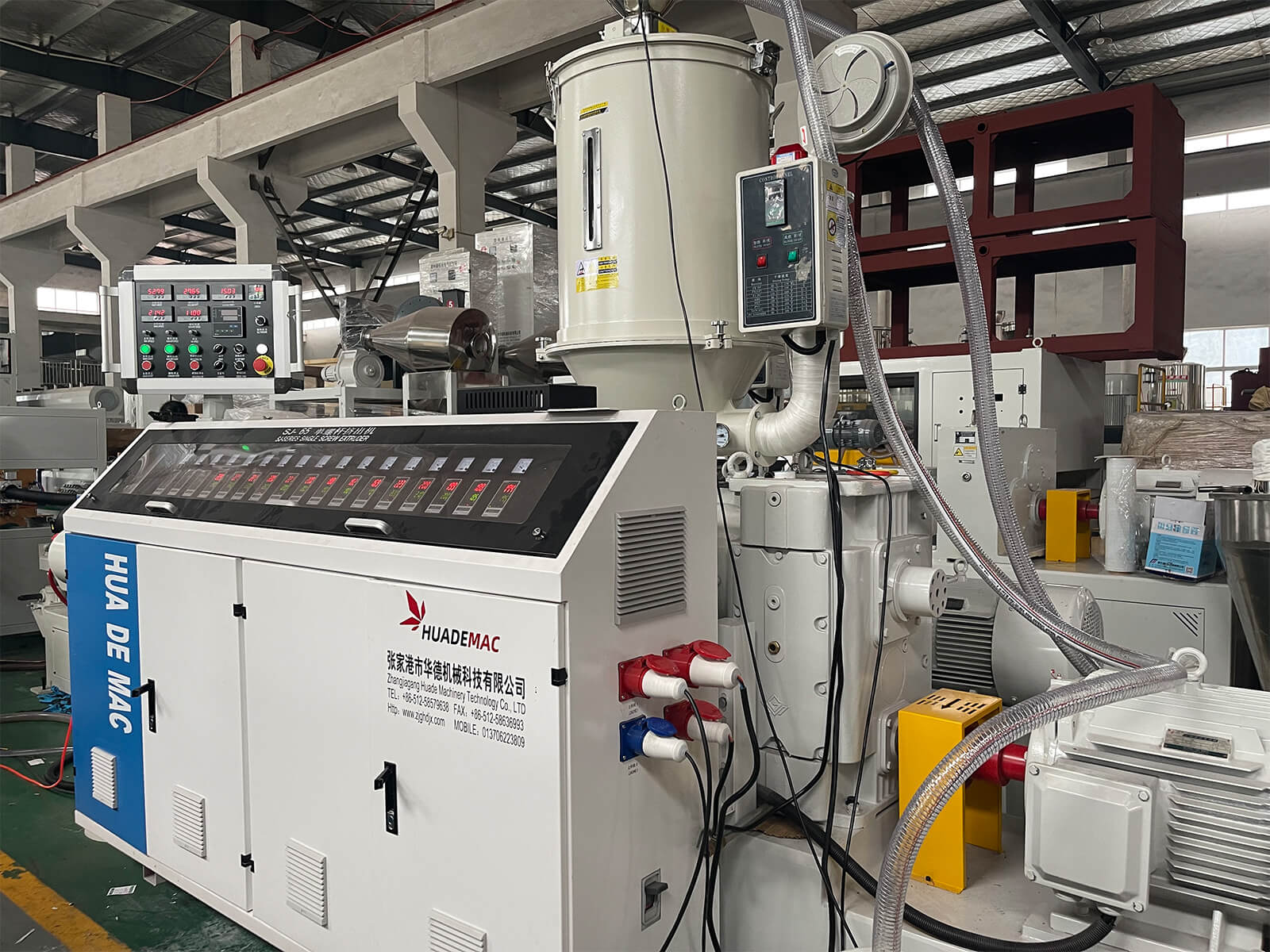

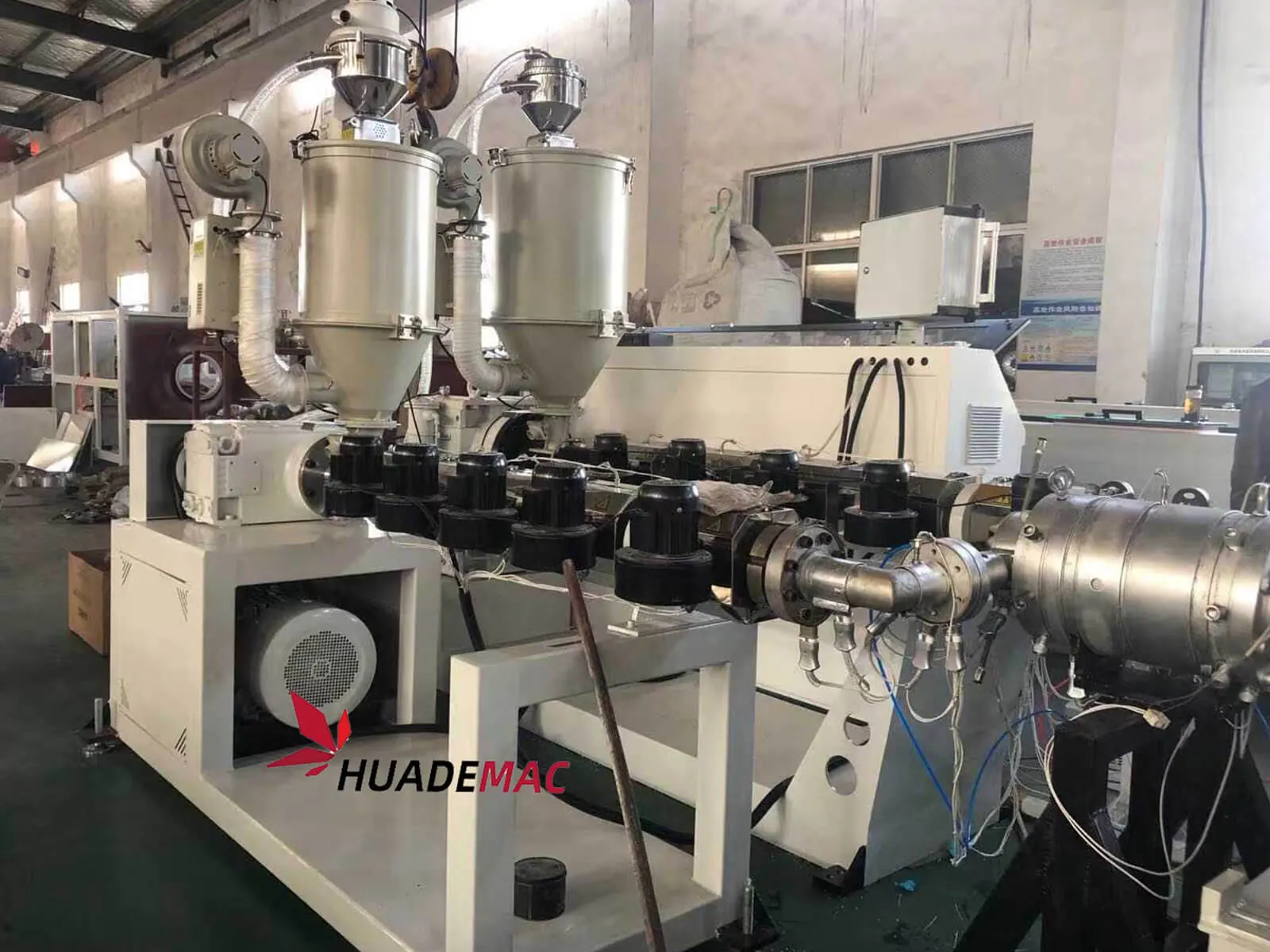

01 Single screw extruder
Plasticizes HDPE, PP or PVC material and provides stable output for the corrugated pipe forming section.

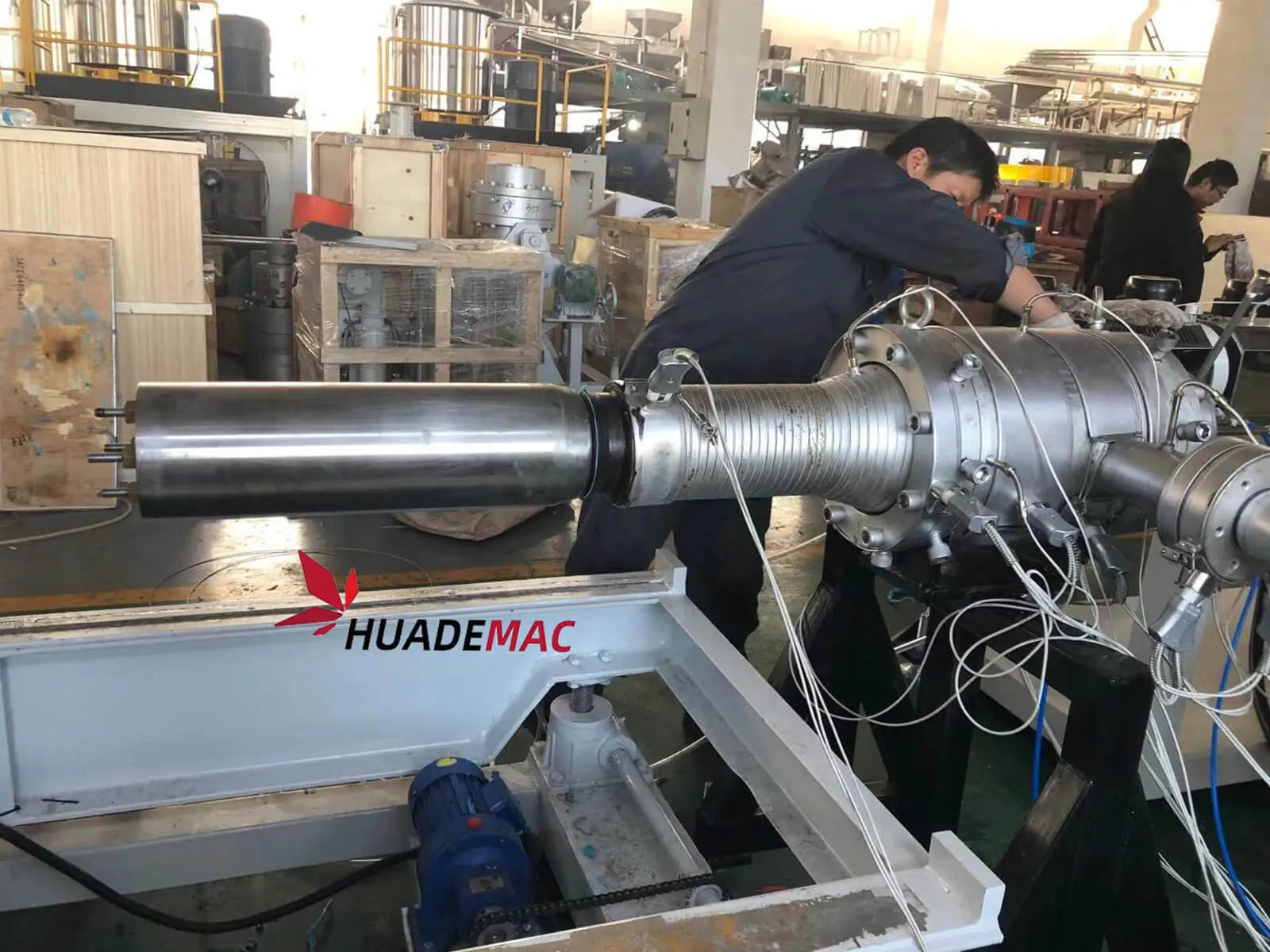

02 Extrusion mould
Forms the melt into the double wall pipe structure before corrugation and cooling.

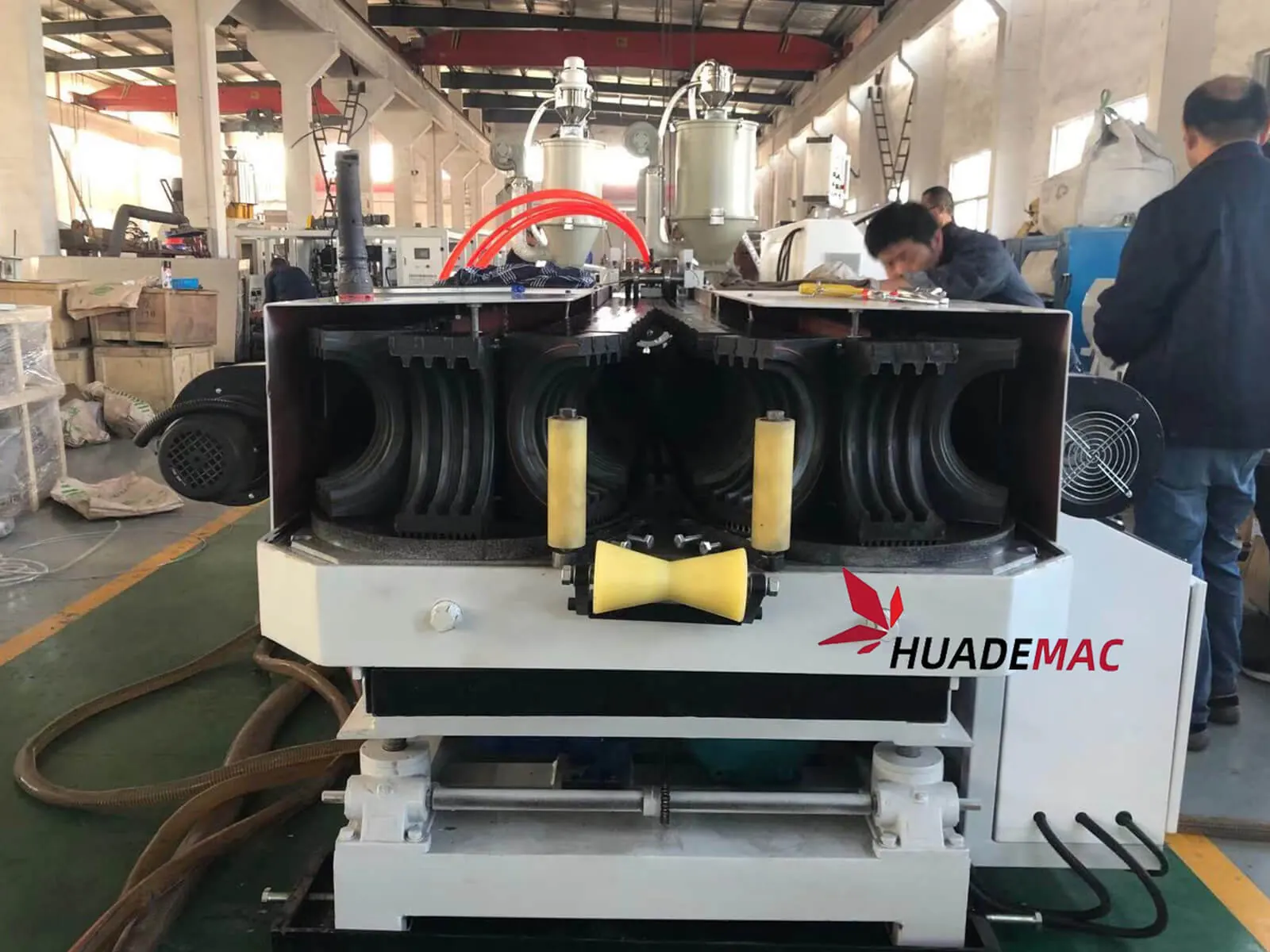

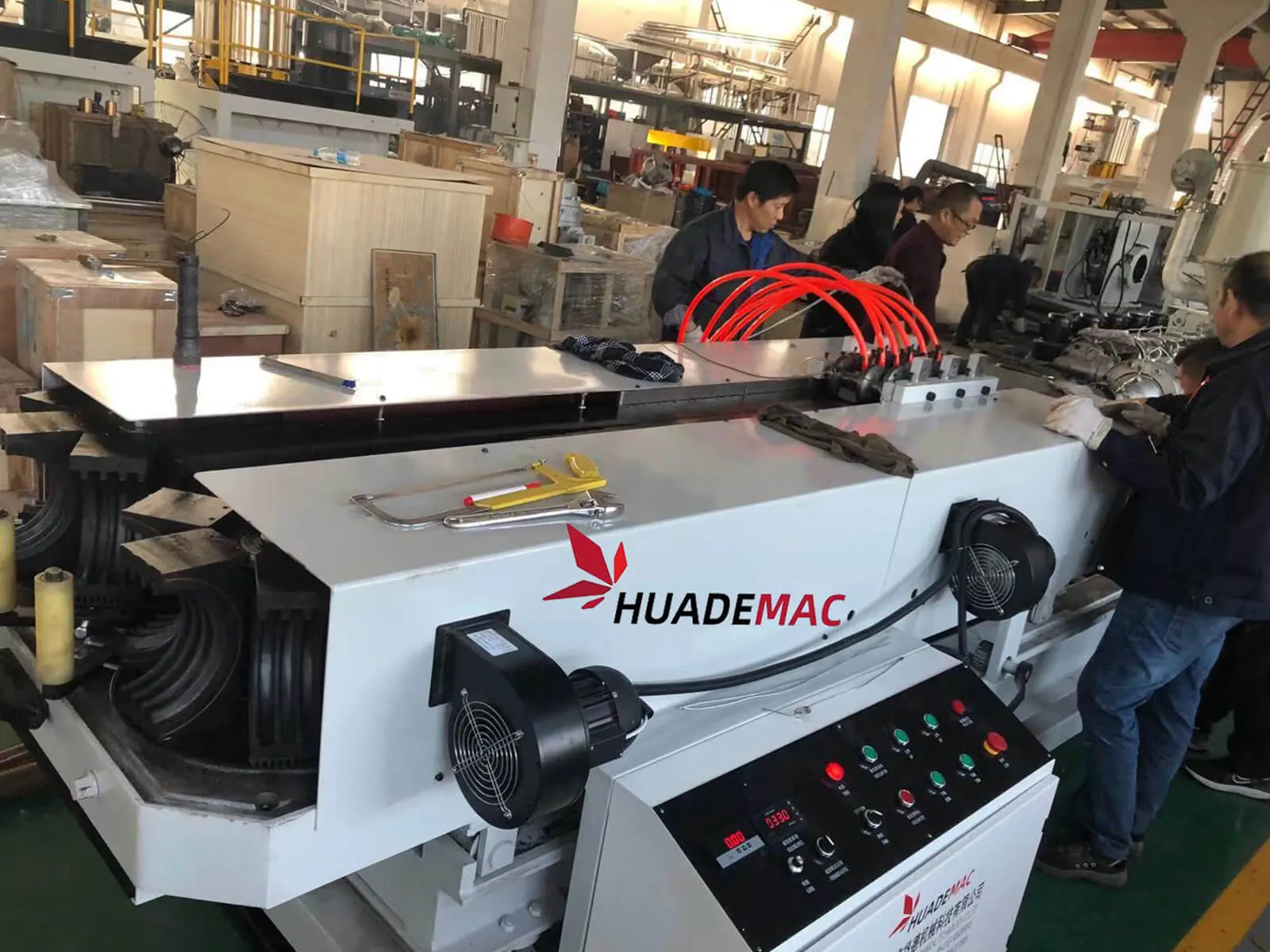

03 Forming machine
Uses mould blocks to shape and stabilize the corrugated outer wall during continuous production.
04 Forming blocks
Controls the corrugated profile and supports consistent pipe geometry.
05 Cutting machine
Cuts corrugated pipe to the required length after the forming section.

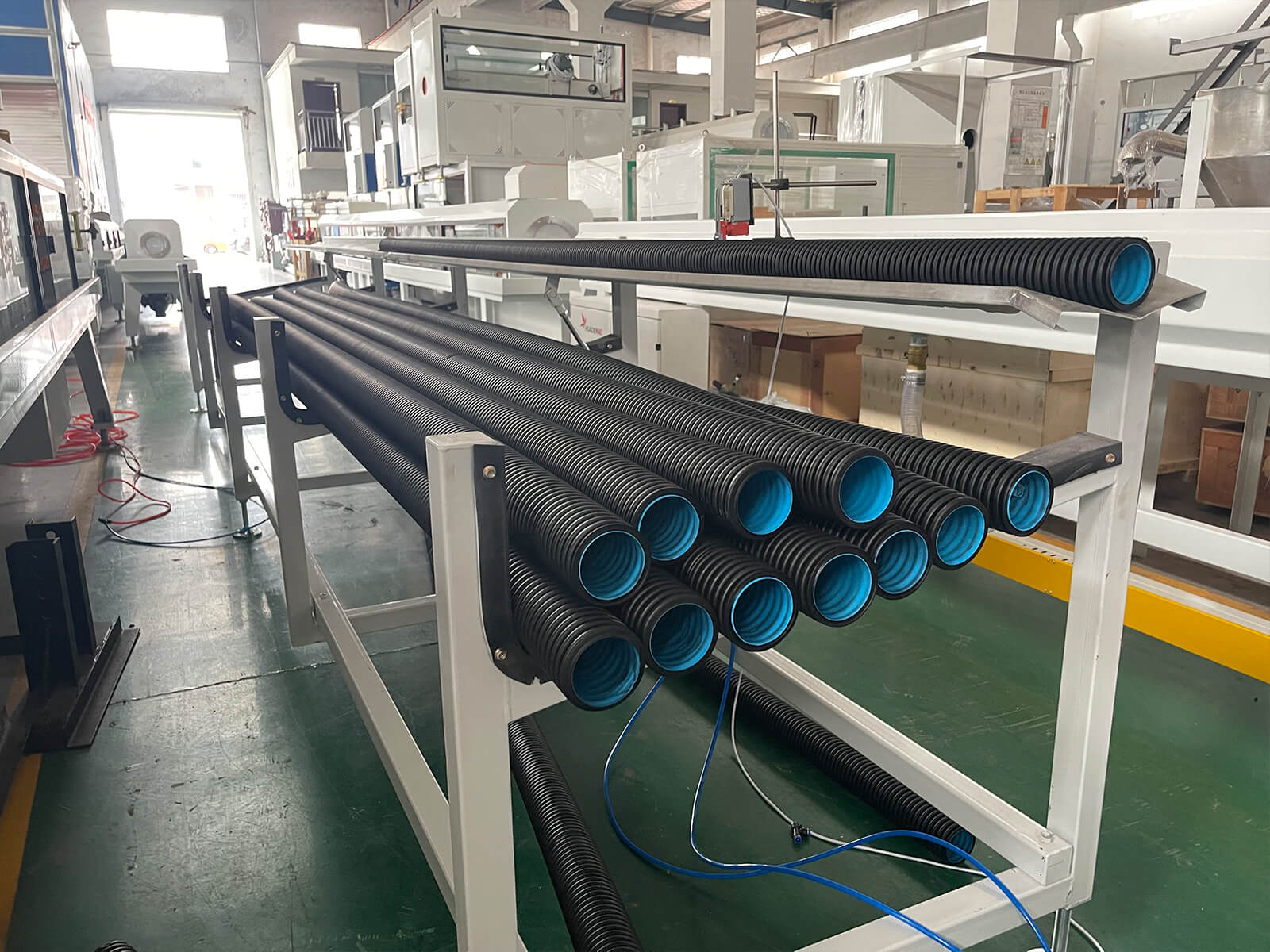

06 Stacker
Collects finished pipe sections for inspection, bundling and downstream handling.
01 Single screw extruder
Plasticizes HDPE, PP or PVC material and provides stable output for the corrugated pipe forming section.
02 Extrusion mould
Forms the melt into the double wall pipe structure before corrugation and cooling.
03 Forming machine
Uses mould blocks to shape and stabilize the corrugated outer wall during continuous production.
04 Forming blocks
Controls the corrugated profile and supports consistent pipe geometry.
05 Cutting machine
Cuts corrugated pipe to the required length after the forming section.
06 Stacker
Collects finished pipe sections for inspection, bundling and downstream handling.
Configuration highlights
Low-weight corrugated pipe structure reduces material use while maintaining ring stiffness.
Application reference: Natural gas pipelines.
Corrosion resistance and flexibility suit drainage, sewer and irrigation applications.
Application reference: Agricultural irrigation piping.
Horizontal, vertical and shuttle-type line configurations are available.
Application reference: Municipal water pipeline projects.
Processes HDPE, PP and PVC materials according to project requirements.
Application reference: Industrial fluid conveyance pipelines.
Series configuration covers inner diameter production from 63mm to 800mm.
Application reference: Automotive wiring and cable conduits.
Cutting, forming and stacking sections are matched to pipe size and production speed.
Application reference: Main sewage and infrastructure drainage.
Technical parameters
Product type HDPE double wall corrugated pipe production line
Material compatibility HDPE / PP / PVC
Series pipe range Inner diameter 63-800mm
Listed model range 32-200mm
Production speed 2-5m/min by model
Line types Horizontal type / vertical type / shuttle type
| Extruder mould | Motor | Pipe diameter | Production speed | Mould pairs | Vacuum pump |
|---|---|---|---|---|---|
| SJ65/30&SJ50/30 | 30KW&15KW | 32-50mm | 4-5m/min | 72pairs | 5.5kw |
| SJ65/33&SJ65/30 | 37KW&30KW | 50-110mm | 3-4m/min | 50pairs | 5.5kw |
| SJ65/33&SJ65/30 | 45KW&37KW | 75-160mm | 2-2.5m/min | 50pairs | 5.5kw |
| SJ75/30&SJ65/30 | 45KW&37KW | 40-200mm | 2-5m/min | 42pairs | 5.5kw*2set |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pe pipe production line used for?
HDPE Double Wall Corrugated Pipe Production Line is commonly used for natural gas pipelines, agricultural irrigation piping, municipal water pipeline.
What is included in the production line?
The line includes single screw extruder, corrugated pipe mould, forming machine, forming blocks, cutting machine, stacker.
What range and output can be configured?
Reference configuration covers 63-800mm with 2-5m/min by model output. Final layout is matched to pipe material, diameter and factory requirements.
