PVC Plastic Powder Mixer
PVC plastic powder mixer for raw material preparation before extrusion, available in vertical SRL-Z and horizontal SRL-W configurations with S.S304 polished contact surfaces, inverter speed control and leak-resistant stainless discharge.
100/200-800*2/4000 L Diameter range
175-2640 kg/h Max Output
Overview
Application range
PVC powder mixing, Raw material preparation, PVC additives and stabilizer blending, Compounding before extrusion
Range and output
100/200-800*2/4000 L diameter range with 175-2640 kg/h output reference.
Core configuration
Screw loader, High-speed mixer, Cooling mixer, Horizontal mixer option
Machine video
Watch machine video
Applications
PVC powder mixingRaw material preparationPVC additives and stabilizer blendingCompounding before extrusionPipe and profile formulation preparation
Line composition

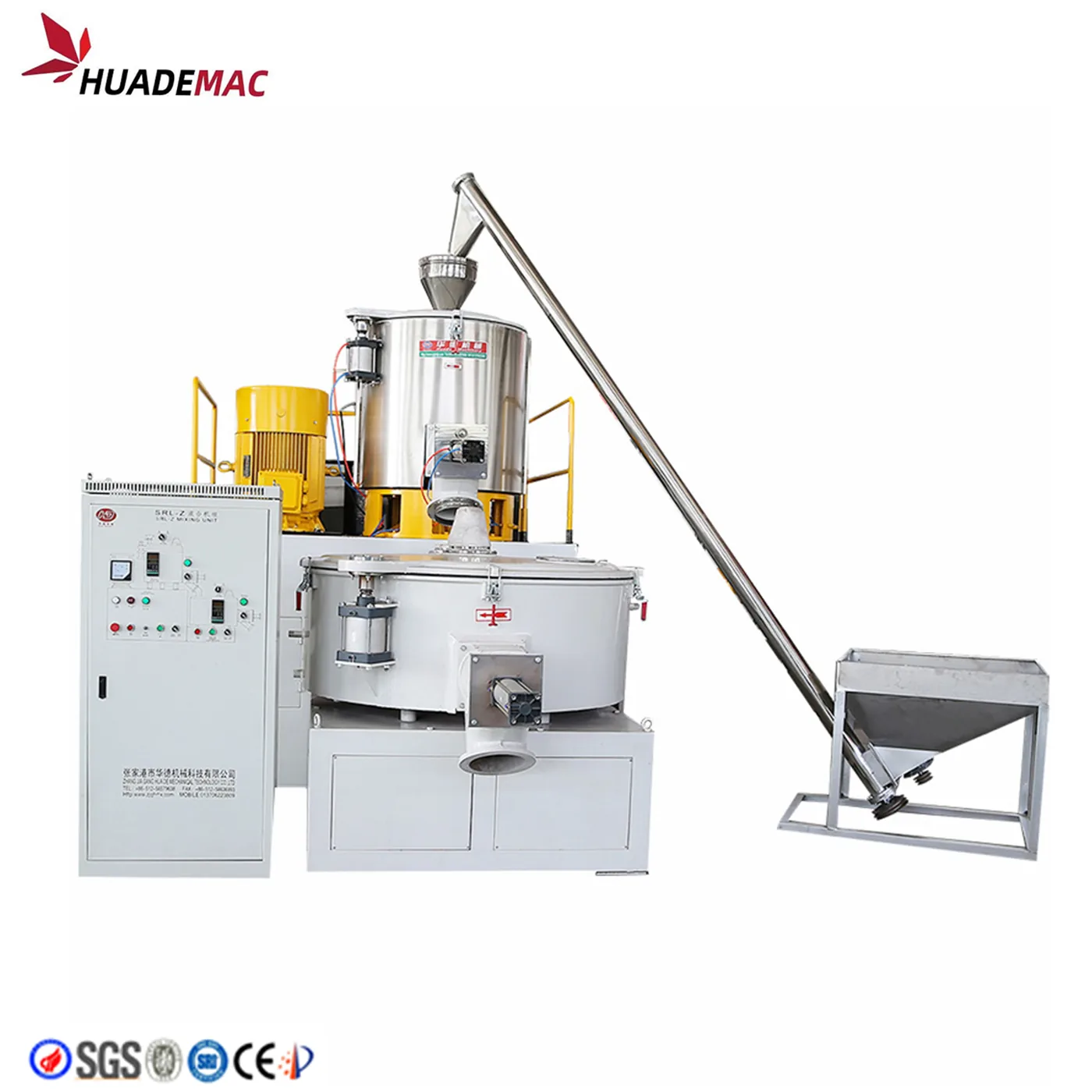

01 High-speed mixer unit
Configured for PVC powder hot mixing, cooling and material transfer before extrusion.

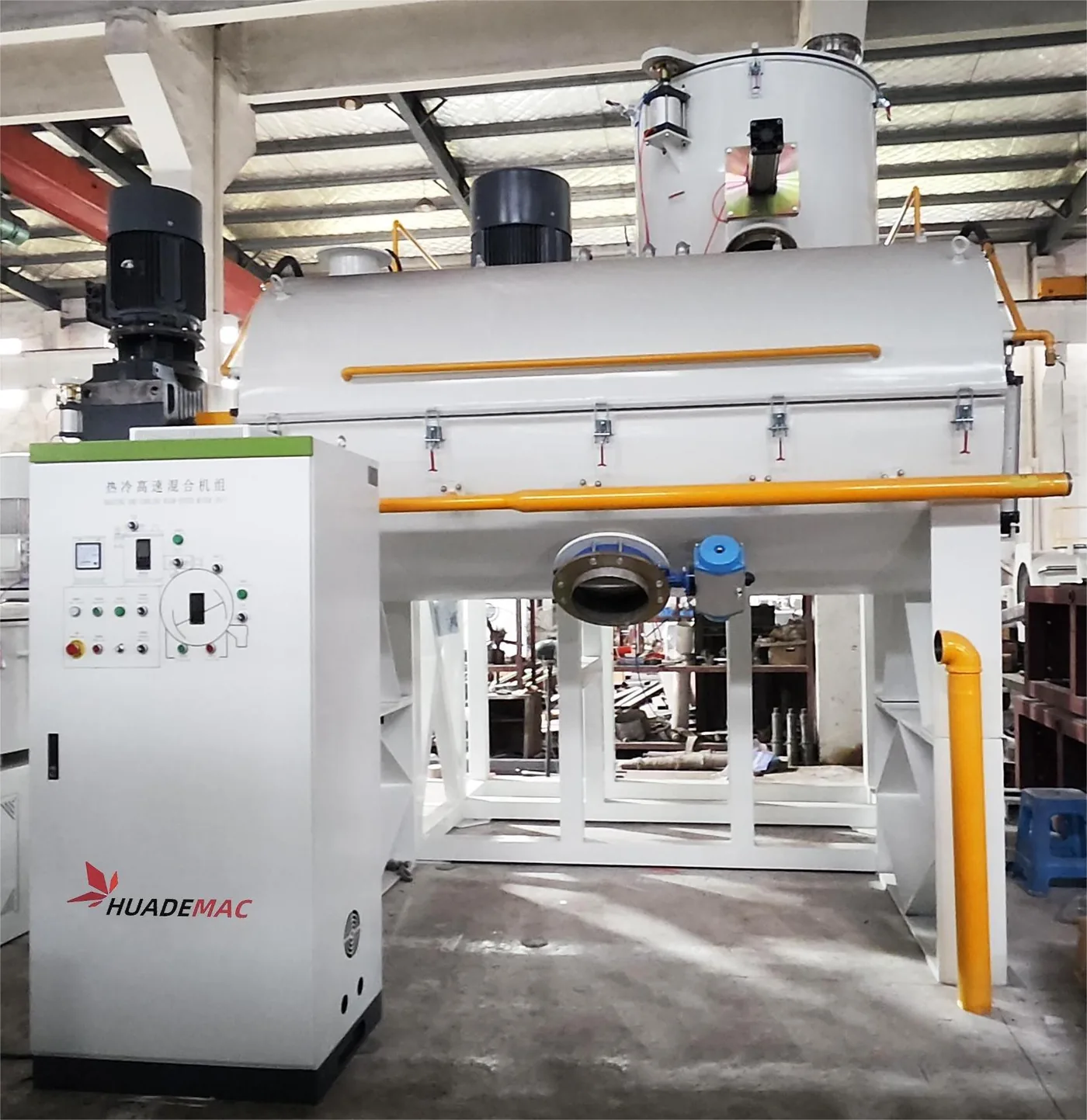

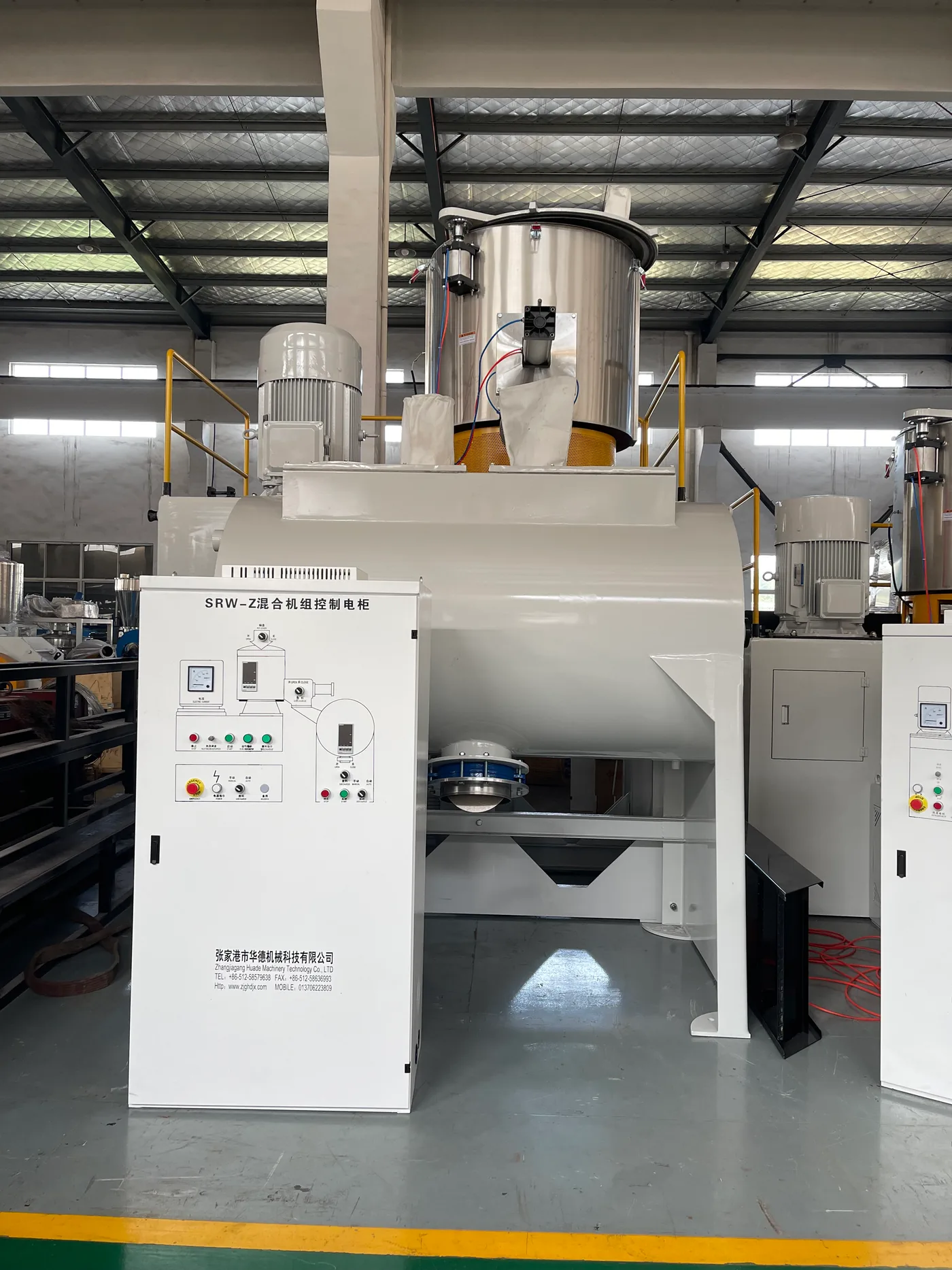

02 Horizontal mixer option
SRL-W horizontal layout supports higher-volume batch preparation.

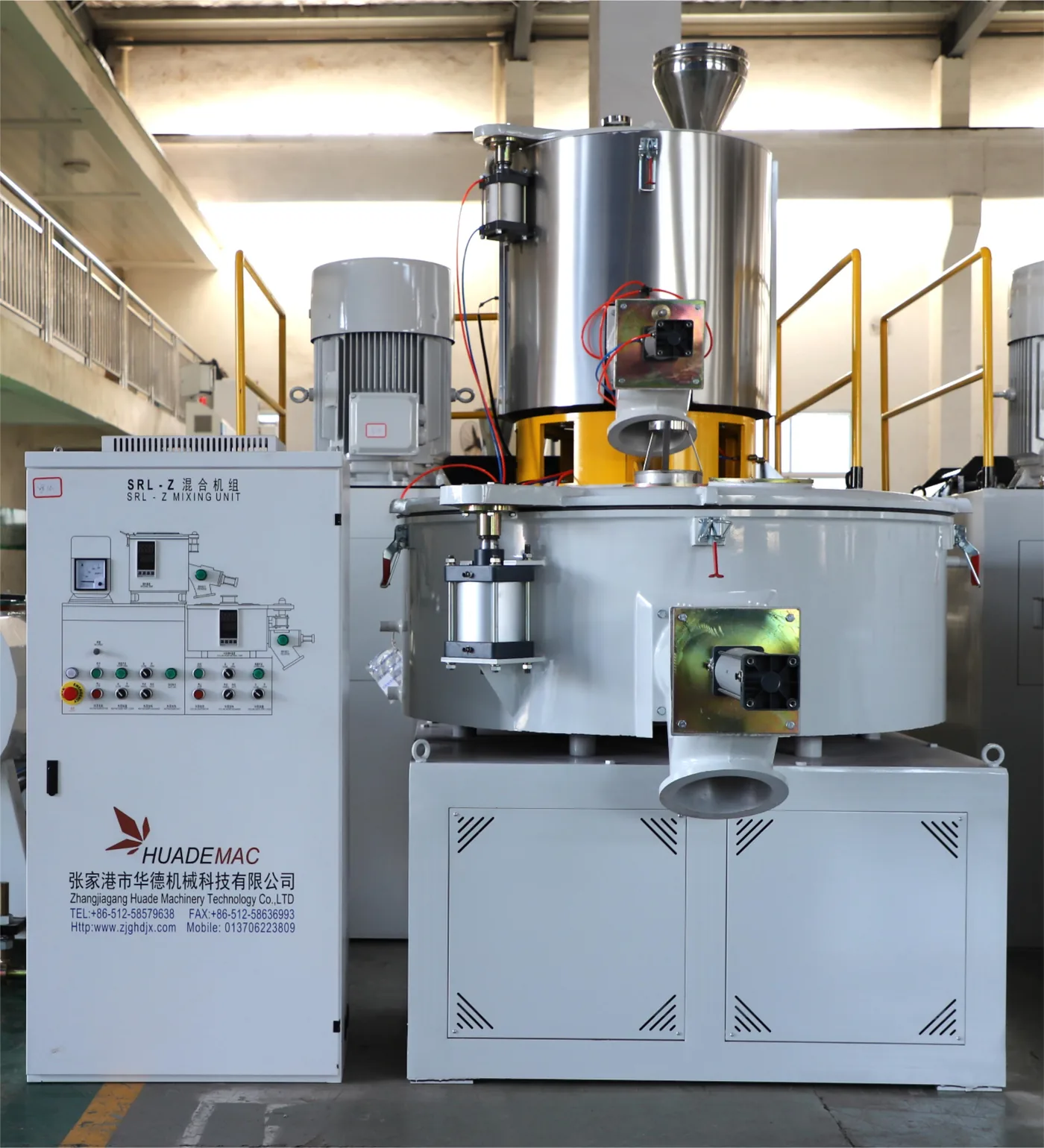

03 Vertical mixer option
SRL-Z vertical unit uses polished stainless contact surfaces for PVC powder blending.

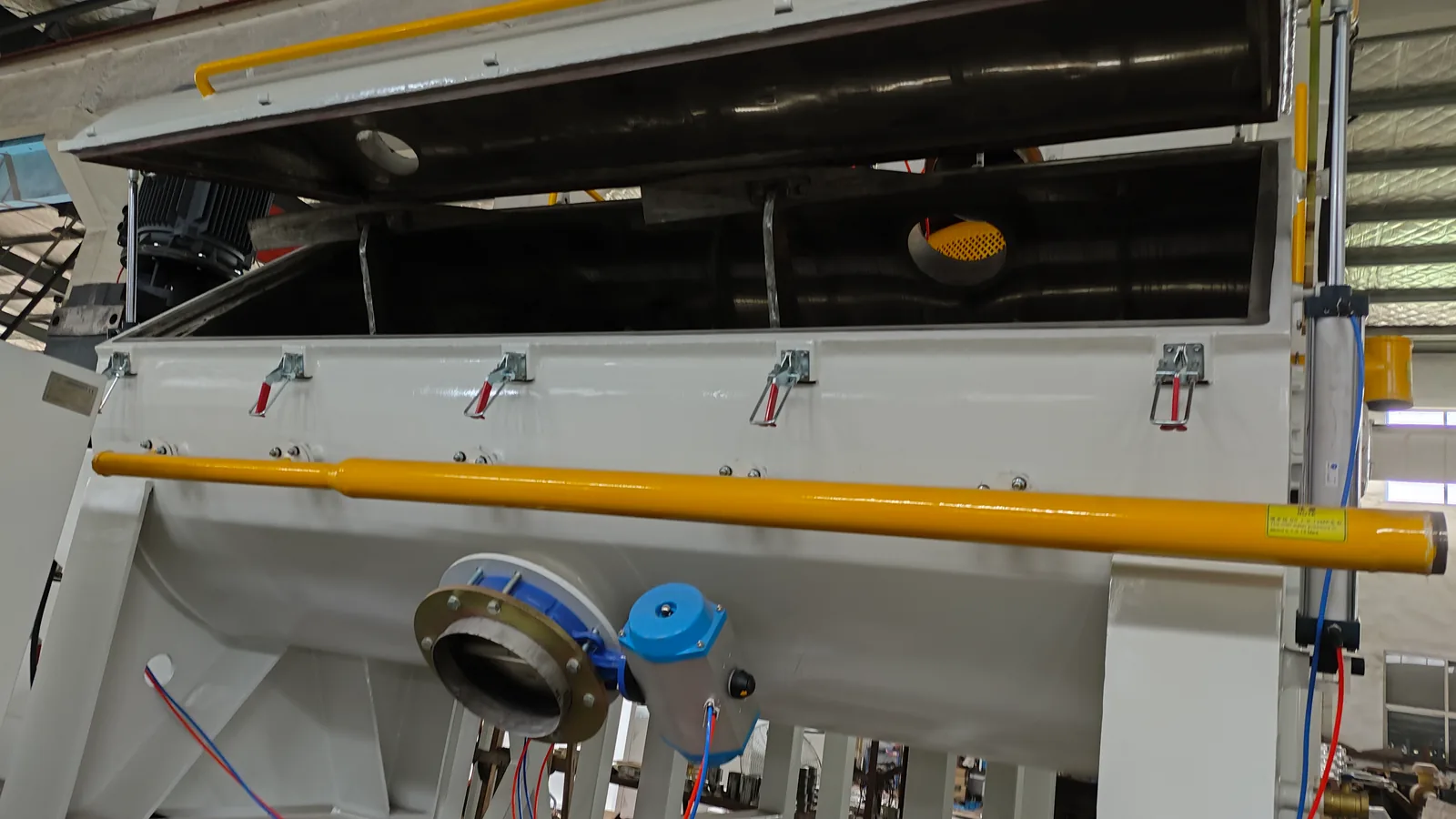

04 Mixing chamber
Open chamber view for inspecting blending structure and discharge arrangement.
Configuration highlights
Vertical SRL-Z and horizontal SRL-W mixer configurations are available.
Application reference: PVC powder mixing.

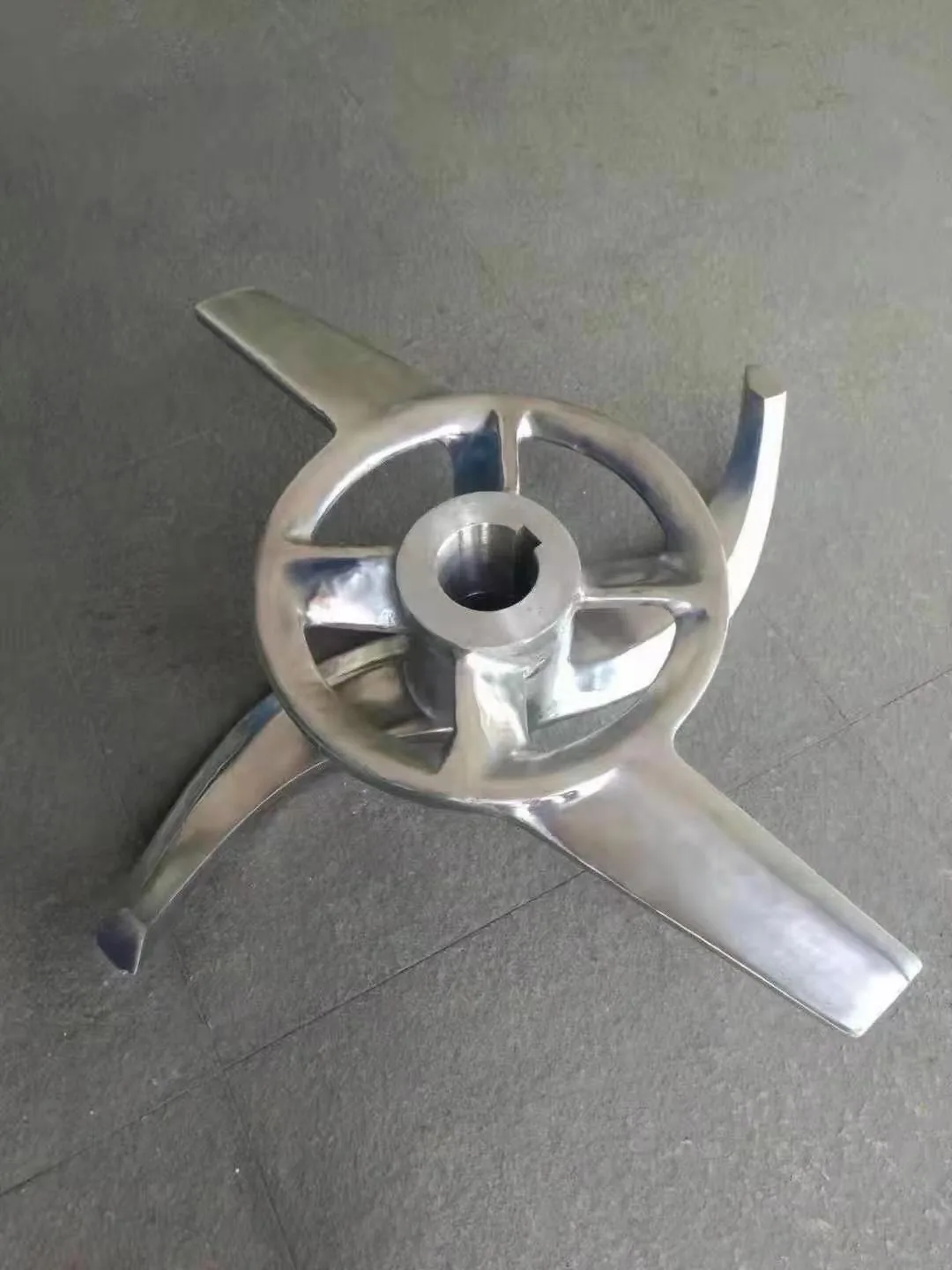

Mixer bottom and inner pot use polished S.S304 stainless steel.
Application reference: Raw material preparation.
Inverter-controlled motor start and speed regulation reduce electric network impact.
Application reference: PVC additives and stabilizer blending.
6mm stainless discharge body and fitted plug design help prevent leakage.
Application reference: Compounding before extrusion.
Siemens BEIDE motor, TTO oil sealing and NSK or SKF bearings can be configured.
Application reference: Pipe and profile formulation preparation.
8-12 minute reference mixing time across the Word specification models.
Matched according to material, output and project configuration.
Technical parameters
Product type PVC Plastic Powder Mixer
Application PVC powder mixing / Raw material preparation
Model range SRL-Z vertical / SRL-W horizontal
Total volume 100/200-800*2/4000 L
Output 175-2640 kg/h
Mixing time 8-12 minutes
Contact material Polished S.S304 stainless steel
| Type | Model | Total volume(L) | Effective capacity(L) | Stirring speed(Rpm/Min) | Mixing time(minute) | Motor power(Kw) | Capacity (Kg/h) |
|---|---|---|---|---|---|---|---|
| Vertical | SRL-Z 100/200 | 100/200 | 70/130 | 650/1300/200 | 8-12 | 12/22/7.5 | 175 |
| Vertical | SRL-Z 200/500 | 200/500 | 140/320 | 475/950/130 | 8-12 | 30/45/7.5 | 350 |
| Vertical | SRL-Z 300/600 | 300/600 | 225/380 | 475/950/100 | 8-12 | 40/55/11 | 500 |
| Vertical | SRL-Z 500/1250 | 500/1250 | 330/750 | 430/860/70 | 8-12 | 55/75/15 | 850 |
| Vertical | SRL-Z 800/1600 | 800/1600 | 600/1050 | 370/740/50 | 8-12 | 83/110/22 | 1320 |
| Horizontal | SRL-W 300/1000 | 300/1000 | 225/700 | 475/950/80 | 8-12 | 40/55/7.5 | 500 |
| Horizontal | SRL-W 500/1500 | 500/1500 | 330/1000 | 430/860/70 | 8-12 | 55/75/15 | 850 |
| Horizontal | SRL-W 800/2000 | 800/2000 | 600/1500 | 370/740/60 | 8-12 | 83/110/22 | 1320 |
| Horizontal | SRL-W 1000/3000 | 1000/3000 | 700/2100 | 300/600/50 | 8-12 | 110/160/30 | 1650 |
| Horizontal | SRL-W 800*2/4000 | 800*2/4000 | 1200/2700 | 350/700/65 | 8-12 | 83/110*2/30 | 2640 |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Request the PVC powder mixer specification with SRL-Z vertical and SRL-W horizontal model tables, total volume, effective capacity, stirring speed, 8-12 minute mixing time and 175-2640 kg/h reference capacity.
Request Spec Sheet Project configuration
Send formulation, batch volume, required hourly output, vertical or horizontal layout preference, feeding and discharge method, voltage and workshop space. HUADE can match the mixer size and control configuration before quotation.
Get Configuration FAQ
Should I choose a vertical SRL-Z mixer or horizontal SRL-W mixer?
SRL-Z vertical units are common for compact PVC hot/cooling mixer layouts, while SRL-W horizontal units are used for larger batch volumes and higher capacity requirements.
What PVC mixing capacity range is available?
The listed configurations cover 175-1320kg/h for vertical SRL-Z units and 500-2640kg/h for horizontal SRL-W units, depending on total volume and motor power.
Which parts contact the PVC powder?
The bottom and inner pot use polished S.S304 contact surfaces, and the discharge body uses stainless construction to reduce material buildup and leakage during long operation.
