PVC PE Pipe Profile Crusher
PVC PE pipe profile crusher for crushing plastic pipes, profiles and medium-hardness plastic materials. It uses heavy-duty bearings, a large inertial wheel, high-speed cutters, sound-insulated hopper and interlock protection, with SWP400-SWP800 models covering 180-800kg/h output.
SWP400-SWP800 Diameter range
180-800kg/h Max Output
Overview
Application range
PVC electrical conduit, Water supply pipe, Drainage pipe, Plastic profile scrap
Range and output
SWP400-SWP800 diameter range with 180-800kg/h output reference.
Core configuration
Feeding hopper, Crusher chamber, Rotor and blades, Screen
Machine video
Watch machine video
Applications
PVC electrical conduitWater supply pipeDrainage pipePlastic profile scrapPipe and profile recyclingConstruction pipe production
Line composition

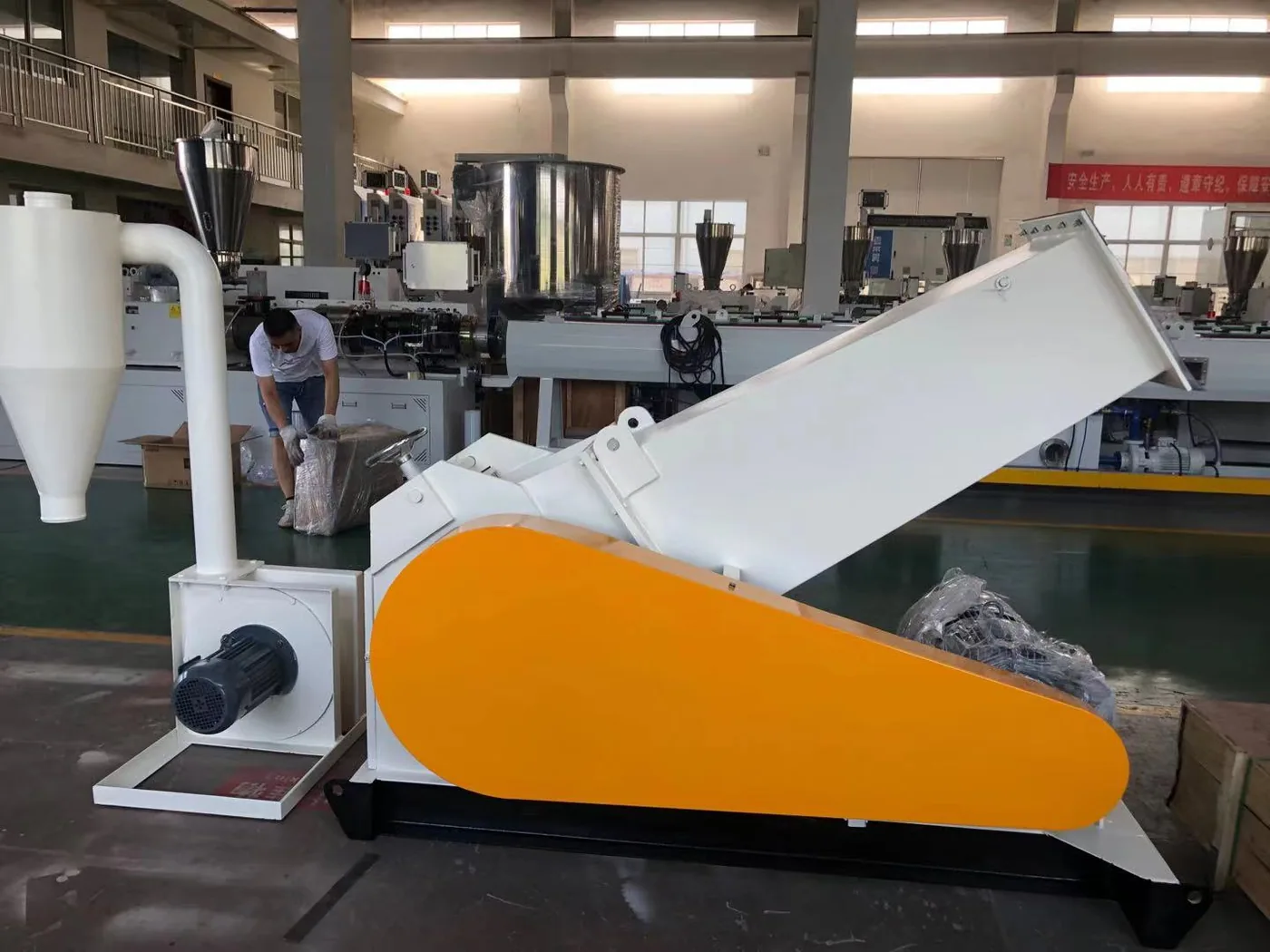

01 Feeding hopper
Feeds plastic pipe, profile scrap and offcuts into the crushing chamber.

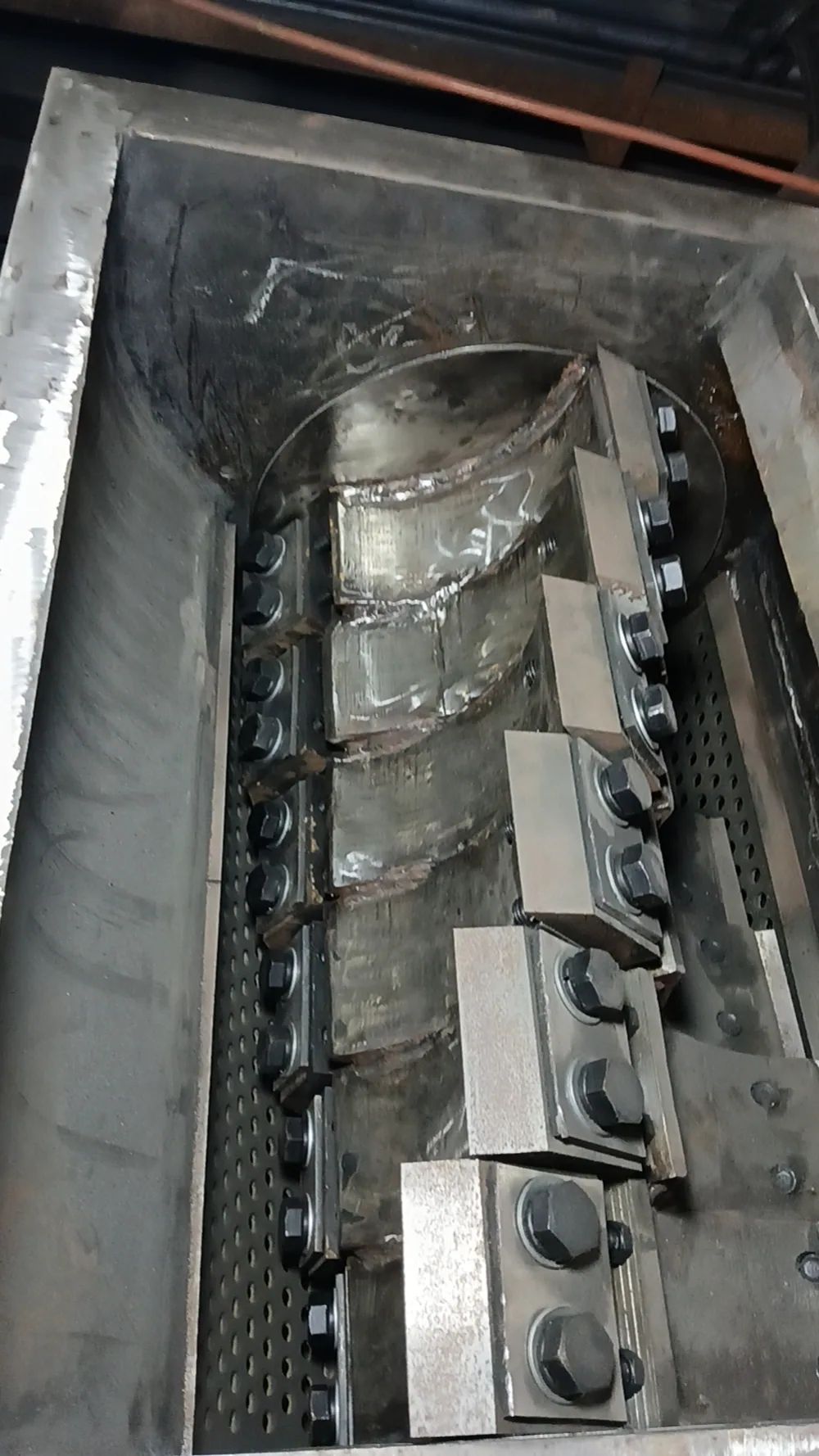

02 Rotor blade chamber
Moving and fixed blades cut pipe and profile scrap into smaller regrind.

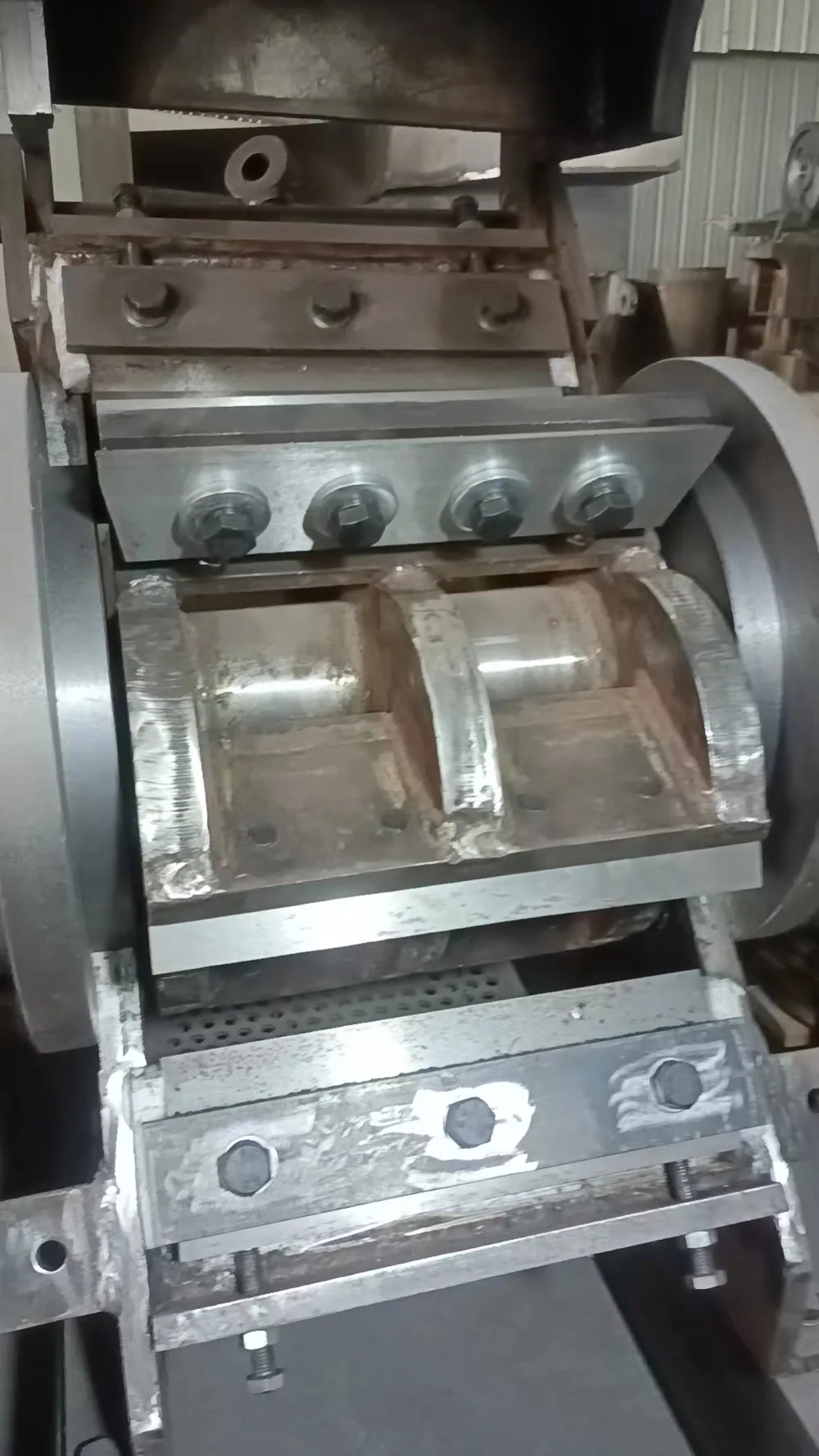

03 PVC blade close-up
Shows the cutter layout used for rigid PVC and profile crushing.

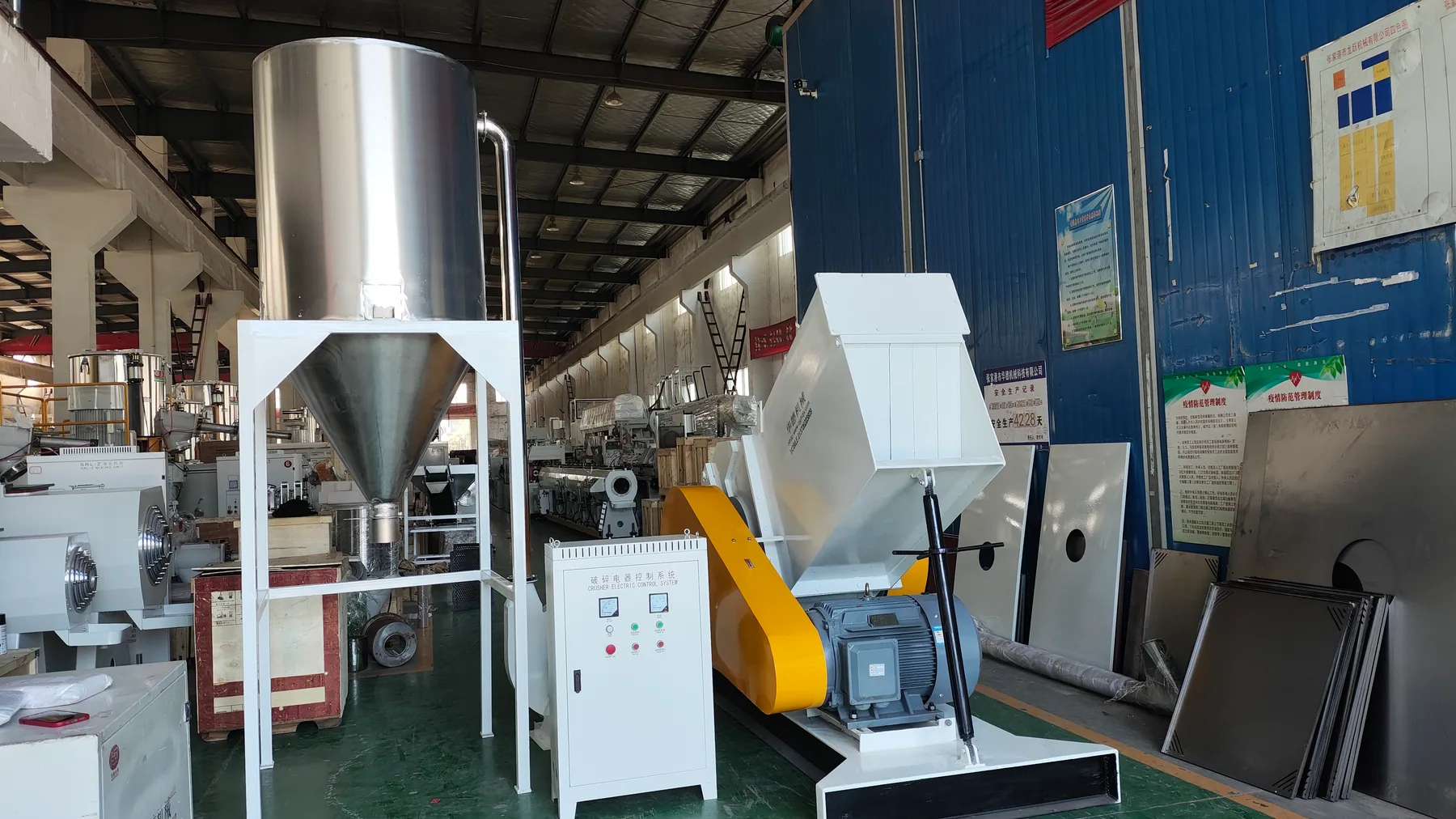

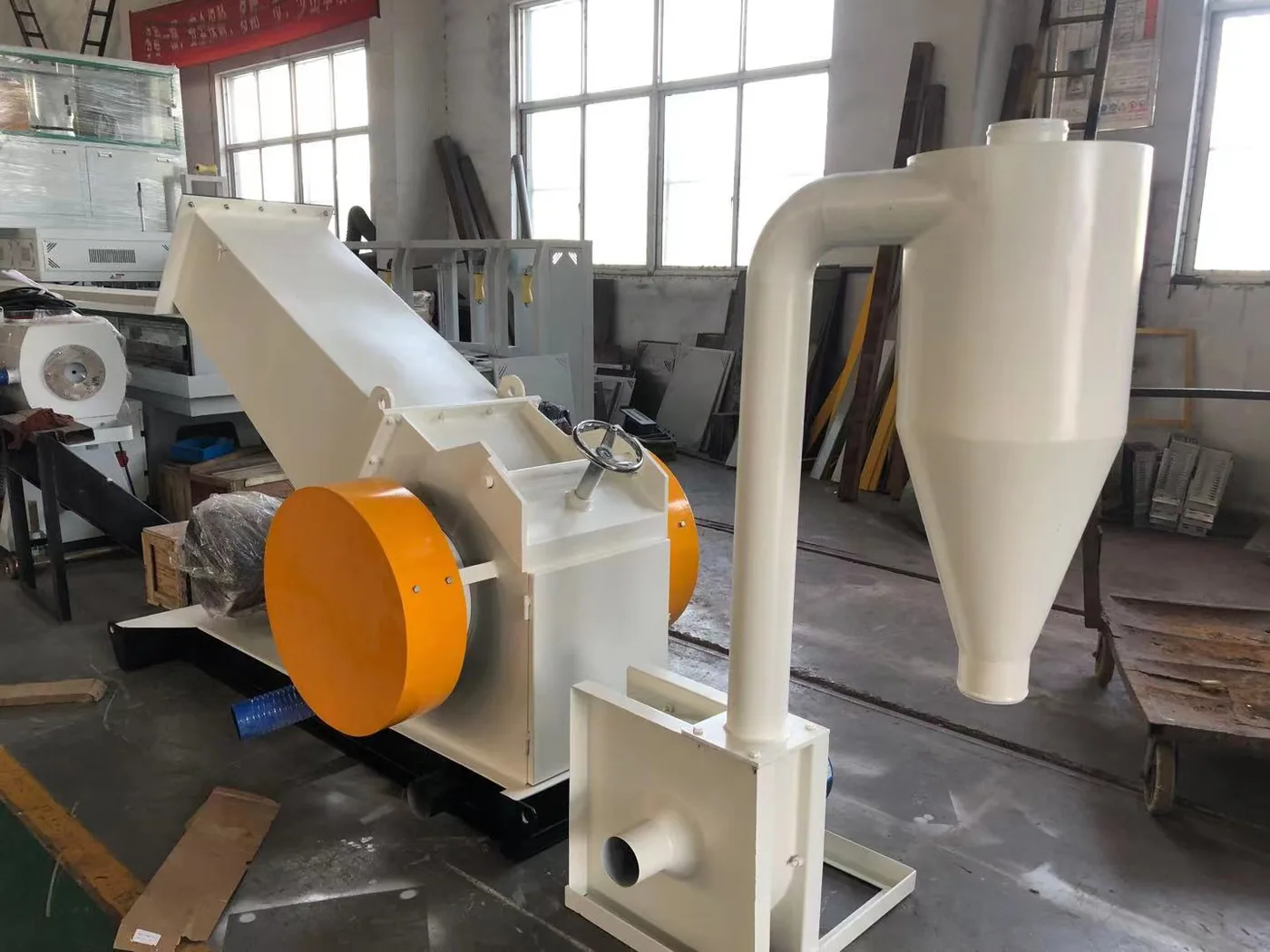

04 Cyclone collection
Collects and transfers crushed material after the discharge stage.
Configuration highlights
Heavy-duty bearings and large inertial wheel provide strong crushing ability.
Application reference: PVC electrical conduit.
Easy-disassembly design supports fast cleaning and routine maintenance.
Application reference: Water supply pipe.
Two-layer sound-insulated hopper helps reduce crusher operating noise.
Application reference: Drainage pipe.
High-speed quality cutter has a sharp edge and durable operation performance.
Application reference: Plastic profile scrap.
Interlock power protection improves safety during access and maintenance.
Application reference: Pipe and profile recycling.
Adjustable screen or grate gap helps control final regrind size.
Application reference: Construction pipe production.
Technical parameters
Product type PVC PE Pipe Profile Crusher
Application PVC / PE pipe and profile crushing
Model range SWP400-SWP800
Output 180-800kg/h
Motor power 18.5-55kW
| Model | Motor Power(kw) | Output(kg/h) | Moving Blade(pcs) | Rotating Speed(rpm) | Fixing Blade(pcs) |
|---|---|---|---|---|---|
| SWP400 | 18.5 | 180-250 | 5 | 650 | 2 |
| SWP500 | 22 | 250-350 | 5 | 540 | 2 |
| SWP600 | 37 | 400-500 | 5 | 500 | 2 |
| SWP800 | 55 | 600-800 | 10 | 480 | 4 |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What plastic materials is this crusher mainly used for?
It is mainly used for PVC and PE pipe, profile scrap, conduit, drainage pipe and rejected extrusion pieces that need to be crushed before reuse or further grinding.
How do I choose between SWP400, SWP500, SWP600 and SWP800?
Choose by target output and scrap size: the range covers 18.5-55kW motor power, 180-800kg/h output, 5-10 moving blades and 480-650rpm rotation speed.
Which safety and maintenance features matter on this crusher?
The important features are heavy-duty bearings, two-layer sound-insulated hopper, easy-disassembly chamber, sharp durable cutters and interlock power protection.
