Automatic PE PPR pipe coiling winder for continuous winding of PE, PP, PPR, PVC and hose pipe from 16mm to 110mm. The.
Auxiliary Machine

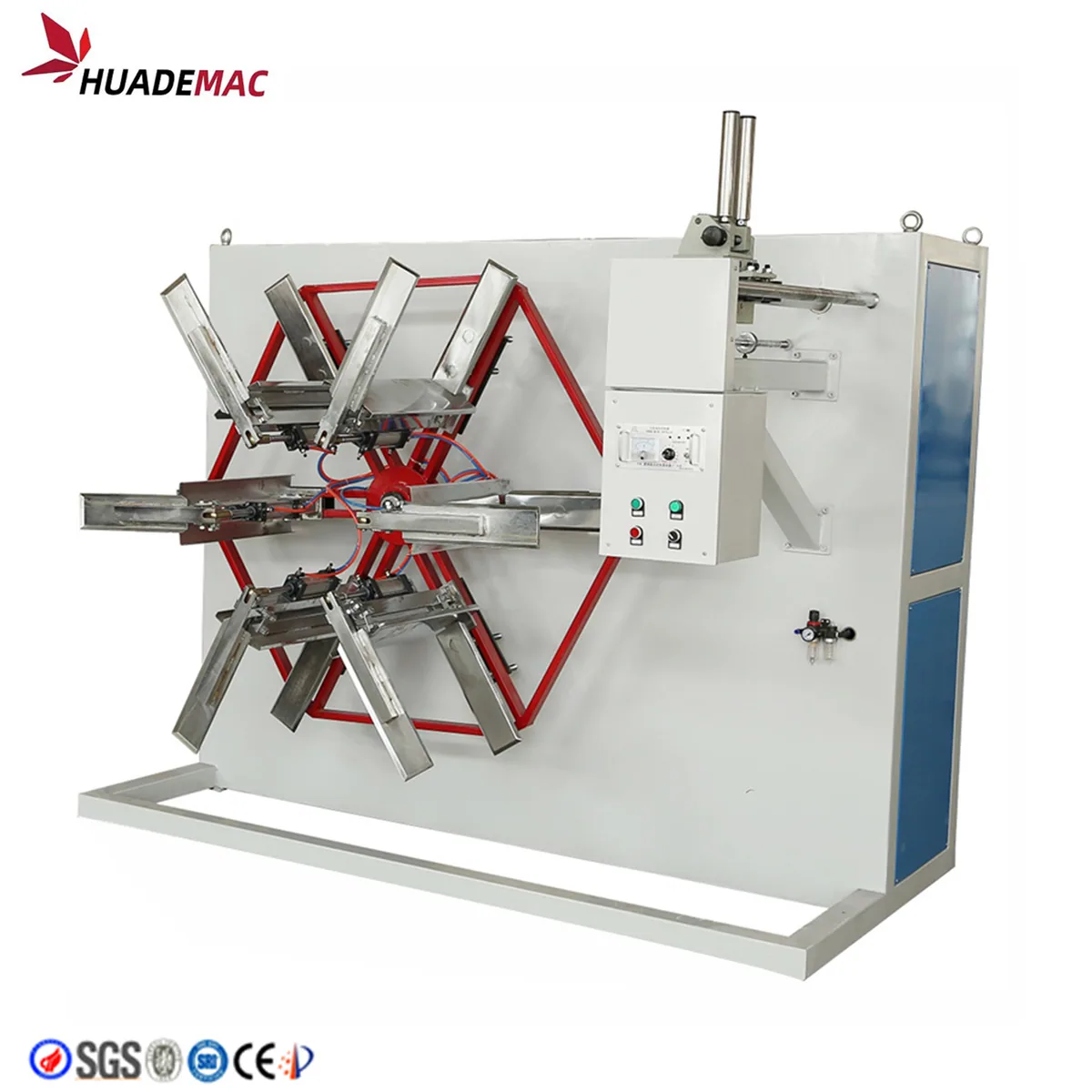

PE PPR Pipe Coiling Winder
Automatic PE PPR pipe coiling winder for continuous winding of PE, PP, PPR, PVC and hose pipe from 16mm to 110mm. The machine uses torque motor winding, adjustable speed control and pipe arranging equipment to keep the coil stable and even.
16-110mm Diameter range
0.5-20m/min Max Output
Overview
Application range
PE pipe coiling, PPR pipe coiling, PP PVC hose winding, Small diameter pipe packaging
Range and output
16-110mm diameter range with 0.5-20m/min output reference.
Core configuration
Machine frame, Winding disc, Torque motor drive, Pneumatic plate control
Applications
PE pipe coilingPPR pipe coilingPP PVC hose windingSmall diameter pipe packaging
Line composition

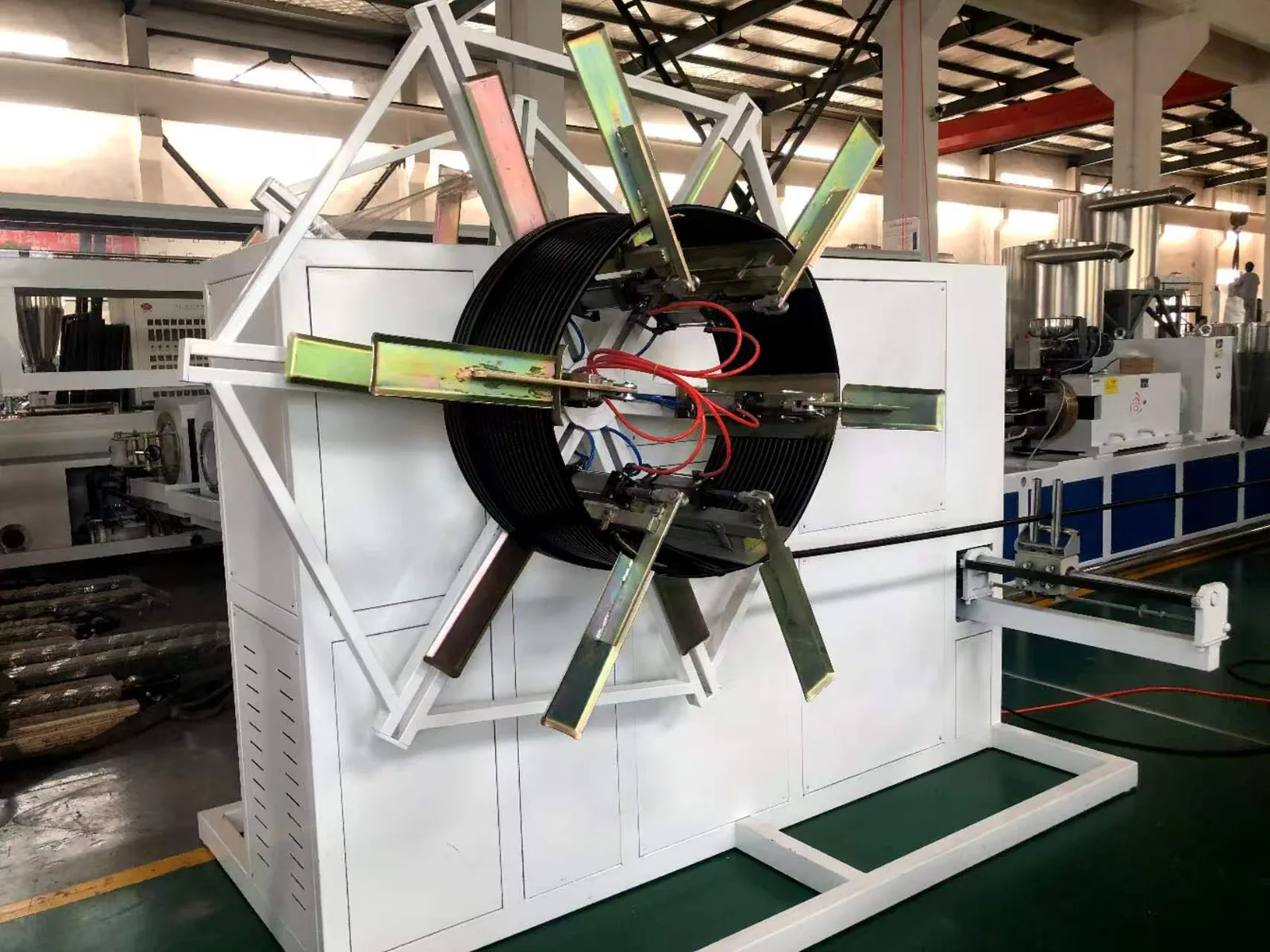

01 Winding disc and frame
Holds the pipe coil and supports stable take-up during winding.

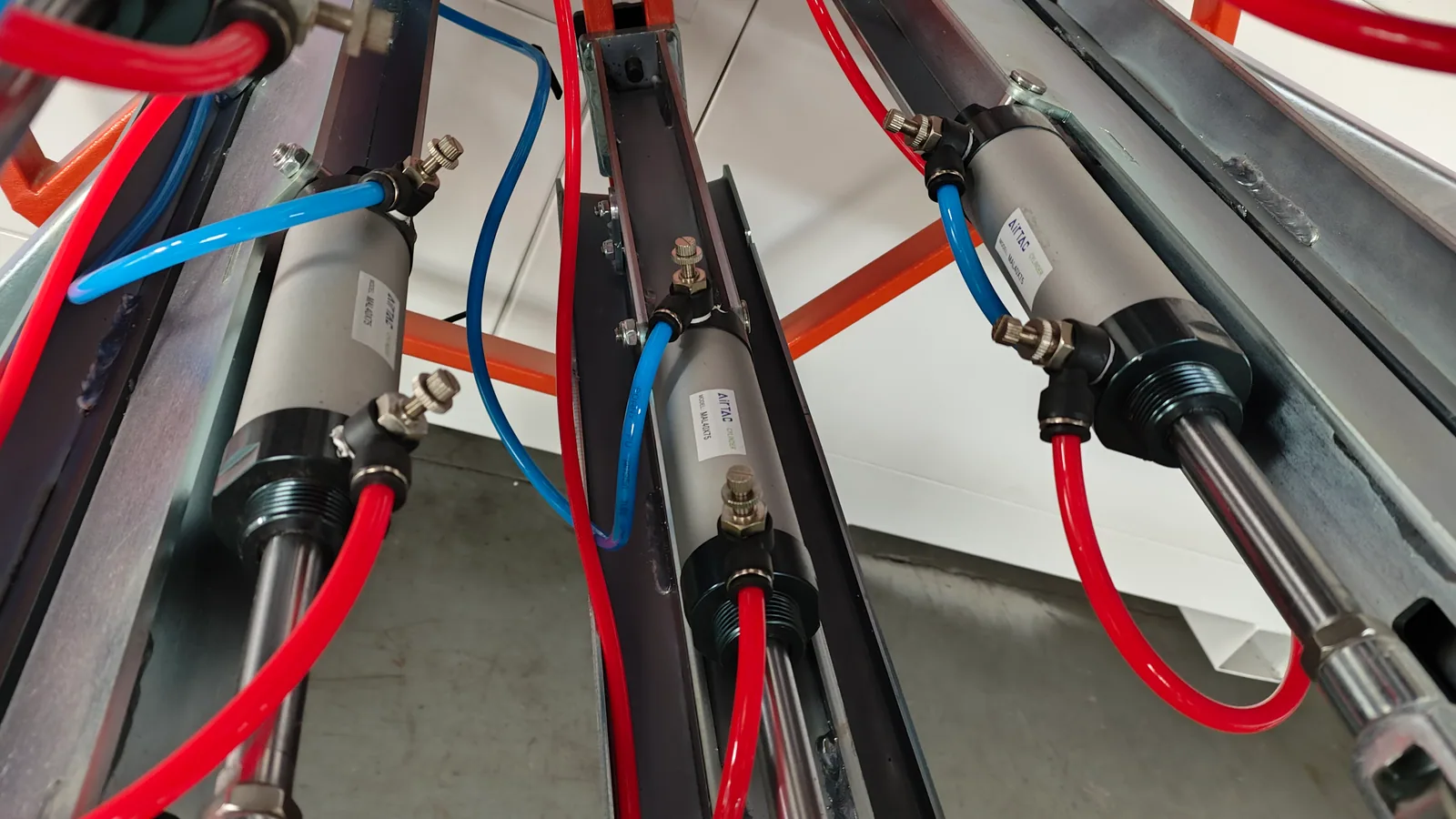

02 Pneumatic control detail
Pneumatic components control plate movement and machine actions.

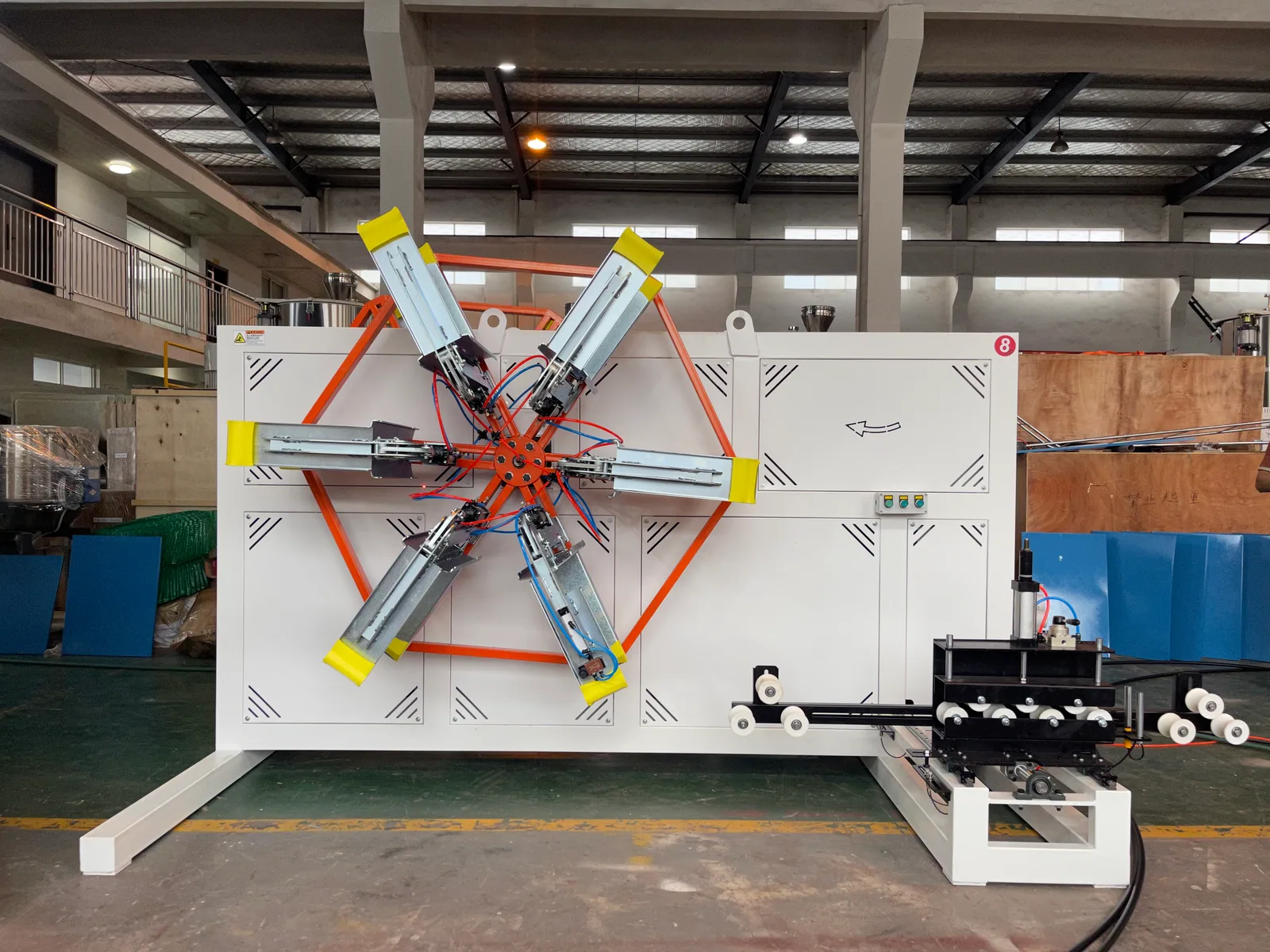

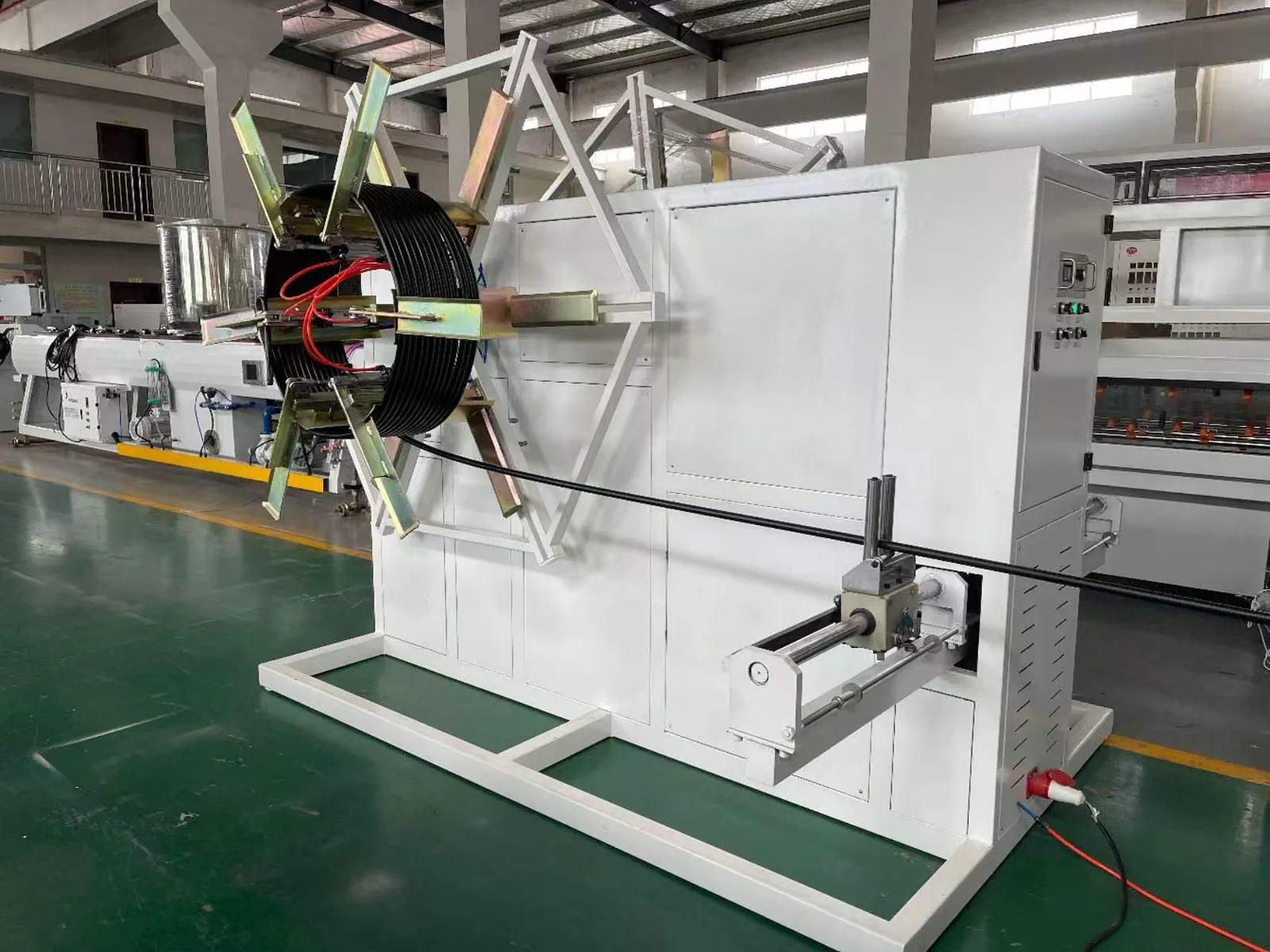

03 Traverse guide arm
Guides pipe across the winding disc to form even coils.

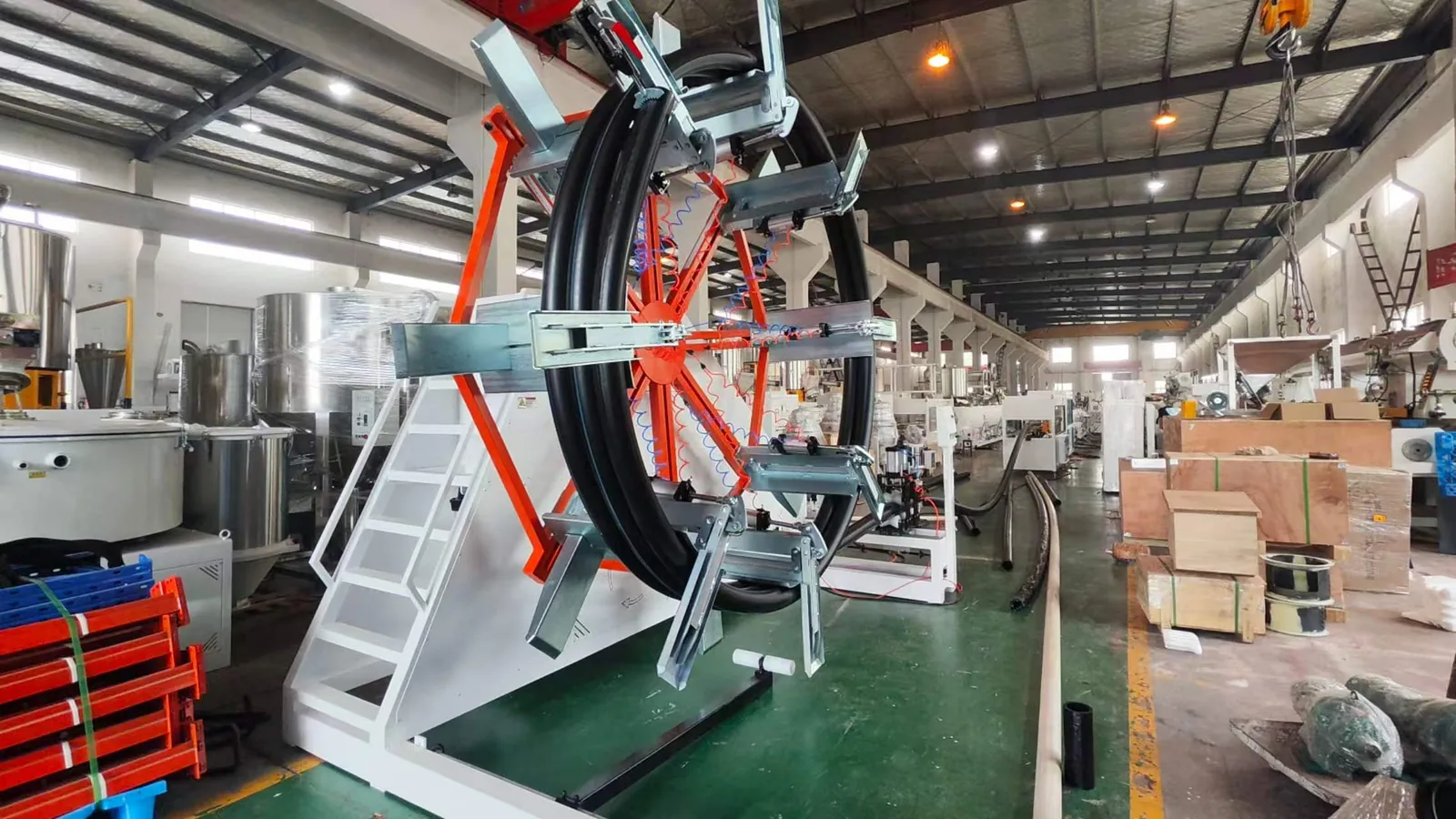

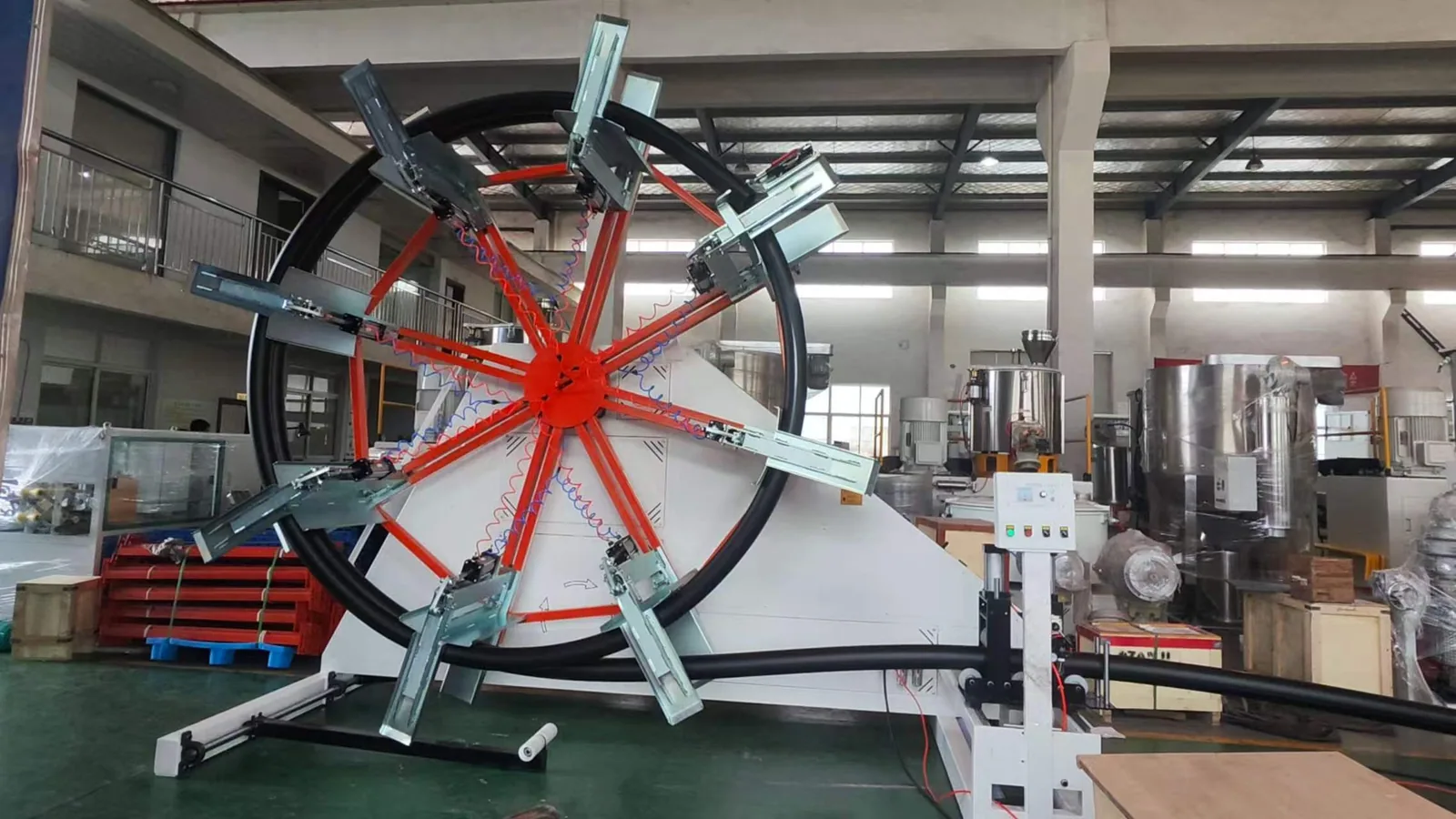

04 Finished pipe coil
Shows the finished coil formed on the winder disc.
Configuration highlights
Automatic winding with adjustable winding speed and winding method.
Application reference: PE pipe coiling.
Torque motor winding for stable coil tension during pipe take-up.
Application reference: PPR pipe coiling.
Pneumatic plate control supports reliable disc movement and operation.
Application reference: PP PVC hose winding.
Pipe arranging equipment helps produce neat and even coils.
Application reference: Small diameter pipe packaging.
Adjustable chute design allows the coil diameter to be tuned by project.
Matched according to material, output and project configuration.

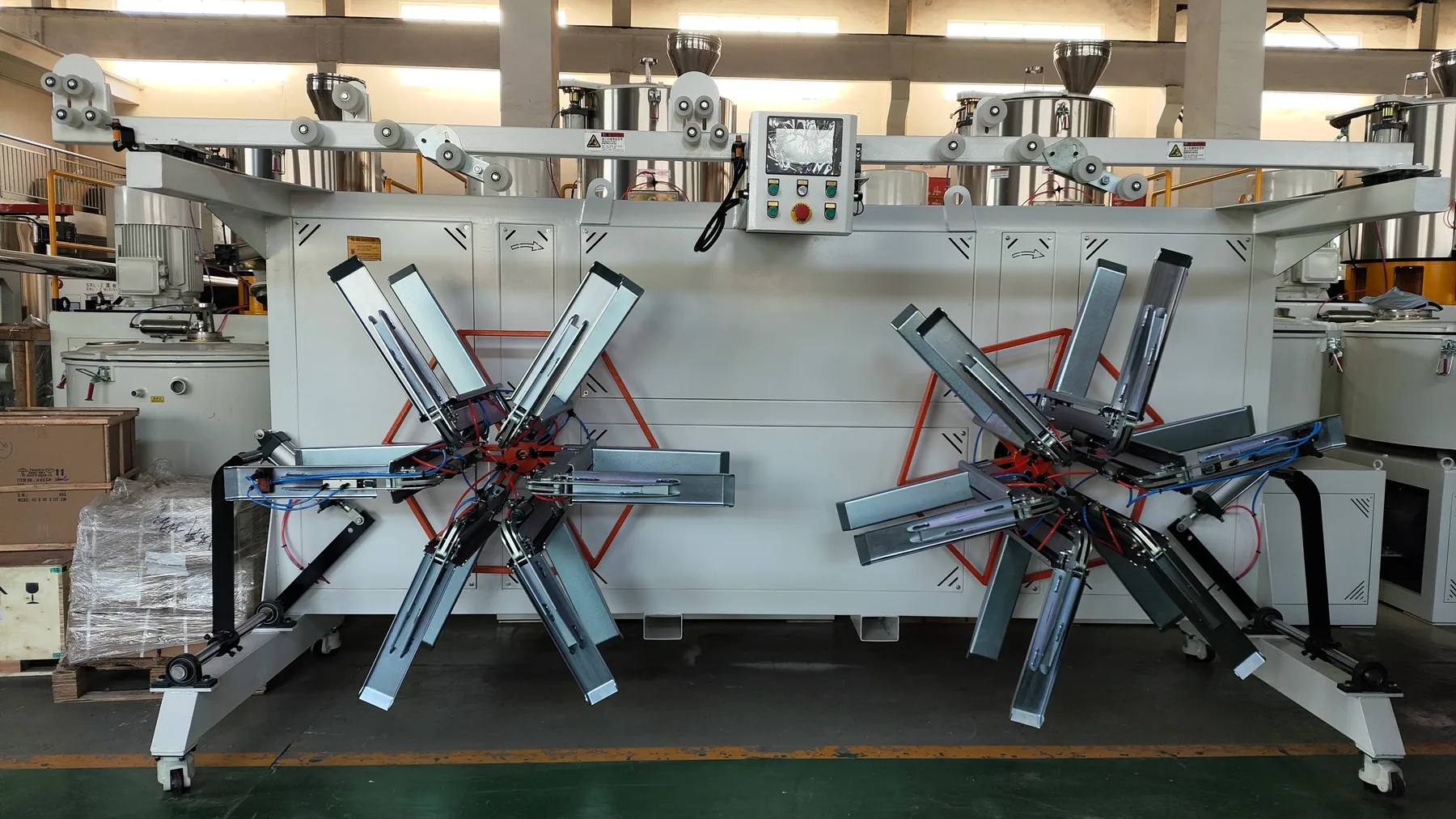

Single-disc, double-disc and custom layouts are available by request.
Matched according to material, output and project configuration.
Technical parameters
Product type Automatic pipe coiling winder
Applicable pipe PE / PP / PPR / PVC / hose pipe
Pipe OD 16-110mm
Winding speed 0.5-20m/min
| Model | Pipe OD (mm) | Position | Moment motor | Winding speed |
|---|---|---|---|---|
| SPS-40 | 16-40 | 2 | 10N.M | 1-20m/min |
| SPS-63 | 16-63 | 2 | 25N.M | 1-15m/min |
| SPS-110 | 16-110 | 1/3 | 40N.M | 0.5-5m/min |
