PE PP PVC Plastic Pulverizer Machine

Advanced PE PP PVC plastic pulverizer machine with water cycle and wind cooling for heat-sensitive materials. Features abrasion-resistant steel blades, dust-free sealed milling, automatic feeding, and easy maintenance. Ideal for efficient and uniform plastic grinding with adjustable particle size from 10-120 mesh.

Get Quote WhatsApp
10-120 mesh powder Diameter range
80-800 kg/h Max Output
200+ Customers 40+ Countries CE & ISO Certified
PE PP PVC Plastic Pulverizer Machine

Overview

Matched line setup

Advanced PE PP PVC plastic pulverizer machine with water cycle and wind cooling for heat-sensitive materials. Features.

Application range

PVC powder grinding, PP PE pulverizing, Plastic recycling powder preparation, Profile and pipe scrap regrinding

Range and output

10-120 mesh powder diameter range with 80-800 kg/h output reference.

Core configuration

Automatic feeding system, Grinding chamber, Main motor and drive, Water and wind cooling system

Machine video

Watch machine video

Applications

PVC powder grindingPP PE pulverizingPlastic recycling powder preparationProfile and pipe scrap regrindingCompounding material preparationHeat-sensitive plastic processing

Line composition

Complete PE PP PVC plastic pulverizer system with cyclone and dust collection
01 Complete pulverizer system

Integrated milling, conveying, cyclone separation, dust collection and control system.

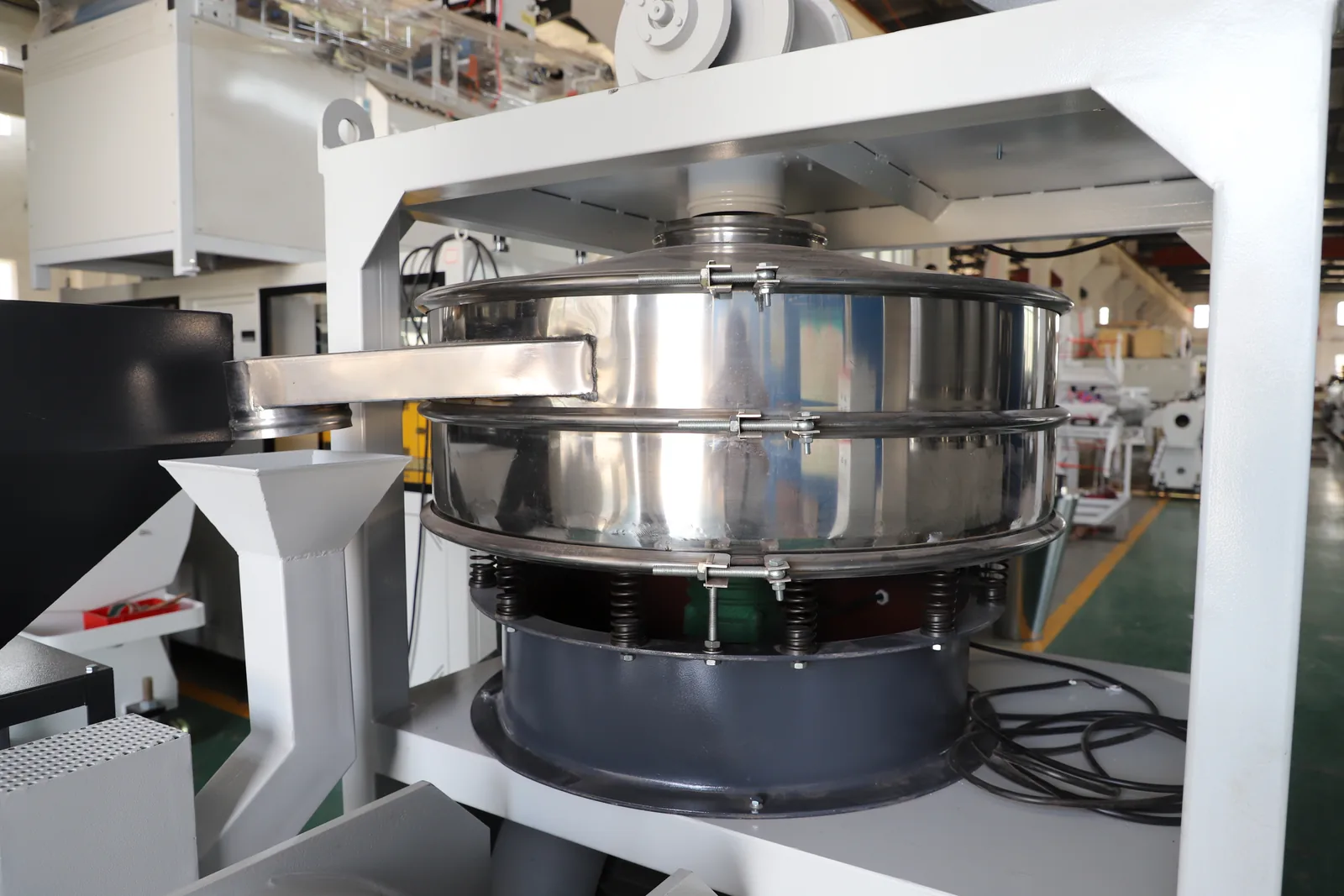

Stainless grinding chamber of PE PP PVC plastic pulverizer machine
02 Grinding chamber

Sealed chamber supports powder grinding while reducing dust leakage.

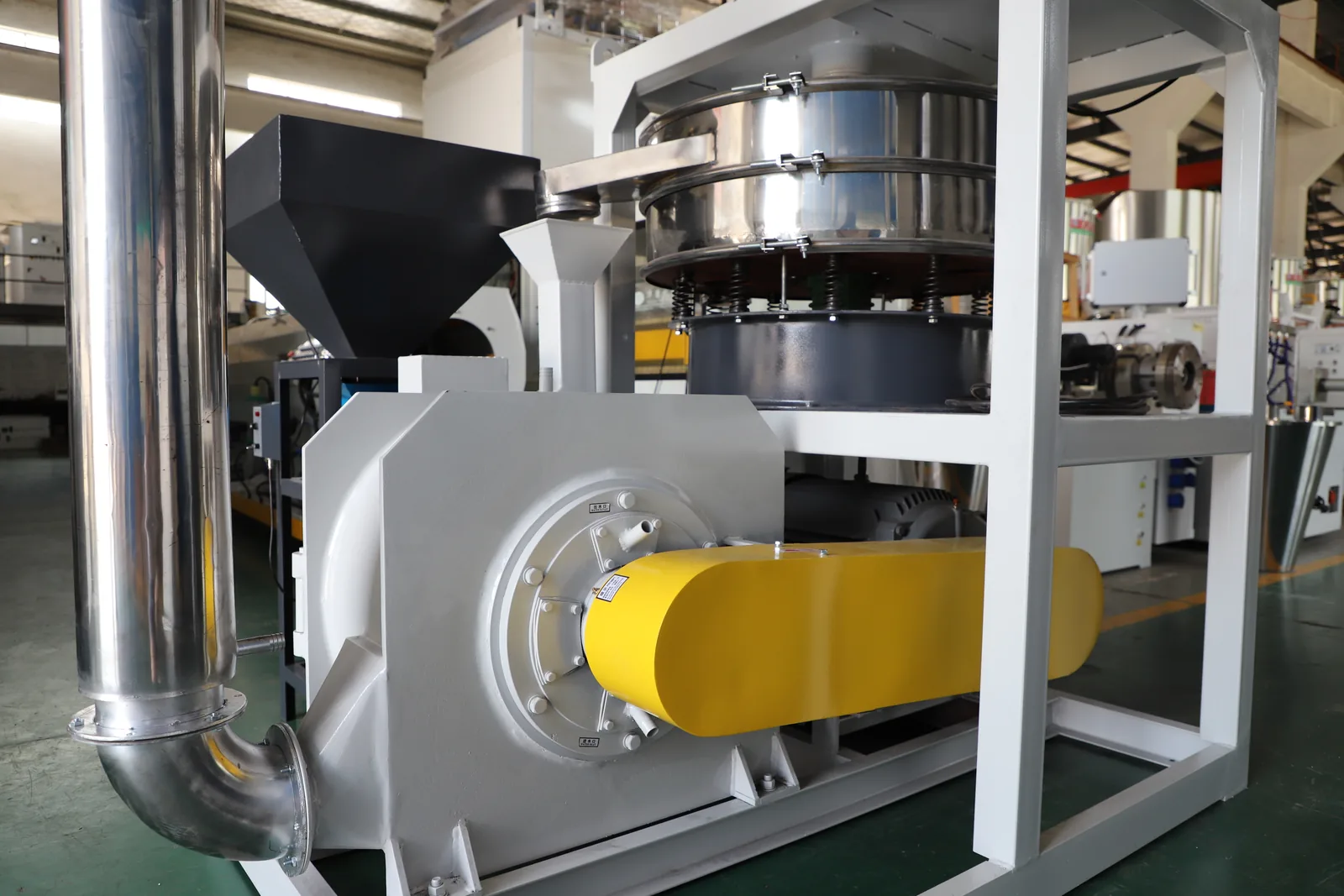

Main motor and air duct detail of plastic pulverizer machine
03 Main motor and air duct

Drive and air-flow section supports wind cooling and powder conveying.

Grinding disc detail for PE PP PVC plastic pulverizer
04 Grinding disc / blade section

High-wear disc or blade configuration matched to PVC, PP or PE material.

Configuration highlights

Water-cycle and wind cooling for heat-sensitive material

Application reference: PVC powder grinding.

Sealed milling process with reduced dust leakage

Application reference: PP PE pulverizing.

Abrasion-resistant steel blades and SKD-11 grinding discs

Application reference: Plastic recycling powder preparation.

Simple grinding-gap adjustment for 10-120 mesh powder

Application reference: Profile and pipe scrap regrinding.

Automatic feeding, material sorting and collection

Application reference: Compounding material preparation.

Easy door-opening maintenance and cleaning

Application reference: Heat-sensitive plastic processing.

Technical parameters

Product type PE PP PVC Plastic Pulverizer Machine
Application PVC / PP / PE plastic powder processing
Powder fineness 10-120 mesh
Capacity 80-800 kg/h
Cooling Water cycle and wind cooling
Blade / disc material High Chromium Alloy / SKD-11
SeriesModelRotary blade qtyFixed blade qtyDisc diameterMain motorBlade / disc materialCapacity
PVC pulverizerSWF4001810-30kWHigh Chromium Alloy80-150 kg/h
PVC pulverizerSWF5002412-37kWHigh Chromium Alloy200-300 kg/h
PVC pulverizerSWF6002815-45kWHigh Chromium Alloy300-400 kg/h
PVC pulverizerSWF8004020-75kWHigh Chromium Alloy500-800 kg/h
PP PE pulverizerMF400--400mm30kWSKD-11100 kg/h
PP PE pulverizerMF500--500mm45kWSKD-11200 kg/h
PP PE pulverizerMF600--600mm55kWSKD-11300 kg/h
PP PE pulverizerMF800--800mm75/90kWSKD-11500 kg/h

Product gallery

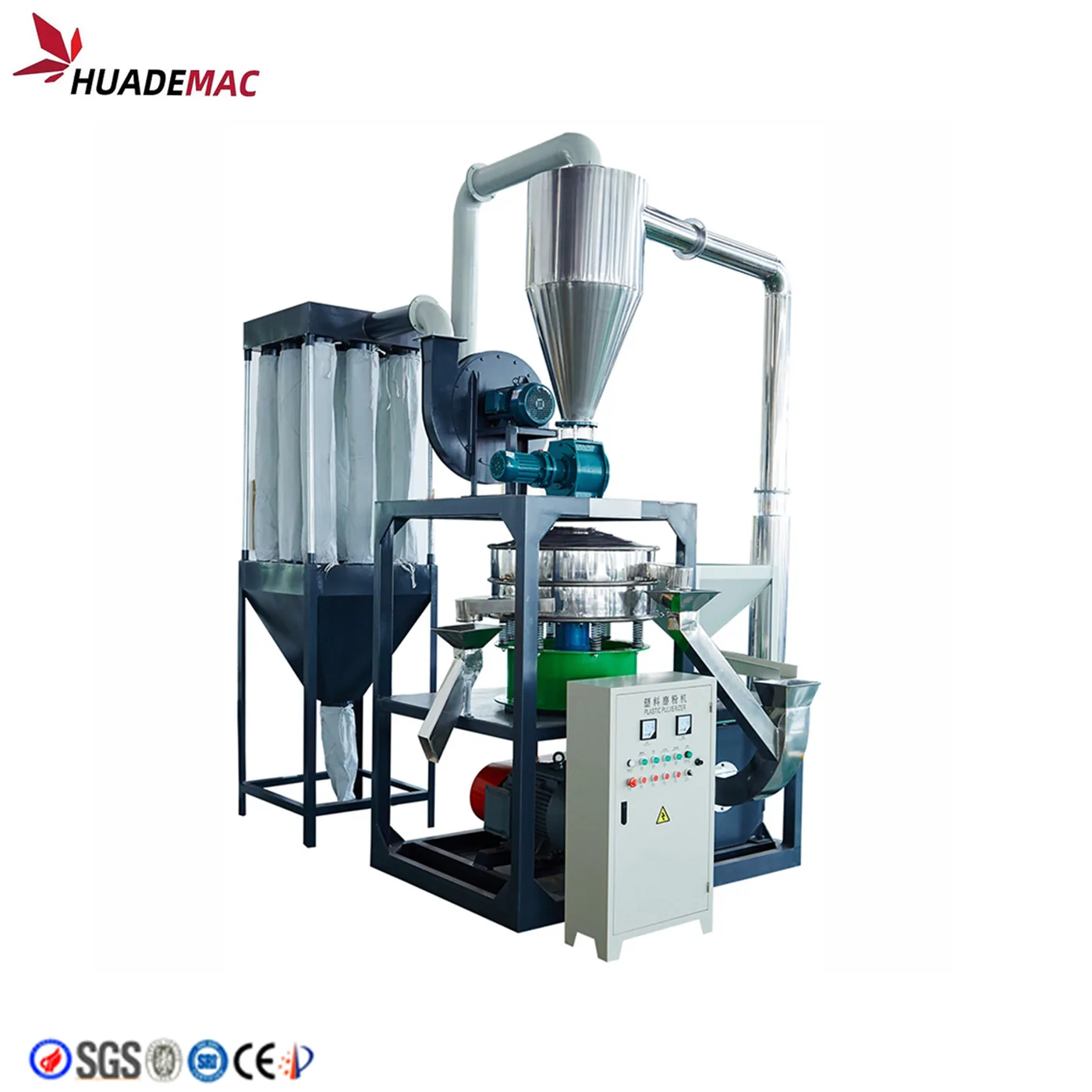

Complete PE PP PVC plastic pulverizer machine with cyclone collector and control cabinet
Complete pulverizer system with cyclone, dust collection and control cabinet.

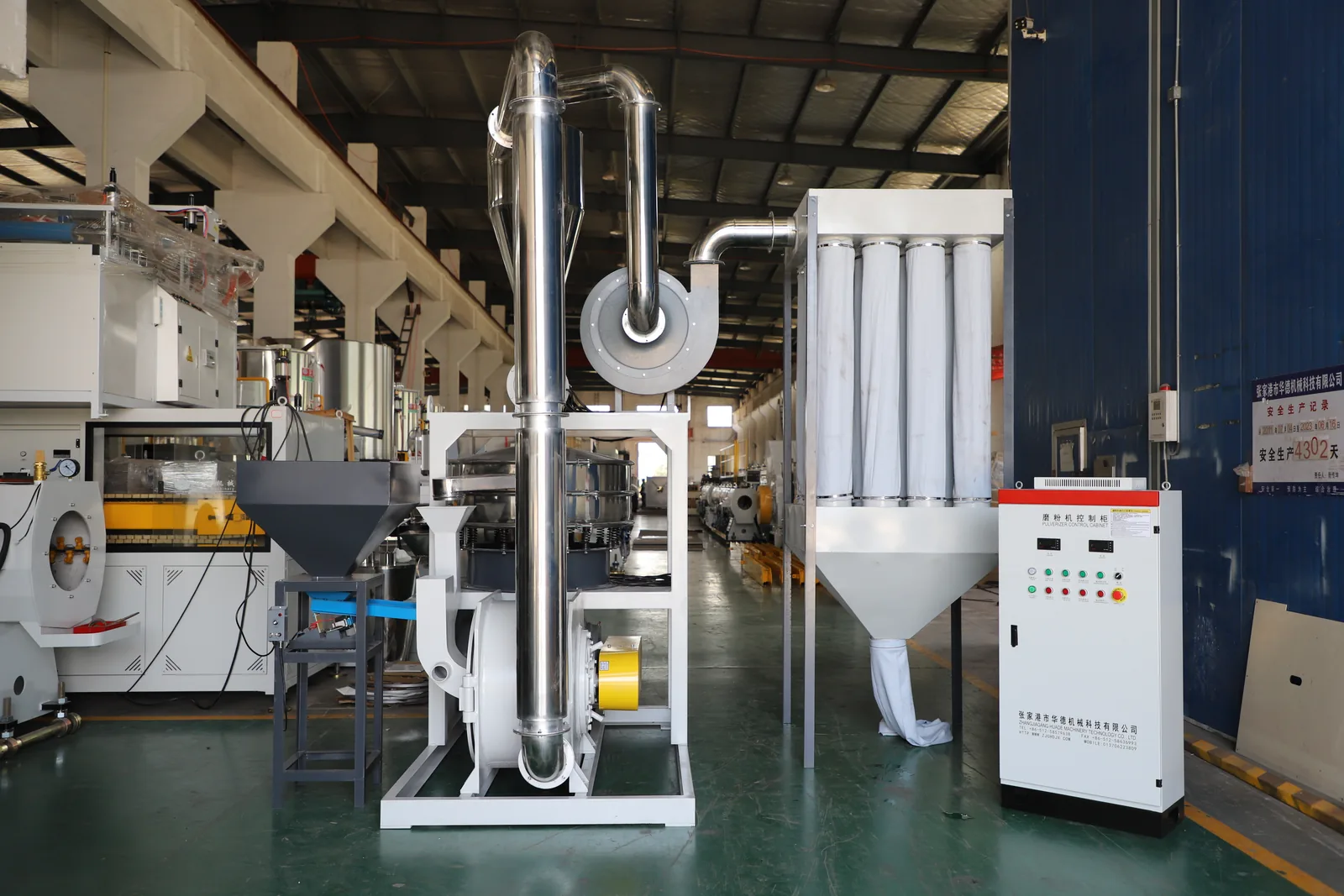

PE PP PVC plastic pulverizer system installed in factory workshop
Workshop overview showing the grinding, conveying and collection system.
Stainless milling chamber of plastic pulverizer machine
Milling chamber detail for sealed plastic powder grinding.
Plastic pulverizer main motor and air duct detail
Main motor and air duct for wind cooling and powder conveying.

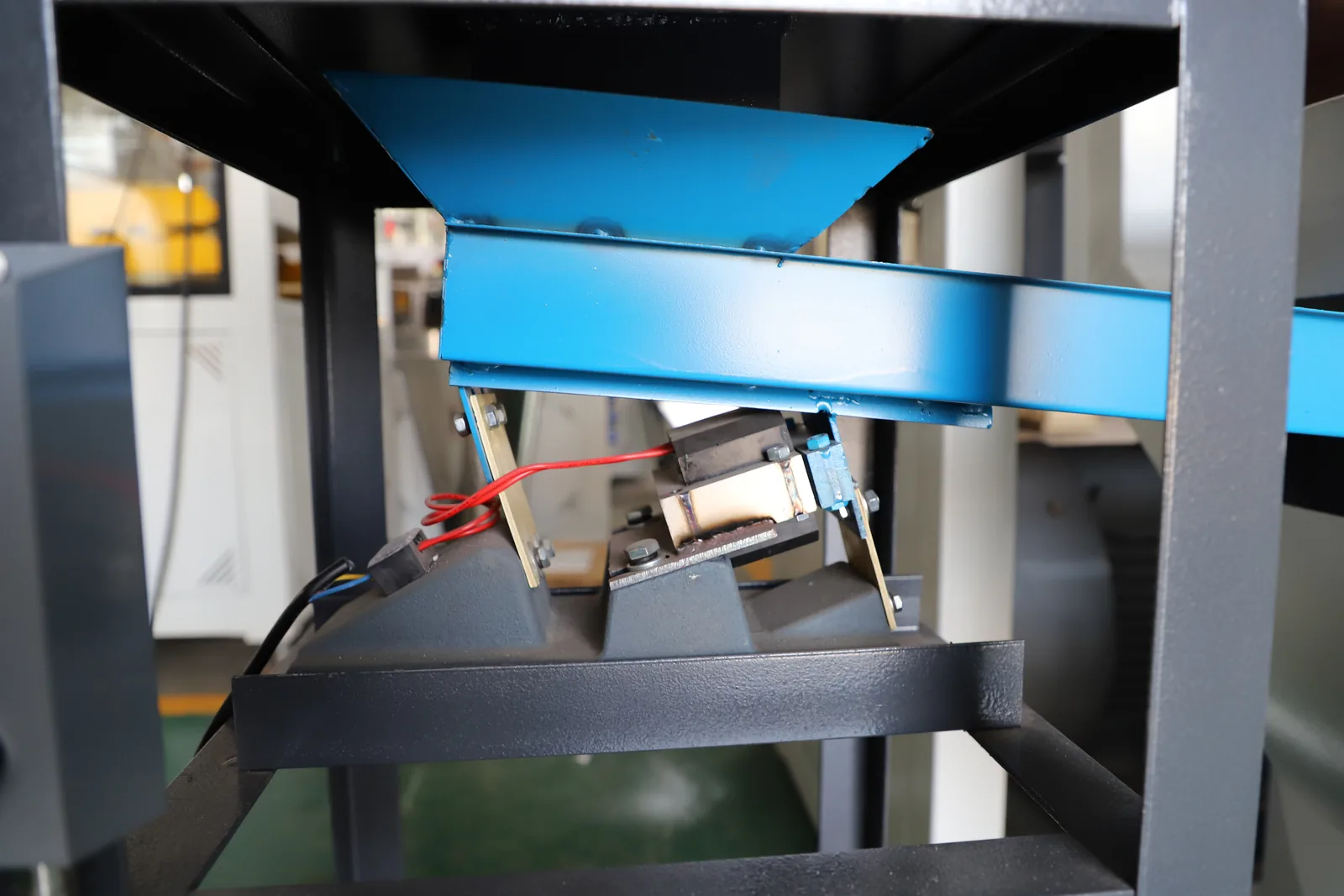

Vibrating feeder and discharge section of plastic pulverizer machine
Vibrating feeder / discharge detail for controlled material handling.

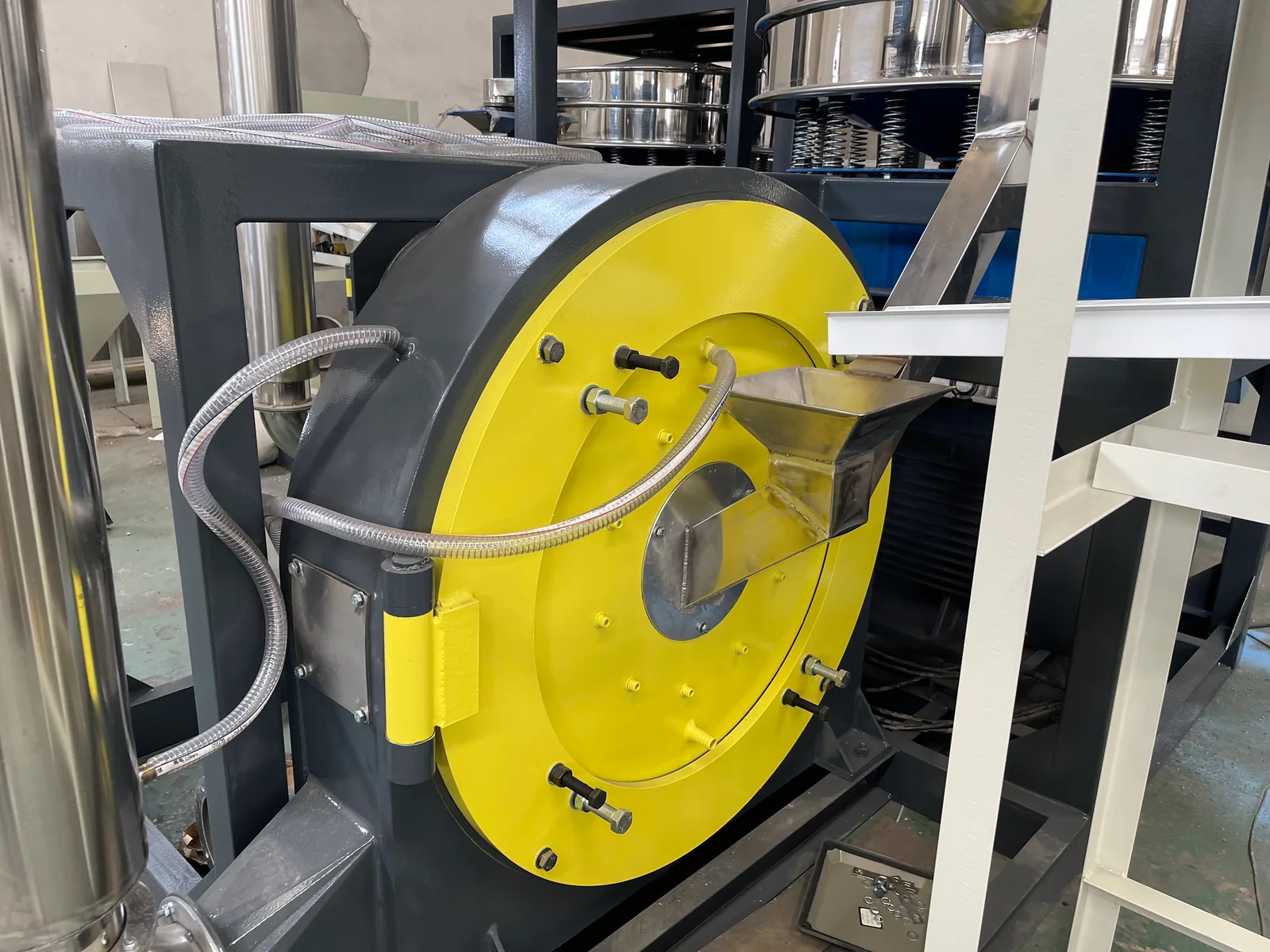

Side detail of pulverizer grinding chamber and drive housing
Side view of the grinding chamber, drive housing and material inlet.

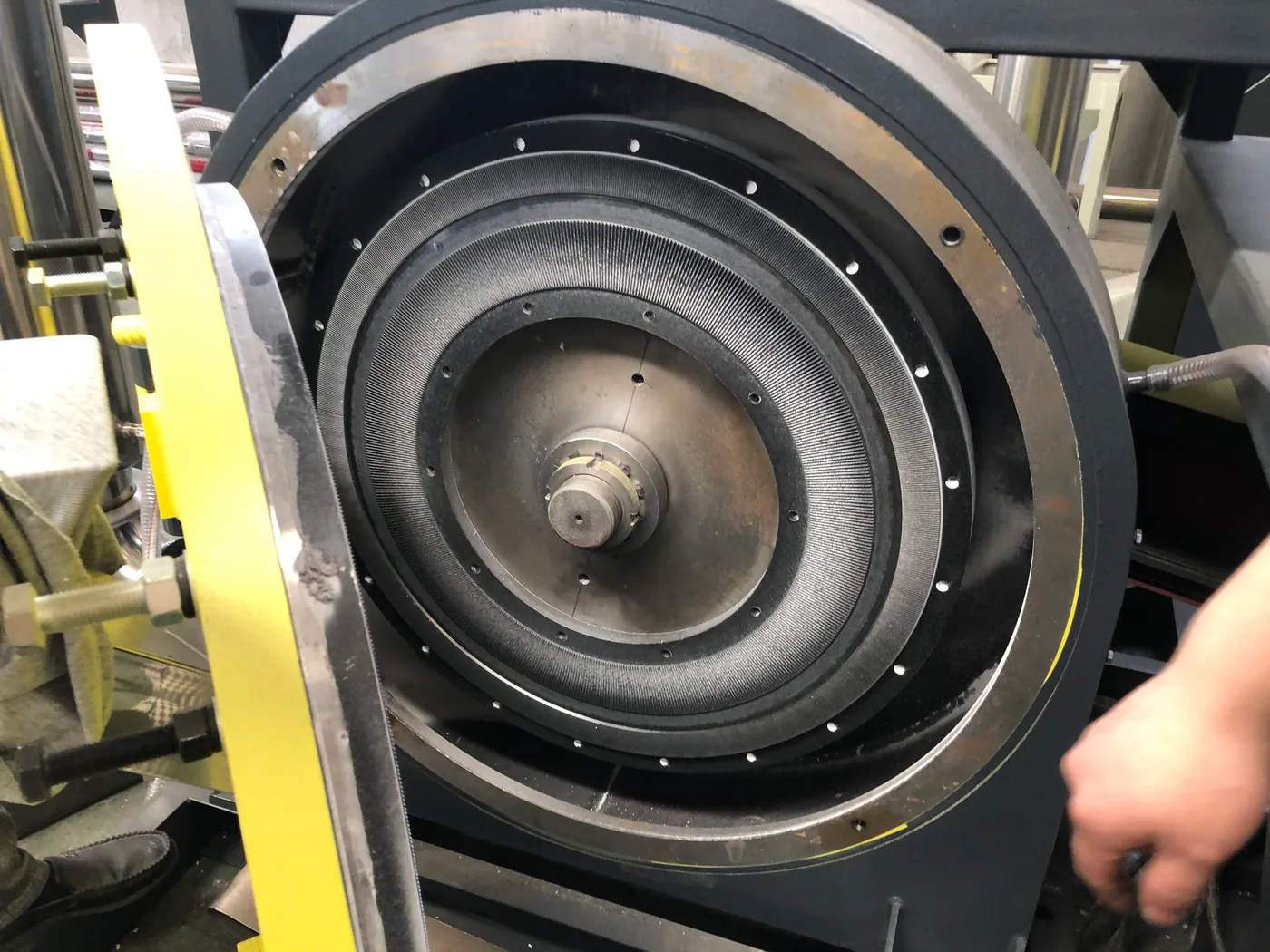

Grinding disc detail for PE PP PVC plastic pulverizer machine
Grinding disc detail for PP / PE pulverizer configurations.

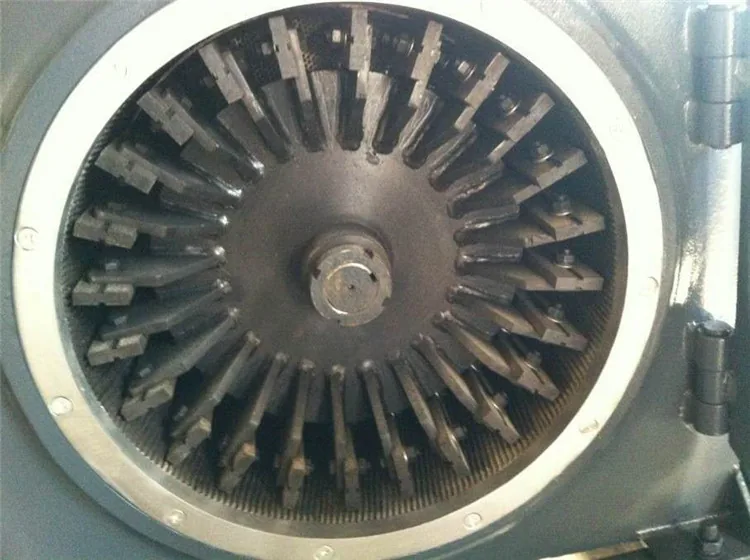

Open grinding chamber with rotary blades inside plastic pulverizer
Open grinding chamber showing rotary blade layout.

Customer references

PVC window profile extrusion line customer project in Belize
Belize

PVC window profile line

630mm PVC pipe extrusion line customer inspection in Egypt
Egypt

Ø630mm PVC pipe line

PVC pelletizing line customer project in Ethiopia
Ethiopia

PVC pelletizing line

200mm PVC pipe extrusion line customer project in Kenya
Kenya

Ø200mm PVC pipe line

Technical resources

Spec sheet download

Request the pulverizer specification with SWF and MF model tables, 10-120 mesh powder fineness, water / wind cooling, blade or disc material and 80-800 kg/h reference capacity.

Request Spec Sheet
Project configuration

Send material type, scrap shape, target mesh, moisture condition, required capacity and collection method. HUADE can match PVC blade type or PP / PE disc type pulverizer before quotation.

Get Configuration
FAQ
What materials can this pulverizer process?

It is configured for PVC, PE and PP grinding. PVC models use rotary and fixed blades, while PP/PE models use disc diameter and disc material matched to the target output.

How is heat controlled during pulverizing?

The machine uses water cycle and wind cooling to reduce heat buildup, which is important for heat-sensitive plastics and stable powder quality.

How do I select SWF and MF pulverizer models?

SWF models are used for PVC pulverizing with blade quantities and 80-800kg/h capacity; MF models are used for PP/PE with 400-800mm disc diameter and up to 500kg/h capacity.
