Matched line setup
High-speed fiber laser marking machine for HDPE, PVC and other plastic pipe coding. Available from 20W to 100W, it.
Auxiliary Machine
Laser Printer
High-speed fiber laser marking machine for HDPE, PVC and other plastic pipe coding. Available from 20W to 100W, it supports production date, batch code, serial number, logo, barcode and 2D code marking with air cooling, red-light preview and easy software operation.
20-100W laser power Diameter range
70,000-100,000h source life Max Output
Overview
Application range
Pipe marking, Profile marking, Production date and batch coding, Serial number marking
Range and output
20-100W laser power diameter range with 70,000-100,000h source life output reference.
Core configuration
Laser marking head, Lifting column, Controller, Conveyor integration
Machine video
Watch machine video
Applications
Pipe markingProfile markingProduction date and batch codingSerial number markingLogo and barcode markingOnline extrusion line coding
Line composition

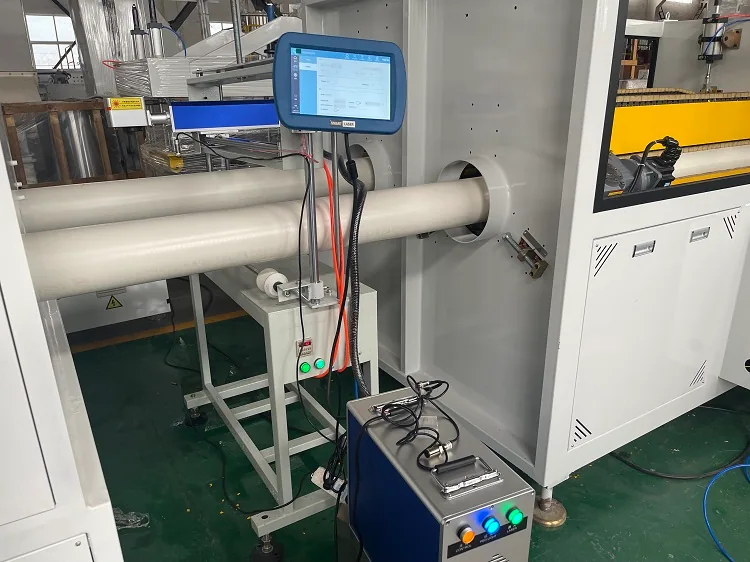

01 Laser marking head
Positions the laser beam at the pipe surface for date, batch and logo marking.

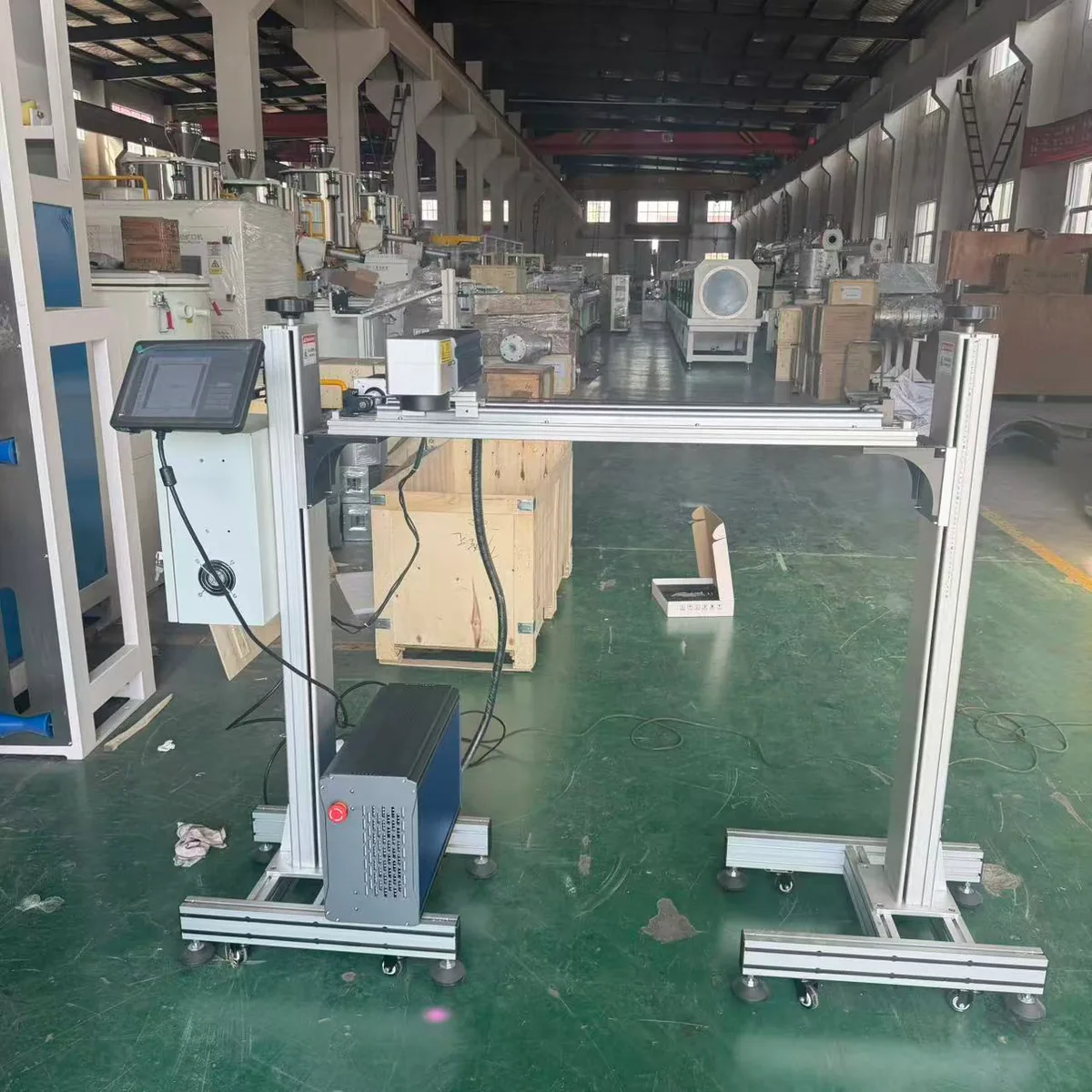

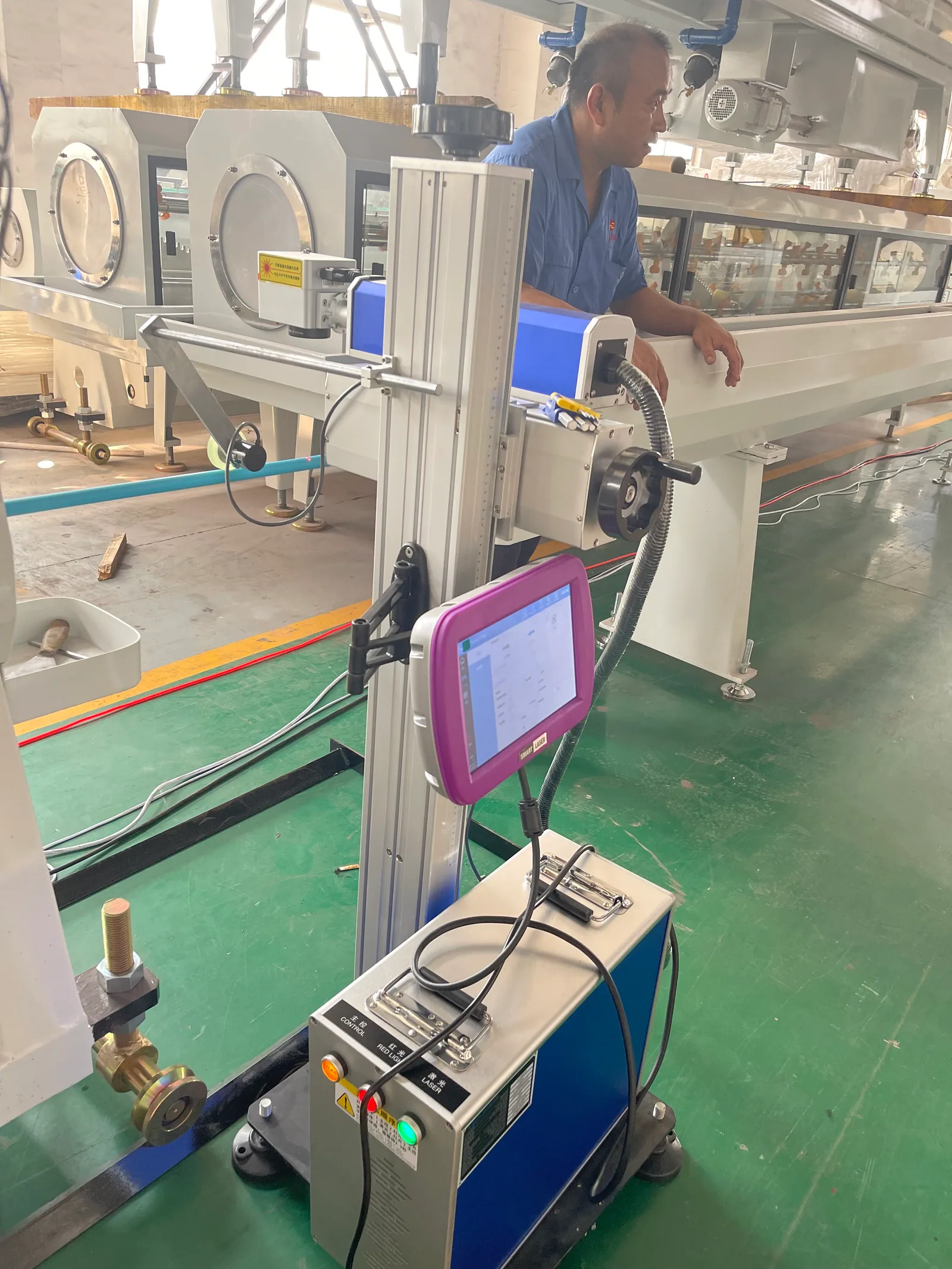

02 Online line integration
Matches pipe extrusion lines for continuous online marking after sizing and cooling.

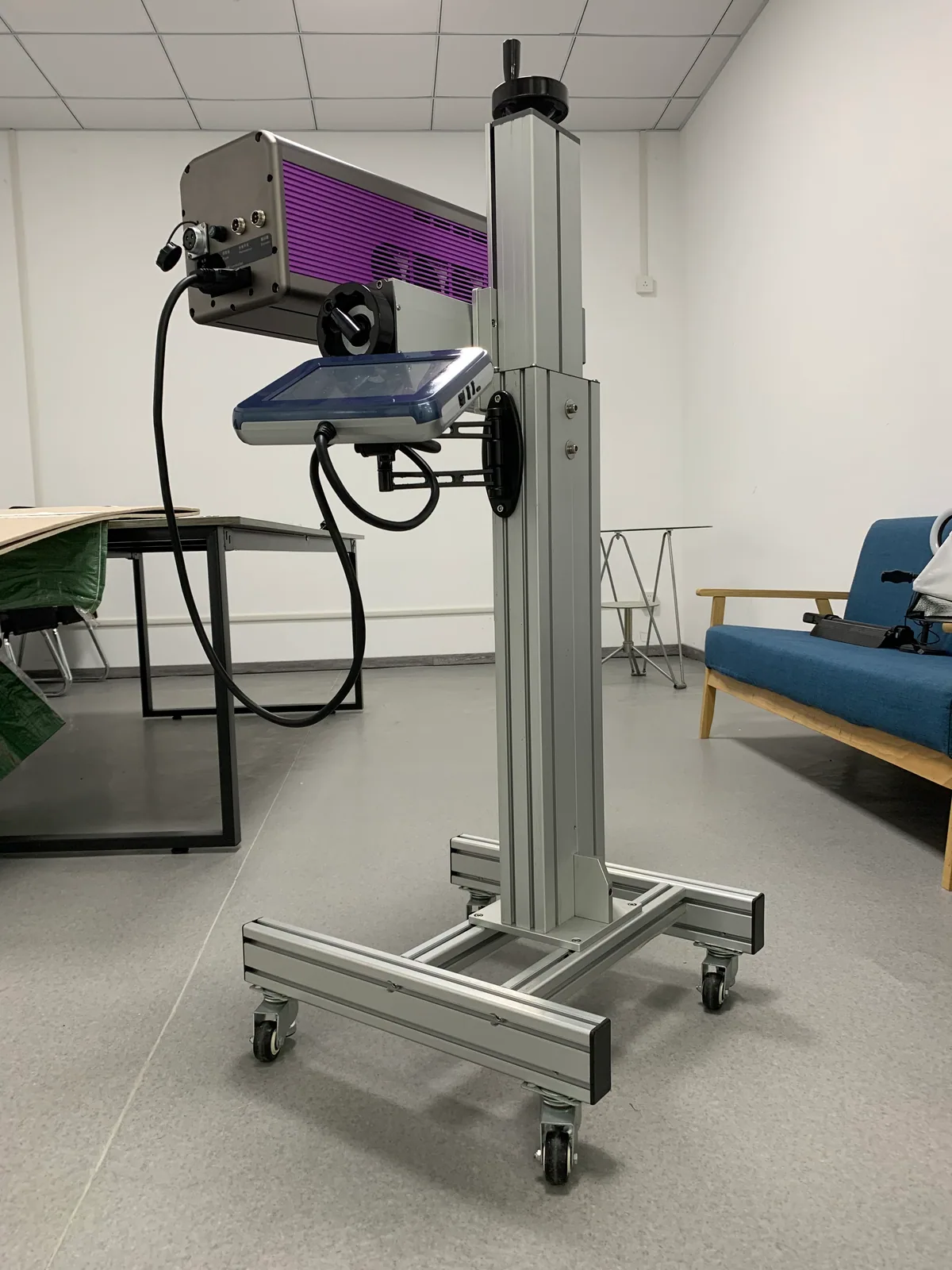

03 Adjustable stand
Allows the laser head height to be adjusted for different pipe sizes and layouts.

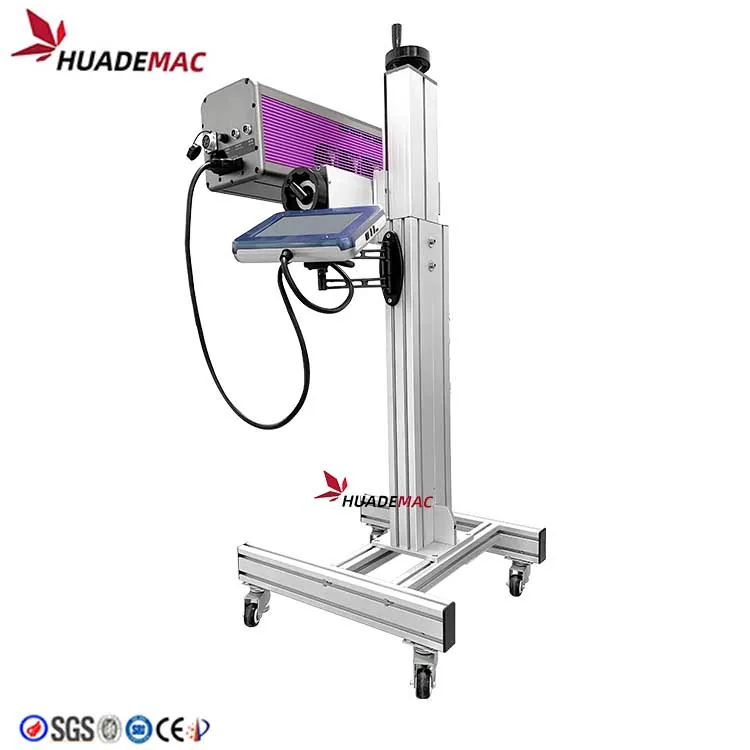

04 Product configuration
Shows the marking head, lifting column, controller wiring and mobile frame.
Configuration highlights
Fiber laser source options include German IPG or China fiber laser configurations.
Application reference: Pipe marking.
High-speed galvo scanner supports precise online marking on moving pipe.
Application reference: Profile marking.
Air cooling reduces machine size, power consumption and maintenance needs.
Application reference: Production date and batch coding.
Red-light preview shows marking position before coding starts.
Application reference: Serial number marking.
Up/down lifting column adjusts the laser head for different pipe heights.
Application reference: Logo and barcode marking.
Optional rotary attachment supports inside and outside ring marking.
Application reference: Online extrusion line coding.
High temperature resistance and fine marking quality support durable industrial coding.
Matched according to material, output and project configuration.
Software supports automatic serialization, date coding, barcode and 2D code marking.
Matched according to material, output and project configuration.
Technical parameters
Product type Fiber laser marking machine
Application HDPE / PVC pipe marking
Laser power 20W / 30W / 50W / 100W
Cooling Air cooling
File formats PLT / PCX / AI / DXF / BMP / JPG
| Model | HD2020 | HD2030 | HD2050 | HD2100 |
|---|---|---|---|---|
| Laser Power | 20W | 30W | 50W | 100W |
| Laser Type | Fiber laser Q-switching | Fiber laser Q-switching | Fiber laser Q-switching | Fiber laser Q-switching |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
Which laser power should I choose for pipe marking?
The HD2020, HD2030, HD2050 and HD2100 models provide 20W, 30W, 50W and 100W power options; selection depends on marking depth, speed, material and code complexity.
Can the laser printer work online with an extrusion line?
Yes. The marking head and lifting stand can be positioned beside the moving pipe after cooling and sizing, with red-light preview used to align the marking position.
What coding content and file formats are supported?
It supports date codes, serial numbers, symbols, logos, barcodes and 2D codes, with common files such as PLT, PCX, AI, DXF, BMP and JPG.
