PVC Pipe Production Line
CPVC Pipe Extrusion Line
Upgrade your pipe manufacturing with our CPVC pipe extrusion line. Supports Φ20–Φ630mm diameters, multi-pipe output, and high energy efficiency. Ideal for plumbing, cable protection, and construction. Features twin screw extruder, vacuum tank, cutter, and stacker.
16-63mm Diameter range
150kg/h Max Output
Overview
Application range
PVC electrical conduit, Water supply pipe, Drainage pipe, Construction pipe production
Range and output
16-63mm diameter range with 150kg/h output reference.
Core configuration
Extruder, Mould / die head, Calibration unit, Cooling tank
Machine video
Watch machine video
Applications
PVC electrical conduitWater supply pipeDrainage pipeConstruction pipe production
Line composition

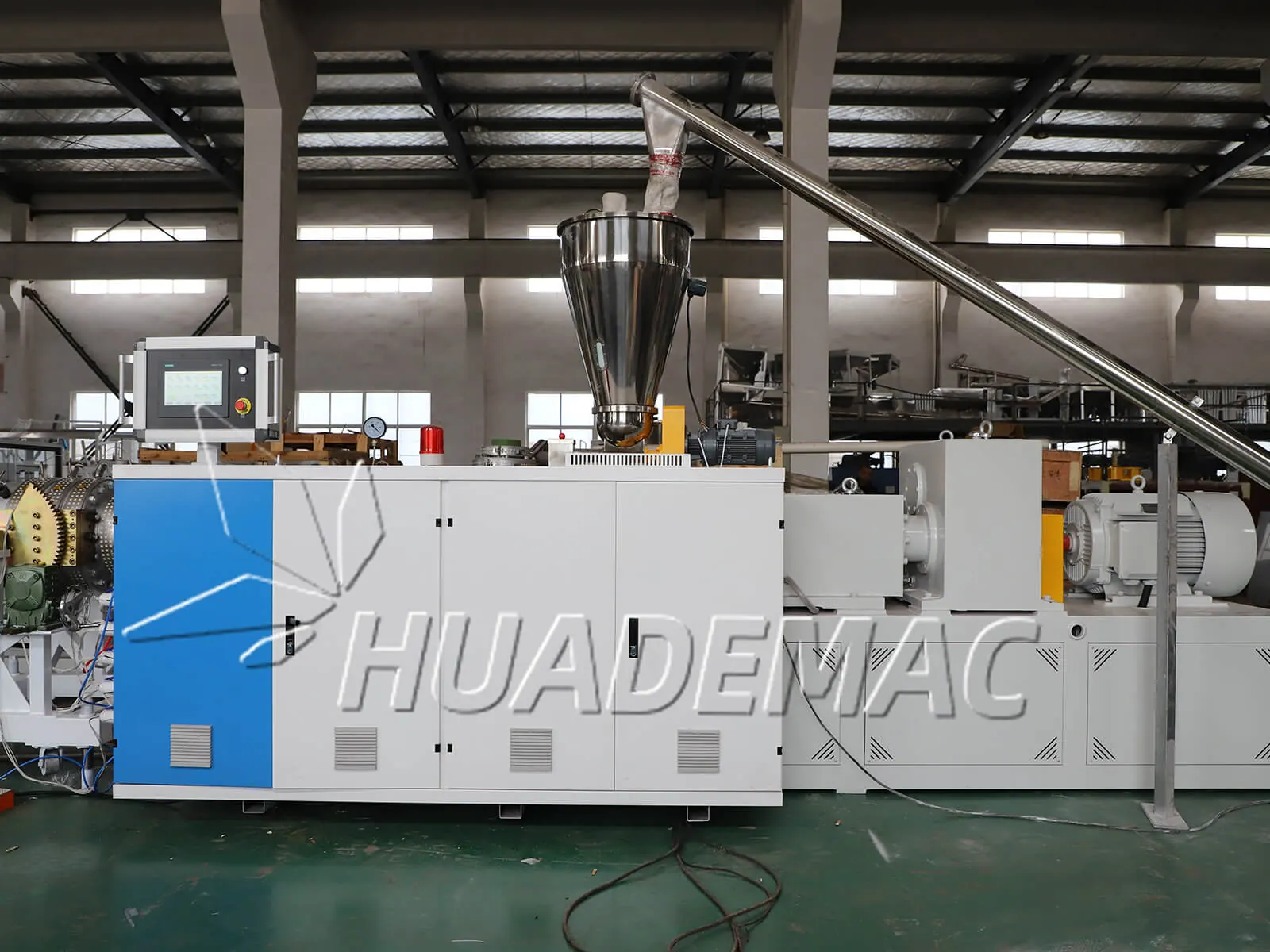

1 Extruder

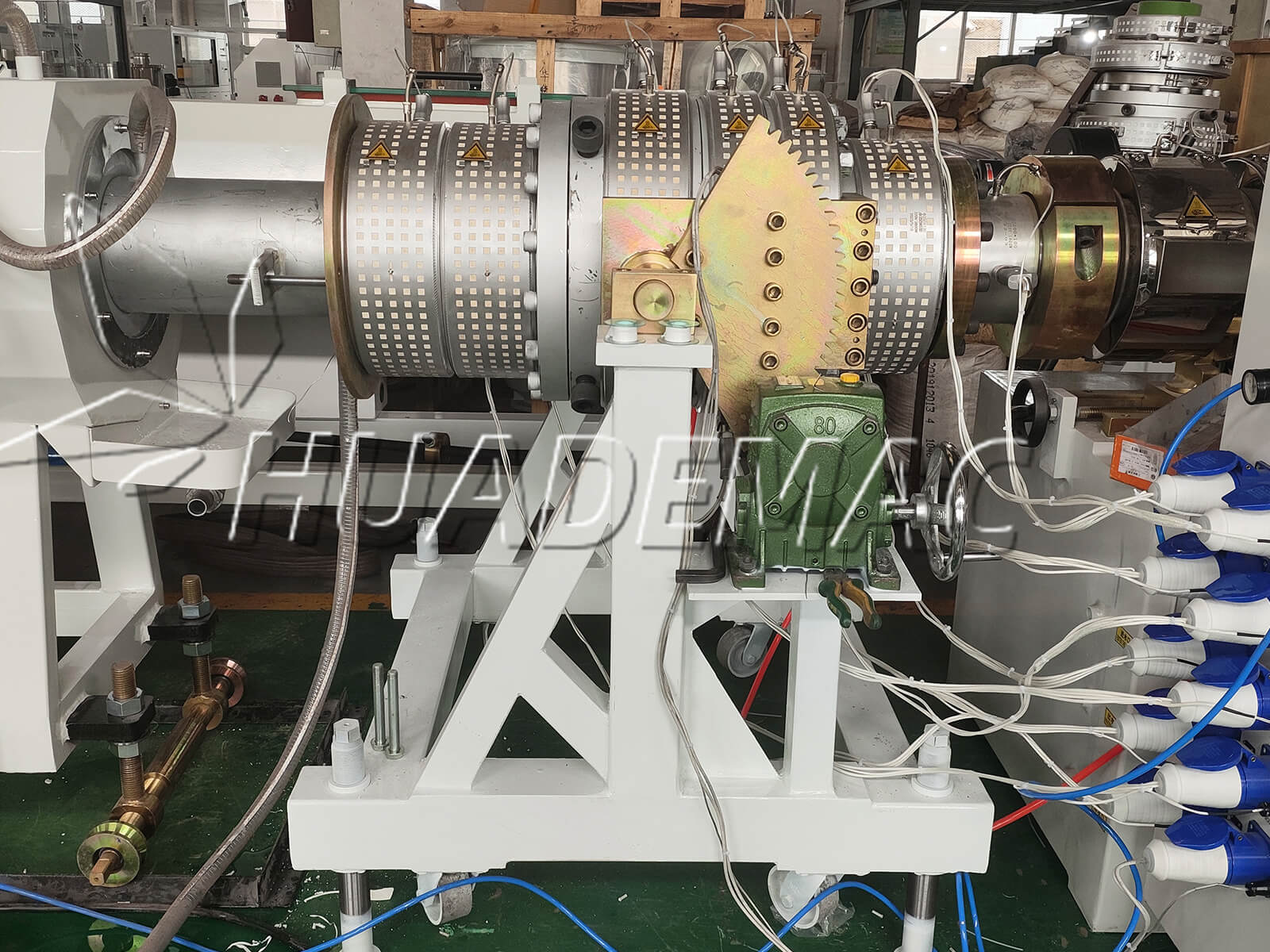

2 Mould / die head
3 Calibration unit

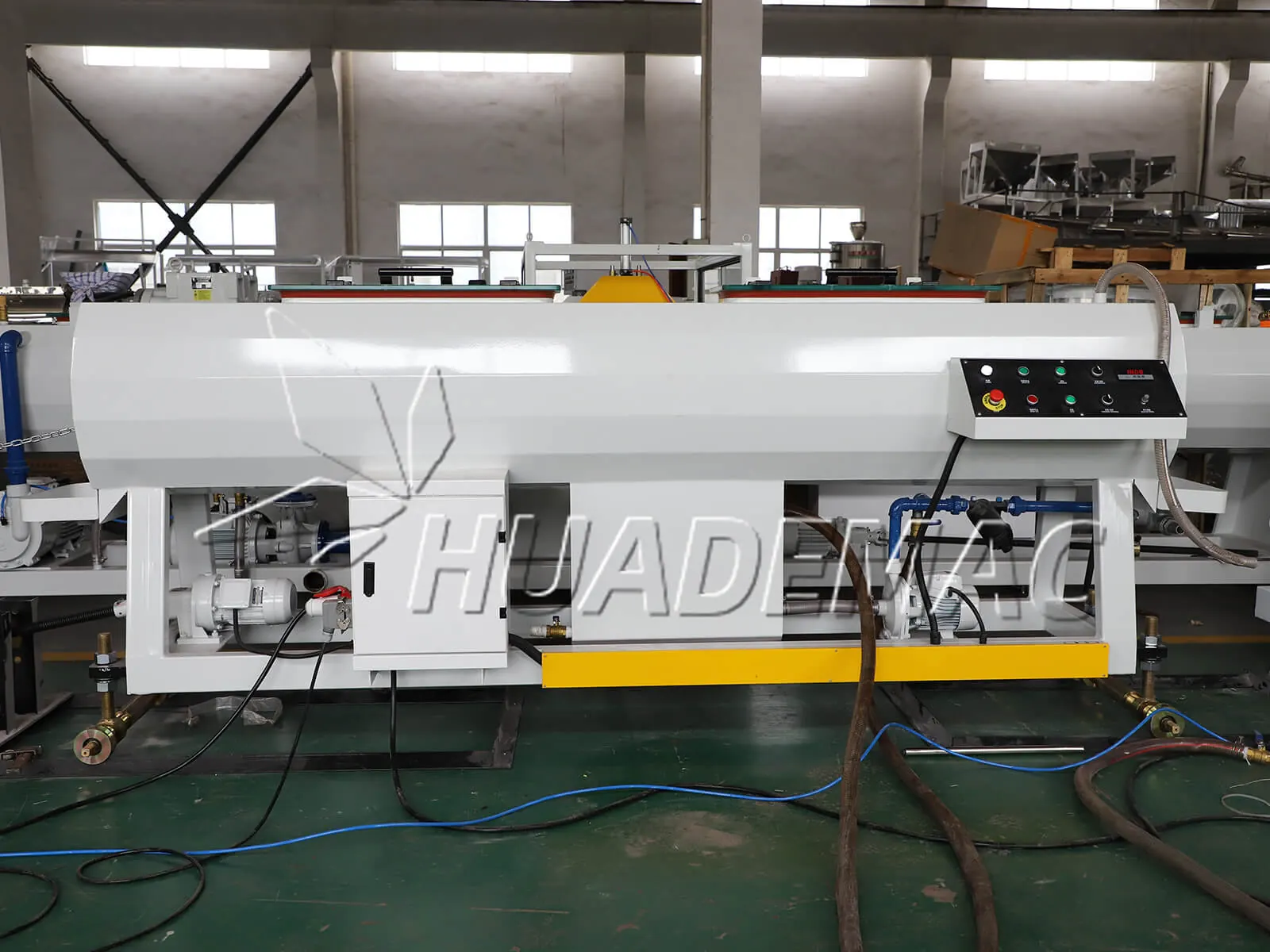

4 Cooling tank

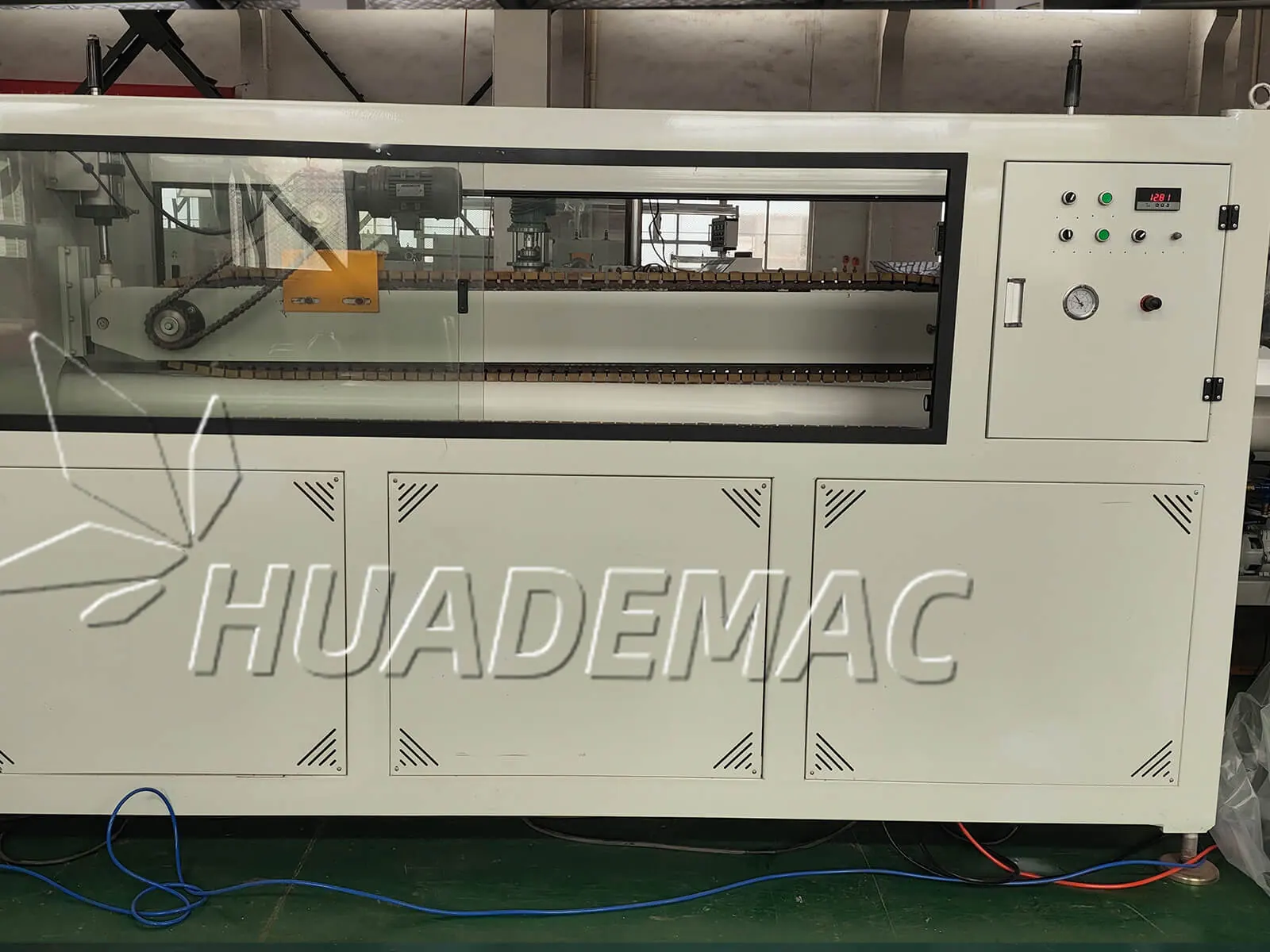

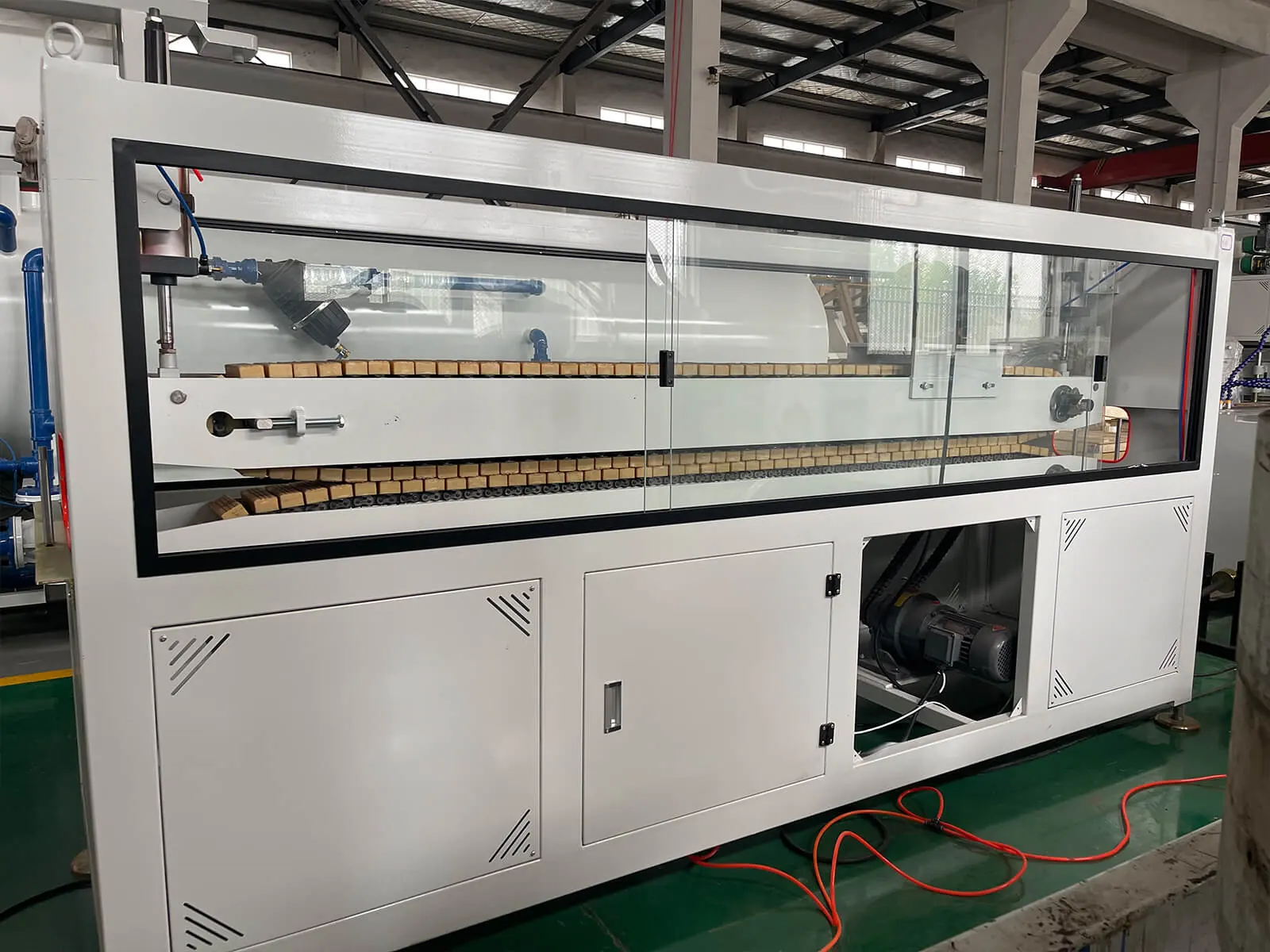

5 Haul-off

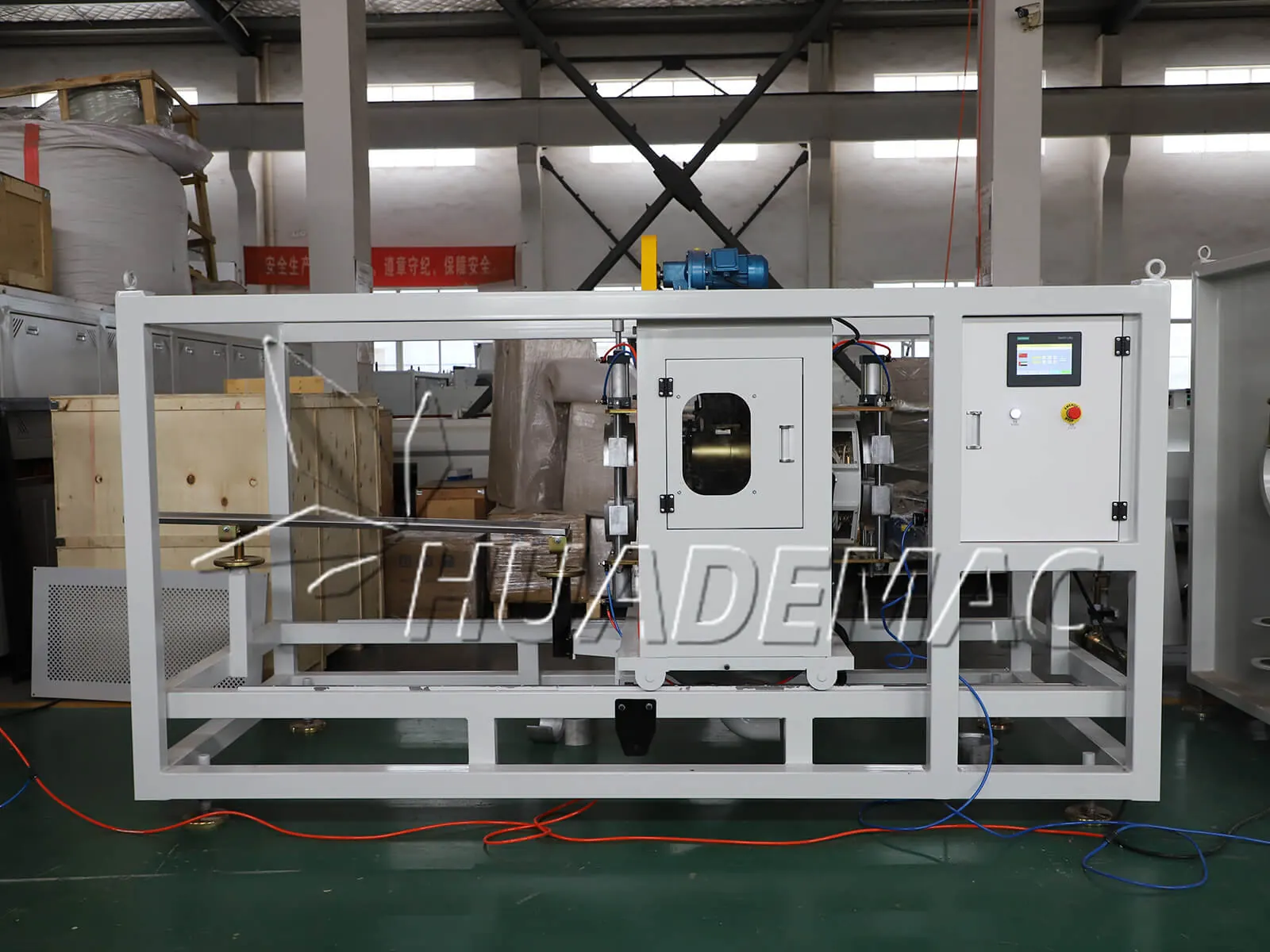

6 Cutter

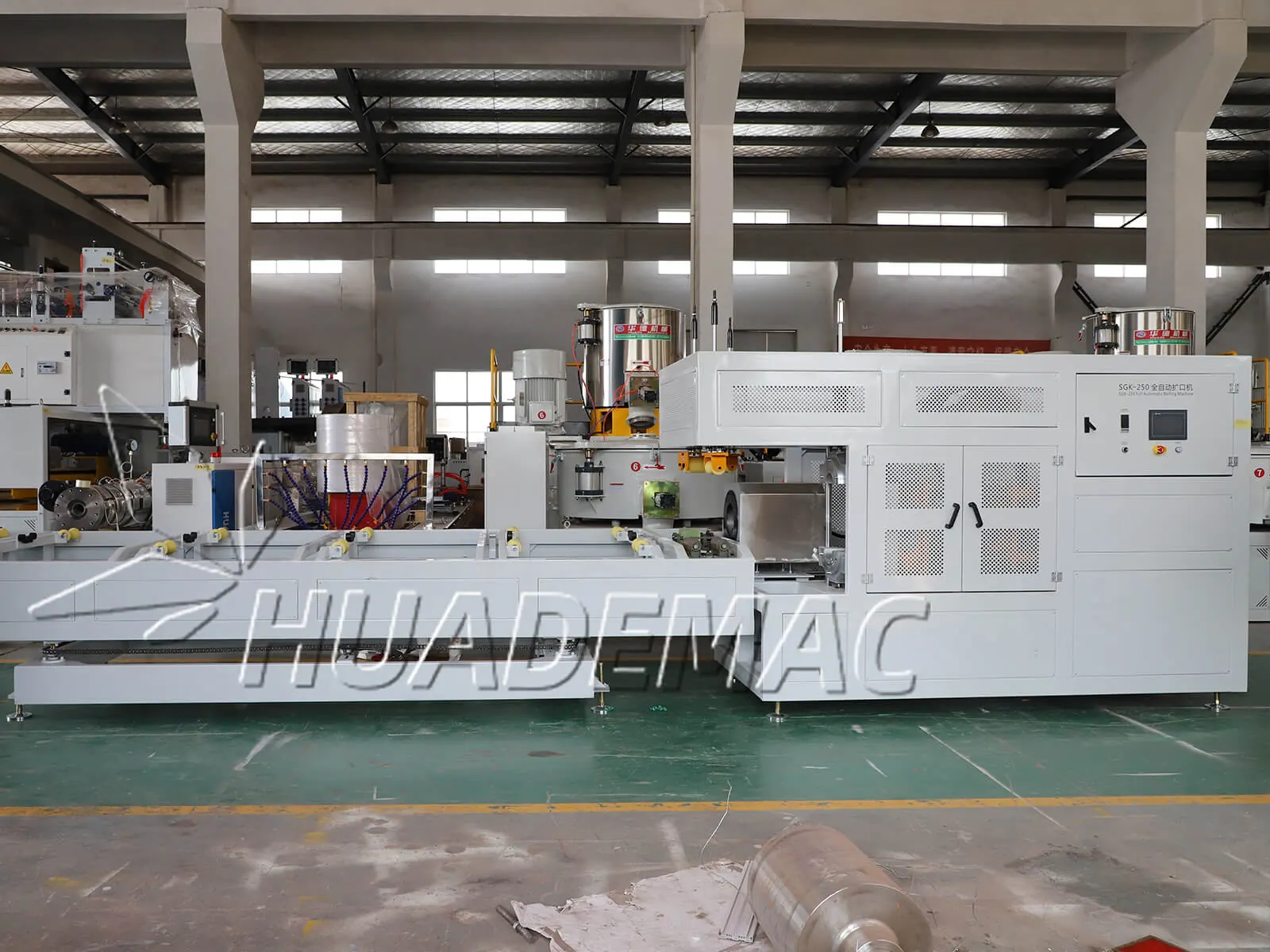

7 Stacker
Configuration highlights
Production layout can be configured around target material and output.
Application reference: PVC electrical conduit.
Core machine modules are selected according to final product requirements.
Application reference: Water supply pipe.
Suitable for integration with upstream feeding and downstream handling equipment.
Application reference: Drainage pipe.
Technical proposal available according to pipe or profile specification.
Application reference: Construction pipe production.
Technical parameters
Product type CPVC Pipe Extrusion Line
Application PVC electrical conduit / Water supply pipe
Range 16-63mm
Output 150kg/h
| Model/Item | Pipe range | Extruder | Max output | Total power |
|---|---|---|---|---|
| PVC-63 | 16-63mm | SJSZ51/105 | 150kg/h | 60kw |
| PVC-110 | 50-110mm | SJSZ55/110 | 180kg/h | 70kw |
| PVC-160 | 63-160mm | SJSZ65/132 | 300kg/h | 90kw |
| PVC-250 | 110-250mm | SJSZ80/156 | 400kg/h | 120kw |
| PVC-315 | 160-315mm | SJSZ80/156 | 400kg/h | 160kw |
| PVC-450 | 250-450mm | SJSZ92/188 | 700kg/h | 200kw |
| PVC-630 | 315-630mm | SJSZ92/188 | 700kg/h | 230kw |
Product gallery
Customer references
Belize
PVC window profile line
Egypt
Ø630mm PVC pipe line
Ethiopia
PVC pelletizing line
Kenya
Ø200mm PVC pipe line
Technical resources
Spec sheet download
Available on request with the technical proposal and machine configuration details.
Request details Project reference
Available on request with the technical proposal and machine configuration details.
Request details FAQ
What applications is this pvc pipe production line used for?
CPVC Pipe Extrusion Line is commonly used for pvc electrical conduit, water supply pipe, drainage pipe, construction pipe production.
What is included in the production line?
The line includes extruder, mould / die head, calibration unit, cooling tank, haul-off, cutter.
What range and output can be configured?
Reference configuration covers 16-63mm with 150kg/h output. Final layout is matched to pipe material, diameter and factory requirements.
